$479.00$749.00
DBX-530

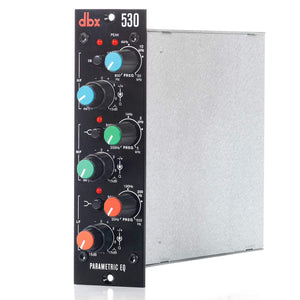

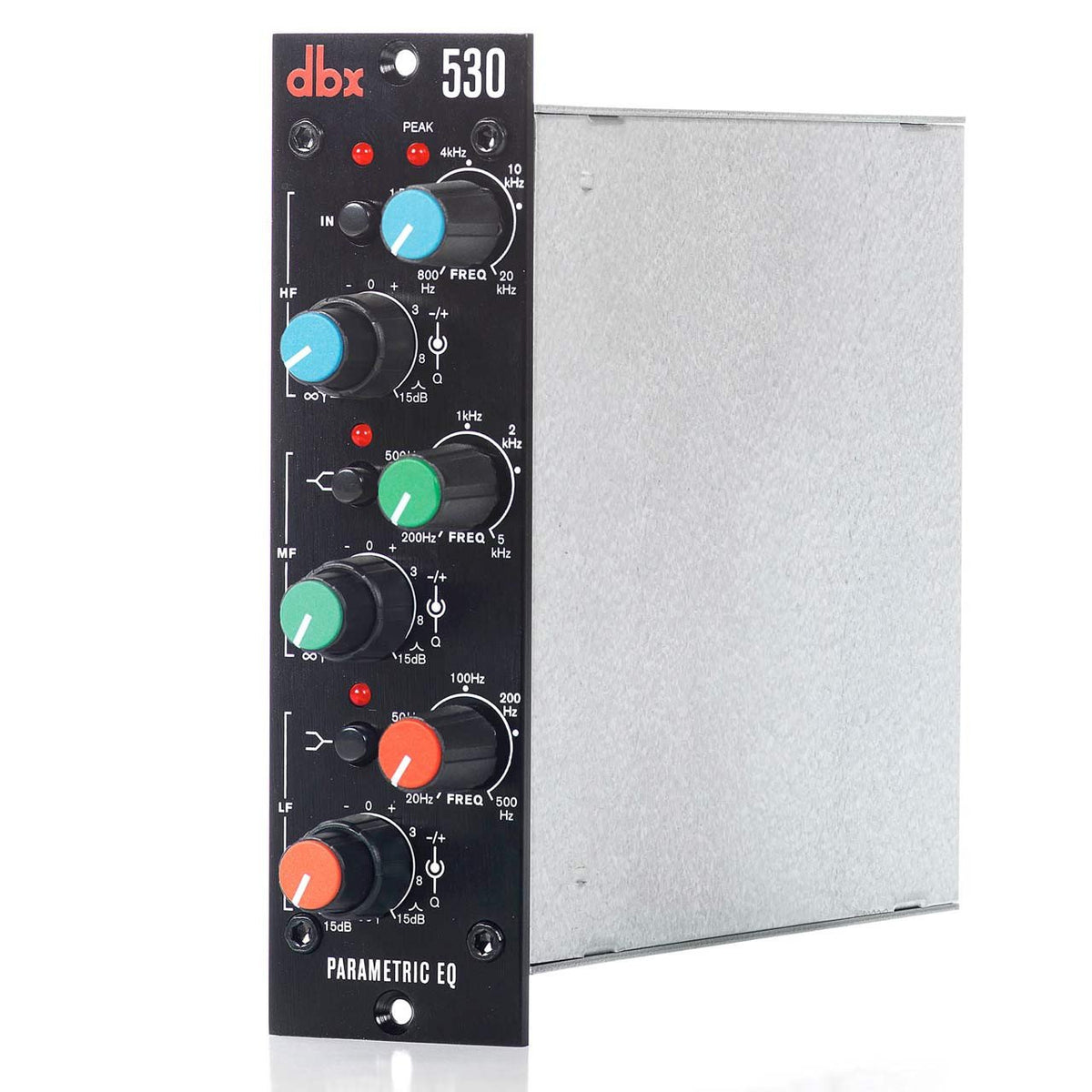

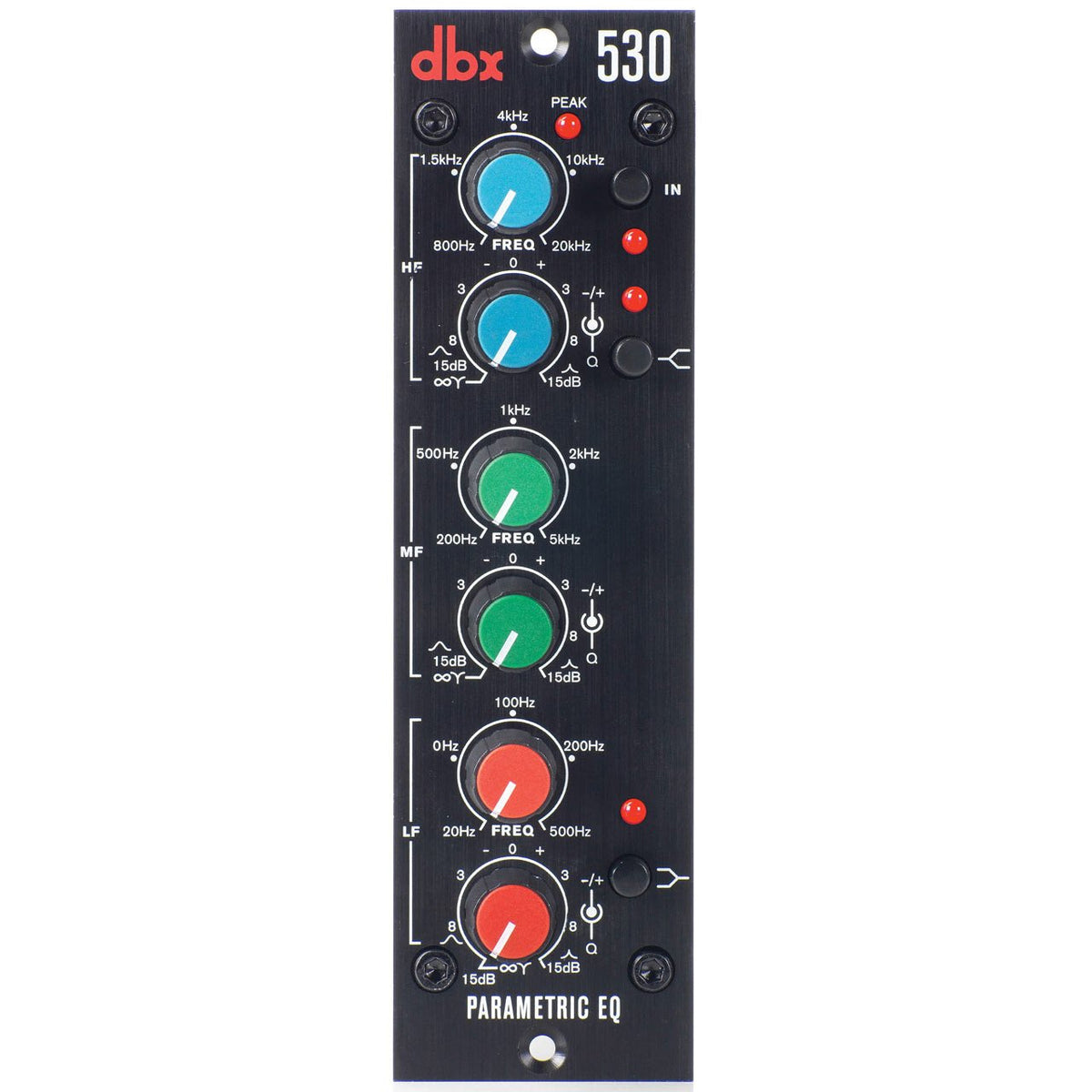

DBX 530 Parametric EQ - 500 Series
The DBX 530 is a 500 series EQ module modelled on the legendary DBX 905 EQ. The 530 gives you complete parametric functionality on all three filter bands. Each band gives you 15dB of boost or cut, has bell or peak curves and offers a wide overlap of frequencies between bands. Both the high and low bands have a shelf button too. The DBX 530 is an extremely versatile fully parametric EQ for the 500 series format, at an extremely competitive price.
Type: 500 Series
-
DBX 530 Features:
The DBX 530's overlapping bands each offer control of frequency bandwidth (Q) and up to 15dB of reciprocal cut or boost to provide exact, complimentary filter action for the most demanding equalization needs. For problem situations requiring the removal of spurious signals, each of the bands can be independently switched into “infinite notch” mode without affecting the operation of others. In situations where a shelving equalizer will produce better results than a peaking one, the 530’s high and low bands can be independently switched from peaking to shelving operation. You can also make instant affected/bypassed comparisons using the 530's “On” switch.
Load up your 500 Series rack with DBX 530 Parametric EQs and cut your way through mixes like an audio surgeon!
Feature Summary:
Based on the classic dbx 905
3-band parametric EQ
Selectable bell or shelf type filters on low and high frequency bands
Adjustable Q on each band -
dbx 530 Tech Specs:
Rack System Compatibility
500 Series Compatible Power-frame
Rack Space
1 Slot
Dimensions (H x W x D)
5.25” x 1.5” x 6” (13.34 cm x 3.81 cm x 15.24 cm)
Weight
1.3 lbs (0.59 kg)
Shipping Weight
1.7 lbs (0.77kg)* Requires a compatible 500 series rack unit to operate. Sold separately.
