PRE-CENTRALSTATION

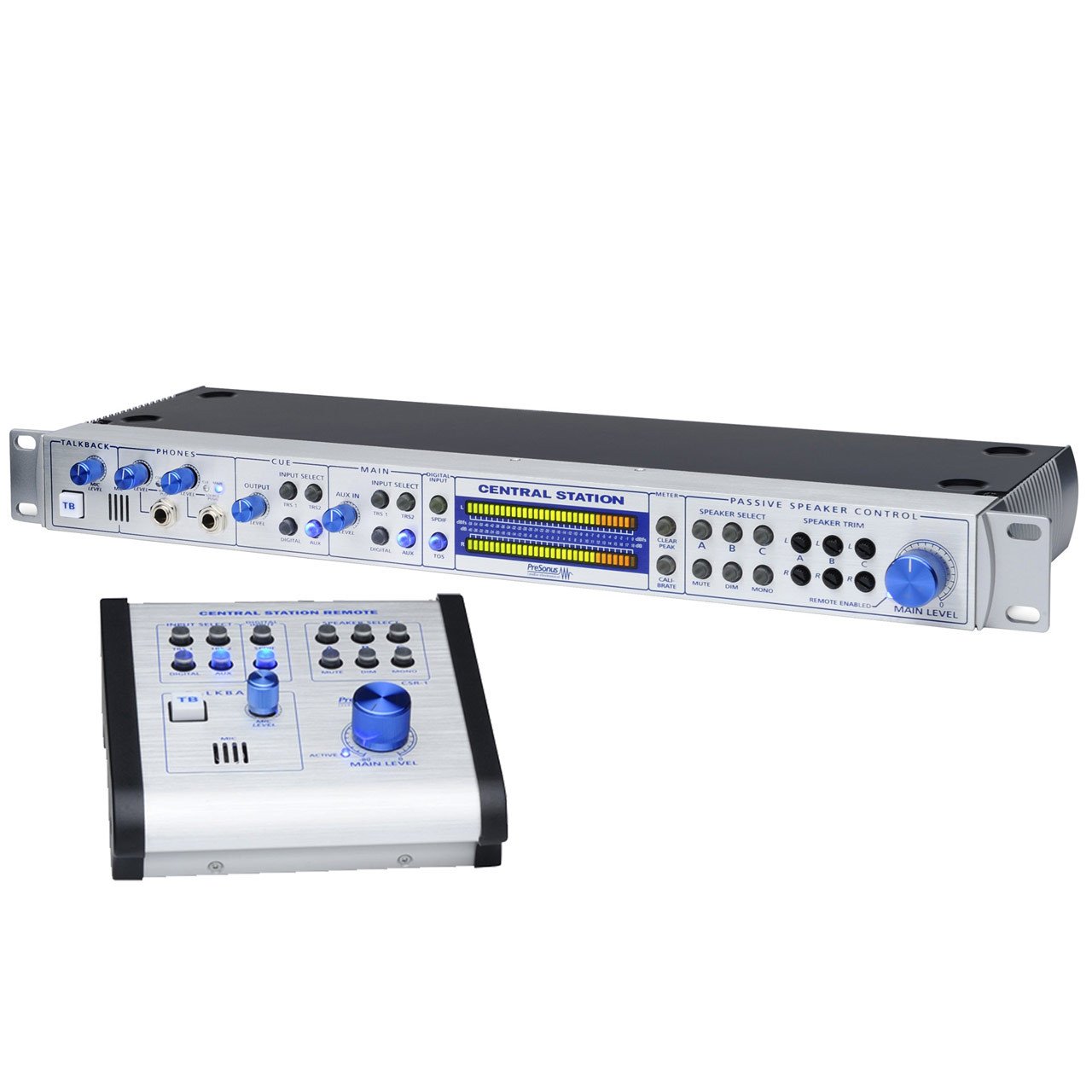

Presonus Central Station Plus Passive Monitor Controller
The ultimate studio companion is the Presonus Central Station Plus remotely controlled monitor controller. Hook up all your speakers for easy switching. You mostly monitor on near-fields, but occasionally switch to big main speakers or a second set of near-fields. You need to be able to switch between multiple sources and want to hear what your mix sounds like with and without subwoofer. You want to monitor straight from digital sources as well as analog. And you don't want cables cluttering your workspace in order to achieve all that.
Type: Monitor Controllers
-
-
Presonus Central Station PRODUCT FEATURES:
Central Station PLUS is one of our most popular products for professional studios because it provides the perfect combination of stereo inputs, outputs, and recording-communication functions, allowing you to easily manage multiple sources and monitor speakers.
A Wide Variety of Input and Output Options
With Central Station, you can easily switch between three sets of stereo, analog input sources. Two stereo S/PDIF digital sources connect via one coax and one Toslink optical port. You can audition these sources with up to three pairs of speakers, with individual trim pots for each speaker-recessed to avoid accidents.

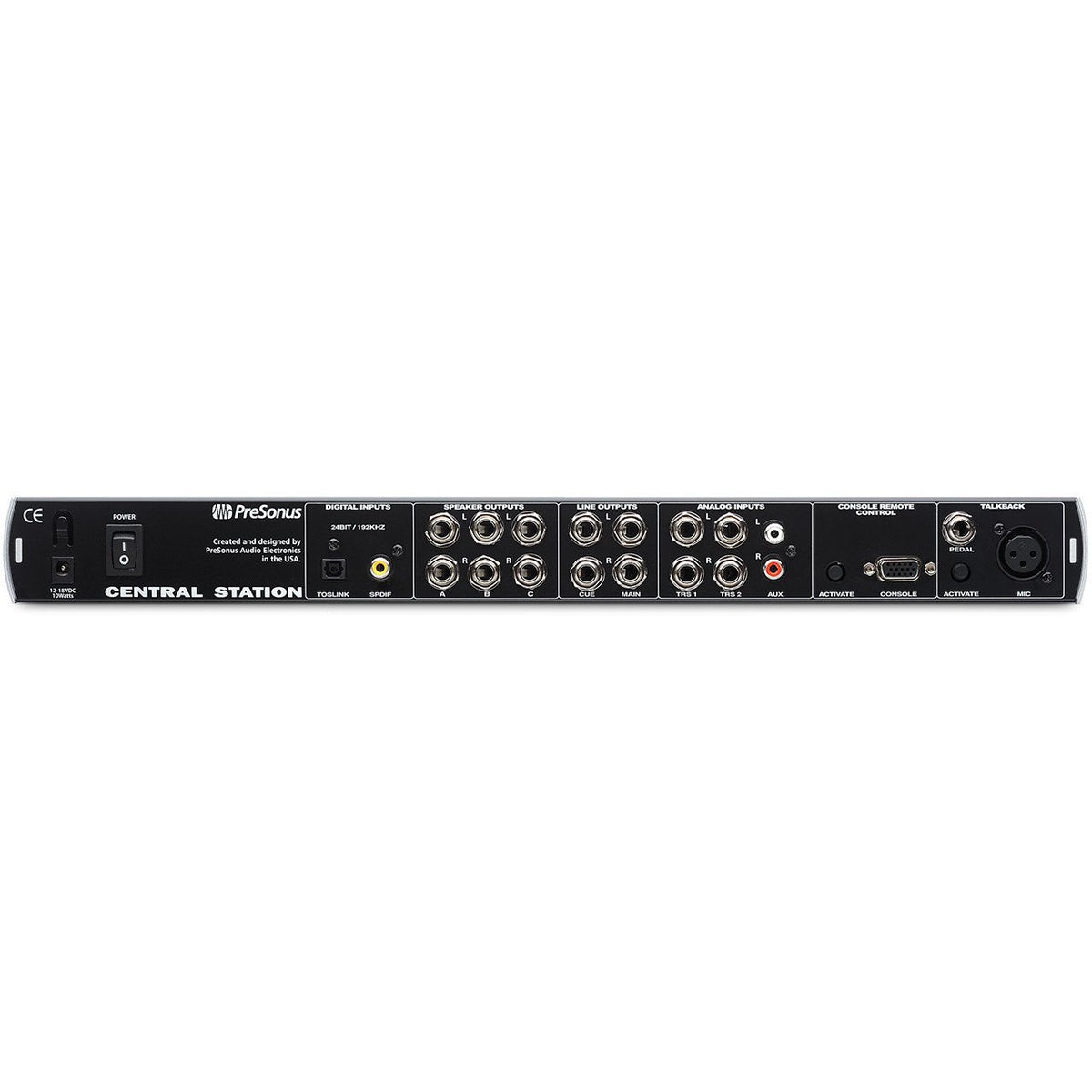

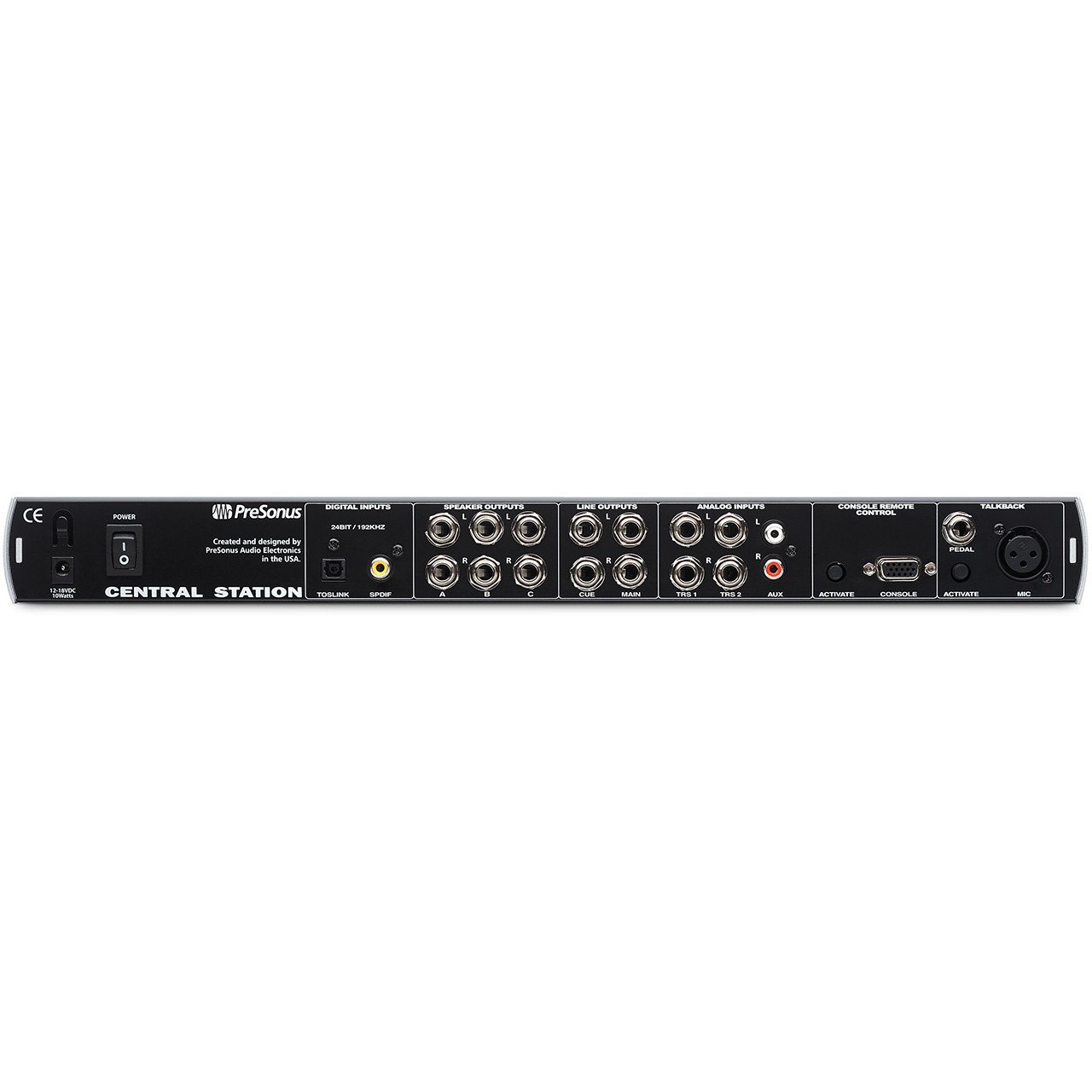

You also get a pair of line-level main outputs, a pair of line-level cue outputs, and two screaming-loud headphone amplifiers with individual level controls. And because Central Station is a 1U rack-mount device, with only one multi-conductor cable running to the remote control on your desktop, all of the cabling is in the back of your rack, where it belongs. -
Presonus Central Station TECHNICAL SPECIFICATIONS:
Audio Inputs
TRS 1 & 2
Type ¼" TRS Passive-Balanced
Input Impedance 2-5 kΩ (Speaker load and Trim level dependent)
S/N Ratio > 140 dB
THD+N < 0.0005% (1 kHz @ 0 dBu)
Frequency Response > 1 MHz
AUX
Type RCA Active-Unbalanced
Input Impedance 8 kΩ
S/N Ratio > 115 dB (1 kHz @ 0 dBu, Unity gain)
THD+N < 0.002% (1 kHz @ 0 dBu, Unity gain)
Frequency Response 10 Hz-50 kHz, -0.5 dB
Gain Range -90 dB to +20 dB
S/PDIF
Types RCA 75Ω coax and Toslink optical
Dynamic Range 117 dB
THD+N 0.0025% (1 kHz @ -1 dBfs)
Maximum output +18 dBu (Active-Balanced)
Sample Rates 44.1, 48, 88.2, 96, 176.4, 192 kHz
Note: All Input specifications (except Input Impedance) measured at Speaker A output, Trim and Main Level set to maximum.
Audio Outputs
Speakers
Type ¼" TRS Passive-Balanced
Type-Mono Activated ¼" TRS Active-Impedance Balanced
Trim Range -90 dB to 0 dB
Main Level Range -90 dB to 0 dB
Dim Attenuation -30 dB
Main
Type ¼" TRS Active-Balanced
Output Impedance 51Ω
THD+N < 0.0025%
Frequency Response 10 Hz-50 kHz, -0.5dB
Cue
Type ¼" TRS Active-Impedance Balanced
Output Impedance 51Ω
THD+N Less than 0.003% (1 kHz @ 0 dBu)
Frequency Response 10 Hz-50 kHz, -0.5 dB
Gain Range -90 dB to 0 dB
Dim Attenuation -30 dB (Talkback activated)
Headphones
Type ¼" TRS Active Stereo
Maximum Output 150 mW/channel @ 60Ω load
THD+N 0.015% (150 mW/channel @ 60Ω load)
Frequency Response 10 Hz-50 kHz, +1 dB
Talkback -
Presonus Central Station SYSTEM REQUIREMENTS:
N/A
