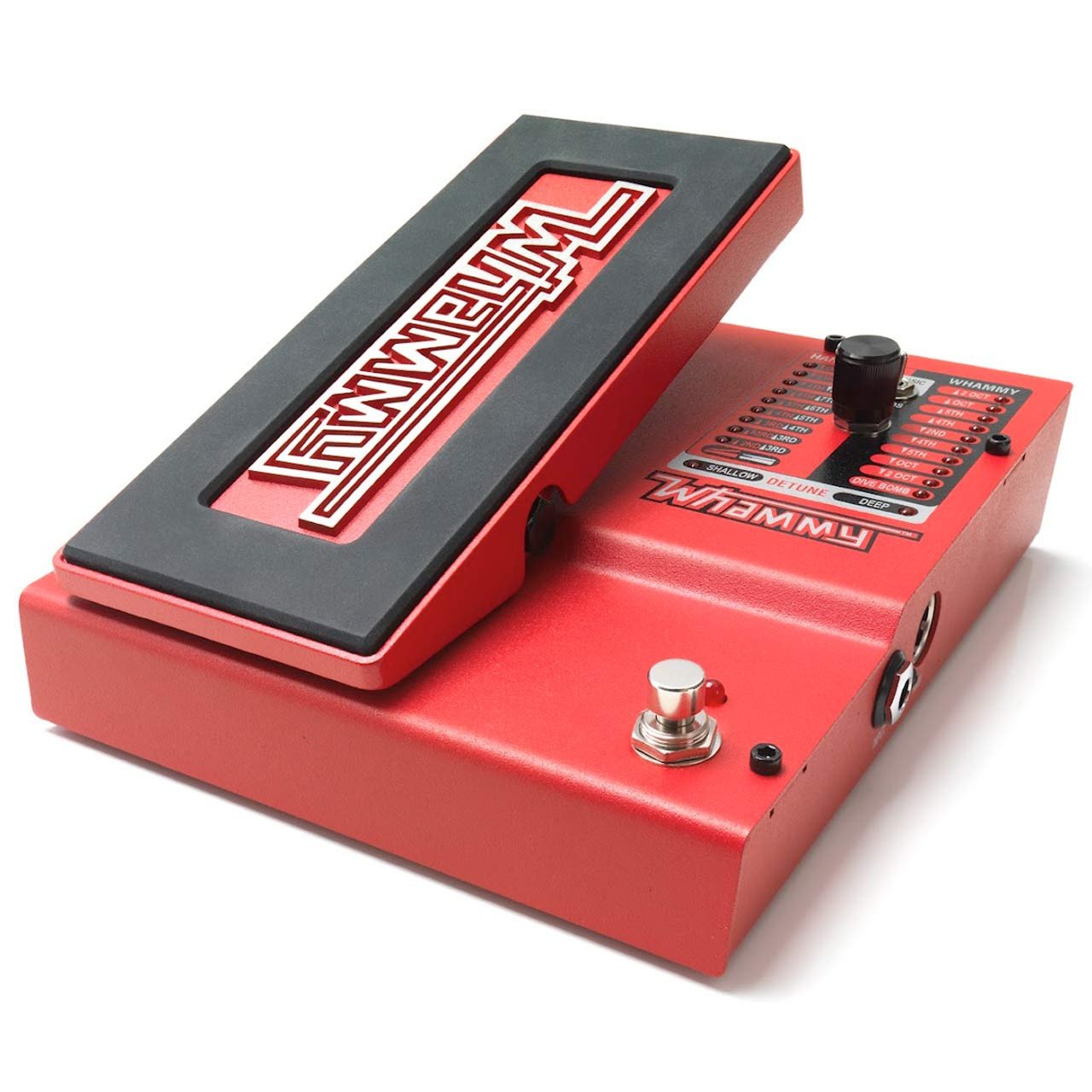

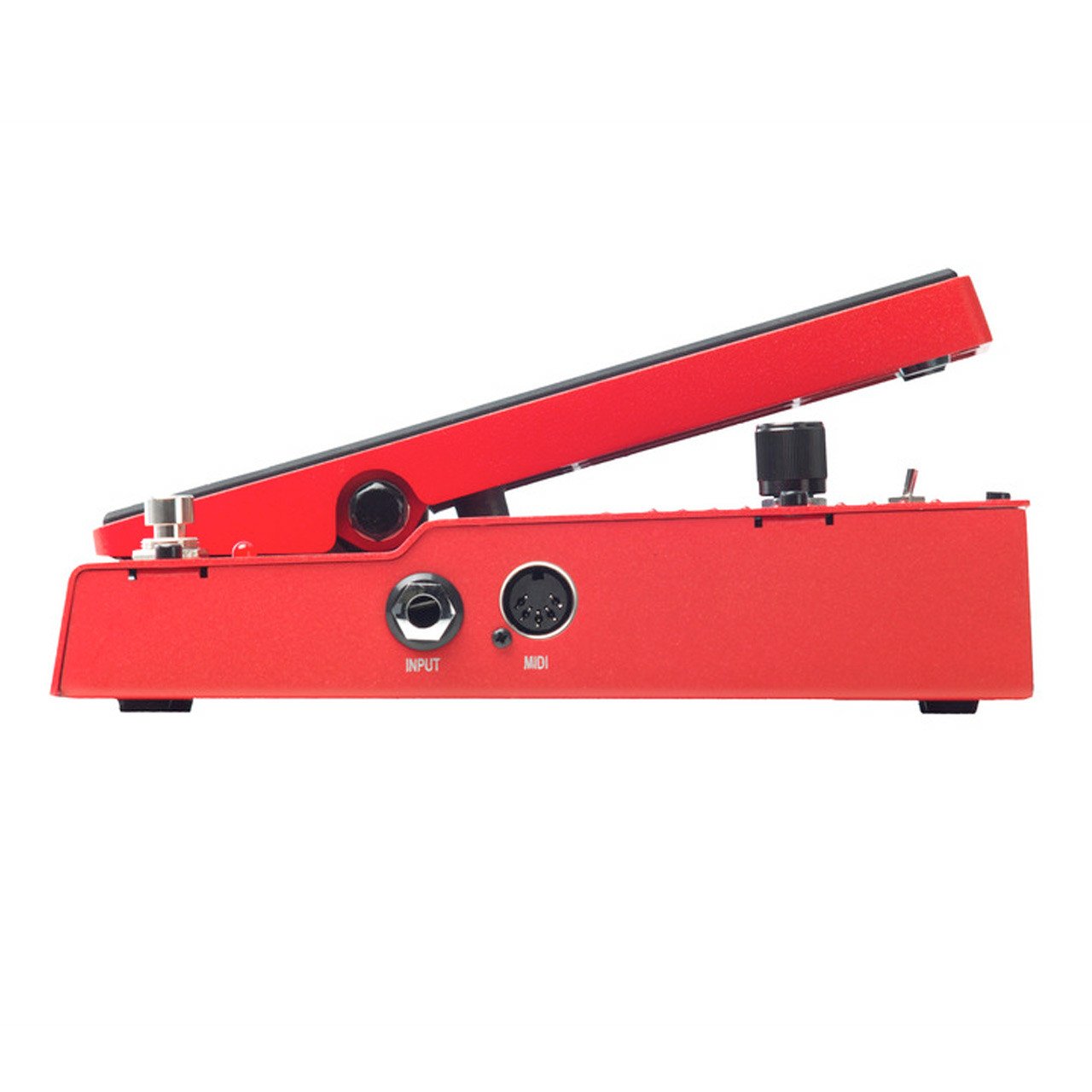

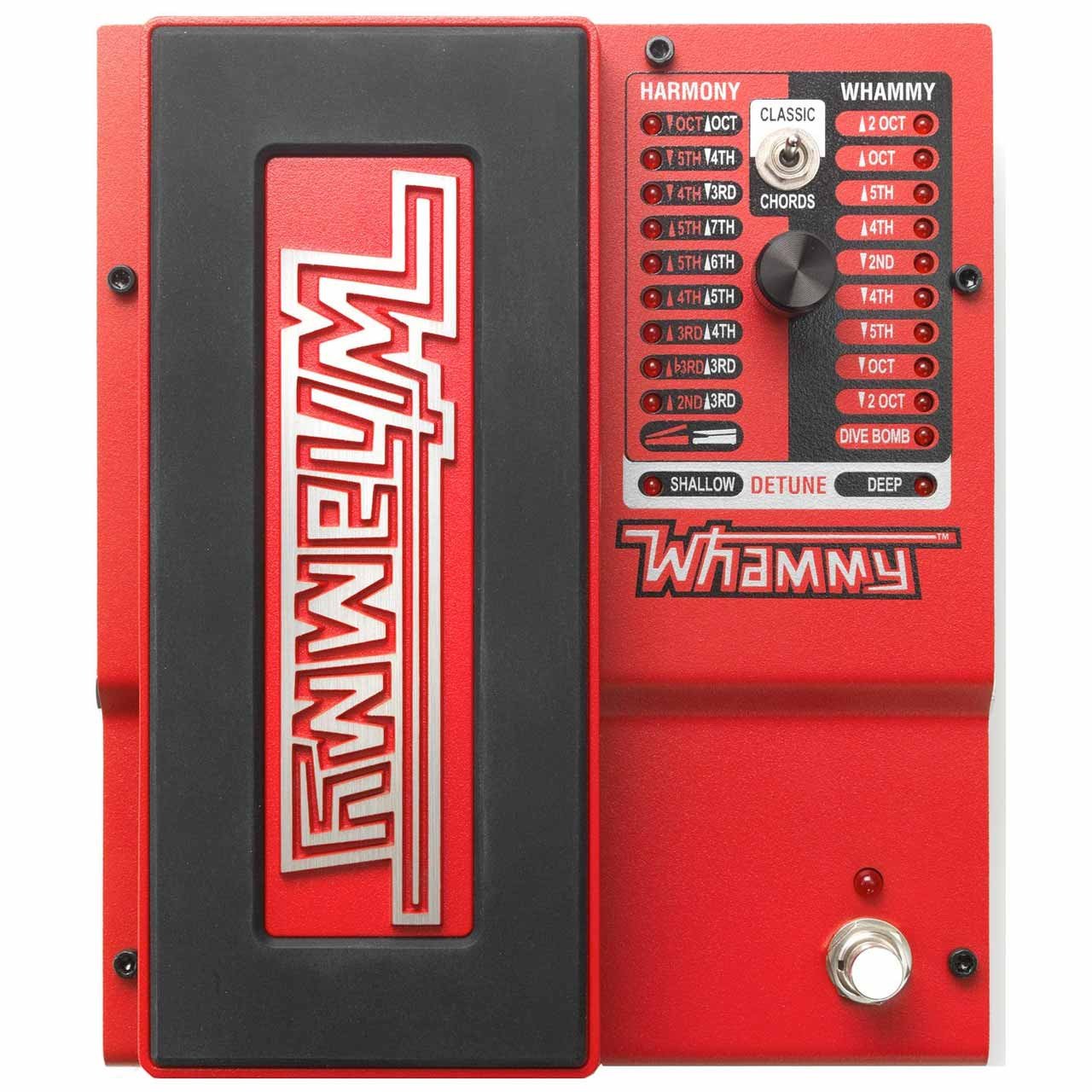

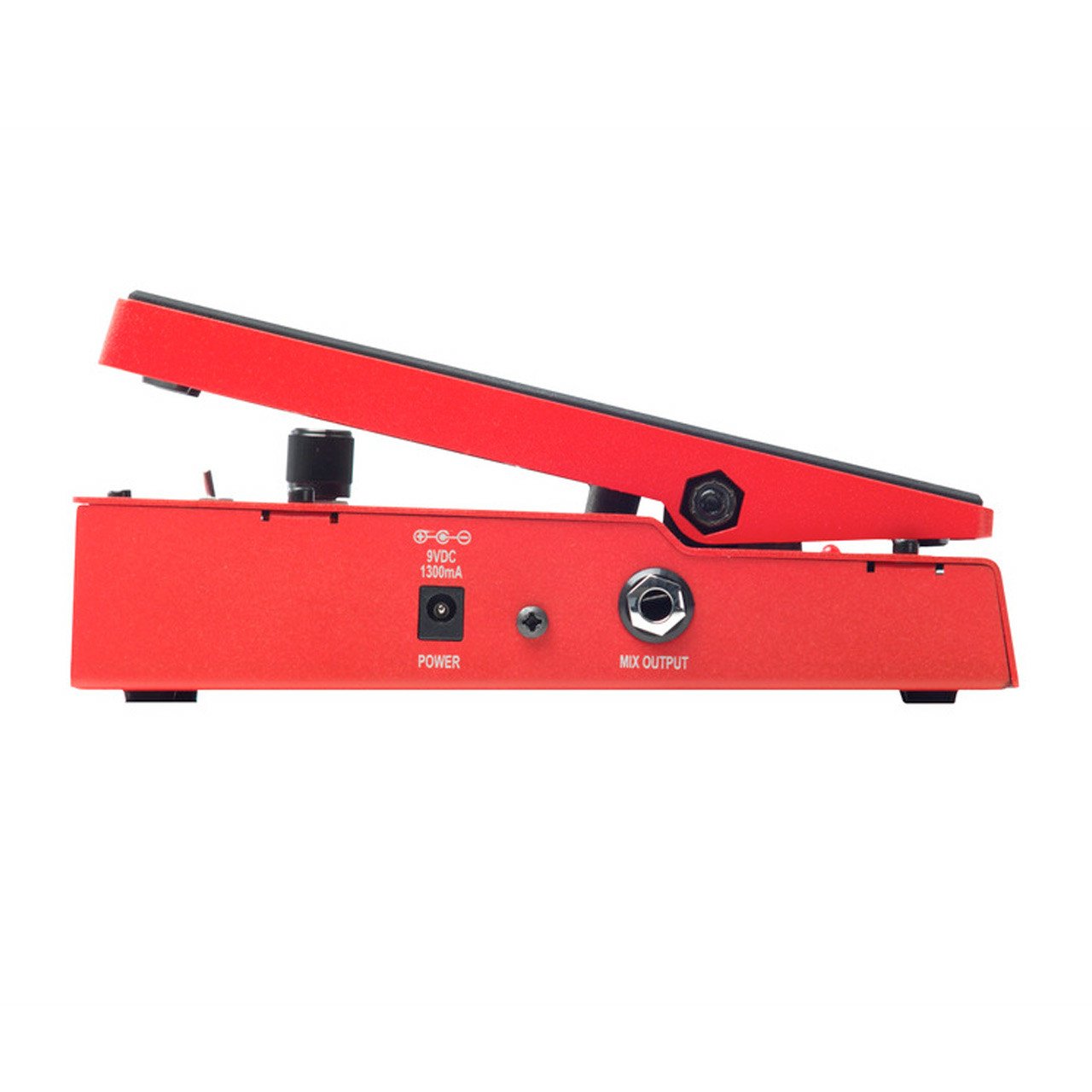

    Digitech Whammy (5th Gen) 2-Mode Pitch-Shift Effect With True Bypass

    7 In Stock


    The legendary Whammy pedal is the premier pitch-shifting pedal for any guitarist’s board, and it only gets better with time. In addition to the classic Whammy sound, we’ve added chordal Whammy pitch-shifting and true bypass


    Features

    Whammy Pitch Bending Effects

    The DigiTech Whammy brings you the same hair-raising “dive bomb” effects, gripping pitch bends and lightning harmony shifts you are looking for plus a few new twists. Bend entire chords with the new chordal pitch shifting setting, and execute classic single-note bends.

    Classic Whammy Interface

    The Whammy interface features the same legacy Whammy pitch bending options you’re accustomed to along with some additional pitch bend settings from the Whammy DT.

    MIDI In for Remote Control of Whammy Effects

    The Whammy features a MIDI input for receiving incoming MIDI data. MIDI messages can select a Whammy or Drop Tune effect and set whether these effects are in an active or bypassed state. MIDI CC messages can then be used to control the Whammy Expression Pedal position.

    Bend entire chords with the new chordal pitch-shifting setting

    Specifications

    General Specifications

    SAMPLE RATE

    44.1 kHz

    FREQUENCY RESPONSE

    20 Hz to 20 kHz

    SIGNAL-TO-NOISE RATIO

    > -105 dB (A-weighted); ref = max level, 22 kHz bandwidth

    THD

    0.004% @ 1 kHz; ref = 1 dBu w/ unity

    A/D CONVERSION

    24 bit

    D/A CONVERSION

    24 bit

    POWER CONSUMPTION

    2.4 Watts (< 265 mA @ 9 VDC)

    POWER ADAPTER

    9 VDC External Adapter

    TRUE BYPASS

    Yes. With true bypass circuitry, the whammy is completely bypassed when both Whammy and Drop Tune effects are off.
    Dimensions

    HEIGHT

    2.5" (64mm)

    WIDTH

    6.5" (165mm)

    DEPTH

    7.75" (197mm)
    Audio Output

    OUTPUT TYPE

    1/4” Unbalanced TS

    MAX OUTPUT LEVEL

    +10 dBu

    OUTPUT IMPEDANCE

    1 kΩ
    Audio Input

    INSTRUMENT INPUT TYPE

    1/4” Unbalanced TS

    MAX INPUT LEVEL

    +5 dBu

    INPUT IMPEDANCE

    1 MΩ

    MIDI INPUT

    5-Pin Din
