AT ATW-1102

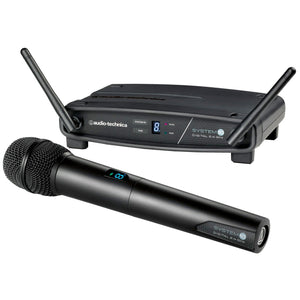

Audio-Technica System10-HH Wireless Handheld Microphone System
The System10-HH is a cost effective digital wireless microphone system from Audio-Technica, that offers clear, detailed sound quality and simplicity in operation. The package includes the ATW-R1100 receiver, and ATW-T1002 handheld Transmitter. The receiver has balanced and unbalanced outputs for plugging directly into a mixer, and the handheld transmitter has an operational range of up to 30 meters.
Type: Wireless Systems
-
-
Audio-Technica System10-HH Features:
Digital 24-bit/48 kHz wireless operation for ultimate sound quality and dependable performance
2.4 GHz range – completely free from TV interference
Three levels of diversity assurance: frequency, time, & space
Automatic frequency selection for seamless, interference-free operation
Extremely easy operation with instantaneous channel selection, sync, and set-up
State-of-the-art digital receiver for reliable performance
Balanced XLR and unbalanced 1/4” output jacks with level control -
Audio-Technica System10-HH Specifications:
OVERALL SYSTEM SPECIFICATIONS
Operating Frequencies: 2.4 GHz ISM band
Dynamic Range: >109 dB (A-weighted), typical
Total Harmonic Distortion: <0.05% typical
Operating Range: 30 m (100′) typical
Open range environment with no interfering signals: Operating Temperature Range
0° C to +40° C (32° F to 104° F): Battery performance may be reduced at very low temperatures
Frequency Response: 20 Hz to 20 kHz (Depending on microphone type)

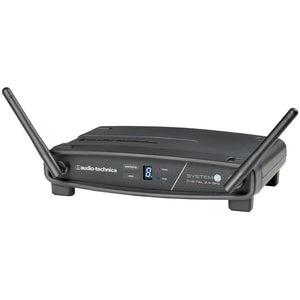

RECEIVER SPECIFICATIONS
Receiving System: Diversity (frequency/time/space)
Maximum Output Level: XLR, balanced: 0 dBV. 1/4″ (6.3 mm), unbalanced: +6 dBV
Power Supply: 100-240V AC (50/60 Hz) to 12V DC .5A (center positive) switched mode external power supply
Dimensions: 190.0 mm (7.48″) W x 46.2 mm (1.82″) H x 128.5 mm (5.06″) D
Net Weight: 290 grams (10.2 oz)
Accessory Included: Power supply

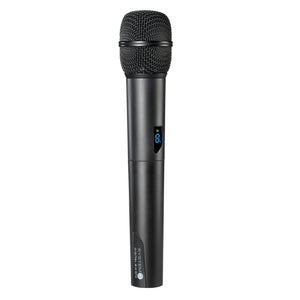

HANDHELD TRANSMITTER SPECIFICATIONS
RF Power Output: 10 mW
Spurious Emissions: Following federal and national regulations
Batteries: Two 1.5V AA (not included)
Battery Life: >7 hours (alkaline) Depending on battery type and use pattern
Dimensions: 254.8 mm (10.03″) long, 50.0 mm (1.97″) diameter
Net Weight: 280 grams (9.9 oz) (without batteries)
Accessory Included: AT8456a Quiet-Flex™ stand clamp
