$7,529.00$10,999.00
UA-LA2A

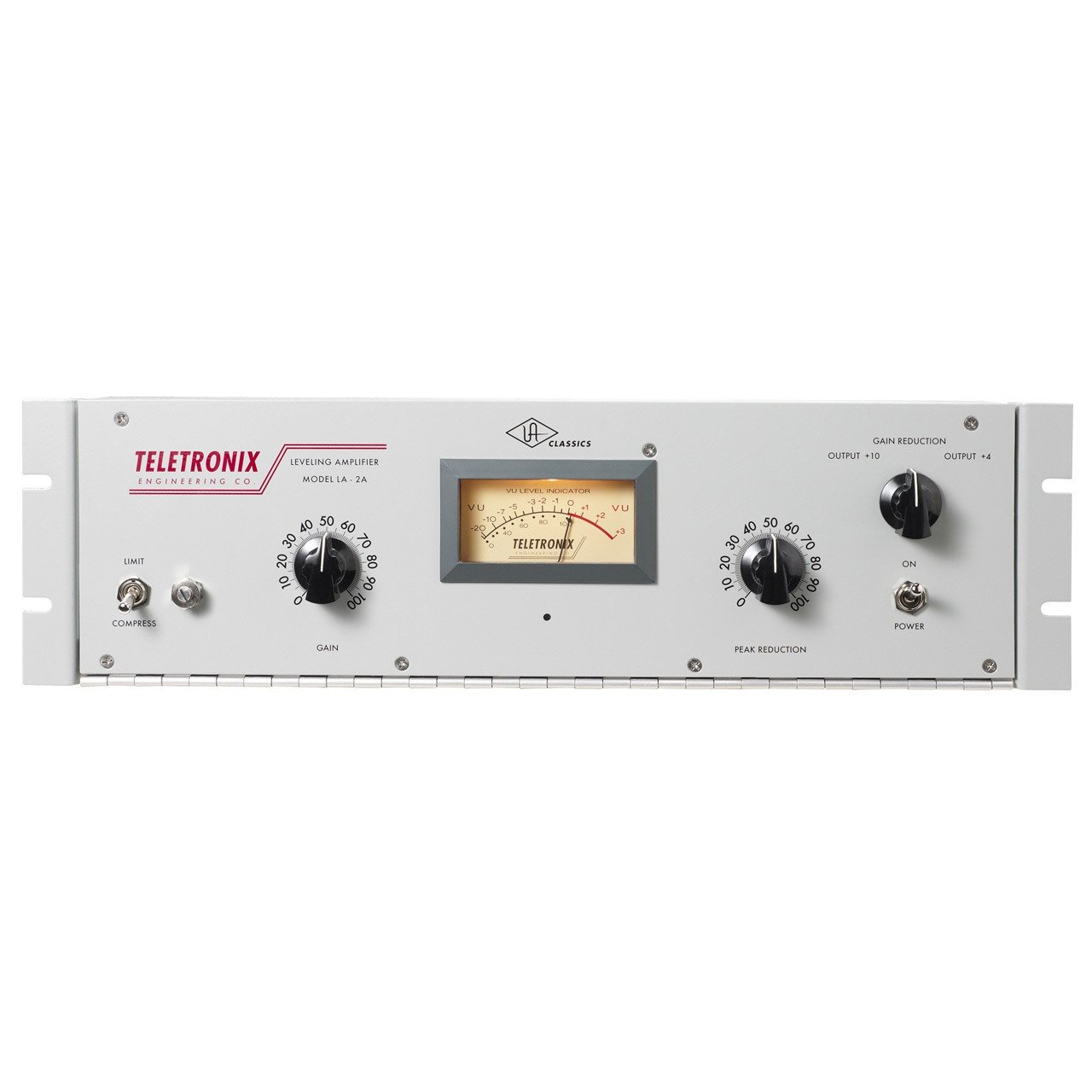

Universal Audio Teletronix LA-2A Leveling Amplifier
Renowned for its transparency, the LA-2A Leveling Amplifier is a must-have compressor for vocals, bass and so much more! If there's one compressor you have to have it would most likely be the Teletronix LA2A made by Universal Audio. Audio professionals are passionate about their compressors revere the LA-2A. The original was immediately acknowledged for its natural compression characteristics.
Type: Compressors/Limiters
-
-
Universal Audio Teletronix LA-2A PRODUCT FEATURES:
A unique electro-optical attenuator system allows instantaneous gain reduction with no increase in harmonic distortion - an accomplishment at the time, still appreciated today.
Universal Audio now announces the rebirth of the Teletronix LA-2A, a Universal Audio Classics product. Painstaking care has been taken to ensure that every new LA-2A provides the performance and characteristics of the original. Each unit is hand built, each component carefully evaluated for authenticity. No expense has been spared to guarantee that this LA-2A will bring that classic sound to your recording. Demand the original. Accept no copy.
* True to the original in design, manufacturing and performance
* Lag free, distortion free optical attenuator system
* Distortion less than 0.5% THD
* 0 to 40 dB gain limiting
* Balanced stereo interconnection
* Frequency response 1 dB, 30 to 15,000 cps
* Output level of 10 dBm and 40 dB gain
* Low noise - less than 70 dB below +10 dBm output -
Universal Audio Teletronix LA-2A TECHNICAL SPECIFICATIONS:
Input Impedance
50, 150, 250, 600 ohms
Output Load Impedance
50, 150, 250, 600 ohms
External Connections
Jones Barrier terminals and XLR connectors
Frequency Response
+0/-1 dB 30 Hz to 15kHz
Gain
40 dB ±1dB
Input Level
+16 dB maximum
Output Level
+10 dB nominal, +16 dB maximum
Distortion
Less than 0.5% THD (0.25% typical) at ±10 dBm
Noise
70 dB below +10 dBm output level
Attack Time
10 milliseconds
Release Time
0.06 seconds for 50% release; 0.5 to 5 seconds for complete release
Meter
dB gain reduction and dB output
Power Requirements
35 watts, 120/240 volts, 50/60 Hz
Environmental
Maximum operating temperature 160°F
Dimensions
19" Rackmount chassis, 3U
Weight
13 lbs.
