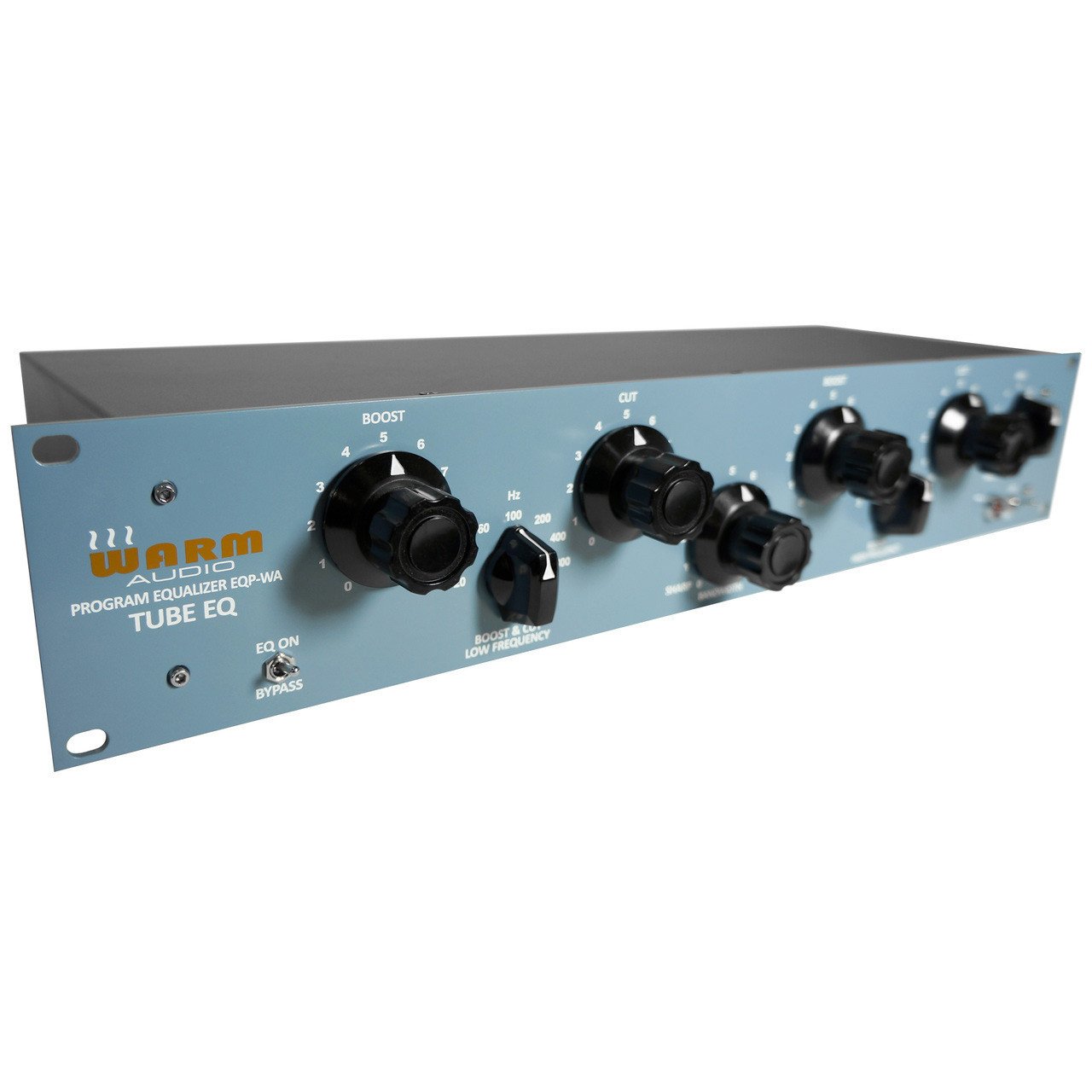

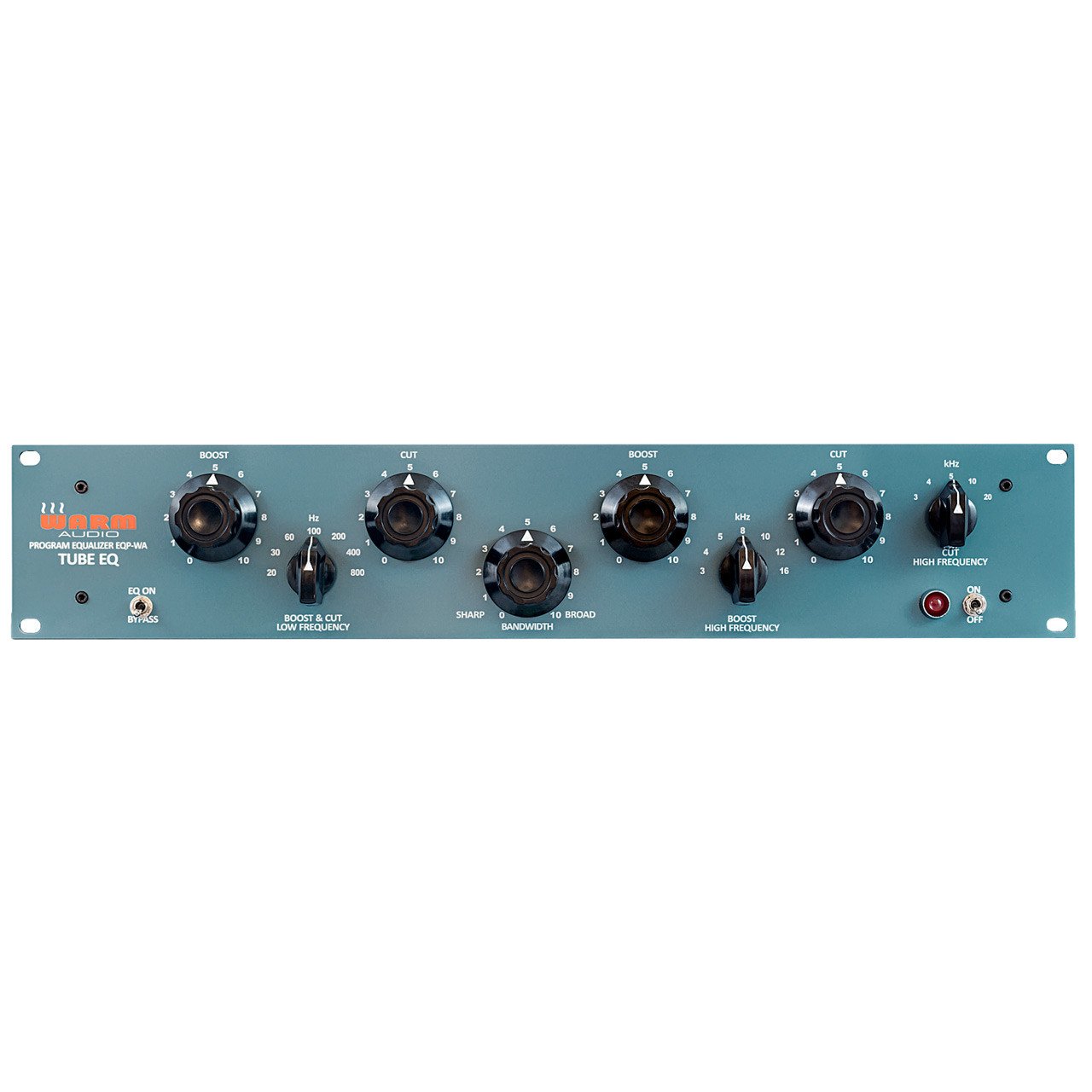

Warm Audio EQP-WA TGC Pultec Style Tube Equalizer

The Warm Audio EQP-WA is a faithful re-creation of the 'Pultec EQP-1A' - the most renowned tube Equalizer in studio history. This model is the new TGC version which includes the new Gain Control on the rear of the unit to match the 2 units' output gain to each other. Great for stereo bus EQ or running a whole mix through them. Not only does the look and feel of the EQP-WA match the classic Pultec units, but the sonic quality has been carefully considered by using top-end components such as CineMag transformers and premium tubes.

FEATURES

This fully discrete Tube EQ can pull euphoric sonics from any track and bring brilliance and lustre to mixes that are nearly impossible to achieve inside the box. We are proud to have once again redefined the industry standard by bringing a fully professional-grade equalizer to the market at a price that's just as remarkable as the unit.

SPECIFICATIONS

• Tube Equalizer based on the classic “Pultec” EQP-1A

• CineMag input and output transformers - Made in the U.S.A.

• Premium high voltage 12AX7 and 12AU7 tubes

• CineMag inductor EQ section

• The EQ section is bypassable - signal still passes through tubes and transformers for the warming effect

• No insertion loss - loss restored by tube amplifier

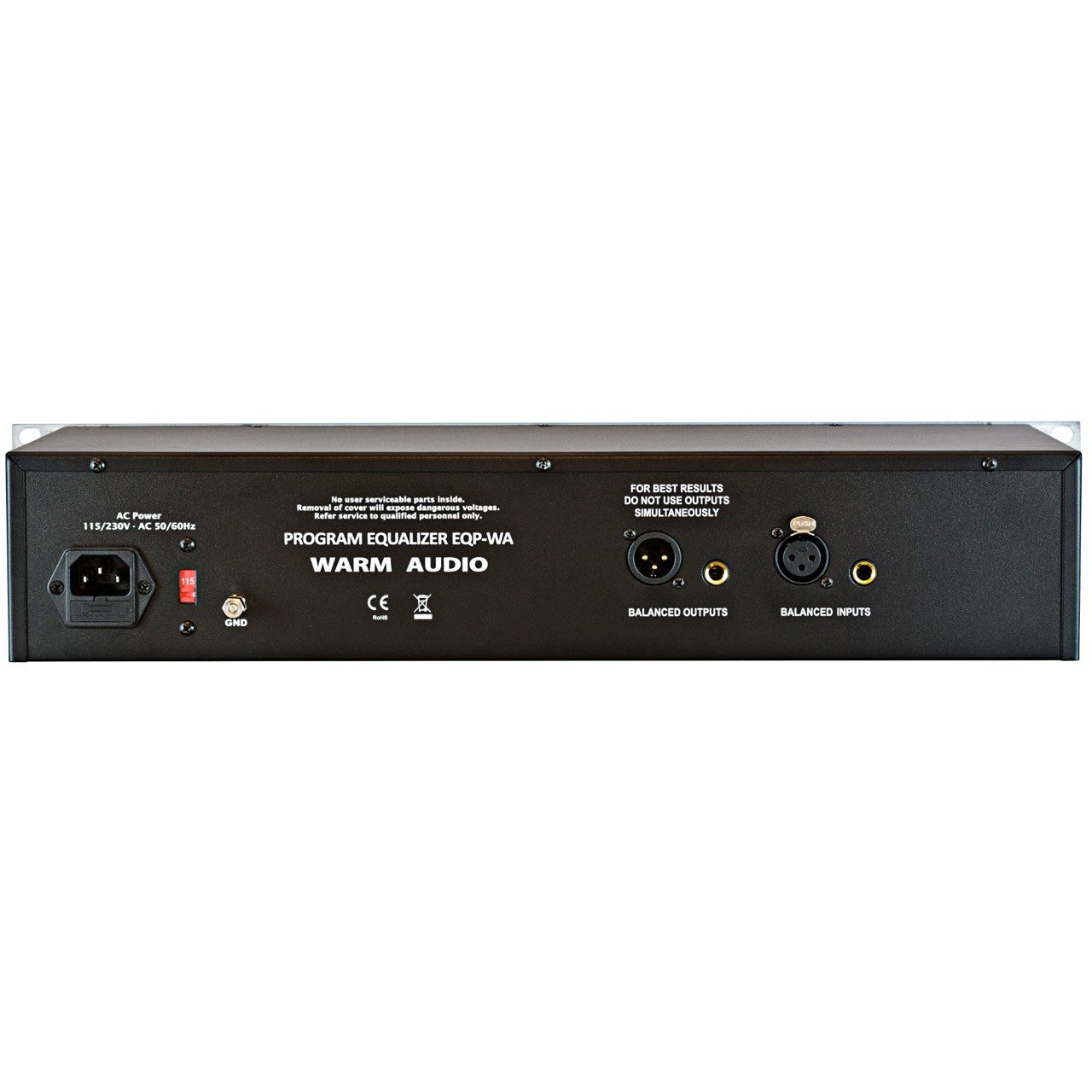

• XLR and TRS transformer balanced inputs

• XLR and TRS transformer balanced outputs

• Flat frequency response from 20 Hz - 50 kHz

• Boost and Cut controls can be used simultaneously for phase effect

• Low-frequency boost - 20, 30, 60, 100, 200, 400, 800 Hz - 12 db

• Low-frequency cut - 20, 30, 60, 100, 200, 400, 800 Hz - 18 db

• High-frequency boost - 3, 4, 5, 8, 10, 12, 16 kHz - 18 db

• High-frequency cut - 3, 4, 5, 10, 20 kHz - 14 db

• 5 added frequency points for greater flexibility

• Switchable 115/230 volt IEC power inlet

• Dimensions: 19 x 3.5 x 6 inches - 2RU rack-mountable
