DRA-MC3.1

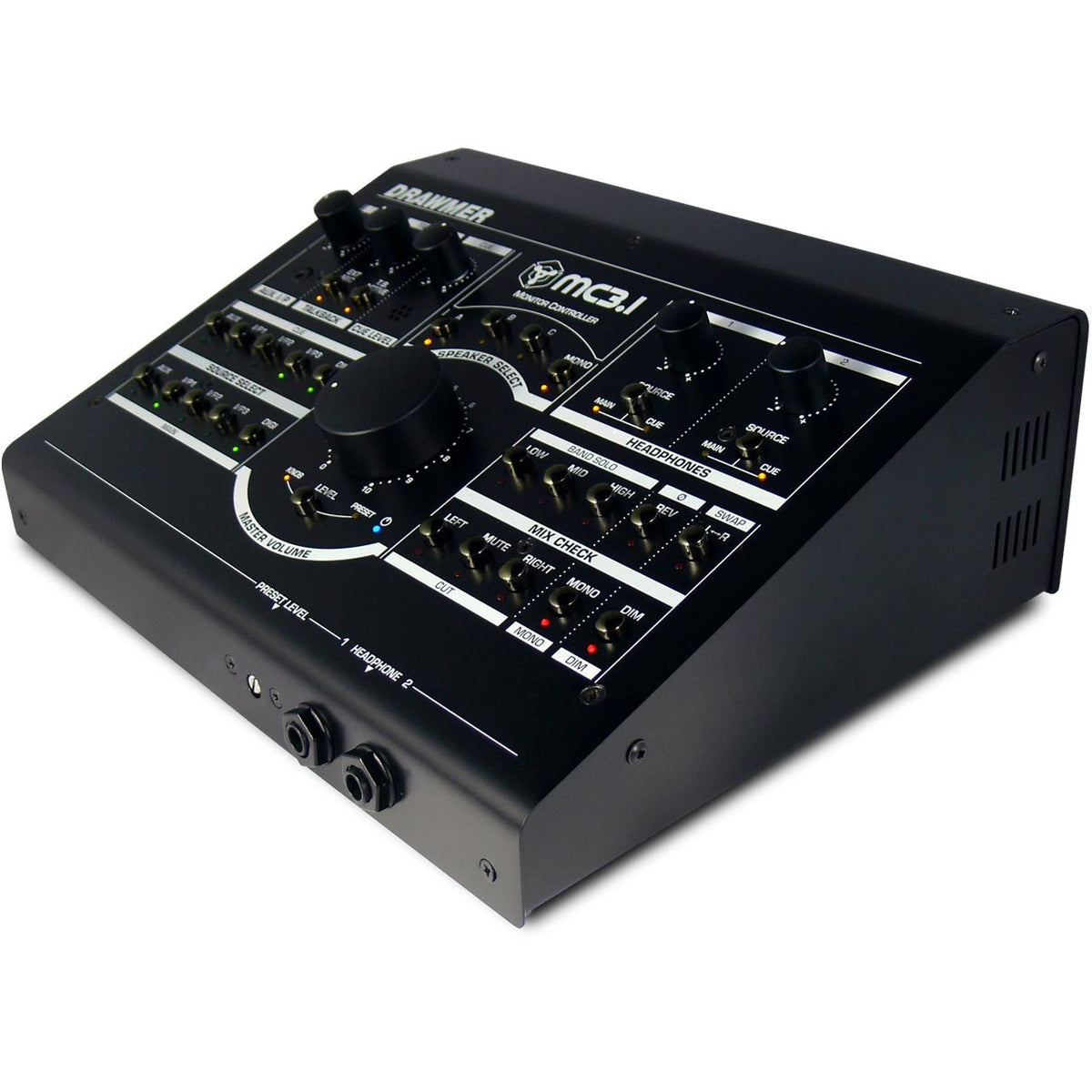

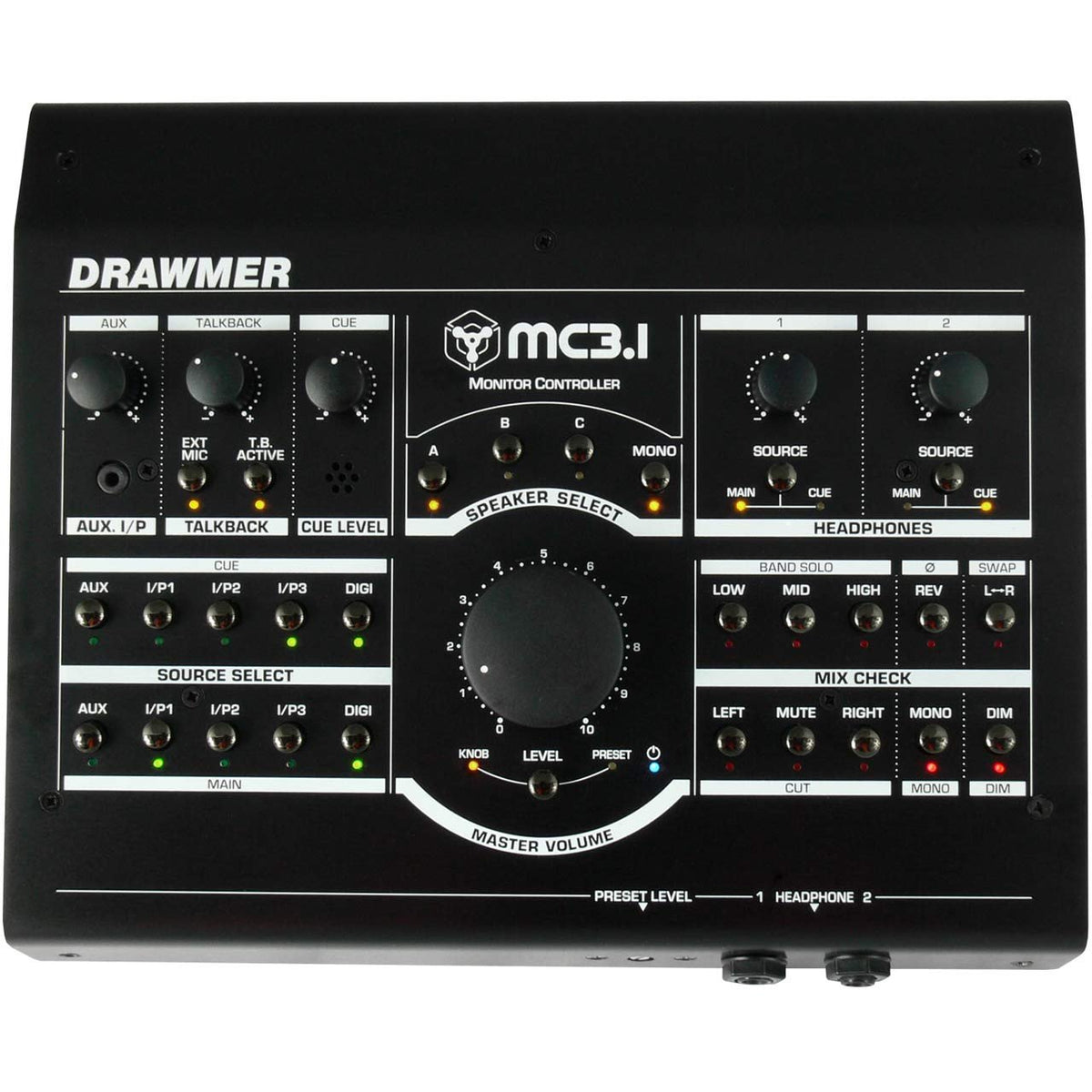

Drawmer MC3.1 Monitor Controller
The Drawmer MC3.1 is a high quality, precise and transparent active monitor controller. The sequel to Drawmer’s successful MC2.1 monitor controller, the MC3.1 offers more inputs, better and flexible routing, and most obviously - the MC3.1 is a flat desktop design. There are 3 x stereo outputs & a separate mono/sub output. All outputs feature discrete trim encoders. Secondary preset volume setting on the main encoder, SPDIF/AES 192kHz compatible digital input, mic input & internal mic for talkback, and comprehensive cue-mix options make the Drawmer MC3.1 an outstanding choice for studio monitor control.
Type: Monitor Controllers
-
-
Drawmer MC3.1 PRODUCT FEATURES:
Ultra low noise and transparent circuit design.

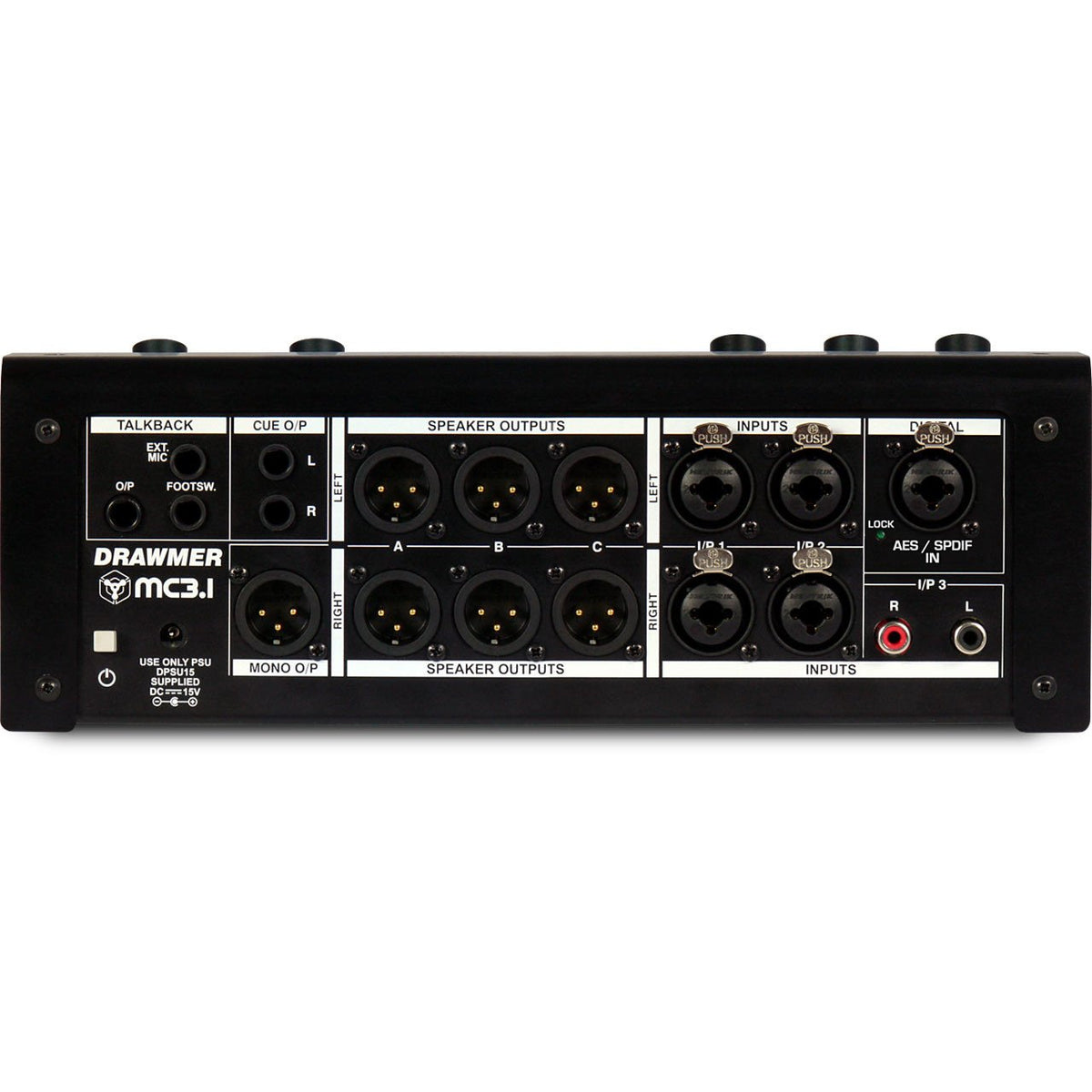

Source switches for both Main & Cue can be active in any combination. 5 Inputs in Total - 1x Digital AES/SPDIF Neutrik XLR/JACK COMBI & 2 balanced analogue Neutrik XLR/JACK COMBI and 1 stereo RCA Analogue on the Rear Panel & 1 3.5mm Front Panel Aux.
3x Speakers Plus a Mono Sub can be switched individually & simultaneously or give A/B comparisons. Each has level trims to provide precise channel matching.
Timed relay protection on all speaker outputs to prevent power up/down bangs.
Volume can be set via the Variable Front Panel Knob or a Preset Control. Each has parallelled custom quad pots for excellent channel matching and smooth feel.
2x Headphone Amplifiers with Individual Level Controls & Switching between Main & Cue Inputs so the Artist can listen to a Different Mix to the Engineer.

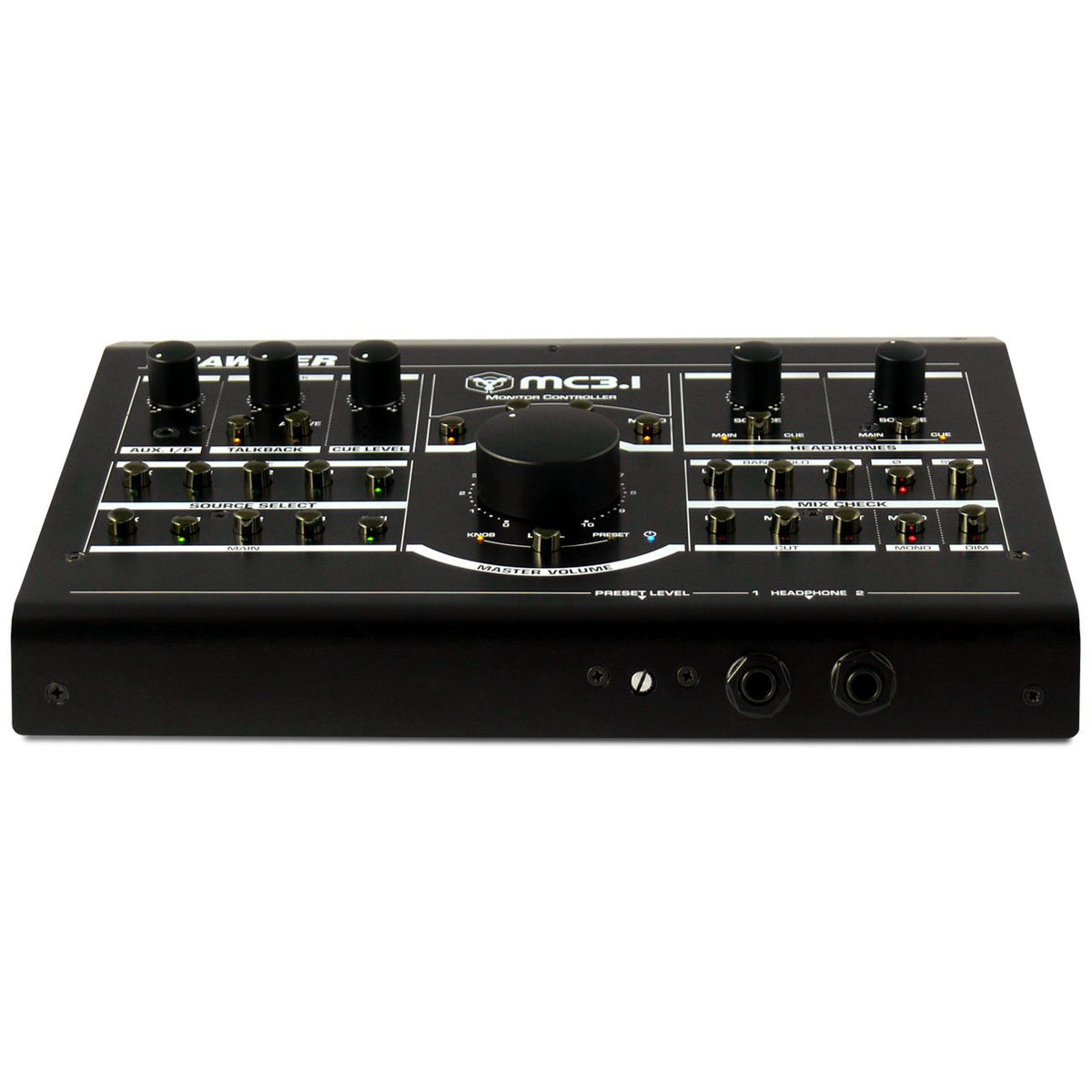

Front Panel 3.5mm AUX Input & Level Control for connecting MP3 player, smartphone or tablet etc.
Cue Level Control adjusts the volume for the Artist's Monitors.
Built In Talkback with Level Control, Internal or External Microphone, Switching via Desktop or Footswitch, a Mono Output Jack & Internal Routing to Headphone and Cue Outputs.
Comprehensive Mix Checking facilities Including Low, Mid, High Solo; Dim; L/R Mute; Phase Reverse and more, help check every aspect of your Mix & Provide Ultimate Control.
Desktop 'wedge' form factor.
Kensington security slot (also called a K-Slot or Kensington lock).
Rugged steel chasis and stylish brushed aluminium cover. -
Drawmer MC3.1 TECHNICAL SPECIFICATIONS:
INPUT
Maximum Input Level 27dBu
OUTPUT
Maximum Output Level
before clipping 27dBu
DYNAMIC RANGE
@ unity gain 117dB
CROSSTALK
L/R @ 1kHz >84dB
Adjacent Input >95dB
THD & NOISE
unity gain 0dBu input
0.003%
FREQUENCY RESPONSE
20Hz-20kHz +/- 0.2dB
PHASE RESPONSE
20Hz-20kHz +/- 2degrees max
POWER REQUIREMENTS
External Power Supply
Input: 100-240V ~ 50-60Hz, 1.4A MAX.
Output: 15V 4.34A
Voltage automatically selected by PSU
CASE SIZE
Depth (with Controls
& Sockets) 220mm
Width 275mm
Height (with Feet) 100mm
WEIGHT 2.5kg
