DRA-MC7.1

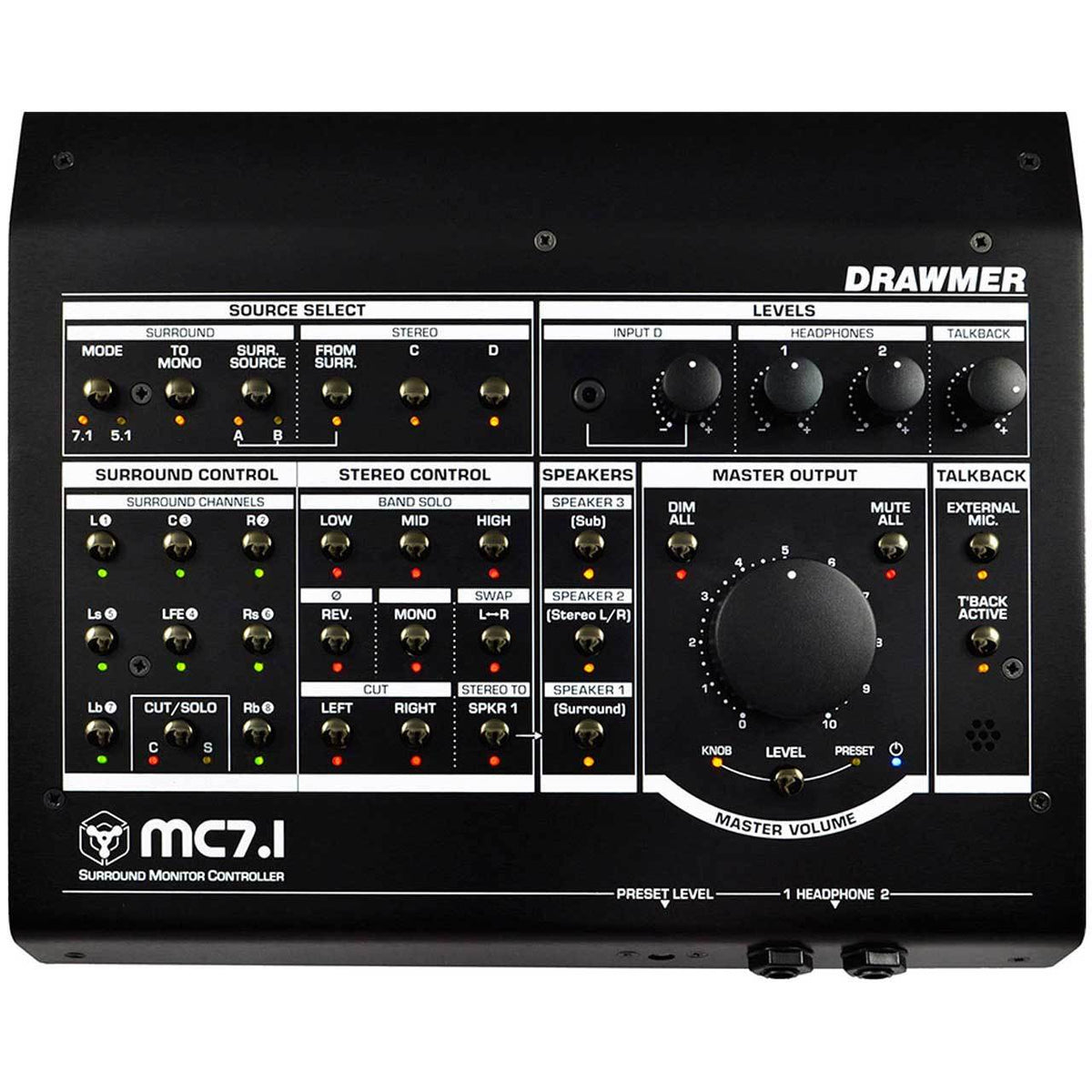

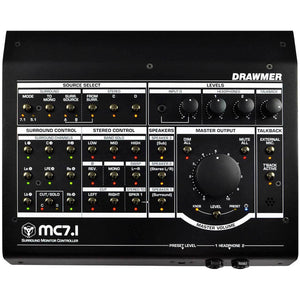

Drawmer MC7.1 - Surround Monitor Controller
The Drawmer MC7.1 is a multi-functional monitor controller for stereo, 5.1 and 7.1 surround-sound studio applications. The MC7.1 offers identical pristine technical quality, in comparison to their other MC monitor controller products. There are total of 20 inputs, meaning you can have multiple systems set up concurrently. the MC7.1 will allow for various surround systems, stereo, mono, quadraphonic, or 8 independent output channels. Also features talkback, and is a convenient desktop style form.
Type: Monitor Controllers
-
Drawmer MC7.1 PRODUCT FEATURES:
Pristine, ultra low noise & transparent circuit design gives you an accurate representation of your mix whether it be surround or stereo.
There are a total of 20 input sources. These include two separate 7.1 inputs (one via balanced jacks and one via 25 pin D-sub) with a through output to send to a multitrack recorder, for example. A Stereo input via Neutrik combijacks, and a Top panel 3.5mm AUX Input & Level Control for connecting MP3 players, smartphones or tablets etc.
3x Sets of Speaker Outputs. One 7.1 (or 8 Speakers in any configuration), one Stereo Left/Right pair, and one Mono/Sub. Each can be switched individually & simultaneously or give A/B comparisons. All eleven outputs have level trims to provide precise channel matching and ease of calibration.
Each of the eight 7.1 speakers can be cut or soloed individually.
7.1 channels can be mixed down to 5.1, Stereo and Mono, though any configuration of up to 8 monitors should be possible depending on the source and the speaker layout.
Stereo outputs (including those mixed down from surround) can be monitored via the main stereo speaker outputs or the FL and FR from the surround speakers.
When in stereo operation comprehensive Mix Checking facilities Including Low, Mid, High Solo; Dim; L/R Mute; Phase Reverse and more, help check every aspect of your Mix & Provide Ultimate Control.
Volume can be set via the Variable Front Panel Knob or a Preset Control. Each has excellent channel matching and smooth feel.
2x Headphone Amplifiers with Individual Level Control.
Built In Talkback with Level Control, Internal or External Microphone, Switching via Desktop or Footswitch, & Internal Routing to Headphones and also a Mono Output Jack.
The MC7.1 is all analogue so won’t need to be rebooted due to software crashes, and doesn’t require firmware updates.

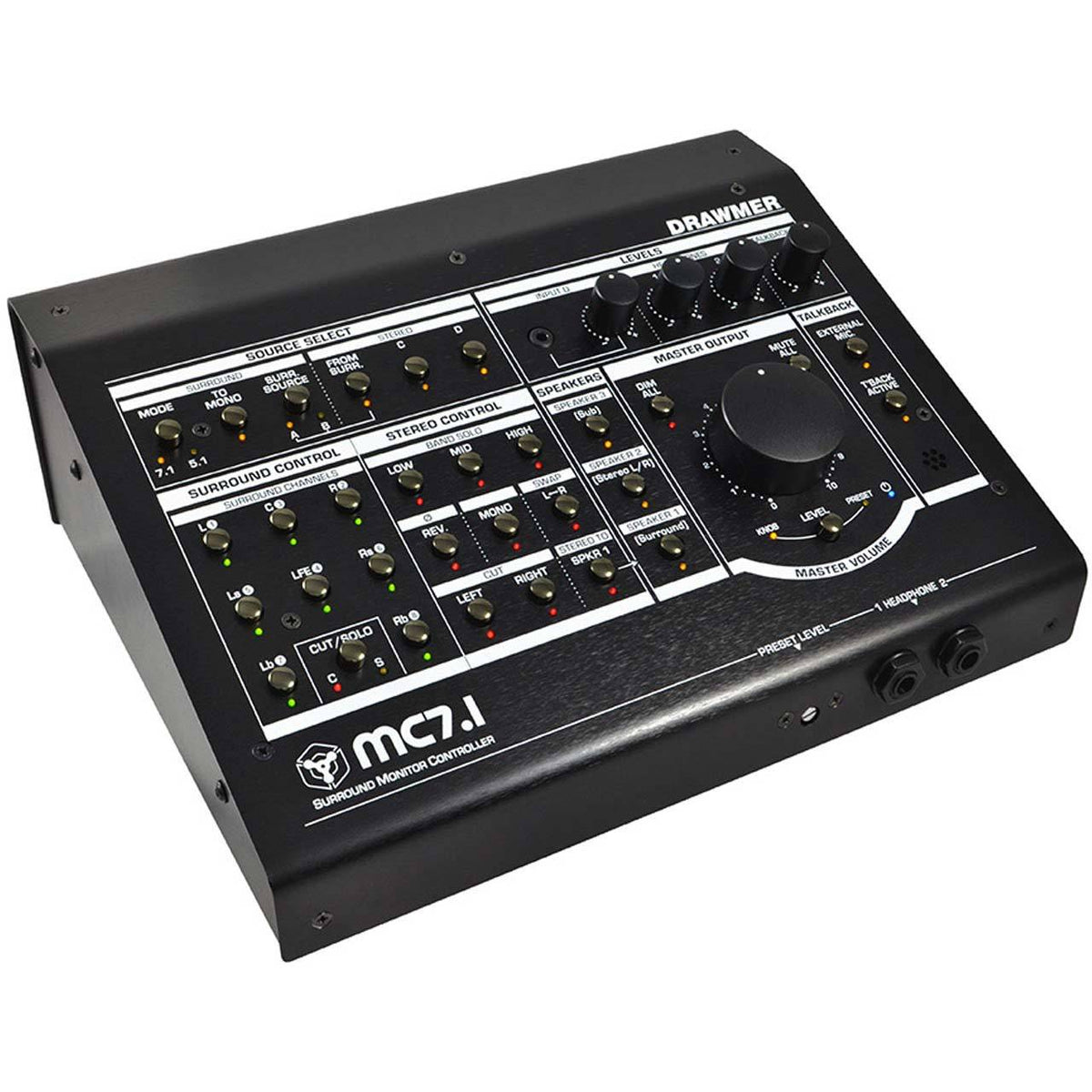

Desktop 'wedge' form factor with a rugged steel chassis and a Kensington security slot for added protection. -
Drawmer MC7.1 TECHNICAL SPECIFICATIONS:
Input Channels: 20
Output Channels: 15 (+8 through)

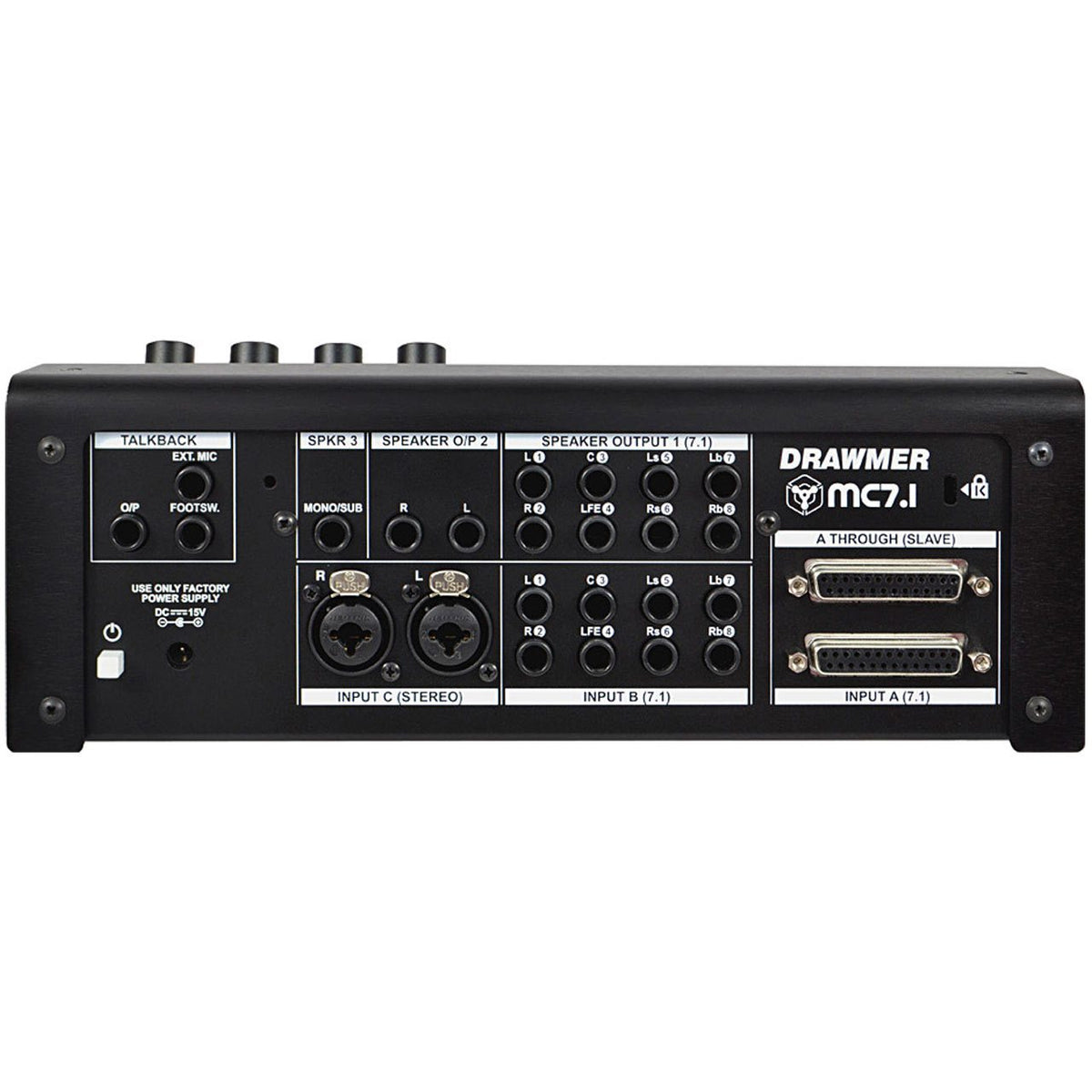

Analog Inputs:

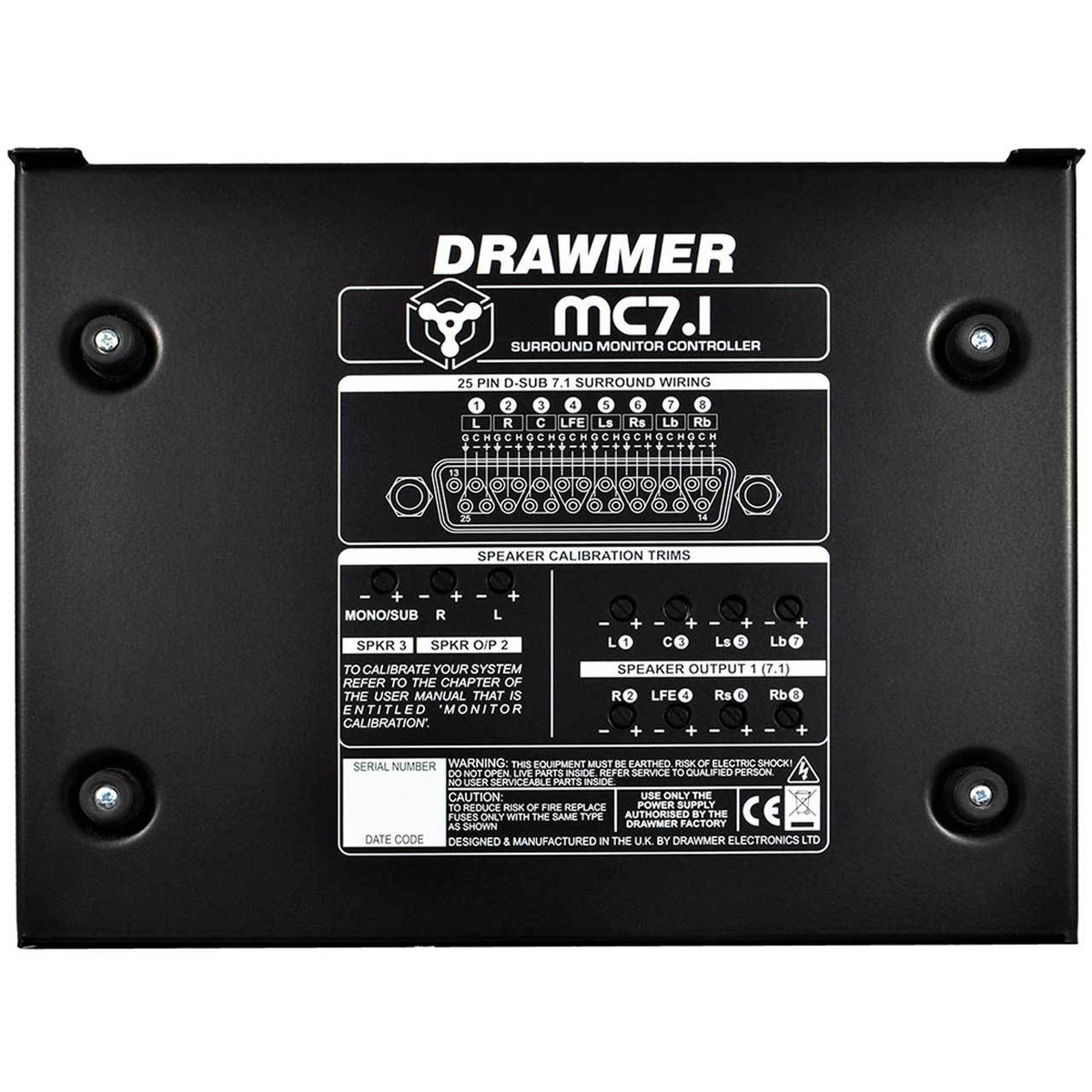

1 x DB-25 (Surround A)
8 x 1/4" Jack (Surround B)
2 x XLR/Jack Combi (Stereo)
1 x 1/8” Stereo Jack (Aux.)
Analog Outputs:
8 x 1/4" Jack (Surround Monitors)
2 x 1/4" Jack (Stereo Monitors)
1 x 1/4" Jack (Sub/Mono Monitor)
1 x DB-25 (through output)
2 x 1/4" Stereo Jack (Headphones)
Talkback: Yes (with internal & external mic, and footswitch)
Form Factor: Desktop wedge
Dimensions: 220mm (depth) x 275mm (width) x 100mm (height)
