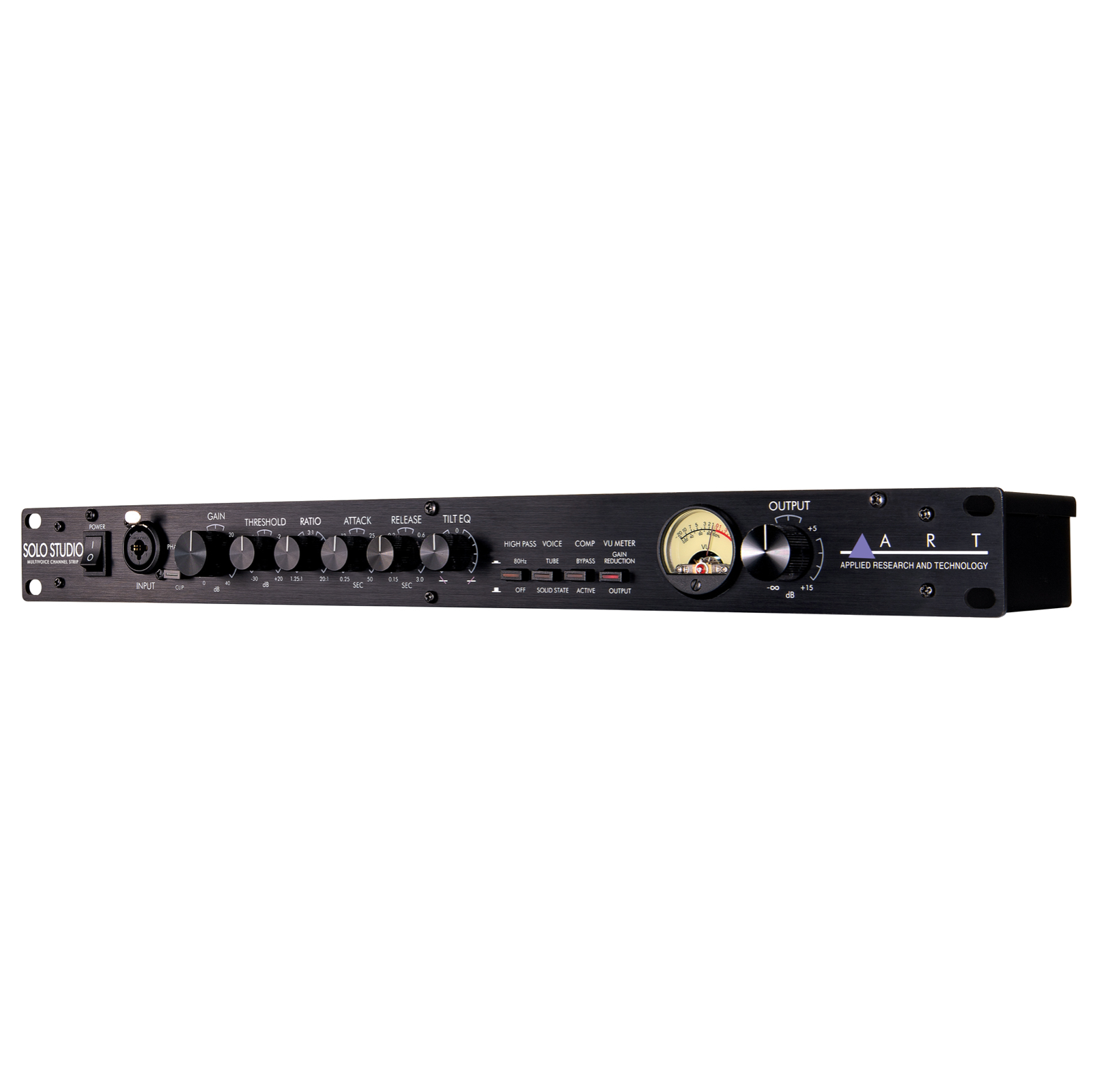

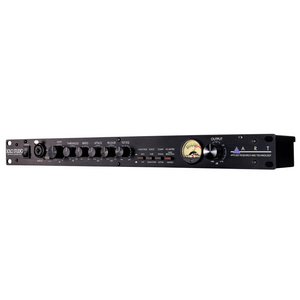

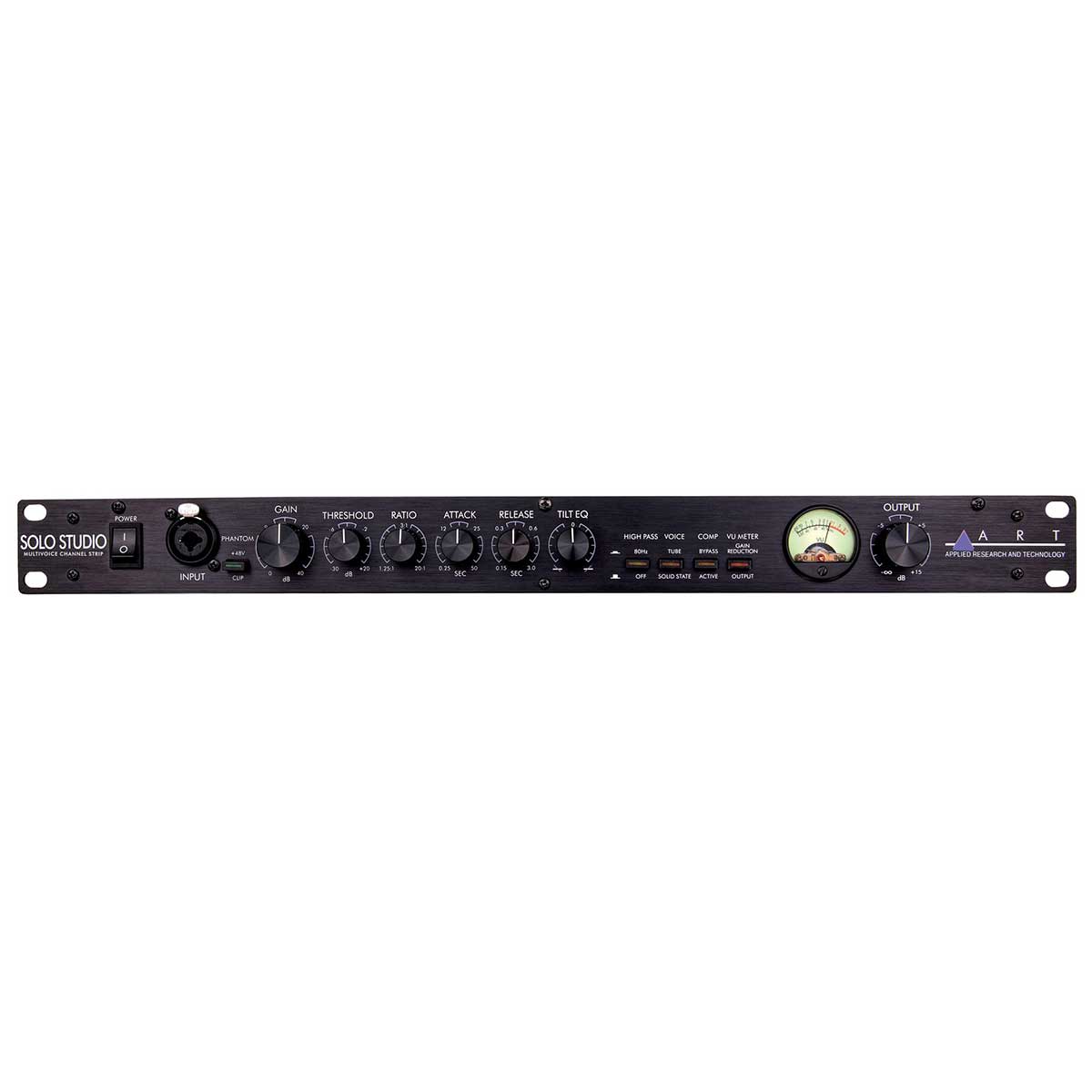

    ART Solo Studio Multi-Voice Channel Strip


     Combining the best of both worlds, the Solo Studio Multi-Voice Channel Strip allows users to choose between a pristine low-noise/low-distortion solid state transistor circuit and a warmer Class-A tube mic preamp. Along with the flexible Tilt EQ control, users can voice the Solo Studio to create their own signature sound.

    Featuring 48V phantom power, a front Microphone/Line balanced input or a high impedance Instrument input, users can tailor the Solo Studio to suit any sound source. A Low-Cut control allows vocals to be sculpted for clarity while the Tilt EQ can be used to emphasize high presence or low-end warmth.

    The Solo Series of single channel rackmount units have been developed for the recording enthusiast with a preference for simplicity.

    • 48 Volt Switchable Phantom Power
    • Selectable Multi-Voice Tube/Solid State Control
    • Hand selected 12AT7 Tube
    • OPTO – Analog Optical Isolators (AOI)
    • Optical Controlled Compression
    • Pre-Compression Insert Loop
    • Flexible Tilt EQ
    • Selectable Low Cut Filter (HPF)
    • Variable Threshold and Ratio controls
    • Variable Attack and Release controls
    • Variable Blend (Compression)
    • Variable Output Level Control

    Specifications

    Frequency Response 15 Hz to 50 kHz (+0, -1dB)
    Dynamic range >110dB (“A” weighted)
    CMRR >90dB
    THD <0.005% (typical)
    Equivalent Input Noise -129dBu (XLR, “A” weighted)
    Maximum Input Level +19dBu (XLR)
    Maximum Instrument Input +17dBu
    Input Impedance 47k ohms (XLR),



    >800k ohms (Instrument)

    Maximum Output Level) +27dBu (XLR
    Output Impedance < 47 ohms (XLR)
    Maximum Gain 55dBMeter
    Attack Time 0.25msec. to 50msec. variable
    Release Time 150msec. to 3sec. variable
    CMRR >90dB THD <0.005% (typical
    Calibration 0VU = +4dBu output (+4dBu mode)



    0VU = -10dBV output (-10dBV mode)

    Low Cut Filter single pole, 80Hz
    Tilt EQ +/- 3dB adjustable
    Power Requirements 100-240V 50Hz/60Hz
    Dimensions: (HxWxD) 4.45 cm x 48.3 cm x 15.2 cm
    Weight 2.5kg
    Box Dimensions 12.6 cm x 51.8 cm x 18.9 cm

    Note: 0 dBu = 0.775Vrms
