Antelope Edge Strip Discrete Dual Ultra-Linear Microphone Preamp & Edge Duo Modeling Mic

KEY FEATURES:

• All-analog dual-channel microphone pre-amplifier
• Dual-capsule condenser large-diaphragm microphone
• Transform Edge Duo into a vintageclassics via 11 Antelope Mic Emulations
• 3 classic German preamp emulations
• Antelope’s famous Stay-Levin compressor
• A vintage EQ to help you sculpt the perfect tone
• Calibration oscillator for accurate gain matching
• Two line outs
• Two inputs on combo XLR / TRS connectors
• 48V phantom power
• Software control panel for MAC & PC

The days of spending tens of thousands of dollars on a vintage mic collection are over. Most engineers only ever dream of using these expensive, rare microphones. The Edge Strip makes that dream a reality. Now you can add high-end studio equipment to your collection for a fraction of the price.

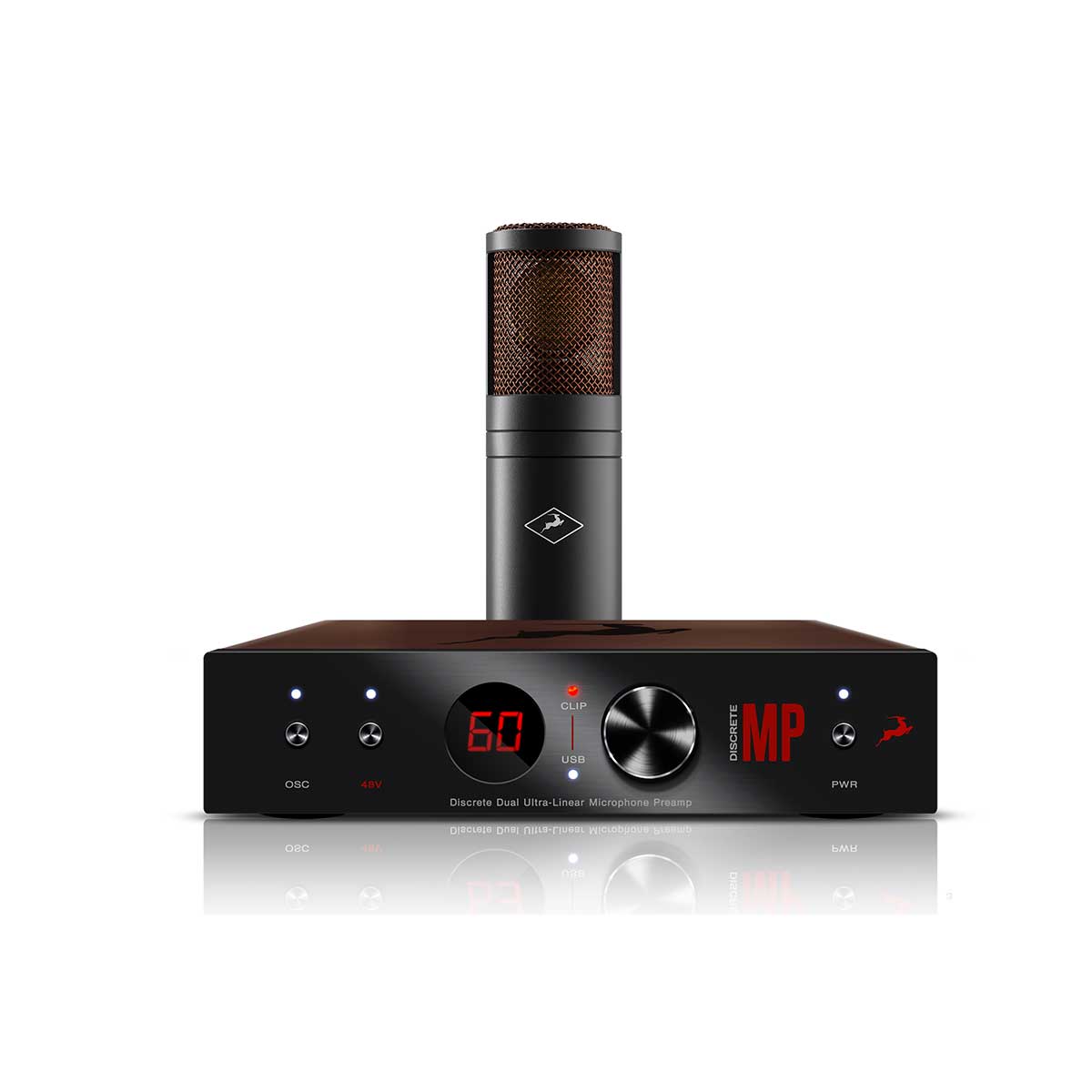

The Edge Strip is designed to model a variety of vintage microphones, preamps, and even signal processors such as EQs and compressors. It contains Antelope Audio’s renowned Edge Duo Modeling Microphone — a dual-capsule condenser large-diaphragm microphone, specifically designed to reproduce the expressiveness and character of expensive classic microphones.

It also includes the Discrete MP — an all-analog dual-channel microphone pre-amplifier, designed to deliver Antelope’s signature pristine audio quality and perfectly match the Edge's characteristics.

The Edge Strip includes:

- eleven timeless Edge Duo mic emulations - Berlin 47 FT, Berlin 87, Berlin 67, Tokyo 800T, Berlin M103, Oxford 4038, Vienna 12, Berlin 57,  Sacramento 121R, Vienna 414, Berlin 49T and our own Antelope Edge model.

- 3 classic preamp emulations: Antelope V76, Giraffe G9 and BAE 1073 MP.

- Our famous Stay-Levin compressor, and a vintage BAE 1073 EQ also help you sculpt the perfect tone – all for free!

However, if that’s not enough, you can upgrade with dozens of other modeled units featured in our FPGA FX library.

All plug-ins are iLok protected. An iLok is required in order to use them. iLok is not provided by Antelope Audio and must be purchased separately.

Experience Edge Duo at Its Maximum Potential

Using the Discrete MP with the Edge Duo Modeling Microphone unlocks its full potential. Both units utilize discrete analog circuitry and were designed by Igor Levin himself to complement each other perfectly.

The two will work with any recording system. Thanks to its dedicated calibration oscillator, Discrete MP is easily adaptable to all studio setups, even those without precise gain linking between two channels. When connecting to a new system, simply engage the built-in oscillator to calibrate the preamp for perfect gain matching.

Use the Discrete MP's sterling analog preamps to capture the tone of your favorite mic in crystal-clear detail. Or pair it with the Edge Duo Modeling Microphone and choose your favorite preamp to recreate classic, time-tested studio sounds. Using the free native plug-ins, you can audition countless combinations of microphones, preamps, and vintage outboard gear to get the perfect tone.

Discrete Analog Design

The Edge Strip bundle offers natural analog sound, combined with the benefits of precise digital control. The USB connection offers a simple way to control the Edge Strip remotely, from your computer.

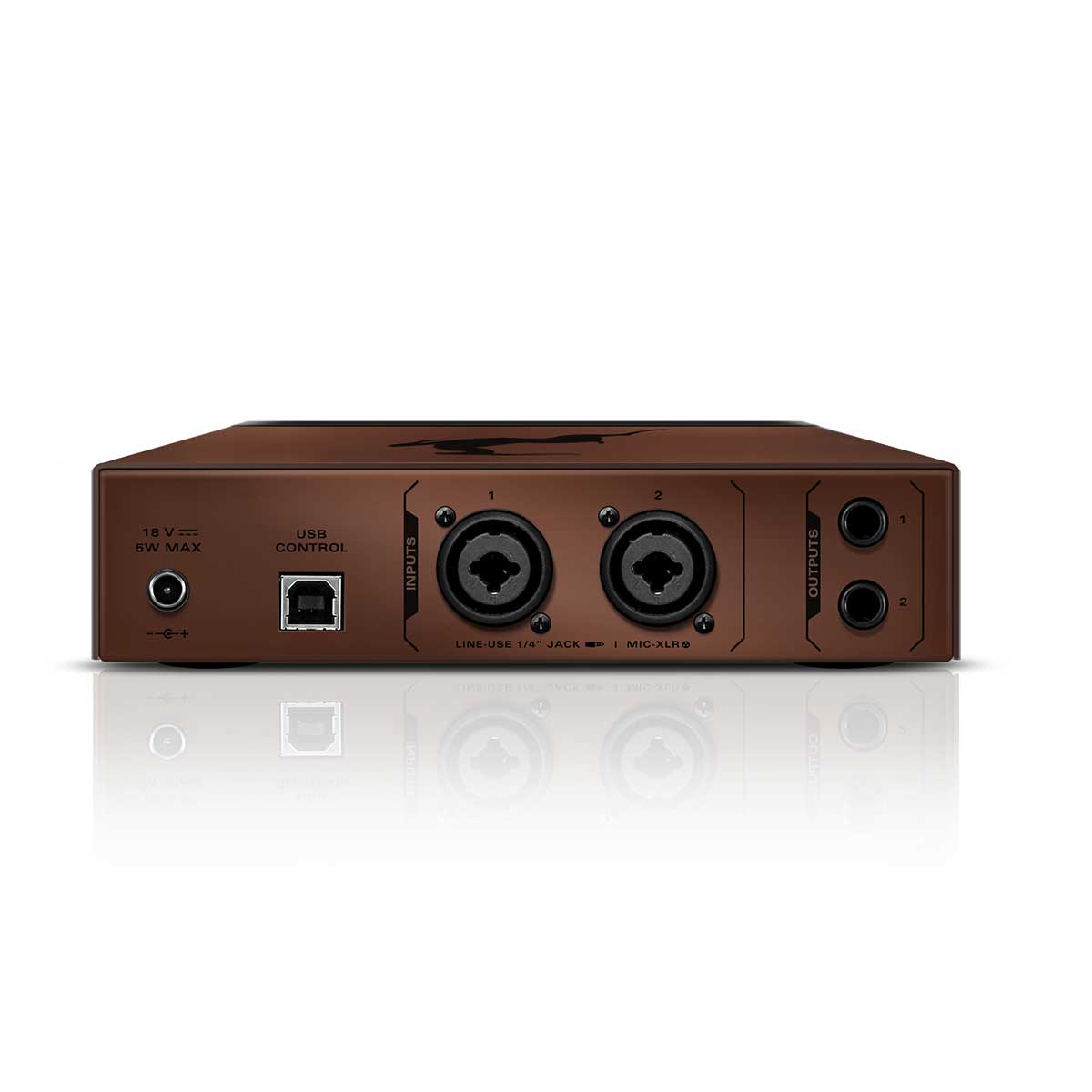

The Discrete MP includes two XLR+TRS combo inputs, as well as two TRS outputs. The discrete analog circuits in the Discrete MP offer up to 61dB of gain. Designing them in-house, Antelope Audio had total control over the coloration, clarity, and character of the preamps.

Each Edge Duo Modeling Microphone consists of a special double-sided capsule with 10 microns gold-sputtered membranes. This allows us to accomplish multi-dimensional modeling and emulate a variety of different microphones, polar patterns, and even control the proximity effect.

Special AFX

The Edge Strip bundle includes our custom AFX signal processors, including a growing list of superior microphone emulations that bring field-proven microphone legends into your setup. The programming experts, in cooperation with analog engineers and mic designers, developed these microphone emulations. Each plug-in uses a high degree of oversampling and precise floating-point calculations to accurately model vintage effects with unparalleled detail.

Even when emulating microphones, preamps, and signal processors, you can breathe easy, knowing the Edge Strip offers minimal latency and Antelope Audio’s signature sound. Pick up an Edge Strip today and say goodbye to your bulky vintage gear!

Technical Specifications:

Analog Inputs

2 × Mic Inputs (combo 3 pin XLR + TRS)

Analog Outputs

2 × TRS

Microphone Preamp

Gain Range: 0dB to 61dB; 1dB step

Phantom Power

Callibration Oscillator

1kHz hardware OSC

USB 2.0 I/O

Used only for remote control

USB 2.0 Type B connector

Operating Temperature

0 – 50°C, 32 – 122°F

Weight (Approx.)

Gross: 4.9/10.8 kg/lbs

Net: 2.8/6.2 kg/lbs

Package Dimensions (Approx.)

412 × 340 × 166 mm /W×D×H/

Power Consumption

5W

System Requirements

Computer

USB 2.0 equipped Mac or PC

Core 2 Duo minimum, Core i3/i5/i7/Xeon recommended

4 GB RAM minimum, 8 GB RAM recommended

Operating system

OS X 10.11 (El Capitan) or greater

Windows 10

In the box:

DiscreteMP

Edge Duo microphone

Microphone cable /5pin -> 2 x 3pin/

Shock mount

Pop filter

Adaptor

USB cable

Documents

Activation Code Leaflets
