Blackmagic Design

SWATEMPSW1ME4K

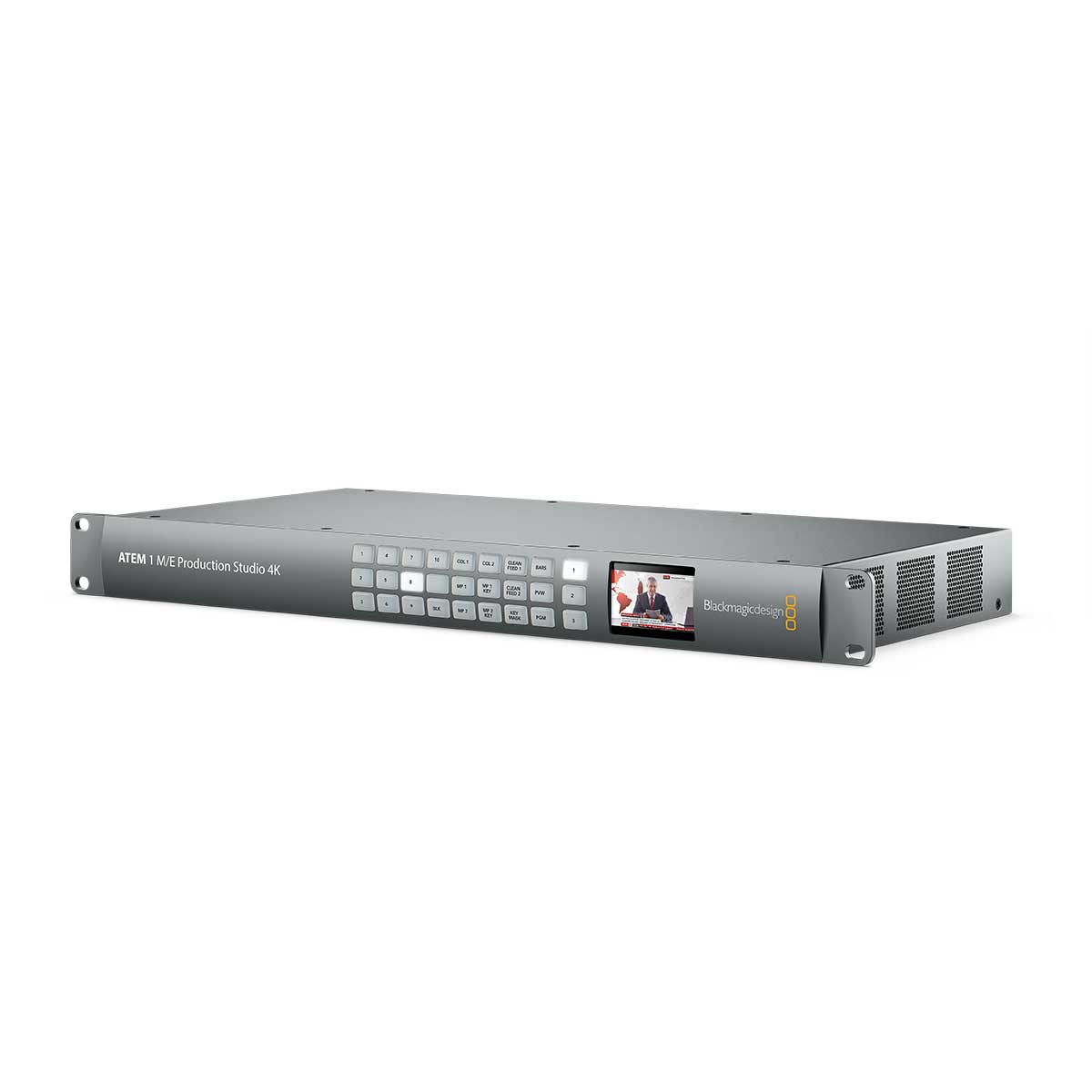

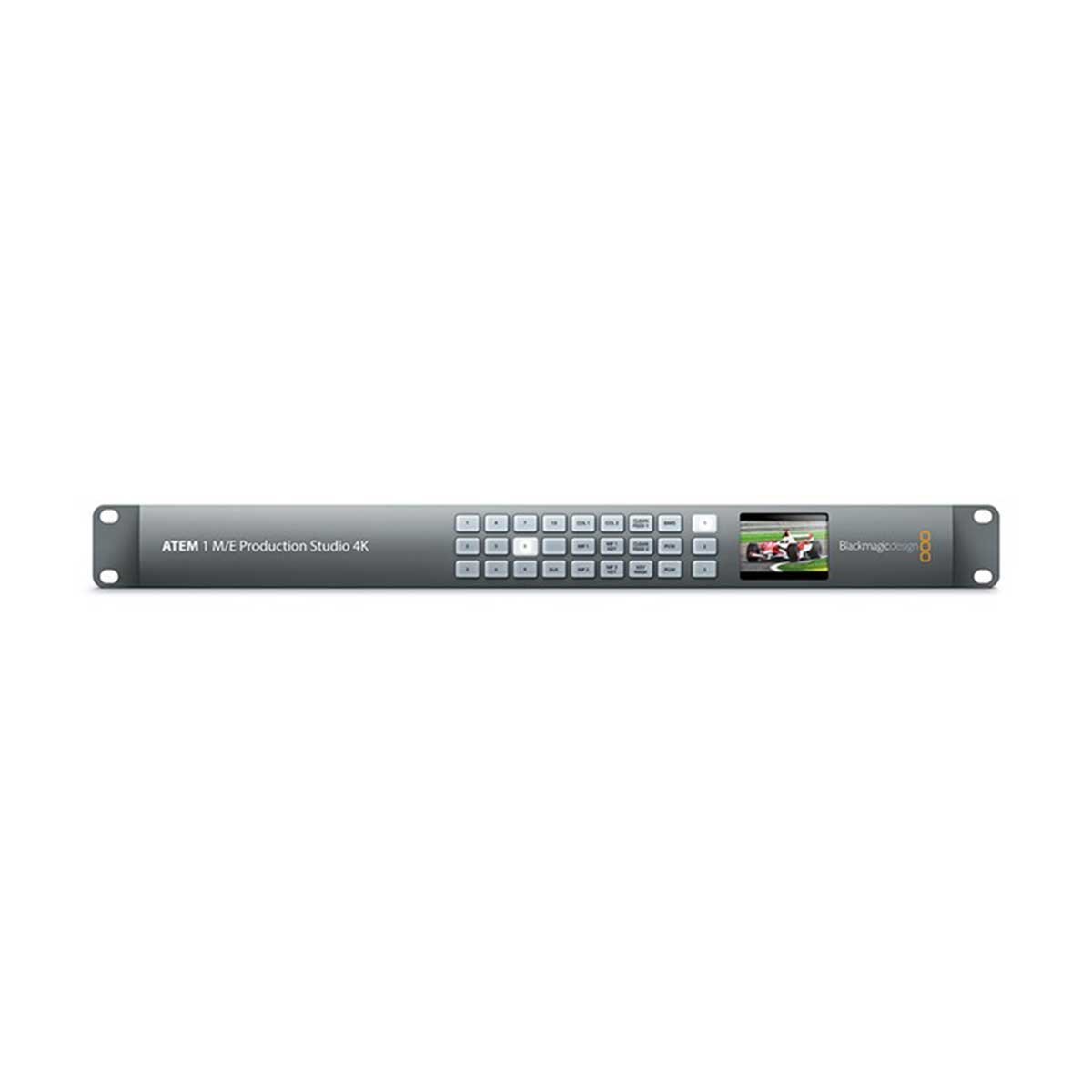

Blackmagic Design ATEM 1 M/E Production Studio 4K

1 IN STOCK

Advanced 1 M/E live production switcher with DVE, stingers and 6G-SDI so you can work in SD, HD and Ultra HD!

Create stunning multi camera live production with the world’s most advanced production switchers! ATEM switches between SD, HD or Ultra HD video standards so you can form exciting live production with a wide range of video sources such as cameras, disk recorders and slide shows or animation from computers. You get powerful features such as chroma key, creative transitions, media pool, downstream keyers, audio mixer, multi view and more! The more advanced models include features such as up to 20 SDI inputs, SuperSource multi-layer engine, full motion DVE, stinger transitions, larger media pool with full motion clips and up to an incredible 6 auxiliary outputs!

For demanding live production environments you can add a hardware based ATEM 1 M/E or 2 M/E Broadcast Panel featuring the highest quality buttons, knobs and faders for even faster switching! You also get an SDK for custom control. Only ATEM gives you such a wide range of control options!

ATEM 1 M/E Production Studio 4K Key Features

  • Full live production switcher with media players, chroma keying, transitions and more.
  • Switcher can be selected between SD, HD and Ultra HD video formats instantly.
  • Built in multi view lets you see 8 sources, preview and program on an HD-SDI and HDMI output.
  • 10 Inputs total with 10 6G-SDI and 1 HDMI inputs. All inputs feature auto re-sync.
  • 2 6G-SDI program outputs, 1 HDMI 4K program out and 1 down converted HD-SDI program output.
  • Built in media pool graphics storage for 32 RGBA Ultra HD stills and 180 frame Ultra HD clips.
  • Built in full motion 2D DVE with position, scale, resize and rotate features.
  • 2 media players allow graphics to be connected to keyers for fill and key layering.
  • Transitions include cut, mix, dip to color, SMPTE wipes and more.
  • 4 upstream keyers include chroma keyer and 2 downstream keyers are included.
  • 3 auxiliary outputs include front panel aux switching buttons and LCD screen for viewing.
  • Built in audio mixer live mixes embedded audio from all video inputs and independent audio inputs.
  • Balanced XLR stereo analog audio inputs and 1 HiFi RCA stereo audio inputs into built in audio mixer.
  • Audio mixer is output onto balanced XLR audio outputs and on all video outputs.
  • Internal sources include black, color bars, two color generators and media pool.
  • Ethernet connection for control panel connection. Mac and Windows control panel software included.
  • Compatible with all ATEM Broadcast Panel control panels when hardware panel is required.
  • Black Burst and HD-Tri-Sync genlock input.
  • Compact 1 rack unit size for a portable solution.

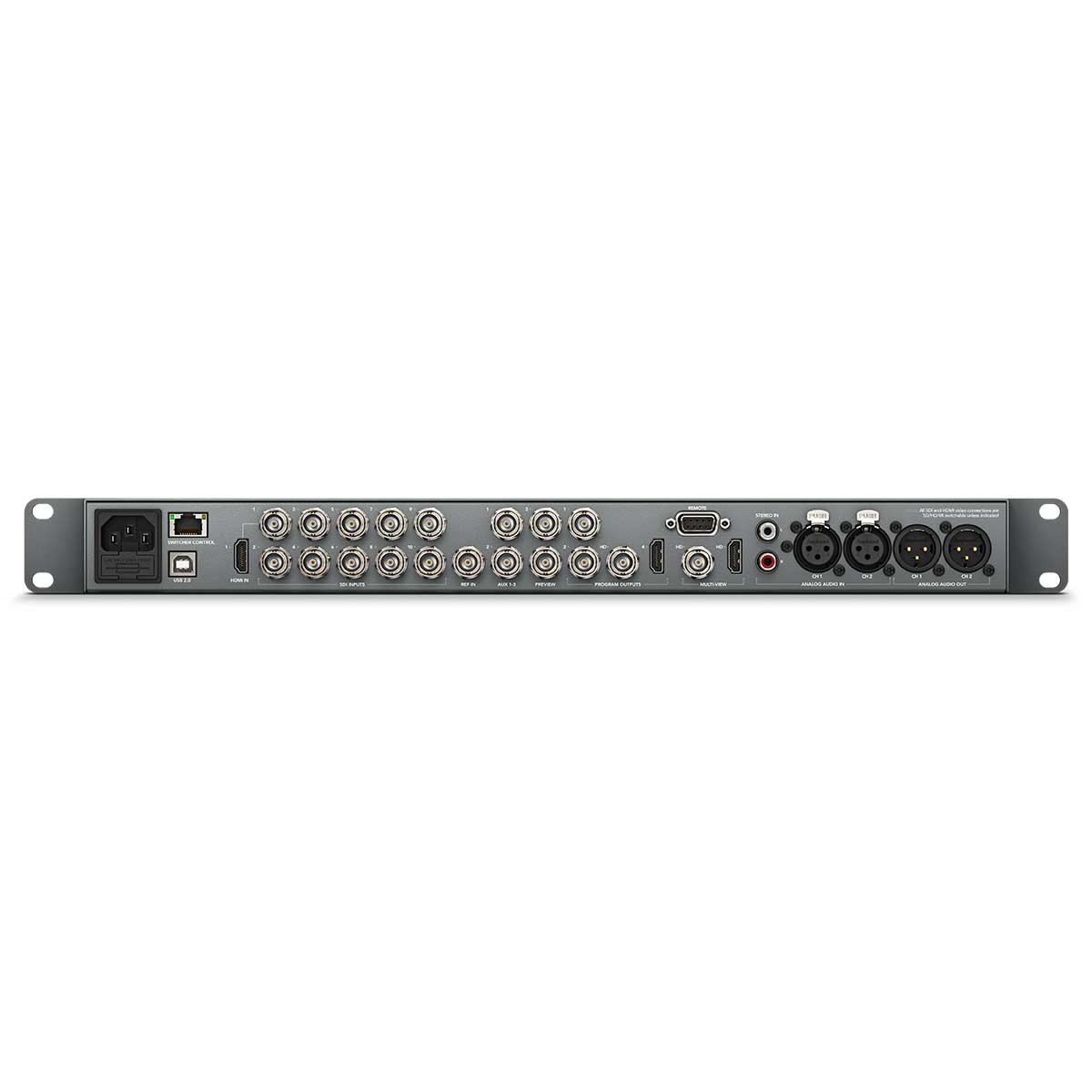

Inputs

ATEM switchers include advanced 6G-SDI and HDMI inputs that are SD, HD or Ultra HD switchable up to 2160p30 while the advanced ATEM Broadcast Studio 4K model features 20 12G-SDI inputs for working in HD and Ultra HD up to 2160p60. Every input supports embedded audio mixing and features a frame resynchronizer so you can use sources without genlock such as laptop computers for live PowerPoint™ presentations! You also get 2 balanced XLR audio inputs for connecting professional mixers and a HiFi audio input for consumer equipment like an iPod®.

Outputs

Get all the outputs you need to record your video master and to broadcast your program to the audience at the event! ATEM includes program and down converted program outputs plus auxiliary outputs allowing clean feeds, perfect for connecting to giant outdoor LED screens, projectors, disk recorders, monitors and broadcast decks! The multi view outputs are 1080i HD so you can use any TV or monitor. You also get a balanced XLR output of your audio mix, which is also embedded into all video outputs.
