  • Home / Products / Blackmagic Design UltraStudio 4K Mini
    Blackmagic Design UltraStudio 4K Mini
    Blackmagic Design UltraStudio 4K Mini
    Blackmagic Design UltraStudio 4K Mini
    Blackmagic Design UltraStudio 4K Mini
    Blackmagic Design UltraStudio 4K Mini
    Blackmagic Design UltraStudio 4K Mini
    Blackmagic Design UltraStudio 4K Mini
    Blackmagic Design UltraStudio 4K Mini
    $1,579.00$1,735.00

    Blackmagic Design

    BDLKULSDMINI4K

    Blackmagic Design UltraStudio 4K Mini

    Notify me when this product is available:

    Portable Thunderbolt 3 solution with 12G‑SDI, HDMI 2.0 and analog connections allows high frame rate, high dynamic range video in all formats up to 2160p60 and 4K DCI.


    Type: Video Capture & Playback Solutions

    The new UltraStudio 4K Mini model is a portable Thunderbolt 3 capture and playback solution packedwith the latest broadcast technology, including 12G‑SDI, HDMI 2.0 and analog connections. You get broadcast quality 8 and 10‑bit high dynamic range capture in all formats up to 4K DCI at 60p, and 12‑bit high dynamic range capture in all formats up to 4K DCI at 30p. The front panel features push button controls, an LCD for monitoring signal and setup, an XLR microphone input and a ¼" headphone jack. UltraStudio 4K Mini features USB for connecting a keyboard and mouse, plus it will trickle charge your laptop computer when connected to the Thunderbolt 3 port. There’s even a built in SD card reader allowinginstant access to your camera media cards!

    UltraStudio 4K Mini Features

    • Thunderbolt 3 interface for 40 Gb/s capture and playback.
    • 3 models available with both portable and rack mount options.
    • Ideal for edit monitoring, live graphics, archive and streaming.
    • 12G‑SDI, HDMI 2.0, YUV/NTSC/PAL video and balanced audio.
    • Supports 45W trickle charging to connected computer.
    • Supports all SD, 720p, 1080i, 1080p, 2160p and 4K DCI formats.

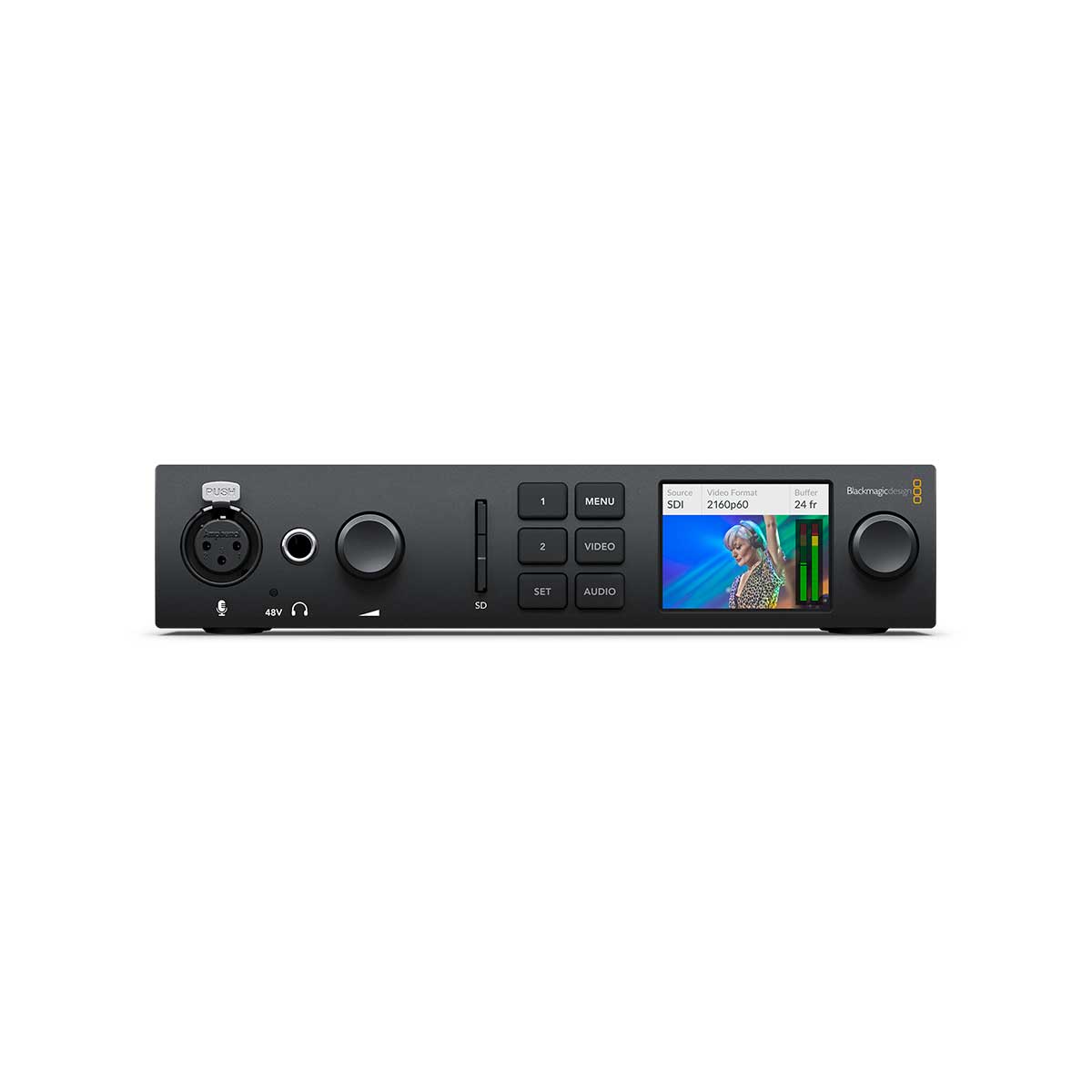

    • Front panel with LCD, mic input, headphone and SD card slot.
    • Compatible with DaVinci Resolve for editing, color, VFX and audio.
    • Supports DaVinci Resolve, Final Cut Pro, Avid and more.
    • Includes support for Mac, Windows and Linux.

    UltraStudio 4K Mini feature the latest 12G‑SDI, for the most powerful video capture and playback solution! The incredible speed of 12G‑SDI means UltraStudio 4K models can support both capture and playback of Ultra HD and 4K 60p over a single BNC cable! Because 12G‑SDI connections are multi rate, you can still connect to all of your existing equipment. Only 12G‑SDI gives you the compatibility to connect to all your existing SD and HD equipment but also supports the future with all Ultra HD formats up to 2160p60. Because the 12G-SDI outputs are dual link, you can do stereoscopic or simultaneous fill and key in real time up to 2160p30!

    Compatibility

    Supports Macs with Thunderbolt 3

    UltraStudio has been specifically designed for the Mac platform's unique needs and is supported by a huge range of popular video software. The included drivers have been optimised for high performance video, plus the features needed for editing software such as DaVinci Resolve, Final Cut Pro X, Premiere Pro CC, and Avid Media Composer. For visual effects get full compatibility with Fusion, After Effects CC and Photoshop CC. For audio get compatibility with ProTools, Steinberg Nuendo and Cubase. For streaming use OBS, Wirecast, Livestream Producer.


    Get Incredible Windows Compatibility

    For Windows you get access to a massive range of software because UltraStudio supports WDM and DirectShow! For editing you can use DaVinci Resolve, Avid Media Composer, Premiere Pro CC, MAGIX Vegas Pro, Corel VideoStudio Pro, CyberLink Power Director and MAGIX Video Pro. For visual effects use Fusion, After Effects CC and Photoshop CC. Audio software supported includes Steinberg Nuendo and Cubase. When streaming you get compatibility with Flash Media Live Encoder, Xsplit Broadcaster, Wirecast and Livestream Producer.
