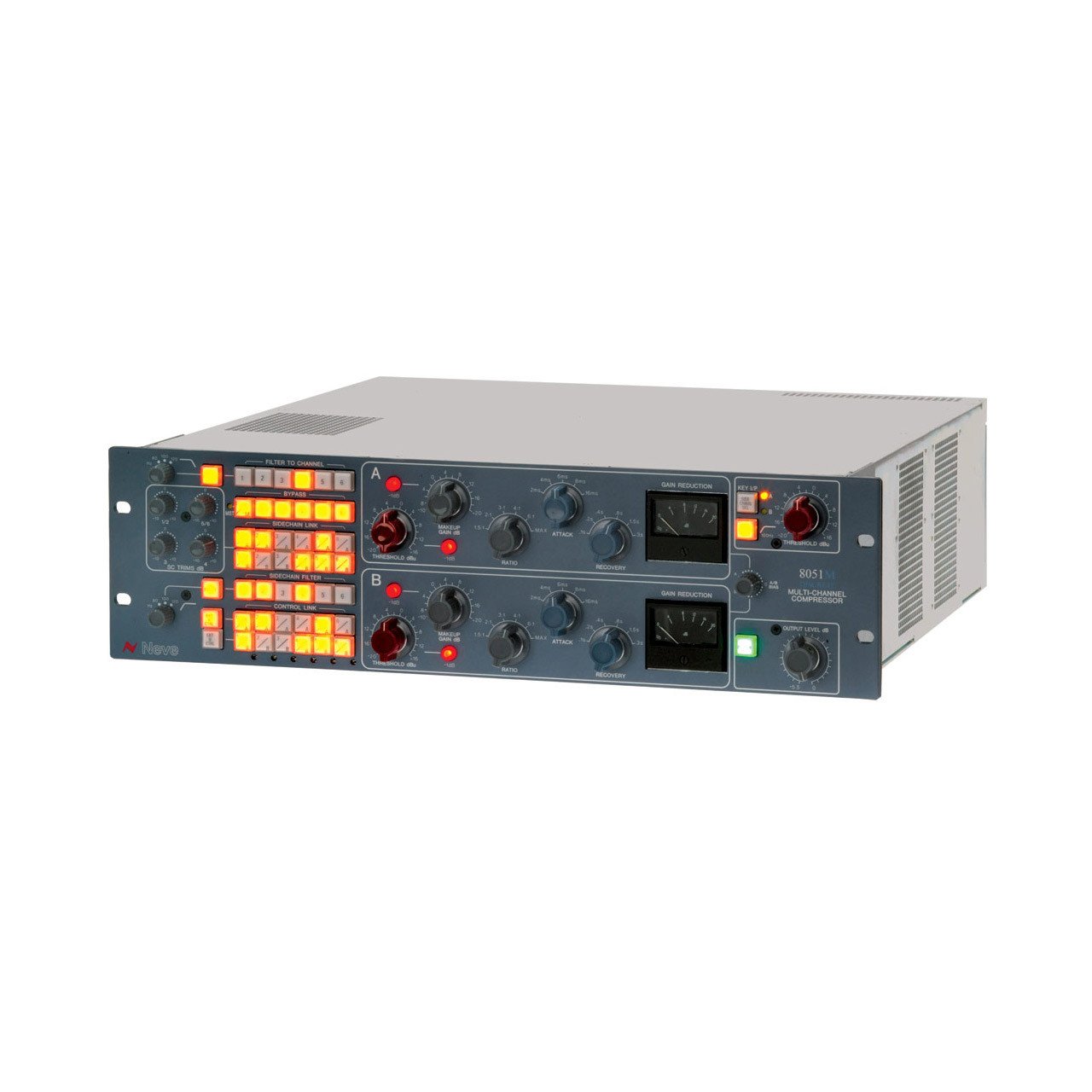

The Neve AMS 8051 is a hand-made analogue compressor, designed for surround sound applications. Key features of the 8051 are a total of 6 x transformer balanced audio paths, complemented by two side chains and a key input. The 8051 has been based on the circuits and technology found in the Neve AMS 2254 compressor, and the 33609 stereo compressor. With pliant side chain options, included filters and trim feature, the 8051 delivers the Neve sound and features to surround projects in a single unit.
Hand-built, hand-wired analogue compressor for Surround mixing Six transformer-balanced audio paths Ideal surround broadcast or mastering compressor Side Chain control trims and Side Chain A/B bias control High and low pass filter Electronically balanced key input and LFE filter inputs All other inputs transformer-balanced with 3.6kOhms input impedances All outputs electronically balanced, post output transformers
Neve AMS 8051 TECHNICAL SPECIFICATIONS:
Maximum output: +26dBu into 600 Ohms Control Voltage I/O provided for linking multiple units, or linking to 33609 EIN (20kHz band): <-78dBu THD+N (for 20dBu input @ 1kHz): <0.03% Maximum Output Level: >26dBu into 600 ohms Interchannel Crosstalk: <-80dB at 15kHz Frequency Response ±0.5dB 20Hz to 20kHz
