$1,199.00
PIT-MICROVOLT3900

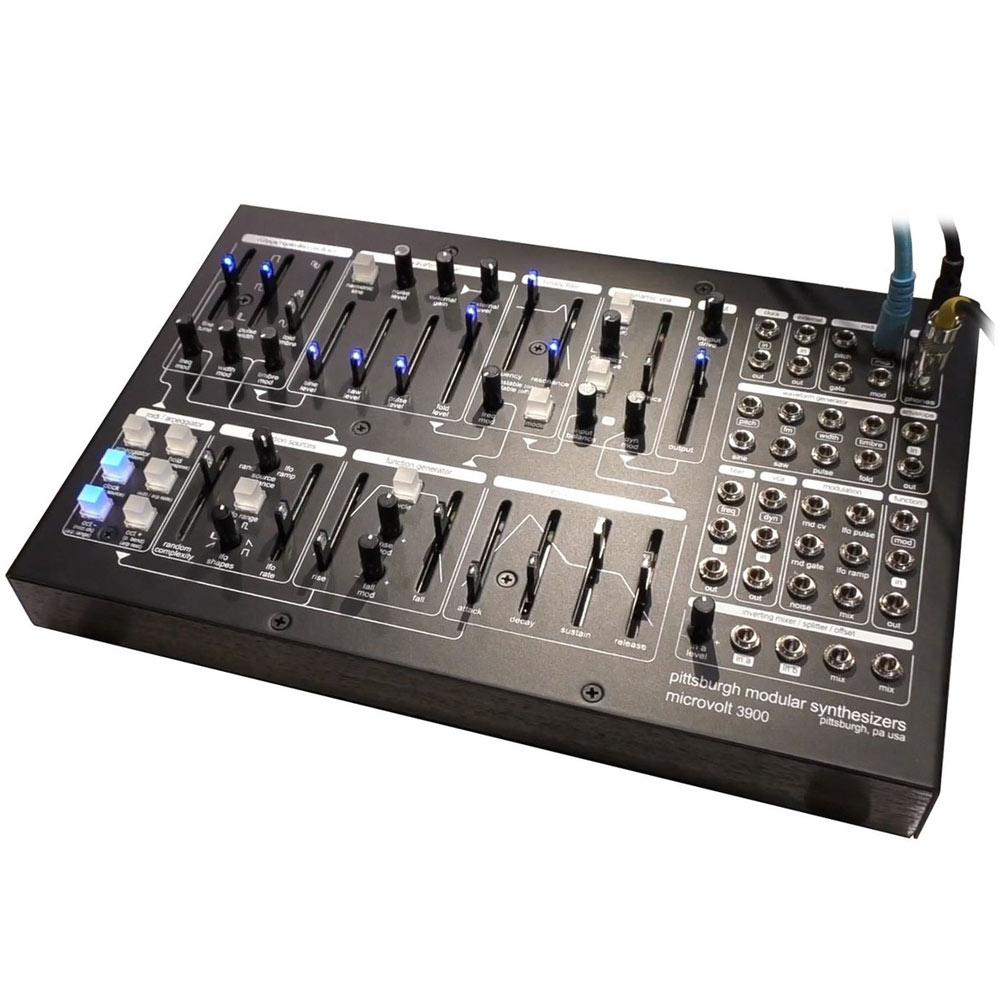

Pittsburgh Modular Microvolt 3900 Desktop Analogue Monophonic Synthesizer
An amazing new fully analogue desktop monosynth from Pittsburgh Modular, the microvolt 3900 is a standalone semi-modular synthesizer. It has normalized internal patching, so it can be used as a desktop synth module, by just connecting MIDI. But it also can also be patched, to override the internal signal flow or to integrate with other modular gear.
Type: Desktop Synthesizers
-
-
Pittsburgh Modular Microvolt 3900 PRODUCT FEATURES:
Featuring classic and new elements of both east and west coast synthesis schools, the Microvolt combines classic oscillator shapes, new wave rectifying and tonally deep wavefolding to create an enormous range of rich sounds.
Featuring both classic filtering & low pass gating, Microvolt also sports 39 patch points for complete modular control and interfacing with itself and other Eurorack standard equipment.
-
Pittsburgh Modular Microvolt 3900 TECHNICAL SPECIFICATIONS:
Architecture
Type: Analog
Synthesis: Subtractive, Wave Folding
Oscillators
Oscillators: 1
Waveforms: Pulse, Saw Down, Sine
Osc Modulation: Envelope, Input, Keyboard, Knob, LFO
Envelopes
Envelopes: 3
Evelope Paramerters: Attack, Decay, Sustain, Release, Looping, Slope, Triggered
Envelope Notes::
1 x ADSR
1 x Function Generator (Slope)
1 + Low Pass Gate
Filters
Filters: 1
Types: 24dB Slope (4-pole), Low Pass, Resonance
Filter Modulation: Envelope, Keyboard, Knob
Filter Notes:
+ 2 resonance modes
+ Binary Filter
LFO
LFO: 1
LFO Parameters: Sample & Hold, Saw Up, Saw Down, Sine, Square, Triangle
Polyphony & Tuning
Polyphony: 1
Timbrality: 1
Tuning: Standard
Modes: Mono
Arpeggiator
+ Modes: Up, Down, Etc.
+ Hold
Case
Case: Desktop
Controls: Buttons, Knobs, Sliders, Modulation 1/8" Jacks, Pedal - Filter
Display Type: LED, Backlit
Connections
Audio Output Connections: 1/8" Phone Jack, Mono Out
MIDI Ports: IN, OUT
CV Ports: CV IN, CV OUT, Gate In, Gate Out
