  • PRE-STUDIO-24C

    PreSonus Studio 24c USB-C Audio Interface

    1 In Stock

    Great for recording studios, mobile musicians, guitarists, podcasters, and live streaming, the bus-powered Studio 24c 2-in, 2-out audio interface features 2 front-panel combo mic/line/instrument inputs with PreSonus® XMAX-L solid-state mic preamps, 2 rear-panel line outputs, MIDI I/O, and onboard direct monitoring control. A complete, all-in-one home recording studio, the Studio 24c comes with PreSonus’ award-winning Studio One® Artist music production software & Ableton Live Lite for macOS® and Windows®.


    Product Features:

    Input/Output
    Simultaneous I/O up to 2 inputs/2 outputs

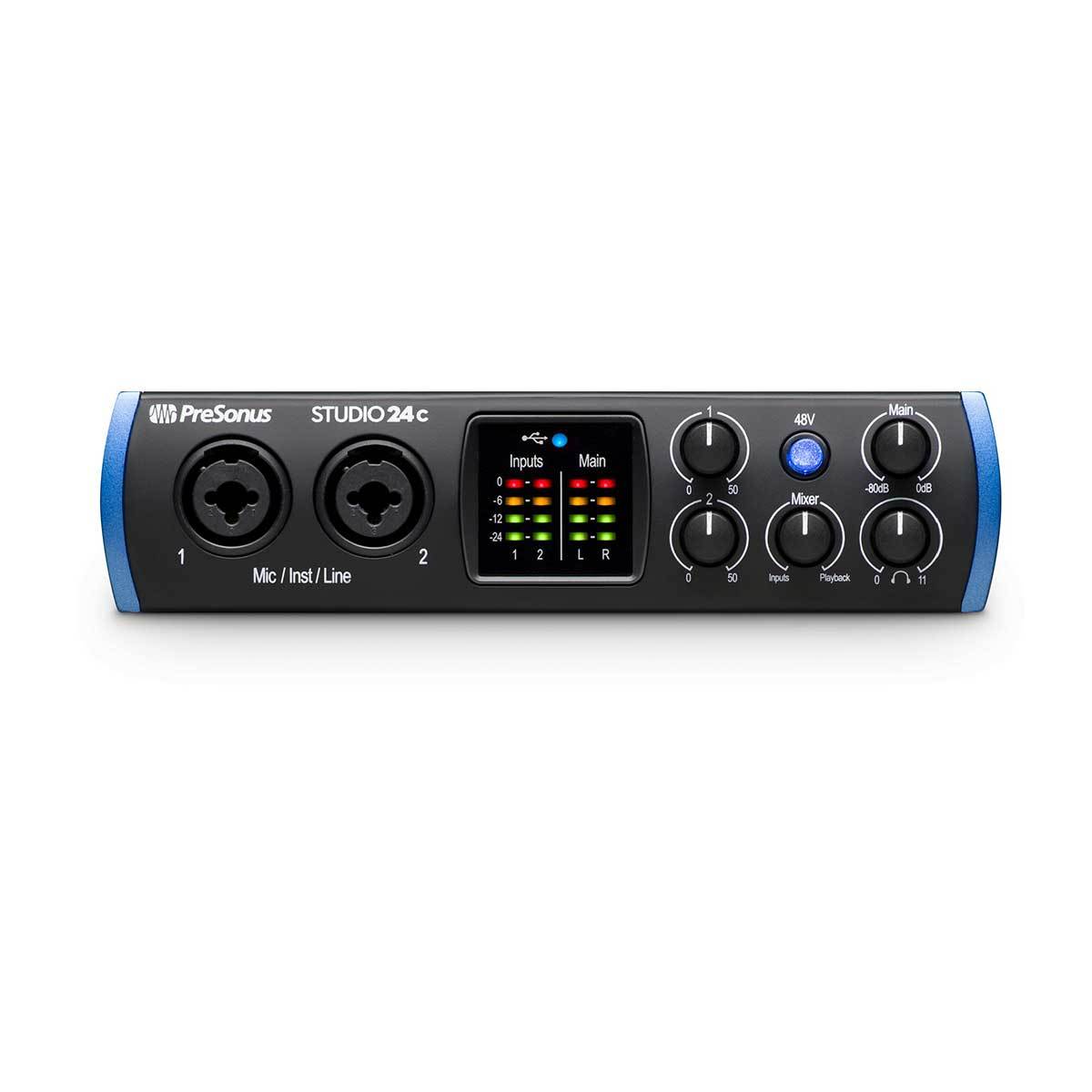

    2 mic/instrument/line inputs with XMAX-L mic preamps

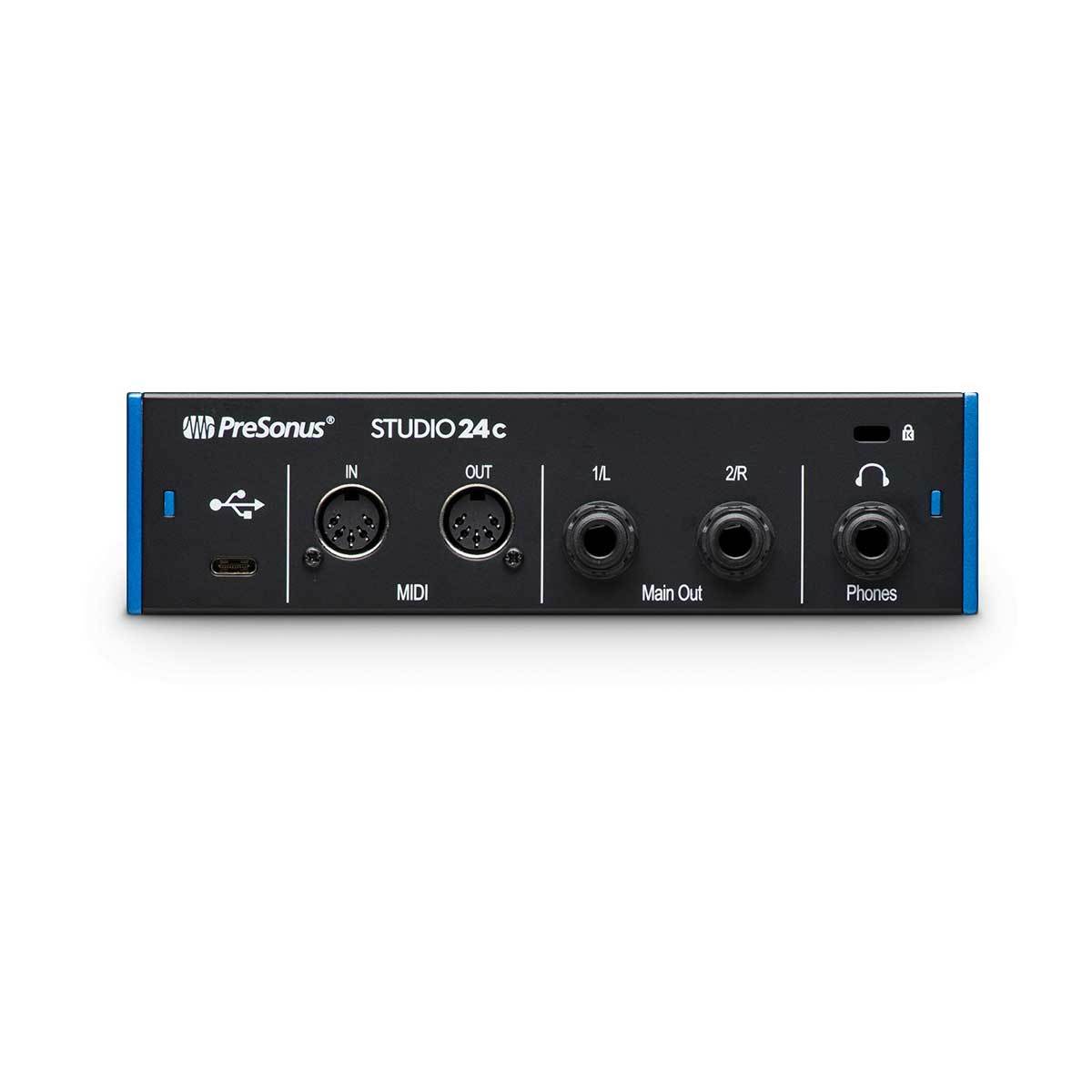

    2 balanced ¼” TRS main outputs
    1 stereo headphone output
    MIDI In/Out

    Meters, Controls, and Features
    Mixer knob for low-latency direct input monitoring
    Front-panel level controls for main outputs
    +48V phantom power for condenser microphones (global)
    4 ladder-style LED level meters (2 input, 2 main output)

    Integrated Software
    Studio One Artist®
    Studio Magic Plug-in Suite

    Digital
    USB-C port (USB 2.0)
    24-bit resolution
    44.1, 48, 88.2, 96, 176.4 and 192 kHz sampling rates

    Physical
    Road-rugged construction with all-metal chassis and metal knobs
    USB bus-powered

    Tech Specs:

    General

    Sample Rates 44.1, 48, 88.2, 96, 176.4, or 192 kHz
    Converter Resolution 24 bit
    ADC Converter Dynamic Range 108 dB
    DAC Converter Dynamic Range 108 dB

    Microphone Inputs

    Maximum Level +10 dBu (±0.5 dBu, min gain)
    Gain Range 50 dB
    Frequency Response 20 Hz - 20 kHz (±0.3 dBu, unity gain, unwtd)
    Dynamic Range 106 dB (A-wtd, min gain)
    THD + N 0.004% (1 kHz, -1 dBFS, min gain)
    EIN -126 dBu (A-weighted, 150Ω, max gain)
    Input Impedance 1.4 kΩ
    Phantom Power +48 VDC (10 mA total)

    Instrument Inputs

    Maximum Level +19 dBu (min gain)
    Gain Range 50 dB
    Frequency Response 20 Hz – 20 kHz (±0.1 dBu, unity gain, unwtd)
    Dynamic Range 105 dB (A-wtd, unity gain)
    THD + N 0.002% (1 kHz, min gain)
    Input Impedance 750 kΩ

    Main Outputs

    Type

    ¼" TRS, Female

    Maximum Level +10 dBu (1 kHz, unity gain, balanced)
    Frequency Response 20 Hz – 20 kHz (±0.3 dBu, unity gain, unwtd)
    Dynamic Range 104 dB (unity gain, unwtd)
    THD + N 0.001% ( 1 kHz, -1 dBFS, unity gain)

    Headphone Outputs

    Maximum Power 47 mW / channel @ 56Ω
    Frequency Response 20 Hz – 20 kHz (±0.5 dBu, unity gain, unwtd)
    Dynamic Range 83 dB (A-wtd, 56Ω load)
    THD + N 0.01% (1 kHz, 0 dBFS, loaded)
    Impedance Working Range 32Ω to 300Ω

    Physical

    Height 1.75" (44 mm)
    Width 7" (180 mm)
    Depth 5.5" (144 mm)
    Weight 2 lbs. (0.9 kg)

    System Requirements:

    Mac
    Mac® OS X 10.8.5 64-bit or later
    Intel® i-series 2 GHz multicore processor (or AMD equivalent) or faster
    4 GB RAM (8 GB or more recommended)

    Windows
    Windows® 7 x64/x86 SP1 + platform update, Windows 8.1 x64/x86, Windows 10 x64/x86
    Intel i-series 2 GHz multicore processor (or AMD equivalent) or faster
    4 GB RAM (8 GB or more recommended)

    Mac and Windows Systems
    USB-C or USB-A 2.0 port
    32 GB hard disk space
    PreSonus Universal Control 2.0 or higher
    Monitor with 1366x768 resolution (high-dpi monitor recommended)
    Multitouch-enabled monitor required for touch operation


    ** Please note, system requirements may change. For the most recent system requirements please visit the manufacturer's official product listing **
