HZ-SLF108

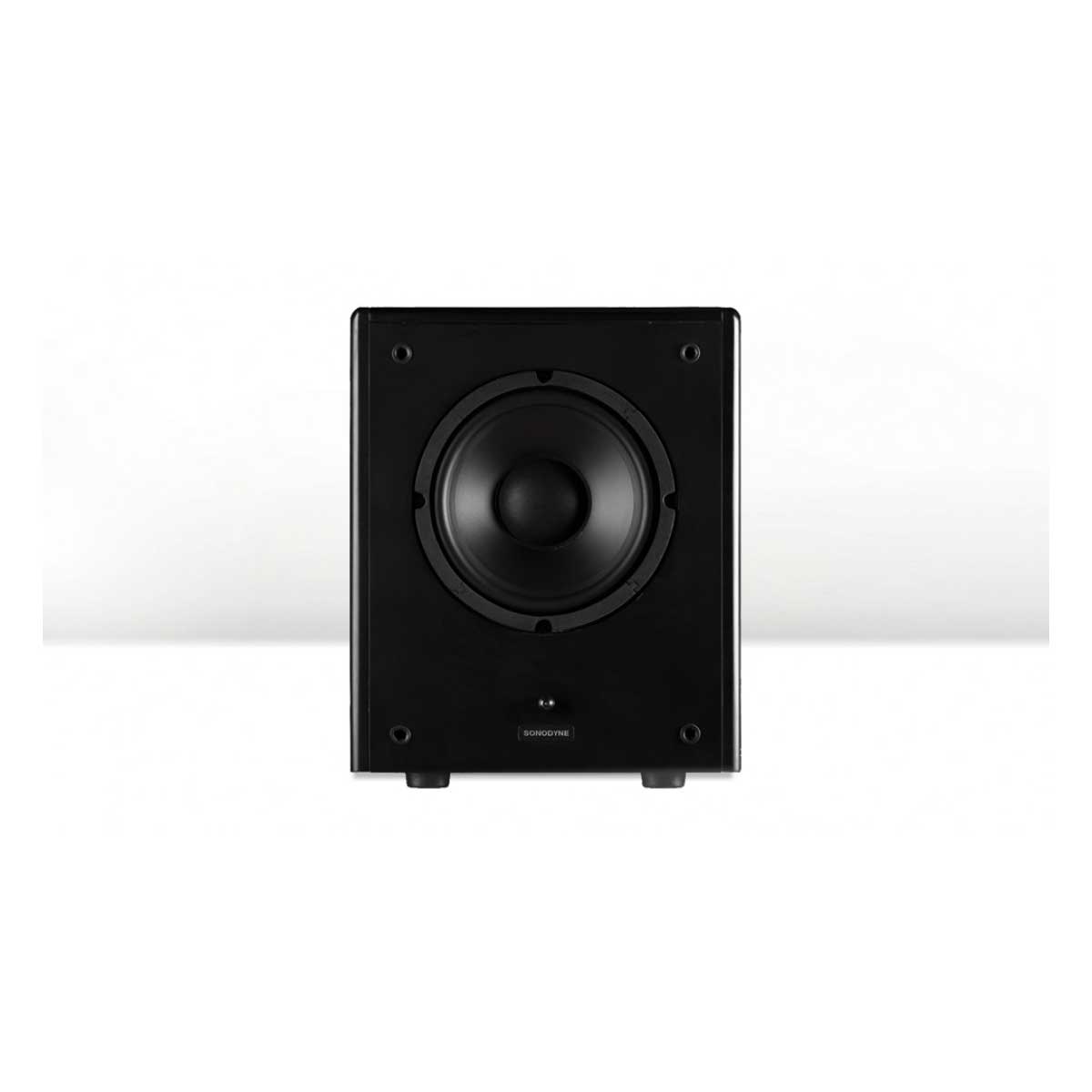

Sonodyne SLF 108 8" Subwoofer
Sonodyne powered subwoofers are designed to deliver for monitoring needs. All models feature high quality transducers and power amplifiers with adequate headroom to handle dynamics. The SLF 108 provides detailed and powerful LF extension for the smaller SRP and PM models.
Type: Subwoofers
Features
Specifications
| DESCRIPTION | Front firing vented subwoofer |
|---|---|
| ENCLOSURE | 15 mm MDF |
| TRANSDUCER COMPLEMENTS | 1 x 8" high excursion subwoofer |
| AMPLIFIER CLASS | Class AB |
| AMPLIFIER POWER | 80 W |
| AMPLIFIER THD | 0.1% at rated power |
| MAX SPL | 109 dB |
| FREQUENCY RESPONSE | 35 Hz ~ Crossover frequency (-3 dB) |
| USABLE FREQUENCY RESPONSE (-10 dB) | 30 Hz |
| INPUTS | Left, Right and LFE, Fully balanced, through XLR socket |
| INPUT LEVEL FOR FULL POWER | +5 dBU (1.4 V) at 80 Hz (frequency at mid and level control at max) |
| OUTPUT (LINE LEVEL) | Left and Right, fixed 120 Hz highpass, Fully balanced, through XLR socket |
| CONTROLS | 1. Crossover frequency: 60 Hz ~ 180 Hz 2. Phase: 0 ~ 180 degrees 3. Gain: -60 dB to +6 dB |
| CONTROLS - REAR | Polarity, Limiter On/Off, Ground Lift switch |
| FINISH | Black painted |
| GRILLE | Black cloth grille stretched over wooden frame |
| COLOURS | Black |
| DIMENSIONS (HxWxD) mm | 370 x 310 x 455 |
| POWER SOURCE | 230 V AC, 5 0Hz, via fused IEC inlet, 115 V optional |
| POWER CONSUMPTION | 125 W max at rated power |
