HZ-SRP400

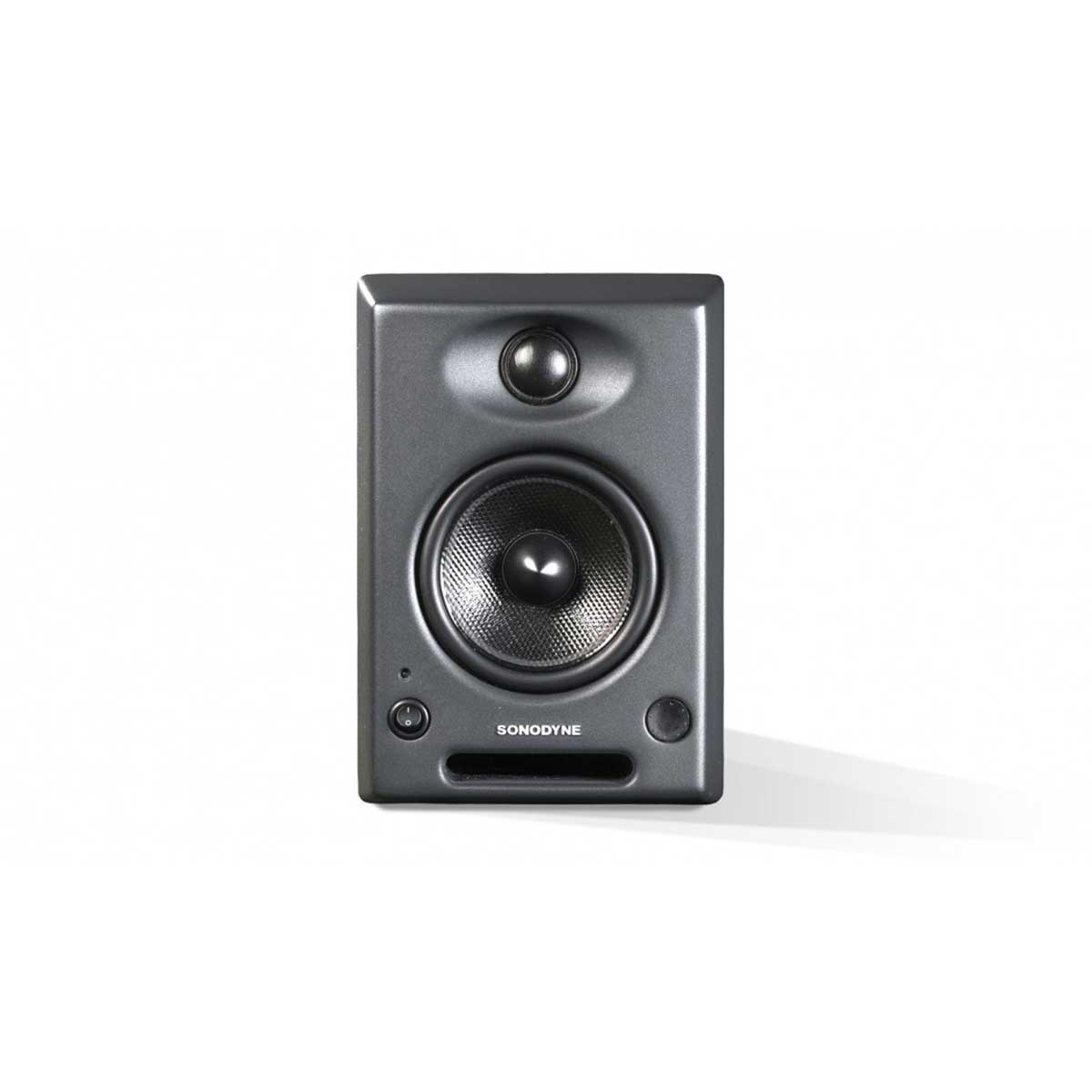

The Sonodyne SRP 400 is the most compact active reference monitor in the new SRP line. It is an excellent reference to understand how mixes translate to smaller speakers. The enclosure is pressure die cast aluminum that maximizes rigidity and lends it a unique form. The silk dome tweeter is nested in a custom waveguide to produce on and off axis linearity and a wide, detailed soundstage. The 4.5" CURV cone woofer produces impressive bass and transient response. A new 25 + 25 watt biamplifier drives the transducers optimally while providing adequate headroom and dynamics. The maximum SPL measures in at an impressive 100dB. Room compensation HF and LF tilts are available at the rear. On the front is a level control ranging from mute to +6dB with centre detent at 0dB. Tapped inserts at the rear and bottom allow for various mounting options.
Type: Active Studio Monitors
DESCRIPTION | 2 way nearfield active monitor |
---|---|
ENCLOSURE | Pressure die-cast aluminum, vented, through front-firing aerodynamic port |
TRANSDUCER COMPLEMENTS: HF | Magnetically shielded 26mm silk dome with custom waveguide |
TRANSDUCER COMPLEMENTS: LF | Magnetically shielded 4.5" CURV cone woofer |
AMPLIFIER POWER BEFORE CLIPPING | LF: 25 W, HF: 25 W |
AMPLIFIER THD AT RATED POWER | < 0.1 % |
MAX SPL @ 1M | 100 dB |
FREQUENCY RESPONSE | 75 Hz ~ 22 kHz (+/- 2 dB) |
USABLE FREQUENCY RANGE (-10 dB) | 65 Hz ~ 25 kHz |
CROSSOVER FREQUENCY | 3.0 kHz |
CMRR | > 65 dB |
INPUTS | Fully balanced through XLR & TRS sockets |
INPUT LEVEL FOR 90 dB SPL @ 1M | -2 dBU |
CONTROLS - FRONT | Gain, Power |

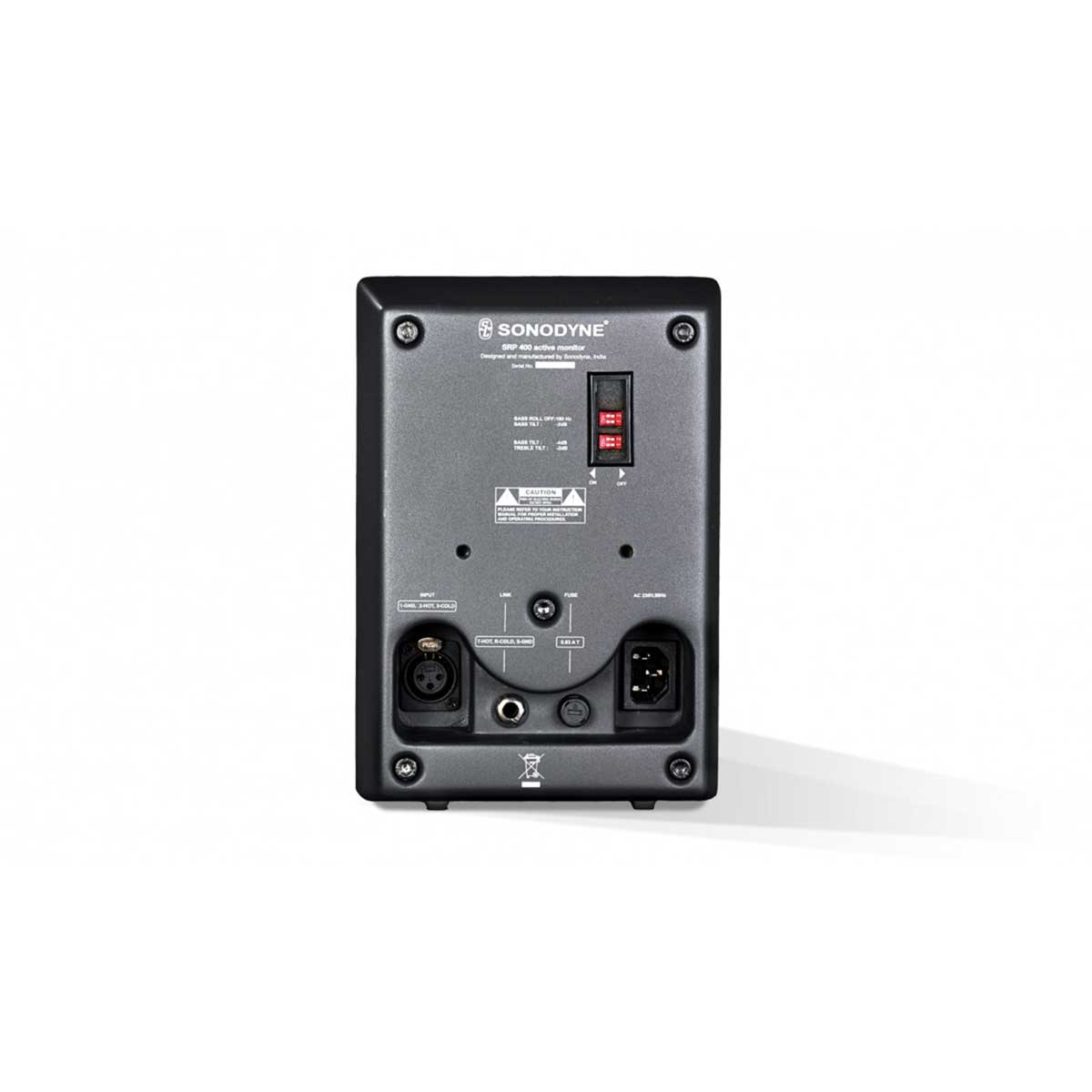

CONTROLS - REAR | Bass tilt, Treble tilt |
INDICATOR | Power ON /OFF |
GAIN CONTROL RANGE | -∞ to +6 dB, 0 dB at center position |
BASS ROLL-OFF | 100 Hz, 6 dB/octave |
SIGNAL TO NOISE RATIO (AT UNITY GAIN) | > 90 dB, referred to full output |
FINISH | Powder coated (grey/white/black) |
COLOURS | Grey/ White/ Black |
DIMENSIONS (HxWxD) mm | 160 x 232 x 155 |
POWER CONSUMPTION | 70 VA Max. |
POWER REQUIREMENT | 230 VAC, ±10%, 50 Hz; 120 V optional |
NET WEIGHT | 4.4 kg |
WALL MOUNT BRACKET | SRP WB1 |
MOUNTING OPTIONS | 2 x M6 inserts on rear 4 x M6 inserts on base |
