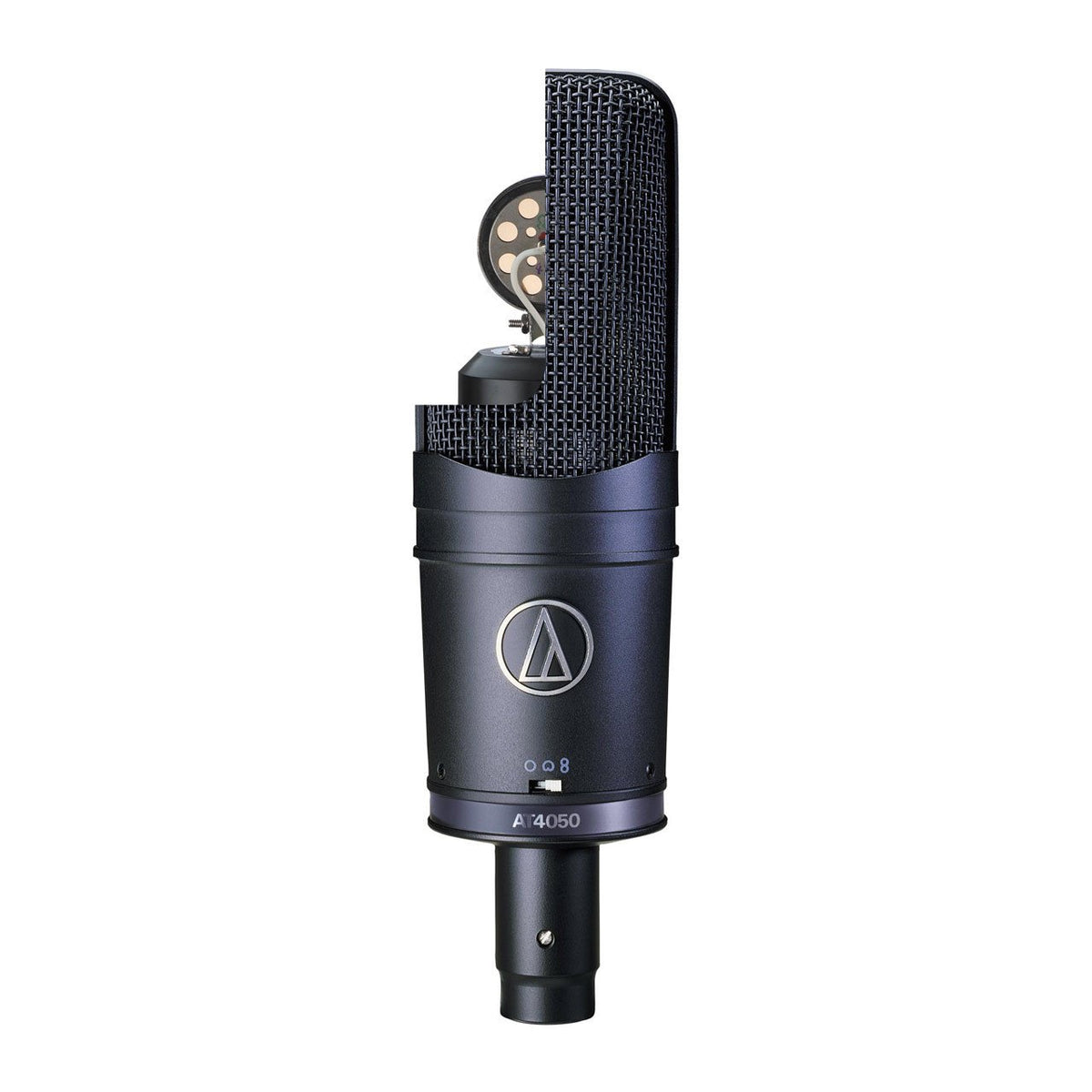

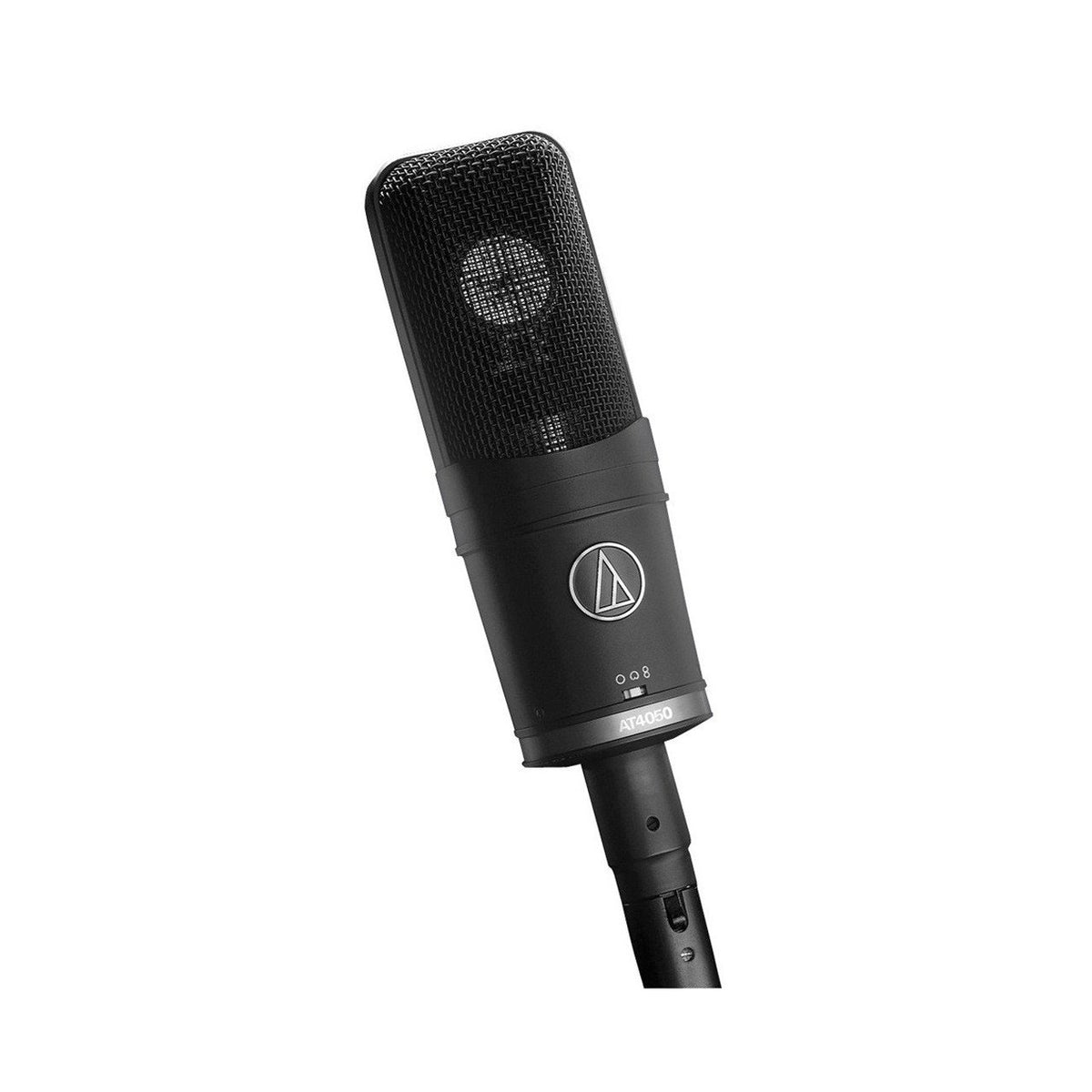

Audio-Technica AT4050 - Large diaphragm multi-pattern condenser Microphone

Audio-Technica AT4050 PRODUCT FEATURES:

Transparent uppers/mids balanced by rich low-end qualities combine with advanced acoustic engineering for extensive performance capabilities and highest quality
Dual-diaphragm capsule design maintains precise polar pattern definition across the full frequency range of the microphone
The 2-micron-thick, vapor-deposited gold diaphragms undergo a five-step aging process so that the optimum characteristics achieved remain constant over years of use
Three switchable polar patterns: omni, cardioid, figure-of-eight
Transformerless circuitry virtually eliminates low-frequency distortion and provides superior correlation of high-speed transients
State-of-the-art surface-mount electronics ensure compliance with A-T's stringent consistency and reliability standards
Switchable 80 Hz hi-pass filter and 10 dB pad

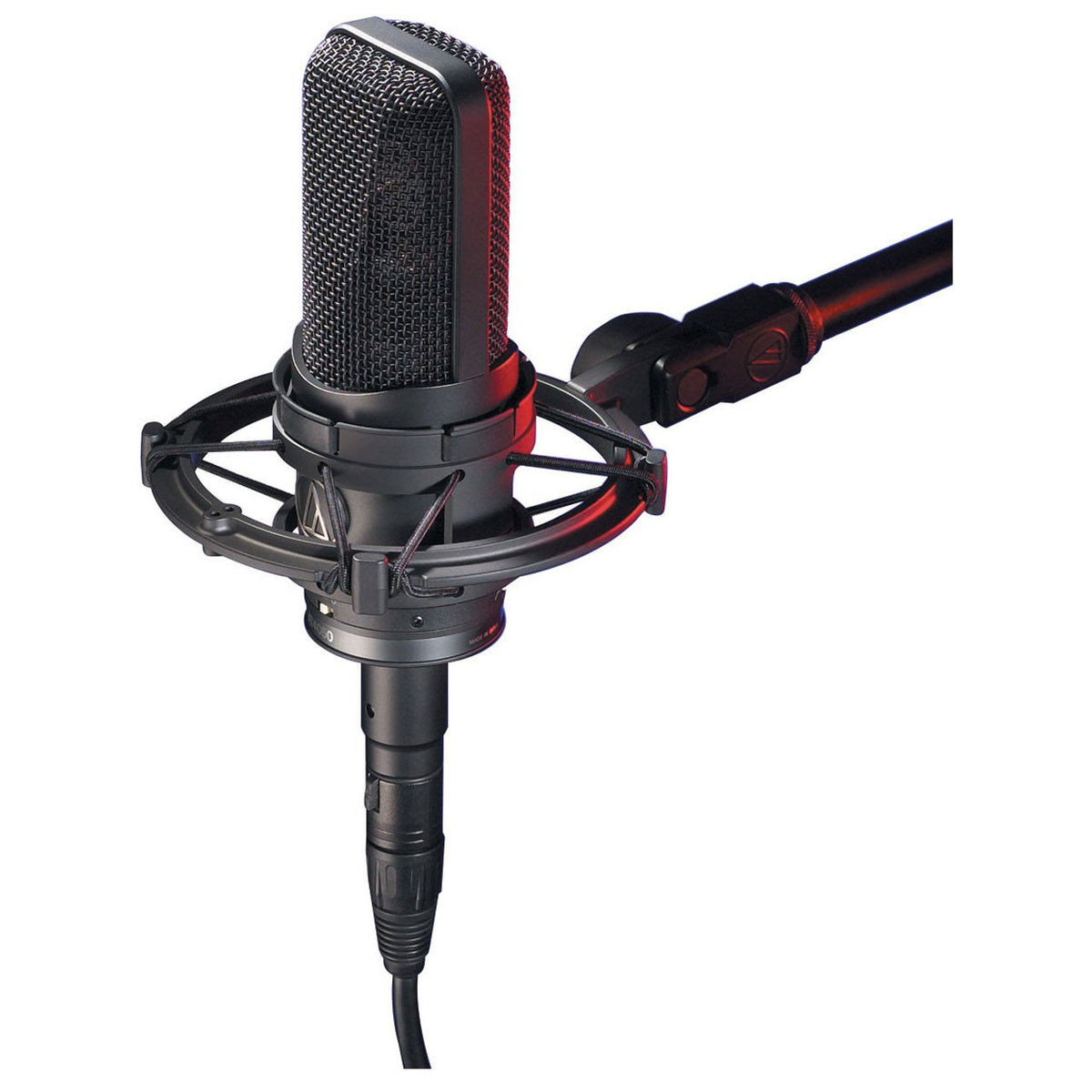

Custom shock mount provides superior isolation

Audio-Technica AT4050 TECHNICAL SPECIFICATIONS:

Element
Externally-polarized (DC bias) condenser

Polar Patterns
Cardioid,
Omnidirectional,
Figure-of-eight

Frequency Response
20-18,000 Hz

Low Frequency Roll-Off
80 Hz, 12 dB/octave

Open Circuit Sensitivity
-36 dB (15.8 mV), re 1V at 1 Pa

Impedance
100 ohms

Maximum Input Sound Level
149 dB SPL, 1 kHz at 1% T.H.D.;
159 dB SPL, with 10 dB pad (nominal)

Noise
17 dB

Dynamic Range (typical)
132 dB, 1 kHz at Max SPL

Signal-To-Noise Ratio
77 dB, 1 kHz at 1 Pa

Phantom Power Requirements
48V DC, 4.2 mA typical

Switches
Polar selection;
Flat, roll-off;
10 dB pad (nominal)

Weight
510g

Dimensions
188mm long, 53.4mm maximum body diameter

Output Connectors
Integral 3-pin XLRM-type

Accessories Furnished
AT8449 shock mount for 5/8″-27 threaded stands; microphone dust cover; protective carrying case

Audio-Technica Case Style
R1
