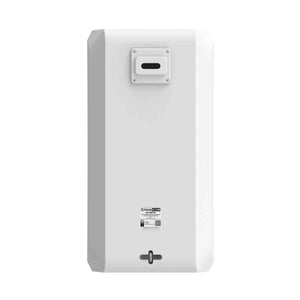

Atlas IED 10" AS Series Surface Mount Subwoofer, Passive, White

10" AS Series Surface Mount Subwoofer – White

The AtlasIED AS-10ST is a high-performance direct radiating subwoofer, designed to extend low frequency response, and increase system headroom in conjunction with AtlasIED AS Series of full range loudspeakers. Ideal for applications where durability, modern, understated aesthetics, and outstanding sonic performance are prerequisites.

Featuring a high excursion weather treated 10" woofer with highly damped butyl rubber surround, the AS-10T delivers consistent impactful bass.

Complimenting the form factor of AS Series full range loudspeakers, the AS-10ST is available in textured black or white. The outstandingly durable and scuff resistant, high impact ABS enclosure with UV inhibiter is weather resistant (IP55), for consistent performance in adverse conditions, both indoors and out.

Safe and effective Installation of the AS-10ST is made simple by way of the included slip free yoke mount.

Equipped with a low insertion loss 200W transformer for 70V or 100V distributed applications, wattage tap selection and low impedance bypass is easily configurable via a rear mounted slide selector switch with security cover.

For the most discerning designers and integrators, a complete suite of EASE™ (including compatibility with EASE Focus), CF2, 3D CAD, and BIM/Revit families are available for download.

Features

• Minimalistic and clean industrial design for sensitive architectural
• constraints
• Effective coverage for systems with space limitations
• Ultra-low insertion loss 200W transformer for dynamic performance in distributed systems
• High impact ABS enclosure with UV inhibitor
• IP55 & UL1480A rated
• Slip-Free yoke mount supplied
• Advanced tunings available via AtlasIED Atmosphere DSP platform

Specifications

• Type: Direct Radiating Subwoofer
• Frequency Range (-10dB): 34Hz-800Hz
• Frequency Response (+/- 3dB): 43Hz-600Hz
• System Sensitivity (1W @ 1m): 93dB
• Noise: Omnidirectional

Power Handling

• Average: 300W
• Programme: 600W
• Peak: 1200W
• Recommended Amplifier Power: 600W @ 4 Ohms
• Nominal Impedance: 4 Ohms (Min 4.9 Ohms)

Rated Maximum SPL

• Average: 118dB
• Peak: 124dB
• With Max. Transformer Tap - Average: 116dB
• Transformer Taps - Via Slide Selector Switch: 200W, 100W, 50W ( 25W 70V) & Low Z operation
• Directivity Index (DB): N/A
• Warranty Period: 60 months from date of purchase
