450869

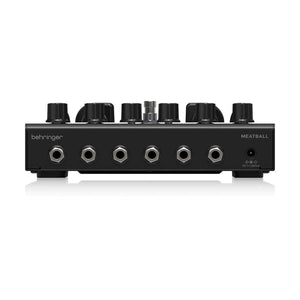

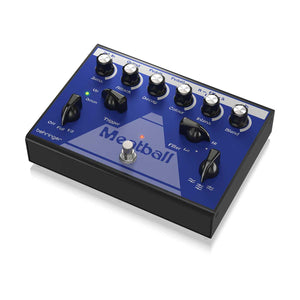

Behringer Meatball Envelope Filter Pedal


‘90s Envelope Filter Pedal That Makes Everything Spicy

Deep Tone Sculpting

Shape every aspect of your tone and endlessly experiment with MEATBALL’s comprehensive control layout. Dial in Sensitivity, Attack and Decay to match your dynamics, then tweak Resonance and Colour to shape the character of the filter response – from subtle vowel-like shifts to sharp, expressive peaks. Mix just the right amount of dry signal with the Blend knob while the Filter and Bandwidth switches help you command exactly how and where your tone moves across the frequency spectrum.

Features

  • Envelope Filter: provides dynamic filtering that responds to your playing dynamics

  • Analog Circuitry: employs analog technology for warm and organic sound quality

  • Funky Wah Tones: delivers classic, expressive wah-wah and quack-like effects

  • Auto-Triggering: automatically engages the filter effect as you play

  • Sensitivity Control: adjusts the filter's response to match your playing style and instrument

  • Resonance Knob: modifies the filter's peak resonance, creating unique tonal textures

  • Blend Control: mixes your dry and filtered signals for precise tone shaping

  • True Bypass: maintains pristine signal integrity when the pedal is disengaged

  • Versatile Application: suitable for bass, guitar, and other instruments for a wide tonal range

  • Rugged Build: durable construction withstands the rigors of gigging and touring

  • Expression Pedal Input: allows for real-time control of filter sweep for added versatility

  • Works with A standard 9v DC power supply for convenience

Creative Possibilities on Stage

Use MEATBALL to transform clean rhythm guitar parts into pulsing grooves or give your bass lines a synth-like growl with every note. Place it after a fuzz pedal for gooey, harmonic-rich squelches, or run it before modulation effects for shifting, animated textures. Use an expression pedal for manual sweeps or pair with a compressor to enhance dynamics.

Break The Mould

Meatball thrives on variety, from tight funk picking and massive bass sweeps to modulated synth lines and textural studio sound design. If you want a pedal that can spark ideas, break rules, and help you create something unexpected, this is it.

Specifications


Connections
Input
Connector

1 x 1/4" TS, unbalanced

Impedance

1 MΩ

FX loop (send / return)
Connector

1 x 1/4" TRS, unbalanced

Output impedance

440 Ω

Input impedance

140 kΩ

Output mono
Connector

1 x 1/4" TS, unbalanced

Impedance

1.5 kΩ

Controls Connections
Pedal 1
Connector

1 x 1/4" TRS

Impedance

180 kΩ, unbalanced

CV input range

0 V to +5 V

Pedal 2
Connector

1 x 1/4" TRS

Impedance

34 kΩ, unbalanced

CV input range

0 V to +5 V

Controls
Sens.

1 x rotary knob

Attack

1 x rotary knob

Decay

1 x rotary knob

Colour

1 x rotary knob

Intens.

1 x rotary knob

Blend

1 x rotary knob

Bandwidth (off / full / 1/2)

1 x rotary switch

Filter sweep (up / down)

1 x rotary switch

Filter mode (lo / hi)

1 x rotary switch

Filter range (high-pass / band-pass / low-pass)

1 x rotary switch

Bypass

1 x footswitch

System
Frequency response

20 Hz to 20 kHz (+0 / -2 dB)

Dynamic range

> 93 dB

Signal-to-noise ratio

> 99 dB

Overall gain

+0 dB

Power Supply / Voltage
Power input

Standard 9 V DC, centre negative, > 400 mA
(power supply included)

Power consumption

0.7 W

Dimensions / Weight
Dimensions (H x W x D)

62.3 x 200.1 x 148.5 mm (2.45 x 7.90 x 5.85")

Weight

1.05 kg (2.32 lbs)
