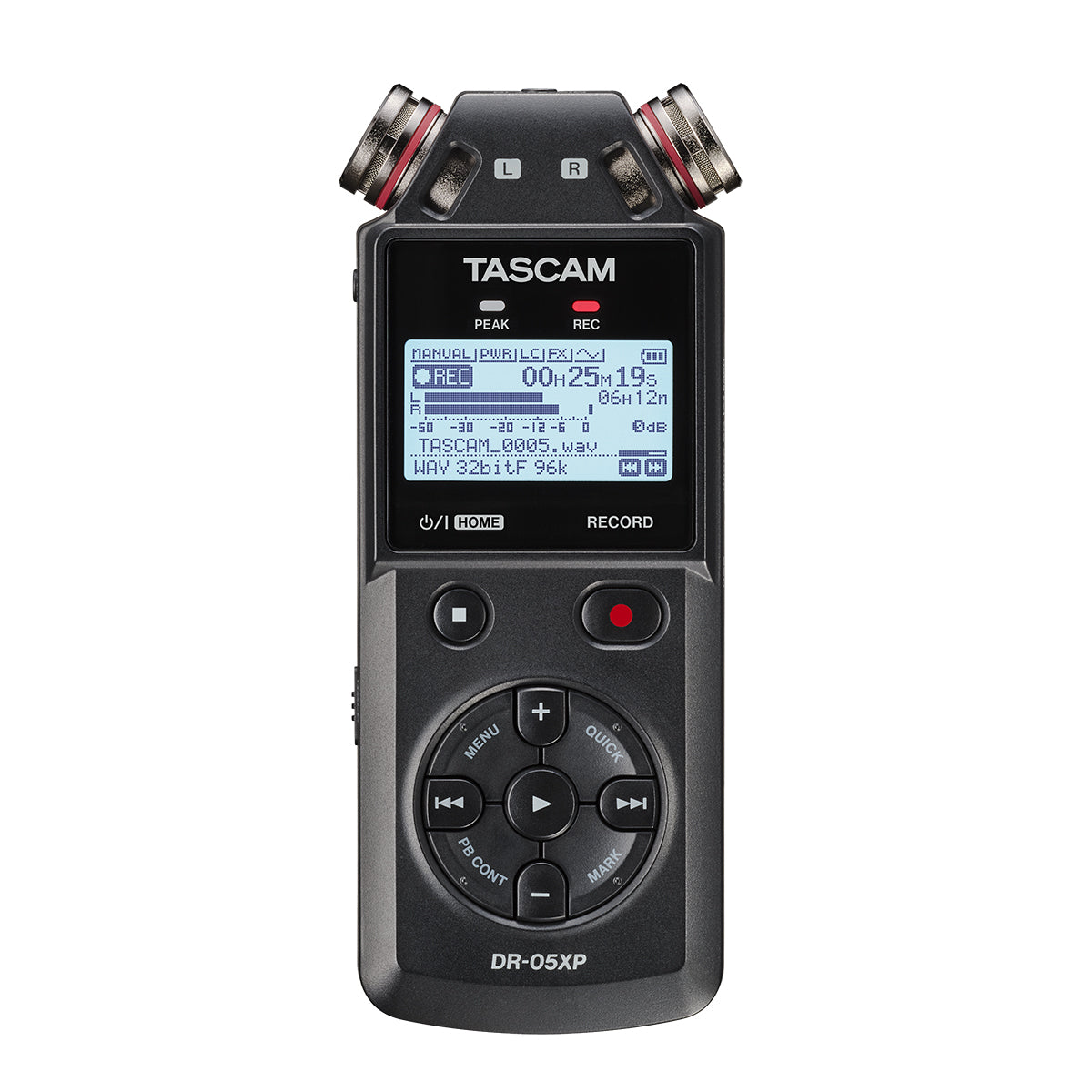

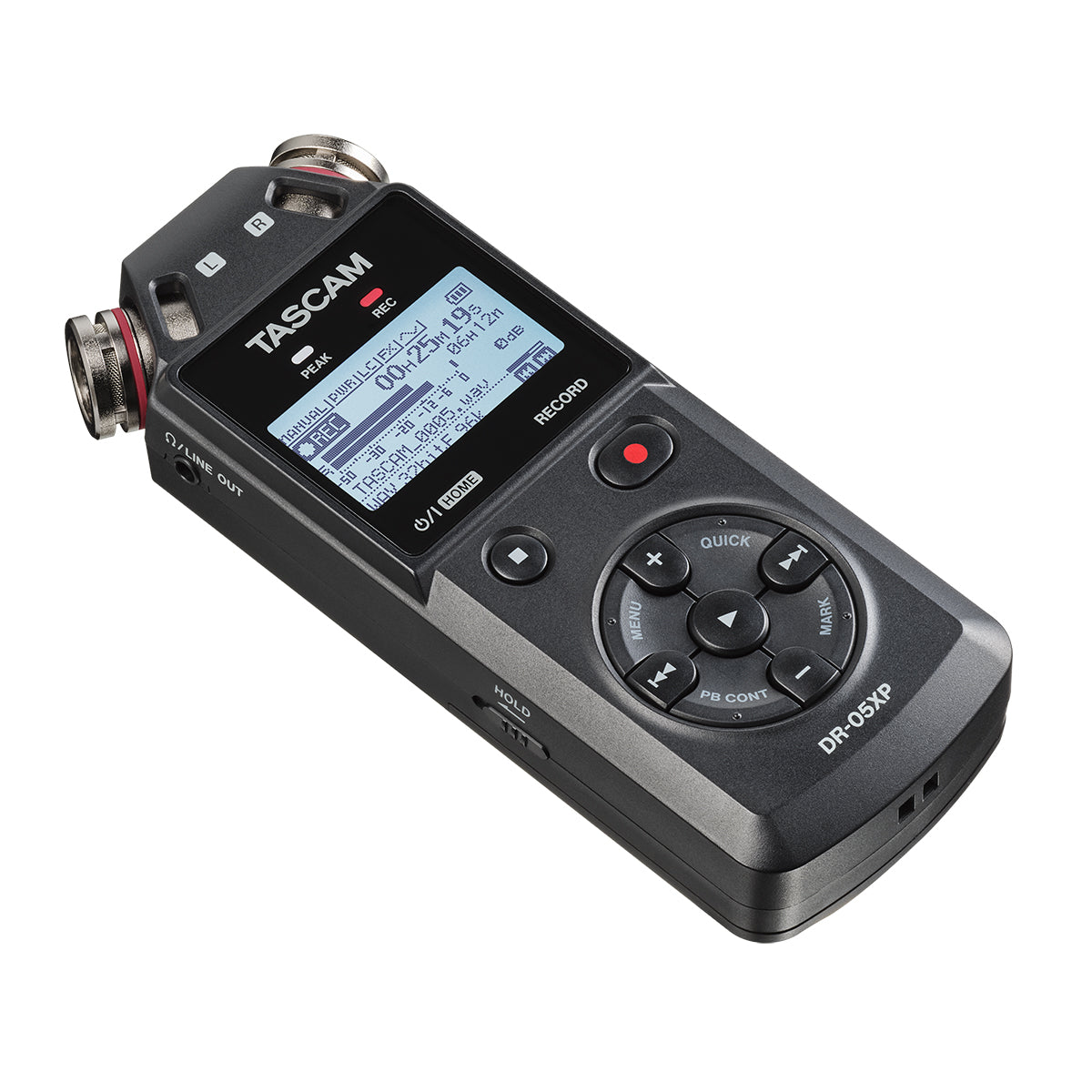

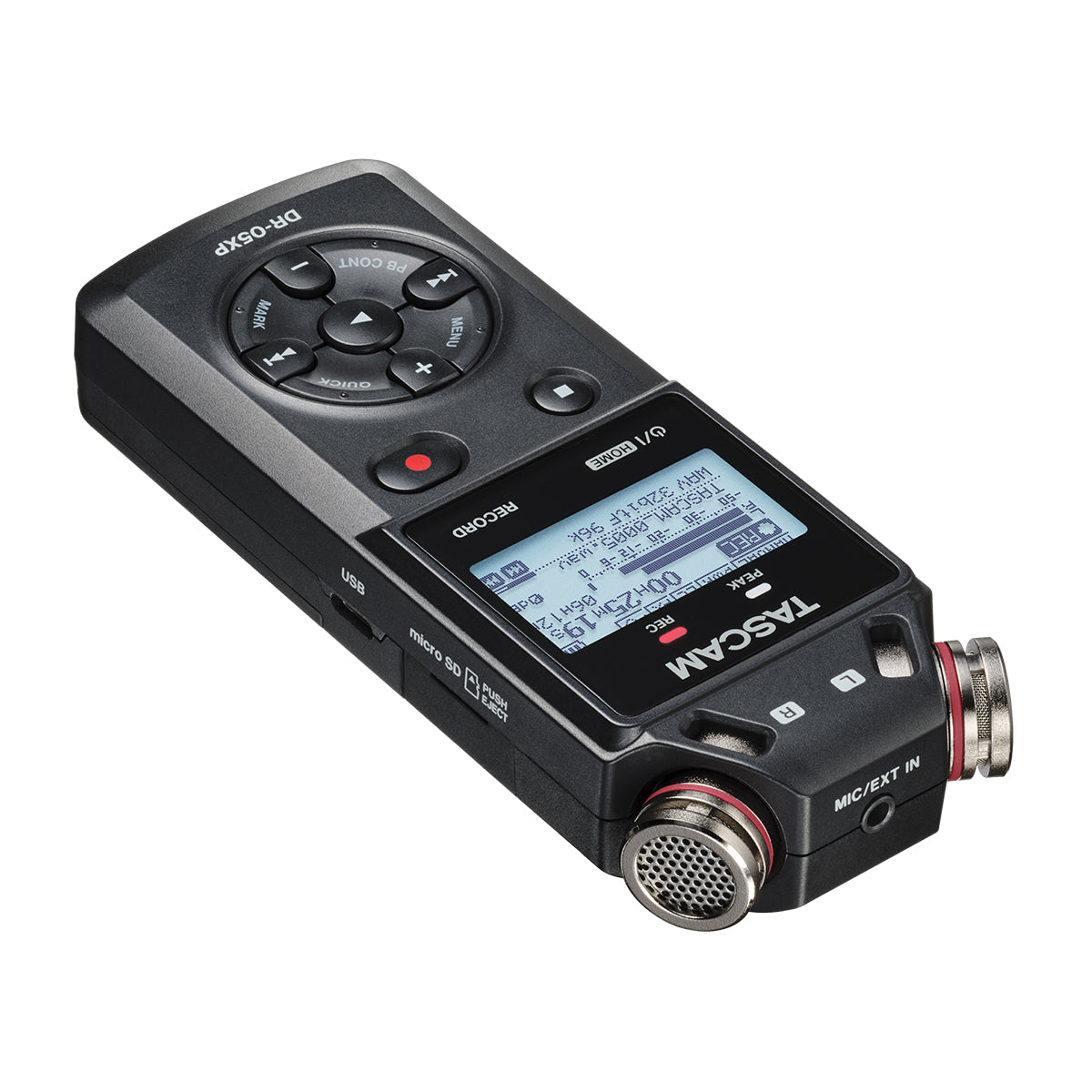

Tascam DR-05XP 2-Channel 32-Bit Float Portable Handheld Recorder With USB-C Interface

Name: Tascam DR-05XP 2-Channel 32-Bit Float Portable Handheld Recorder With USB-C Interface
Brand: Tascam
SKU: TA-DR-05XP
Price: 239.0 AUD
Availability: InStock

Type: Portable Recorder

DR-05XP

2-Channel 32-Bit Float Portable Handheld Recorder With USB-C Interface

Pro-Quality Portable Recording, Simplified

The TASCAM DR-05XP portable handheld recorder makes it easy to capture pro-quality recordings for music, audio-for-video, meetings, dictation, and more. With 32-bit float recording mode, you'll never need to worry about setting audio levels. With easy one-handed operation, the DR-05XP makes it simple to start recording with minimal setup time.

Features

2-channel portable handheld audio recorder with microSDXC card storage
32-bit float recording mode ensures low-noise, distortion-free recordings
Omnidirectional condenser microphones handle loud environments and sources (up to 125dB SPL)
2-in/2-out USB-C audio interface for recording directly to your computer
Up to 17.5 hours of operation with 2 x AA alkaline batteries

Specifications

Recorder specifications
Recording media/file systems	microSD cards, microSDHC cards, microSDXC cards (up to 512 GB)
Recording/playback formats
WAV (BWF)
Sampling frequency	44.1 kHz, 48 kHz, 96 kHz
Quantization bit depth	16-bit / 24-bit / 32-bit float
MP3
Sampling frequency	32 / 64 / 96 / 128 / 192 / 256 / 320 kbps
Quantization bit depth	24-bit / 32-bit float
Maximum number of input channels	2
Maximum number of recordable tracks	2
Analog audio input/output ratings
MIC/EXT IN jack (can provide plug-in power)
Connector	3.5mm (1/8") stereo mini jack
Input Impedance	18 kΩ or more (when plug-in power is turned off) 2 kΩ or more (when plug-in power is turned on)
Nominal input level	- 20 dBV
Maximum input level	-4 dBV
PHONES/LINE OUT jack
Connector	3.5mm (1/8") stereo mini jack
Output impedance	12 Ω
Nominal output level	- 14 dBV (10kΩ loaded)
Maximum output level	+2 dBV (10kΩ loaded)
Maximum output	20 mW + 20 mW (32 Ω load)
Working impedance	16 - 250Ω
Built-in Speaker
Output	0.3W (monaural)
USB
Connector	USB Type-C
Format	USB 2.0 High Speed Mass Storage Class USB 1.1 Full Speed Audio Class
USB Audio
Sampling rate	44.1 / 48 kHz
Quantization bit depth	24-bit
Number of inputs	2 channels (output from this unit)
Number of outputs	2 channels (input to this unit)
General
Power	2AA batteries (alkaline or NiMH) USB bus power (5V/0.5A) from a computer, etc. TASCAM PS-P520U AC adapter (sold separately)
Power consumption	1.7 W (maximum)
Weight	174 g / 0.384 lb (including batteries) 126 g / 0.278 lb (not including batteries)
Operating temperature range	0 – 40 °C / 32 – 104 °F
Dimensions	60.5 x 142.3 x 27 mm 2.39 x 5.61 x1.07 inch (W x H x D, including protrusions)
Included items	DR-05XP x1 Safety guide (including warranty) x1 TASCAM ID registration guide x1

*Note:0 dBV=1 Vrms, 0 dBu=0.775 Vrms

Recording duration

Recording format			Card capacity (hours:minutes)
Recording format			32 GB	128 GB
WAV 16-bit (stereo)		44.1 kHz	49:20	197:20
		48 kHz	45:20	181:20
		96 kHz	22:40	90:40
WAV 24-bit (stereo)		44.1 kHz	32:56	131:44
		48 kHz	30:16	121:04
		96 kHz	15:04	60:16
WAV 32-bit float (stereo)		44.1 kHz	24:40	98:40
		48 kHz	22:40	90:40
		96 kHz	11:20	45:20
MP3 (stereo/ mono)	32 kbps	44.1/48 kHz	2209:36	8838:24
	64 kbps	44.1/48 kHz	1104:48	4419:12
	96 kbps	44.1/48 kHz	736:32	2946:08
	128 kbps	44.1/48 kHz	552:24	2209:36
	192 kbps	44.1/48 kHz	368:16	1473:04
	256 kbps	44.1/48 kHz	276:08	1104:32
	320 kbps	44.1/48 kHz	220:56	883:44

Battery operation time (continuous operation)

Batteries	Rec/ play	File format (recording setting)	Operation time in hours	Note
Using alkaline batteries (EVOLTA)	Recording	WAV, 96 kHz, 32-bit float	About 14.5	With built-in stereo mic input
		WAV, 96 kHz, 24-bit	About 15.5	With built-in stereo mic input
		WAV, 44.1 kHz, 16-bit	About 17.5	With built-in stereo mic input
		MP3, 44.1 kHz, 128 kbps	About 13	With built-in stereo mic input
		MP3, 48 kHz, 320 kbps	About 11	With built-in stereo mic input
	Playback	WAV, 96 kHz, 32-bit float	About 11	Using headphones
		WAV, 96 kHz, 32-bit float	About 11	Using built-in speaker
		WAV, 96 kHz, 24-bit	About 14	Using headphones
		WAV, 96 kHz, 24-bit	About 14	Using built-in speaker
		WAV, 44.1 kHz, 16-bit	About 16.5	Using headphones
		WAV, 44.1 kHz, 16-bit	About 16.5	Using built-in speaker
		MP3, 44.1 kHz, 128 kbps	About 16.5	Using headphones
		MP3, 44.1 kHz, 128 kbps	About 16.5	Using built-in speaker
		MP3, 48 kHz, 320 kbps	About 15.5	Using headphones
		MP3, 48 kHz, 320 kbps	About 15.5	Using built-in speaker
Using NiMH battery (eneloop)	Recording	WAV, 96 kHz, 32-bit float	About 11.5	With built-in stereo mic input
		WAV, 96 kHz, 24-bit	About 12.5	With built-in stereo mic input
		WAV, 44.1 kHz, 16-bit	About 14.5	With built-in stereo mic input
		MP3, 44.1 kHz, 128 kbps	About 13	With built-in stereo mic input
		MP3, 48 kHz, 320 kbps	About 10	With built-in stereo mic input
	Playback	WAV, 96 kHz, 32-bit float	About 10	Using headphones
		WAV, 96 kHz, 32-bit float	About 10	Using built-in speaker
		WAV, 96 kHz, 24-bit	About 13	Using headphones
		WAV, 96 kHz, 24-bit	About 12	Using built-in speaker
		WAV, 44.1 kHz, 16-bit	About 14	Using headphones
		WAV, 44.1 kHz, 16-bit	About 15	Using built-in speaker
		MP3, 44.1 kHz, 128 kbps	About 13.5	Using headphones
		MP3, 44.1 kHz, 128 kbps	About 13	Using built-in speaker
		MP3, 48 kHz, 320 kbps	About 13.5	Using headphones
		MP3, 48 kHz, 320 kbps	About 13.5	Using built-in speaker

Recording: JEITA recording time
Playback: JEITA music playback time
Note: The battery operation times (during continuous operation) could vary depending on the media being used.

Audio Performance

Frequency Response	20–20 kHz +0/−1 dB (MIC/EXT IN to LINE OUT, 44.1 kHz, JEITA) 20–22 kHz +0/−1 dB (MIC/EXT IN to LINE OUT, 48 kHz, JEITA) 20–40 kHz +0/−1.5 dB (MIC/EXT IN to LINE OUT, 96 kHz, JEITA)
Total harmonic distortion ratio (THD+N)	0.01% or less (MIC/EXT IN to LINE OUT, 44.1/48/96 kHz, JEITA)

Note: JEITA indicates conformance to JEITA CP-2150

Supported Media / Other

micro SD Supported Media 02-10-2025
dr-05xp_dr-07xp_media_list.pdf 232.8 KB
