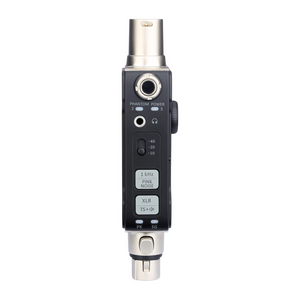

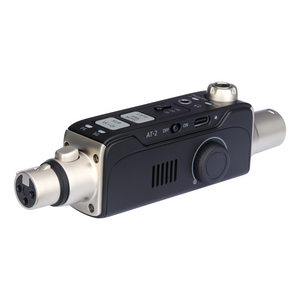

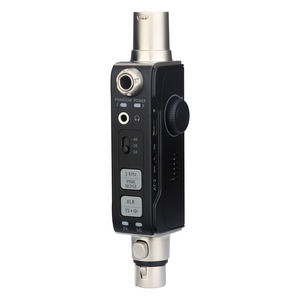

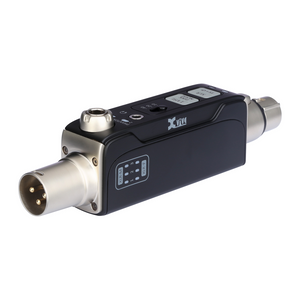

XVIVE AT2 Audio Test Pro-Single Unit
AT-2
A compact, portable, high-precision audio tester featuring five essential testing functions. Ideal for a wide range of audio equipment diagnostics. The XVIVE AT-2 builds on the features of the AT-1, adding enhanced accuracy and stability. It integrates five core functions: signal generation (1 KHz tone or pink noise), XLR cable testing, XLR input level metering, phantom power detection, and headphone/speaker monitoring. Suitable for testing powered speakers, effect pedals, cables, di boxes, IEM systems, mixers, and more, the AT-2 is an indispensable diagnostic tool for audio professionals.
Type: Audio Tester
1. SIGNAL GENERATOR:
Outputs a 1 kHz sine wave or pink noise audio signal through male XLR, 1/4", and 1/8" connectors, with three output level options: -10 dB, -20 dB, and -40 dB.
2. XLR CABLE TESTER:
Checks whether all three pins of the XLR cable are properly connected.
3. XLR INPUT METERING:
Measures the input volume level of the female XLR connector.
4. PHANTOM POWER CHECK:
Tests the output voltage of the phantom power and ensures both pins are functioning properly.
5. HEADPHONE AND SPEAKER MONITORING:
When an audio source is connected to the female XLR or 1/4" input, you can monitor the signal with headphones or speakers via the 1/8" headphone jack.
