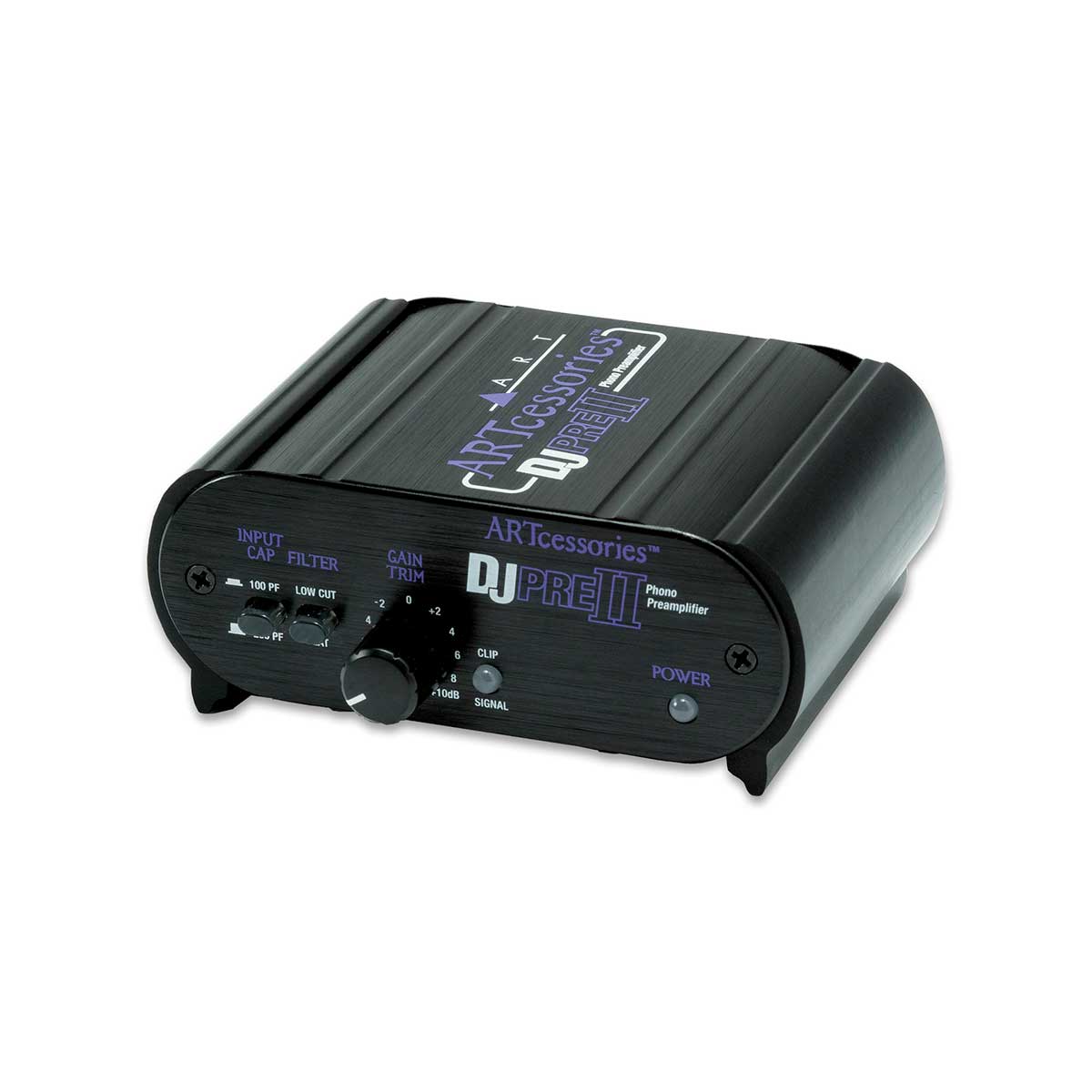

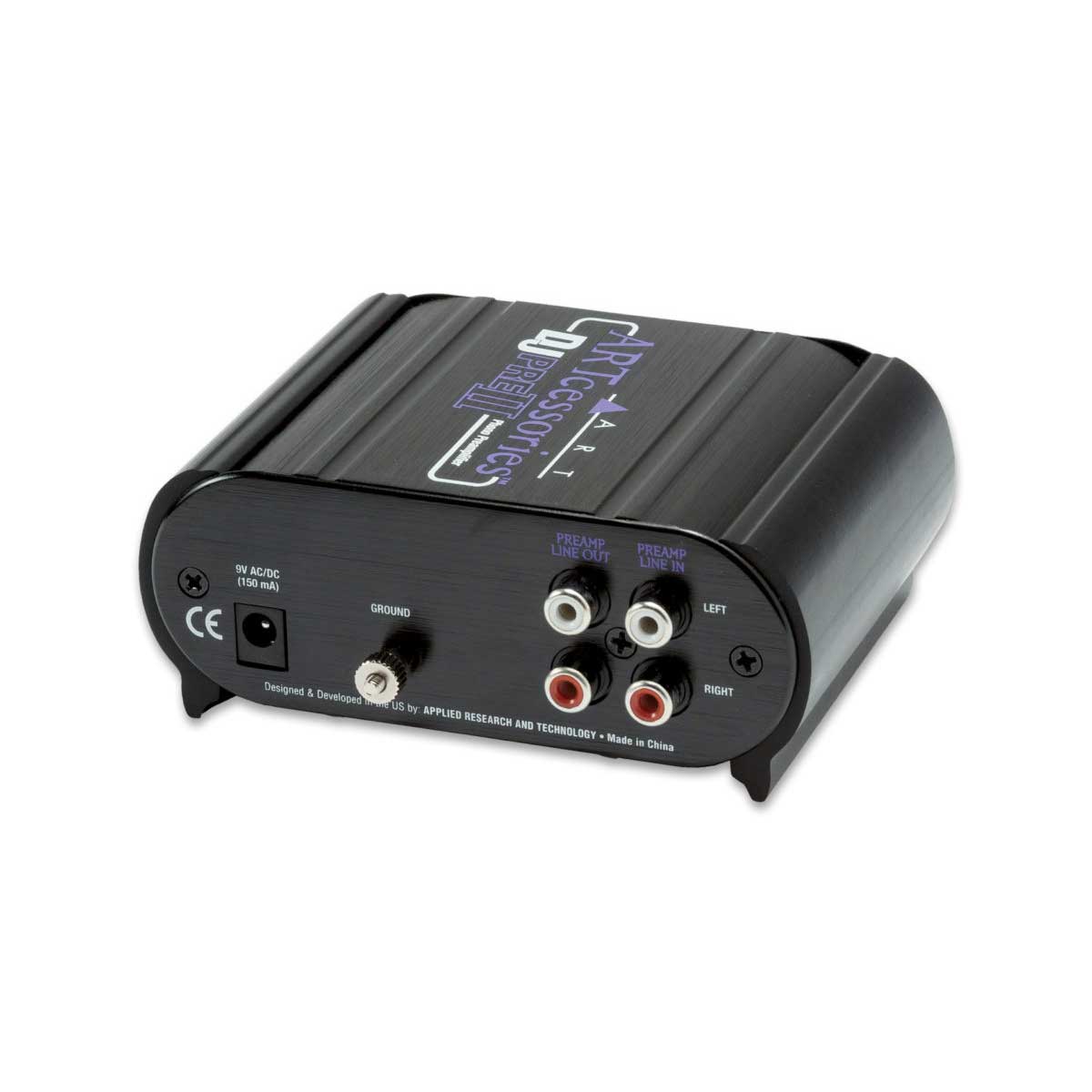

Housed in an all aluminum black anodized case, the DJ PRE II can be powered by a wide variety of external supplies. If you need to amplify and EQ your vinyl records to interface with your audio workstation, sound card, home stereo system or main monitor system, the DJ PRE II gives you flawless audio reproduction in a rugged and reliable package.
Features
- High accuracy/low noise preamp
- Variable preamp gain
- Signal present/clip indicator
- Selectable cartridge loading
- RCA preamp outputs
- Heavy duty extruded chassis
- Designed and developed in the USA
Specifications
| Frequency Response | 10Hz -50KHz, +/-.5dB |
| Phono EQ Standard | Conforms to RIAA Curve |
| Total Harmonic Distortion | .01% Typical @ 1kHz |
| Hum and Noise | > 90dB below clipping |
| Input Impedance | 47k Ω in Parallel with Either 100pF or 200pF |
| Maximum Input Level | 40mVrms @1kHz |
| Maximum Gain | 45dB @1KHz |
| In / Out Connections | RCA |
| Maximum Output Level | +6dBu (1.4Vrms) |
| Filter Type/Response | Switchable, Low Cut, -3dB @ 22Hz |
| Power Requirements | 7-12V DC or 9-12V AC @150mA |
| Dimensions | 1.85″H x 4.6″W x 4.5″D (47mm x 117mm x 114mm) |
| Weight | 1.25 lbs (0.57kg) |
