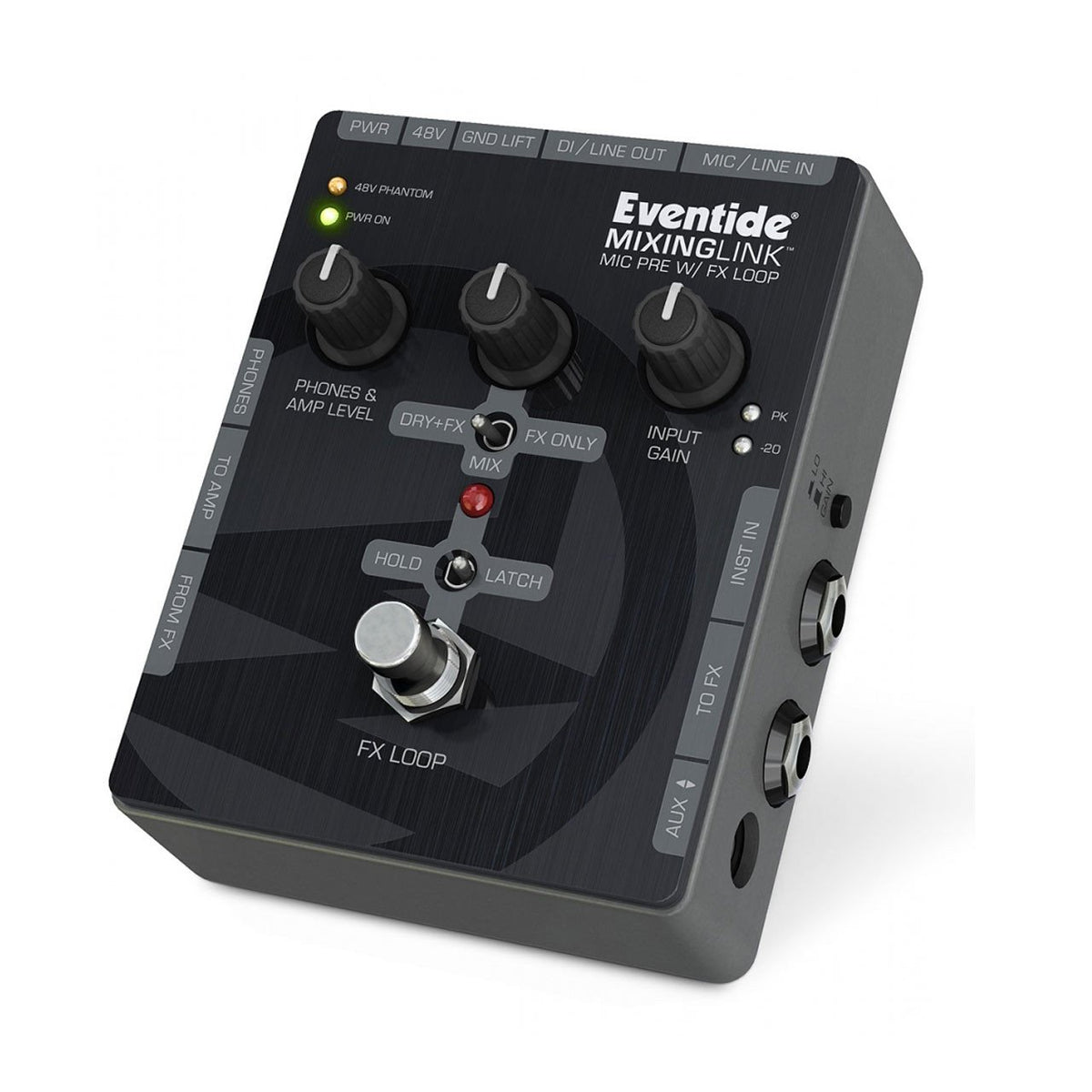

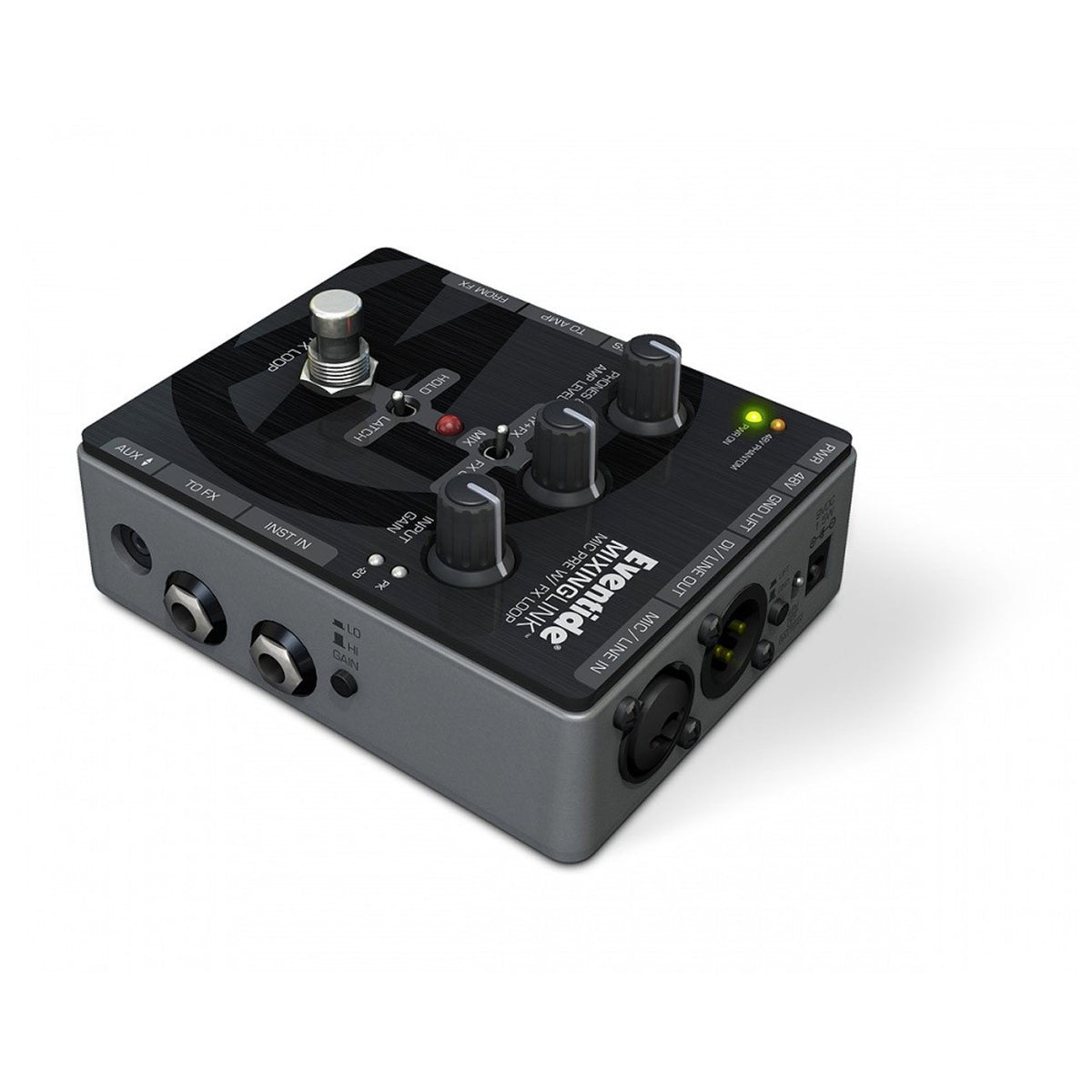

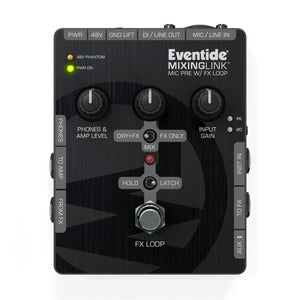

Eventide MixingLink Mic Pre With FX Loop Stompbox
Type: Pedals & Effects
The Eventide MixingLink is a microphone preamp with a built-in FX loop in a stomp box format. The mic-pre itself is a high-quality, quiet, high-gain circuit and comes with 48V phantom power for condenser microphones. The Eventide MixingLink is designed to be the Swiss army knife of live performance. Applications include an FX loop to process the microphone signal, signal splitting/combining, re-amping, gain matching and even mixing!
Features
- Latching or momentary footswitch control of FX loop for performance effects
- Works with a wide range of microphones including condenser and ribbon mics with up to 65dB of clean gain
- Aux I/O connection supporting stereo input and send
- Guitar amp output and headphone monitor output with separate master volume control
- International universal power supply included
- Operates on a 9V battery (no phantom power when operating on a battery)
- 48V phantom power for condenser mics
- Balanced XLR output which supports DI and line levels
- Instrument and balanced line-level inputs
-
Versatile mix control supports 3 modes
- 100% Dry w/FX blended in
- Mic/FX balance control
- 100% FX (no Dry)
SPECIFICATIONS:
Power Supply
9V DC @ 200mA / Center Negative (-), 5.5mm/2.1mm jack (BOSS standard)
Dimensions
English: 3.6” (H) x 2.65” (W) x 1.5” (D)
Metric: 91(H) x 67(W) x 38(D) mm
Weight
.96 lb / .43 kg
Input:
Analog Input
MAX Input Levels, Input Impedance
INST IN
+10dBu, 500kΩ
1/4″ Line IN
+24dBu, 22kΩ
Out 2
+4dBu, 2kΩ
EXP
+10dB, 200kΩ
AUX IN
+4dBu, 5.0kΩ
Output:
Analog Output
MAX Output Levels, Output Impedance
TO FX
+10dBu, 400Ω
TO AMP
+10dBu, 250Ω
PHONES
150mW per channel, min Load = 8 Ohms
DI/LINE OUT
(DI) -10dBu, (LINE) +18dBu, 200Ω
AUX OUT
18mV, 200Ω (mobile mic level)
