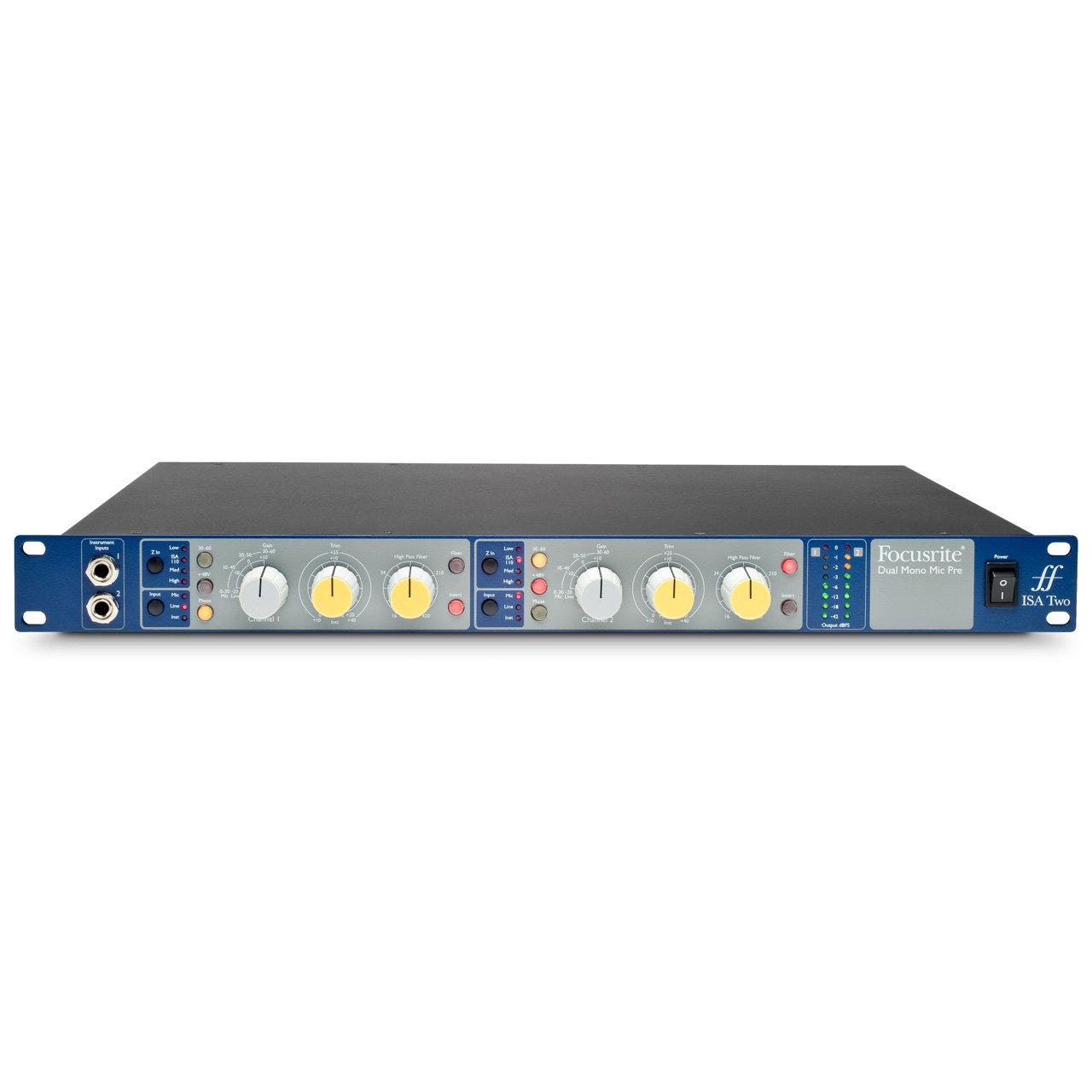

Focusrite ISA Two - Dual Channel Mic Pre

The Focusrite ISA Two is a high-end dual channel mic-pre. ISA preamps are based on the legendary Rupert Neve built pre-amp’s commissioned by Sir George Martin for the console at AIR Montserrat. At the heart of the ISA preamp is the input transformer - the Lundahl LL1538. The ISA Two also has variable impedance settings, instrument inputs, high pass filter, gain and trim encoders along with insert points too.


    • Focusrite ISA Two PRODUCT FEATURES:

      Lundahl LL1538 mic input transformer
      Rupert Neve originally chose the Lundahl LL1538 to be the input transformer on the ISA 110. To this day the Lundahl transformer remains the best microphone input transformer available, and is used in every ISA Series mic pre. Rupert Neve also perfected the Zobel network found in the ISA circuit; something which takes a lot of knowledge and a golden set of ears.

      Up to 80 dB of gain
      ISA Two offers up to 80 dB of clean, distortion-free gain. The much heralded ISA topology also ensures low noise, even at the highest gain levels. The transformer alone supplies 20 dB of gain, while ISA's input stage offers up to 60 dB in addition, giving an astonishing 80 dB of maximum gain on the microphone input.

      Variable input impedance
      Four choices of input impedance, including the original ISA 110 value, allow you to match the preamp to your microphone, even if it's a vintage type, giving you the best possible sound. The impedance is selected using a switch on the front panel, and the impedance choice is remembered even once the unit is switched off and back on.

      User-calibrated metering
      Each channel has an eight-LED array to clearly display the level of your two signal. You can line up your analogue levels with your converters of DAW by using the calibration knob on the rear panel. You will be safe in the knowledge that you have avoided clipping on the way in.

      Front panel instrument and rear panel line inputs
      Two 1/4in. jack sockets on the front panel of ISA Two give you instant access to a transparent DI input. TRS line inputs are available on the rear panel too, and you can step through them instantly to select the one you want.
      Variable cut-off high-pass filter
      Built in, and easily accessed with its own large knob an illuminated button, is an extremely smooth sounding 18dB/octave high-pass filter of the same design as the original ISA 110 module. This is ideal for cutting out rumble, thumps and other unwanted low-frequency sounds and with a range of 16 to 420 Hz, it's easy to lose what you don't want, and keep what you do.

      Rear panel balanced inserts
      Each channel of ISA Two has its own balanced insert point. With 1/4in. TRS send and receive connections, your choice of signal processor can be connected and switched in and out using the illuminated switch on the front panel.
    • Focusrite ISA Two TECHNICAL SPECIFICATIONS:

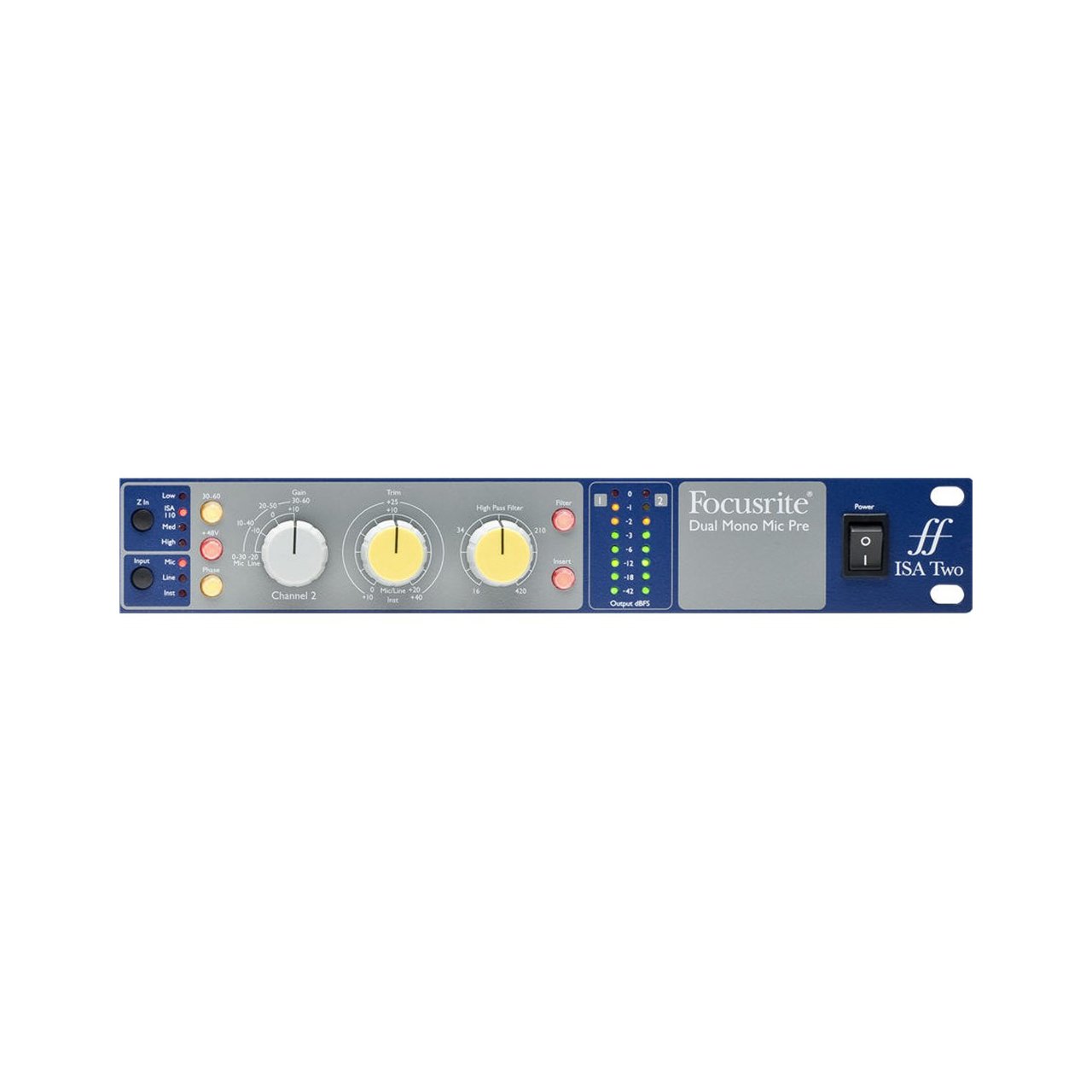

      Front panel, per channel
      1/4" instrument input
      Variable input impedance - Low, ISA 110, Medium, High
      Input selection - Mic, Line, Instrument
      0 - 30 dB/30 - 60 dB gain switch
      Phantom power switch
      Phase invert switch
      0 - 60 dB gain in 10 dB steps
      0 - +20 dB continuously variable trim
      Variable high-pass filter with on/off switch
      Insert point on/off switch
      Eight-LED user-calibrated level meters
      Single power switch

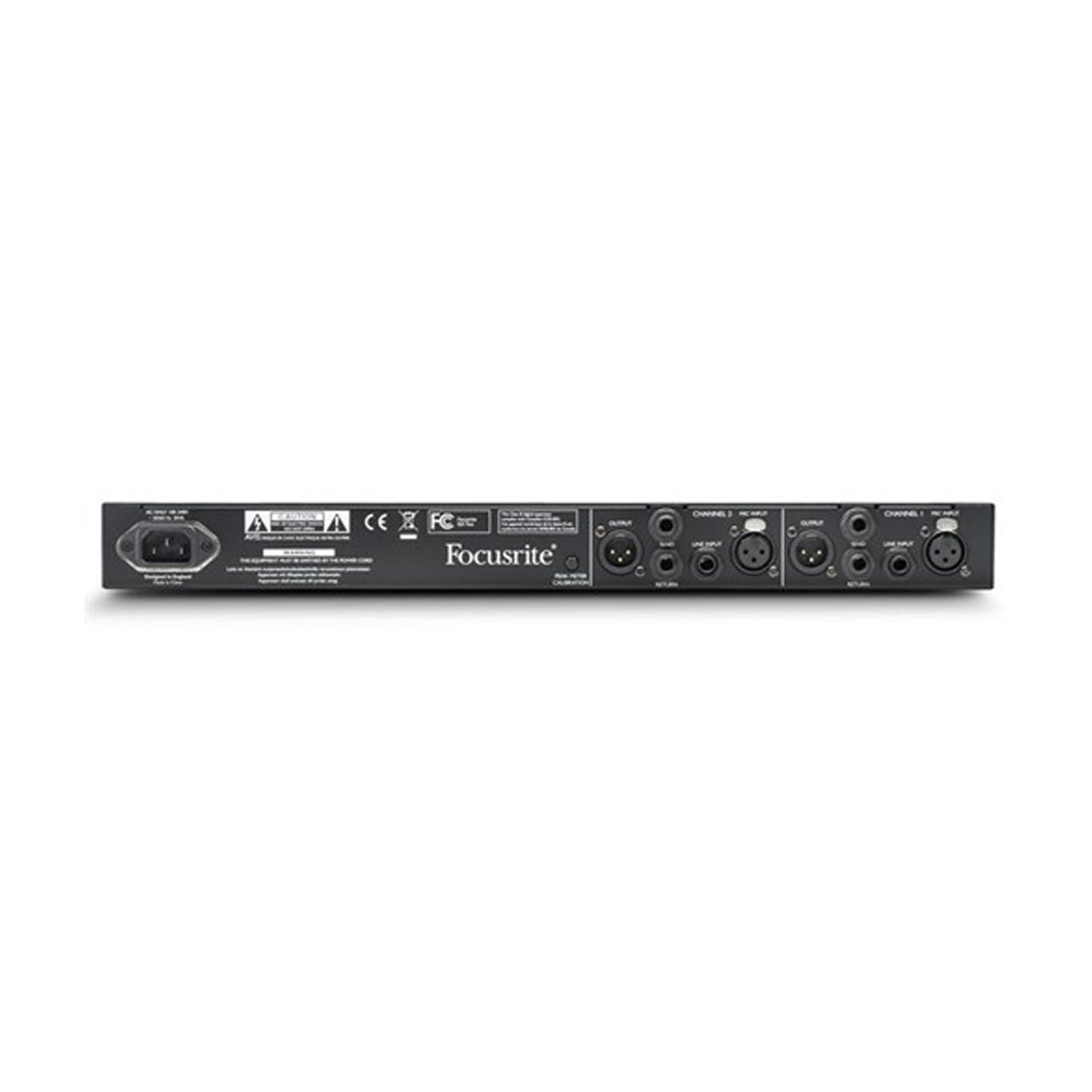

      Rear panel, per channel
      XLR-F mic inputs
      1/4" TRS line inputs
      1/4" TRS Sends
      1/4" TRS Returns
      XLR-M line output
      Single peak meter calibration dial
      Single IEC power socket

      Weight and Dimensions
      W x D x H: 480 mm x 280 mm x 44 mm
      Weight: 3.7 kg
