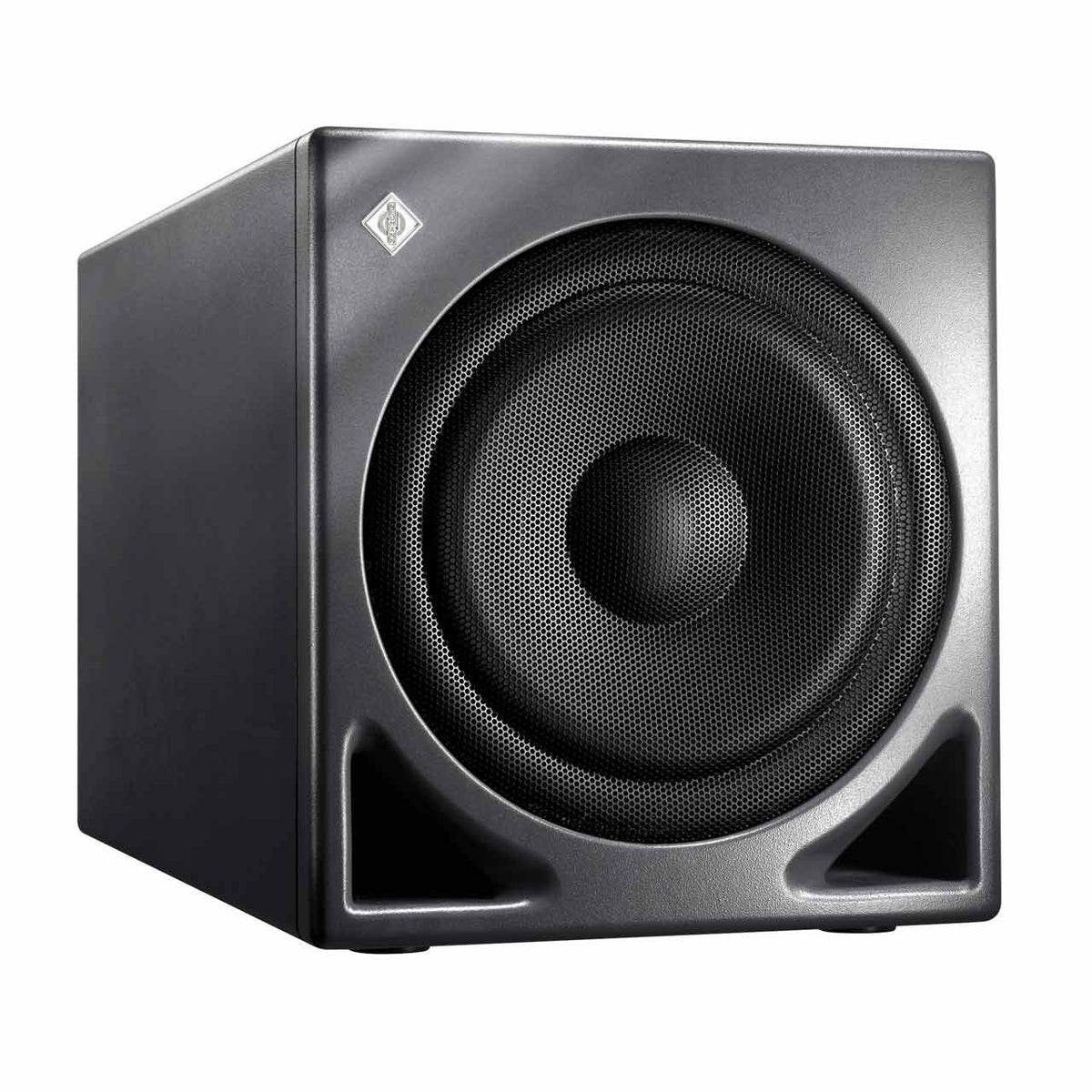

Neumann KH 810 Active Studio Subwoofer
The Neumann KH 810 is an active studio subwoofer with a 10-inch driver. The KH 810 is the perfect compliment to Neumann’s range of active 2 and 3 way near and mid-field reference speakers. The KH 810 also answers the demands of increased technical specifications in the consumer and home-theatre market too. The KH 810 will work with mono systems right up to 71. HD systems with its High DefinitionBass Manager™. The KH 810 features four-mode LFE channel processing. There are eight analogue audio input channels, monitor controllability and an optional remote available.
Type: Subwoofers
-
-
Neumann KH 810 Features:
The latest amplifier technology and acoustical components have been used to ensure the most accurate sound reproduction possible. Robust drivers, a rock-solid cabinet, and carefully designed ports guarantee a tight, articulate, and distortion-free low frequency reproduction, even at high replay levels. Using the sum output, Plane Wave Bass Array™ (PWBA™) techniques acoustically improves lateral consistency in the listening area. The bass extends down to 18 Hz.
Feature Summary:

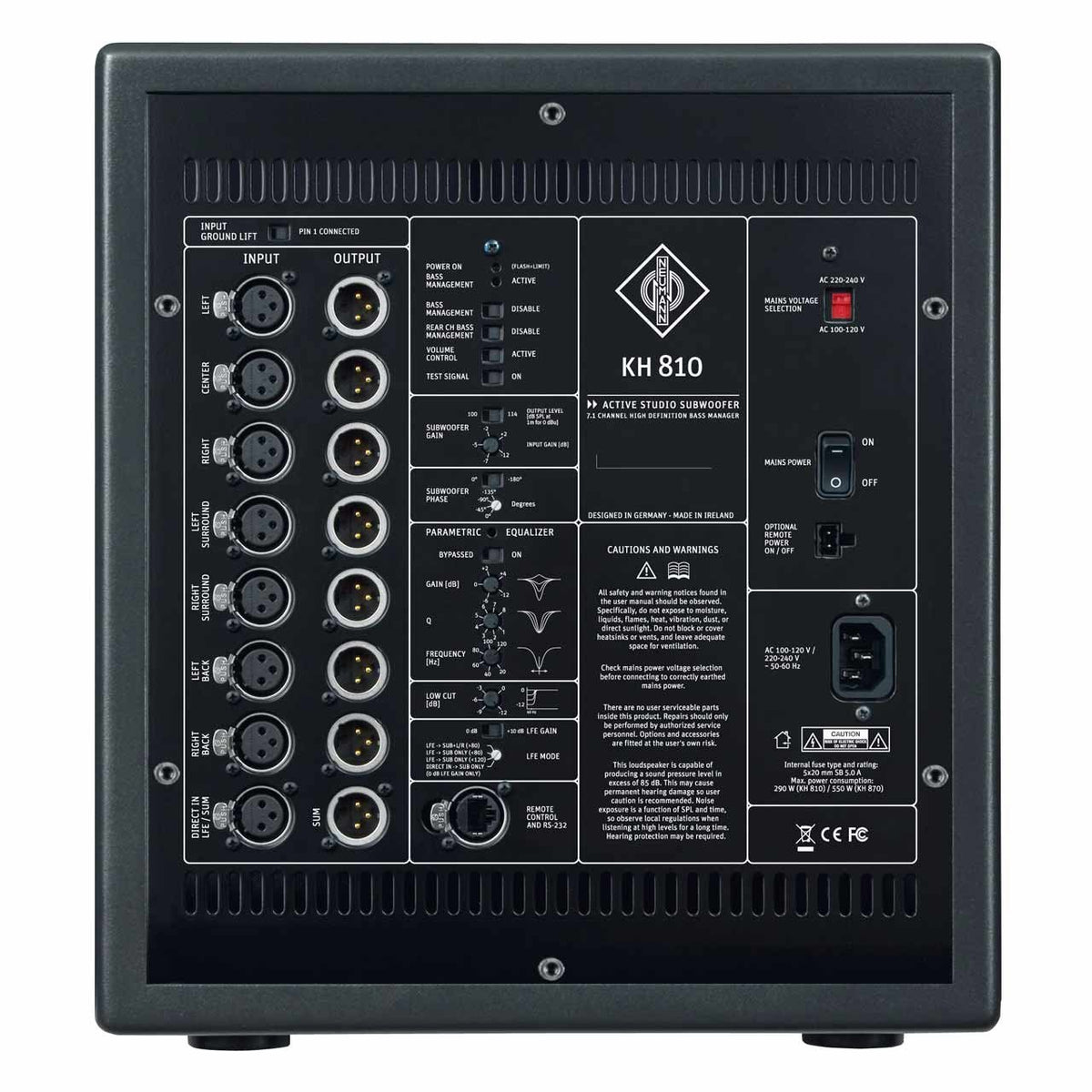

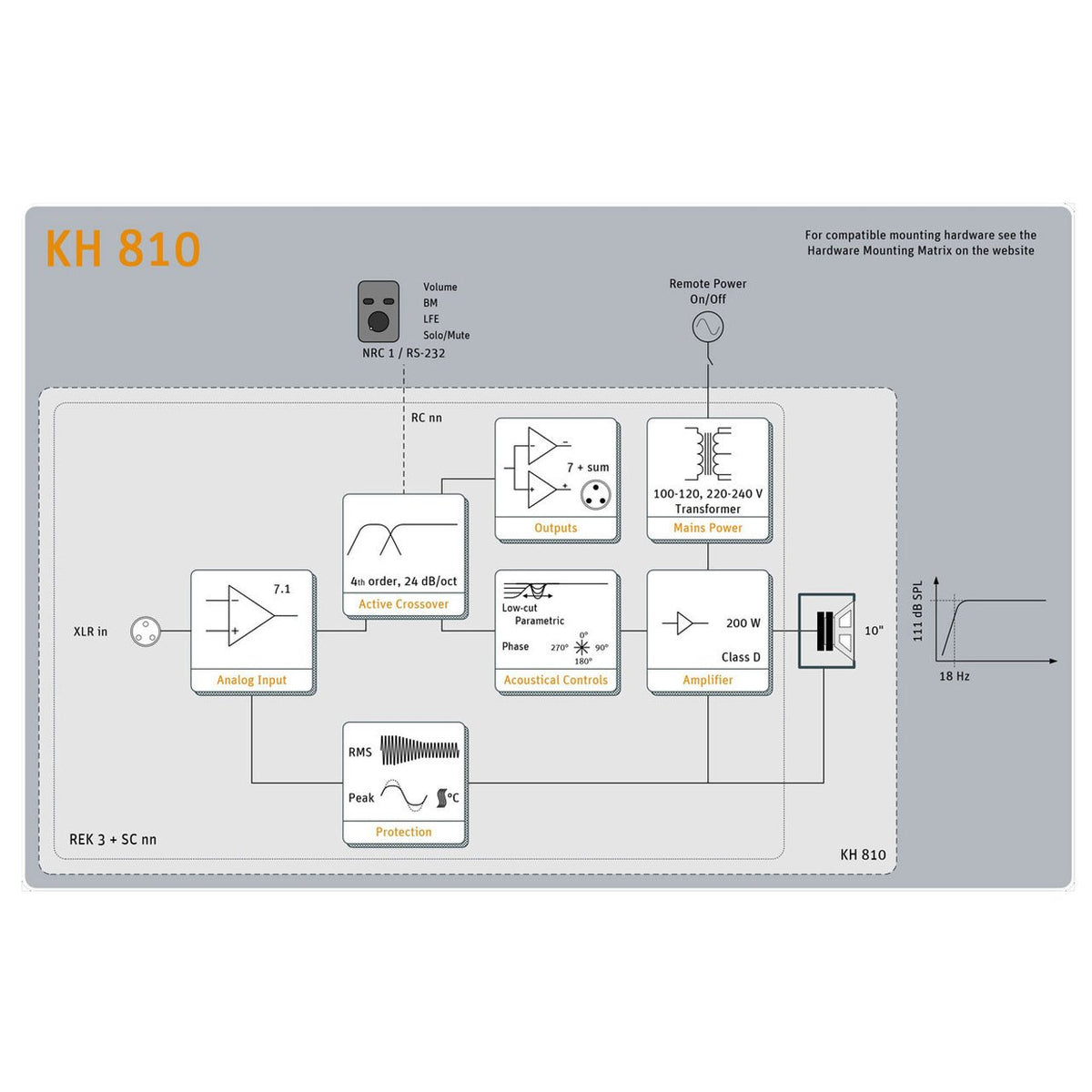

Flexible electronics
7.1 Channel High Definition Bass Management™ compatible with all formats from mono to 7.1
Bypassable 4th order 80 Hz active crossover for maximum compatibility with consumer reproduction
0 and +10 dB LFE gain and 4-mode LFE processing:
LFE to subwoofer and left/right
LFE to subwoofer only up to 80 Hz
LFE to subwoofer only up to 120 Hz
LFE to subwoofer with no filtering – for daisy chaining subwoofers and external signal processing systems
Independent control of bass management for front and back channels -
Neumann KH 810 Tech Specs:
−3 dB free field frequency response
18 - 300 Hz, ± 3 dB
Pass band free field frequency response
19 - 300 Hz, ± 2 dB
Self-generated noise level at 10 cm
< 20 dB(A)
Total harmonic distortion < 0.5 % at 95 dB SPLat 1m
> 45 Hz
Max. SPL In half space at 3% THD
110.7 dB SPL
Max. SPL with pink noise In half space at 1m
112 dB SPL
Averaged between
40 and 90 Hz
Drivers
Magnetically shielded
Woofer
265 mm (10")
Product dimensions
(height x width x depth), mm (inches)
360 x 330 x 645 mm (14.2" x 13" x 25.4")
Packed dimensions
(height x width x depth), mm (inches)
515 x 490 x 750 mm (20 1/4" x 19 1/4" x 29 1/2")
Weight
26 kg (57.2 lbs)
Delivery includes
1x KH 810
3x Power cables (Euro, UK, USA)
1x Operating manual
1x Supplement “Getting Started Quickly”
