DPA d:dicate 3506A Stereo Kit with 4006A Microphones

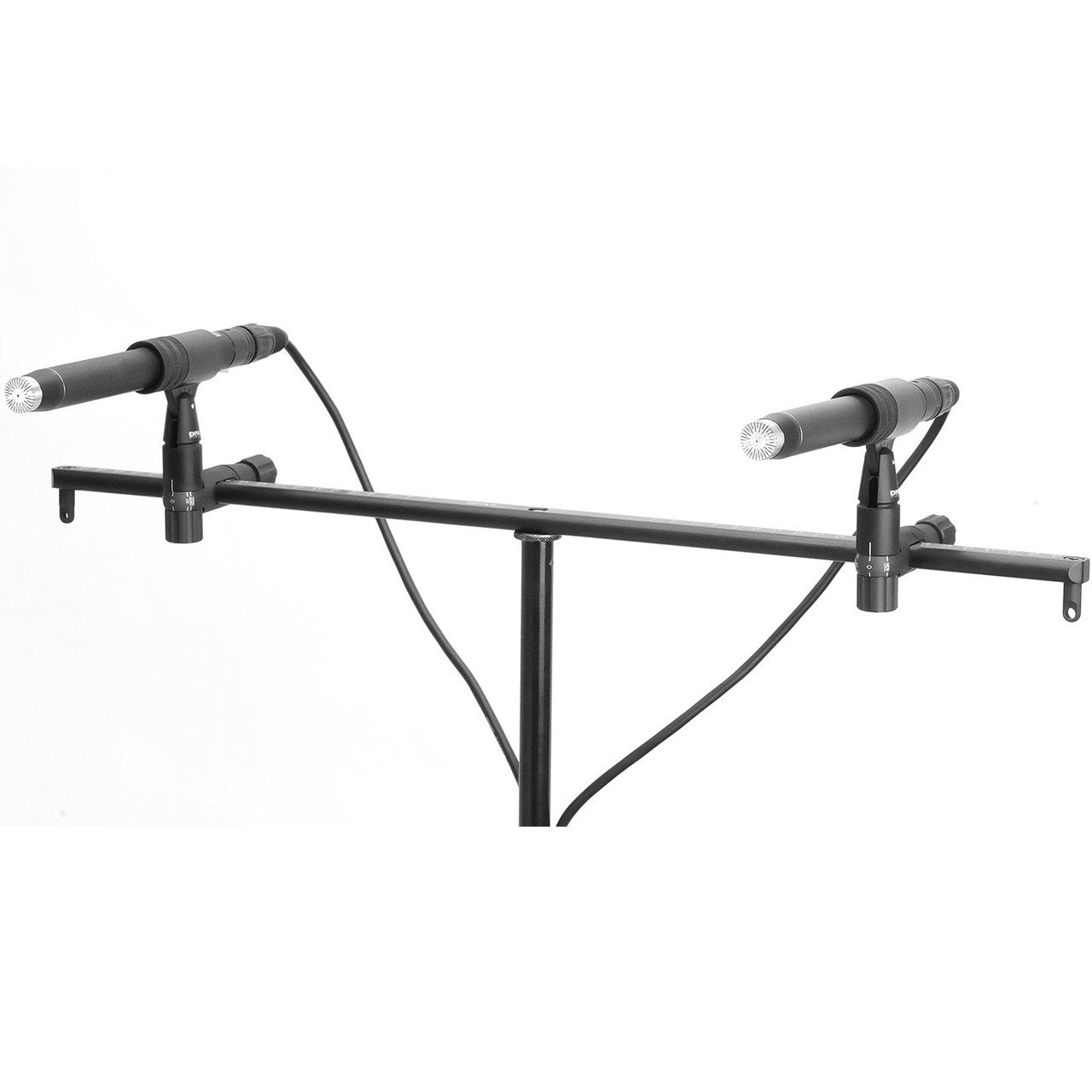

The DPA d:dicate 3506A Stereo Kit features two 4006A Omnidirectional microphones, that have been tested and matched to be within +/-0.50 dB of each other - for both frequency response and sensitivity! The Stereo Kit offers amazing value, being supplied with only the best in precision tools required for highly accurate and detailed stereo recording. Accessories include the DPA UA0837 Stereo Boom, which can be mounted on a stand or rigged to the ceiling. The Stereo Boom allows for fine adjustments of the microphone's spacing and angle, via the embedded metric grid.

DPA d:dicate 3506A PRODUCT FEATURES:

The microphone capsule

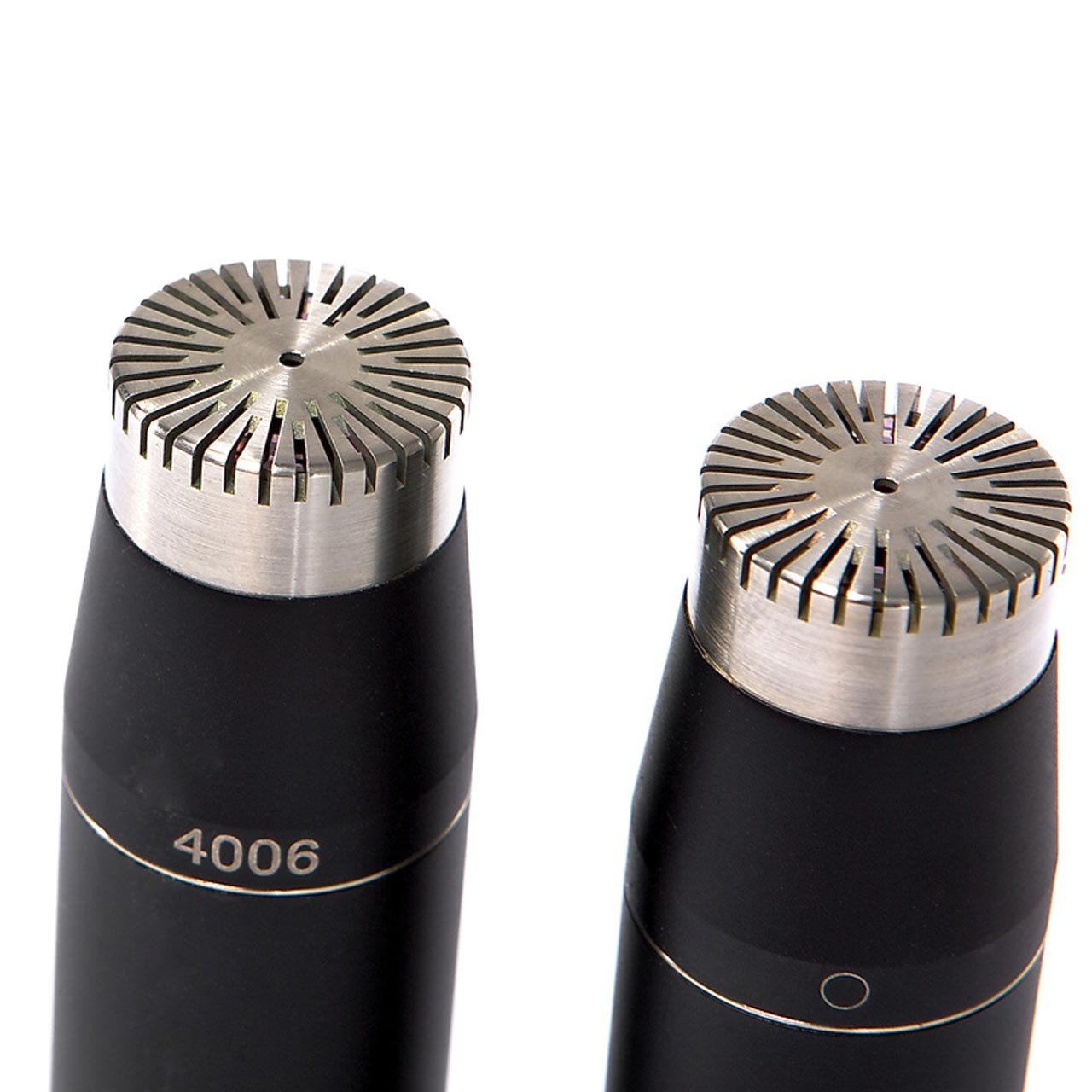

• The MMC4006 Omnidirectional Microphone Capsule offers total transparency in any recording situation. It picks up incredible detail and depth of sound. The definition of its high-frequency characteristics across a wide range of instruments is impressive. It offers natural sound, high sensitivity, low noise floor and extremely linear frequency response from 10 to 20 kHz (±2 dB).

• The d:dicate™ 4006A Omnidirectional Microphone is a flexible solution. Engineers, broadcasters and musicians alike can achieve clean, natural and precise sound reproduction. This mic is ideal for A-B stereo pairs for symphonic concert hall recordings. It also excels on vocals, for close-miking all types of instruments and as an outdoor interview microphone.

• A selection of accessories is available, including acoustic pressure equalizers, a nose cone and interchangeable protection grids. These accessories can acoustically transform the mic. By changing grids, it is possible to gain several unique frequency responses and directional characteristics from the mic. Furthermore, these accessories will not produce any phase shift, noise or distortion that would otherwise be introduced by an electrical filter.

A truly flexible range

• The d:dicate™ 4006A Omnidirectional Microphone is part of the flexible d:dicate™ microphone series. It combines the MMC4006 Omnidirectional Capsule with the MMP-A preamplifier. This combination is for the true audiophile. It offers low distortion and totally accurate and faithful sound.

• Another option is the d:dicate™ 4006C Omnidirectional Microphone, Compact offers a subtle character alteration with a bit more “body” to the low end than the d:dicate™ 4006A Omnidirectional Microphone.

• At any time, and with no tools needed, it is possible to transform the d:dicate™ 4006A Omnidirectional Microphone into a new configuration. You can combine it with another d:dicate™ or d:facto™ Microphone Capsule or Preamplifier.

• The d:dicate™ 4006A Omnidirectional Microphone is also available individually.

Feature Summary

• The product offers the following features

• Factory-matched pair within ±0.5 dB

• Natural sound

• High sensitivity

• Low noise-floor

• Extremely linear frequency

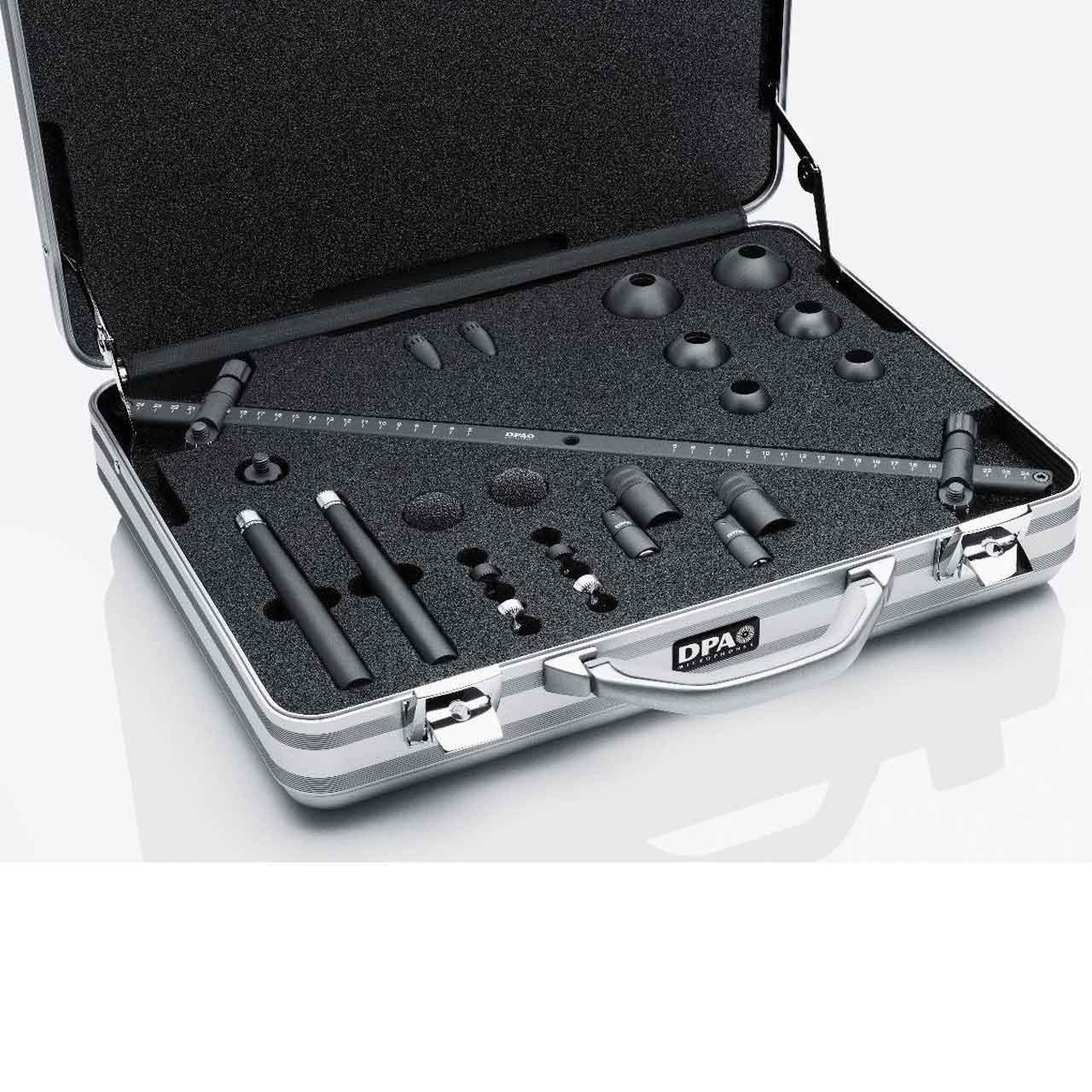

• The DPA 3506A Stereo Kit also includes two foam windshields and two microphone mounts for the 4006A. For absolute attention to detail the 3506A Stereo Kit is supplied with two Free-Field Grids, two Close-Miking Trapezoid Grids, two Diffuse Field Grids, and two Nose-Cones along with six Acoustic Pressure Equalizer's designed for the 4006A microphone.

DPA d:dicate 3506A TECHNICAL SPECIFICATIONS:

Directional pattern

Omnidirectional

Principle of operation

Pressure

Cartridge type

Pre-polarized condenser

Frequency range

10 Hz - 20 kHz

Frequency range

±2 dB 10 Hz - 20 kHz

Sensitivity, nominal,

±2 dB at 250 Hz40 mV/Pa; -28 dB re. 1 V/Pa

Equivalent noise level, A-weighted

Typ. 15 dB(A) re. 20 µPa (max. 17 dB(A))

Equivalent noise level, A-weighted

Typ. 27.0 dB (max. 29 dB)

S/N ratio (A-weighted),

re. 1 kHz at 1 Pa (94 dB SPL) Typ. 79 dB(A)

Total harmonic distortion (THD)

< 1% up to 139 dB SPL peak

Dynamic range

Typ. 124 dB

Max. SPL, peak before clipping

146 dB

Switchable attenuator, filters etc.

0 dB / -20 dB

Output impedance

200 Ω

Minimum load impedance

2 kΩ

Cable drive capability

100 m (328 ft)

Output balance principle

Impedance balancing with Active Drive

Common mode rejection ratio (CMRR)

> 60 dB

Power supply (for full performance)

48 V Phantom power (± 4 V)

Current consumption

2.8 mA

Connector

XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase

Colour

Matte black

Weight

163 g (5.7 oz)

Microphone diameter

16 - 19 mm (0.6 - 0.75 in)

Capsule diameter

16 mm (0.6 in)

Microphone length

170 mm (6.7 in)

Maximum output voltage, RMS

8.0 V

Polarity

+V at pin 2 for positive sound pressure

Temperature range

-40°C to 45°C (-40°F to 113°F)

Relative humidity (RH)

Up to 90%

Matching tolerance (frequency response and sensitivity)

±0.5 dB

Phase deviation for kit

< 5°
