$529.00
JBL-LSR308MKII

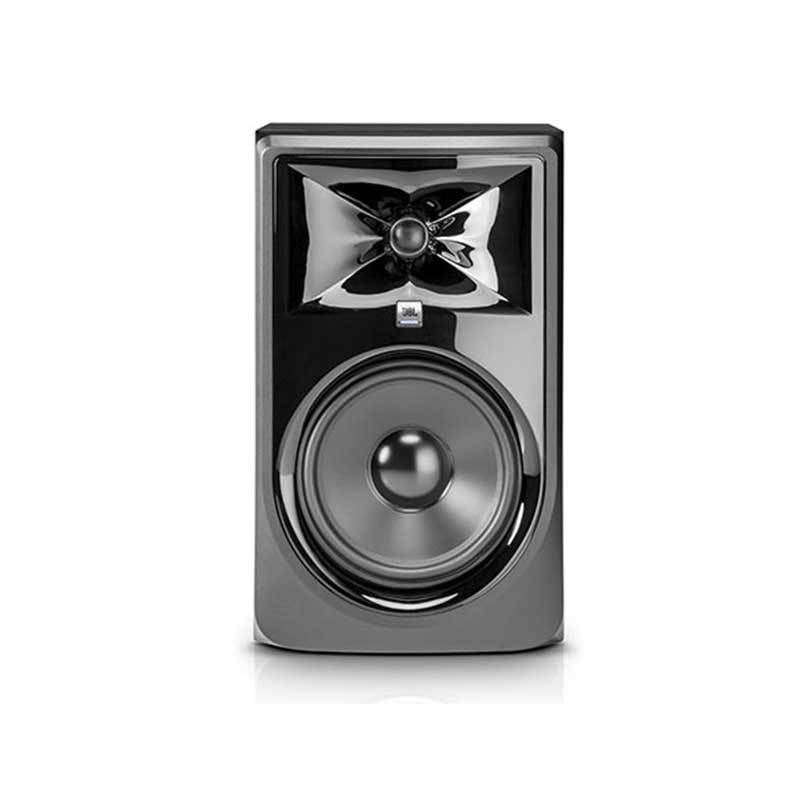

JBL 308P MkII - Powered 8" Two-Way Studio Monitor (SINGLE)
The JBL 308P MkII speakers is a active 2-way reference monitor with 8-inch low frequency drivers, and a 1-inch tweeter. The 308P MkII's feature a newly designed and improved transducer, and the JBL Image Control Wageguide. This new technology deliver an acute frequency and transient response, and an improvement on the superseded LSR monitor range.
Type: Active Studio Monitors
-
-
JBL 308P MkII PRODUCT FEATURES:
Patented Image Control Waveguide for detailed imaging and a broad, room-friendly sweet spot
Next-generation JBL transducers for optimized transient response and improved linearity
Patented Slip Stream™ low-frequency port for superior bass performance at all playback levels
Dual integrated, custom Class-D amplifiers provide 112 watts of power for high output and dynamic range
New Boundary EQ settings compensate for low frequency variants introduced by the environment
HF Trim switch adjusts high-frequency output to room acoustics or personal preferences

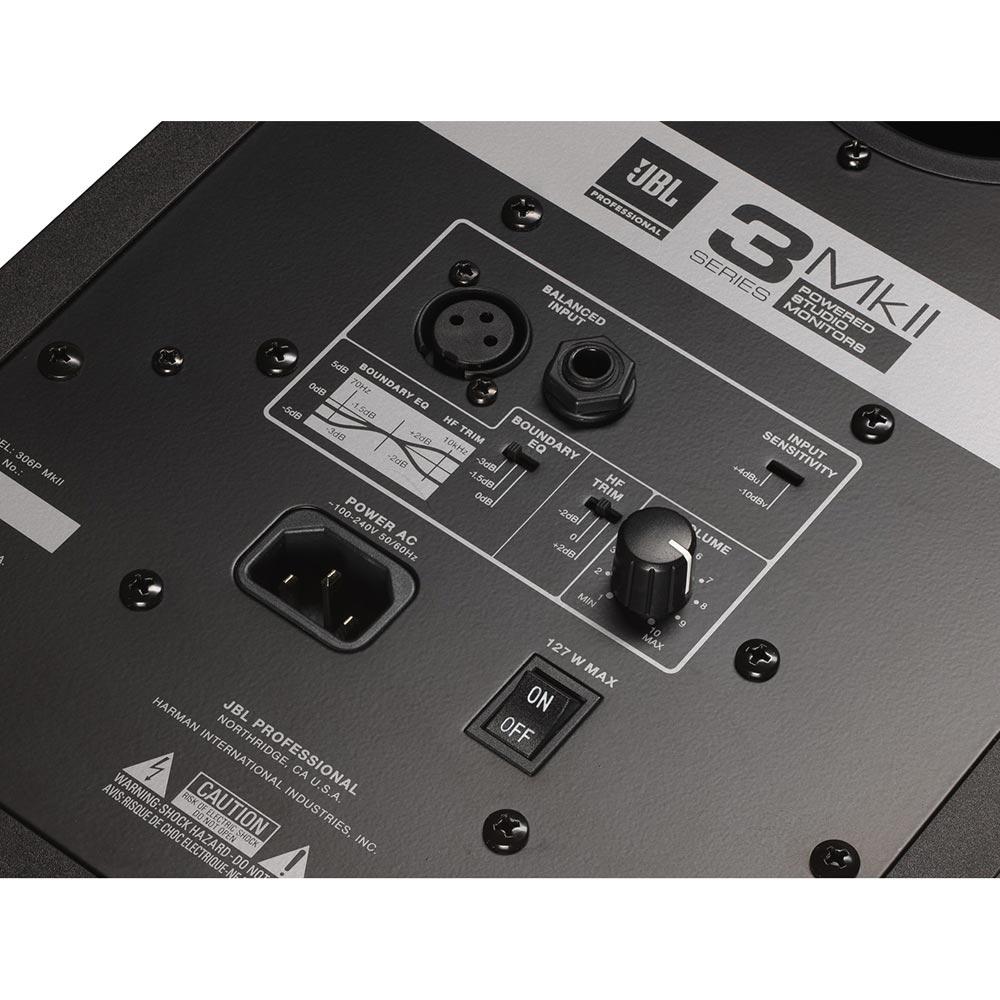

Flexible connectivity with balanced XLR and 1/4" TRS inputs, +4dBu / -10dBV input-sensitivity switch and adjustable volume control
Engineered to JBL Linear Spatial Reference design criteria for outstanding accuracy in any working space
Strenuous JBL 100-hour full-power test ensures years of reliability
Sleek, modern design provides a visual upgrade to any studio -
JBL 308P MkII TECHNICAL SPECIFICATIONS:
LF DRIVER SIZE: 203mm (8")
HF DRIVER SIZE: 25mm (1")
HF DRIVER TYPE: Soft dome
CROSSOVER: 1800Hz 4th order acoustic Linkwitz-Riley
POWER CONFIGURATION: Bi-amplified
HF DRIVER POWER AMP: 56W, Class-D
LF DRIVER POWER AMP: 56W, Class-D
FREQUENCY RESPONSE (±3dB): 45Hz – 20kHz
FREQUENCY RANGE (-10dB): 37Hz – 24kHz
MAXIMUM CONTINUOUS SPL: 102dB
MAXIMUM PEAK SPL: 112dB
ANALOG INPUT TYPES: 1 x XLR female, 1 x TRS female, balanced
DISPLAY CARTON (H x W x D): 473 x 312 x 358mm
NET WEIGHT: 8.1 kg
