LDS-ICOA12AW

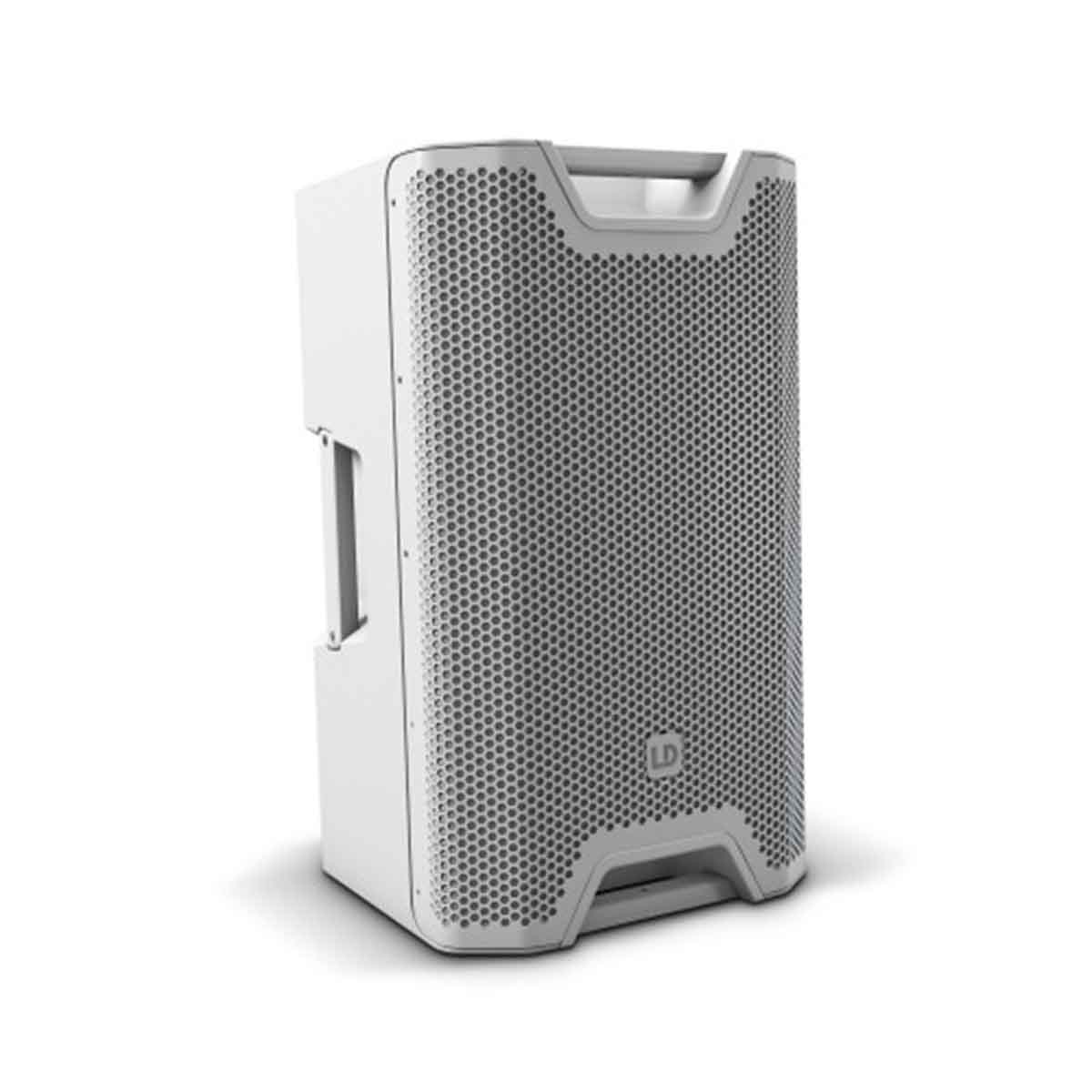

LD Systems ICOA 1200W 12" Active Speaker White

Notify me when this product is available:


Description



This full-range loudspeaker impresses with its outstanding sound, even at low frequencies. The ICOA 12 A W by LD Systems is a genuine all-rounder that offers unparalleled features for its class. Its coaxial design, rotating, BEM-optimised CD horn and extensive and precisely calibrated DynX DSP presets make this powered 12" loudspeaker exceptionally flexible.

The outstanding bass reproduction from the horn-loaded woofer makes the LD ICOA 12 A W the ideal choice for musicians, bands, entertainers and dance schools. It also allows DJs to play sets without the need for a subwoofer. Deployed vertically, the speaker impresses as a satellite; horizontally, it's excellent in suspended systems or as a floor monitor. The efficient class-D power amplifier delivers 126 dB max. SPL and 1200 W peak performance. The white version with a white grille blends in subtly into any environment and doesn't distract.

Drawing on DynX DSP technology by LD Systems, the speaker delivers perfect performance with maximum clarity and power under all conditions. 4 presets, a 3-band EQ and a delay function facilitate optimal adjustment of the sound to the venue conditions. The 2 line/mic input channels with individual gain controllers, plus mono mix output, allow a variety of signal sources to be connected.

Thanks to its shock-resistant front grille and ideal 55° tilt angle, the LD ICOA 12 A W is also outstanding as a floor monitor. Placed vertically, the 36 mm dual tilt stand attachment offers the choice of a 0° or 5° tilt angle for optimally adapting the system to the local acoustic environment.

Extensive and smart accessories for installation and transport are optionally available. 4 aluminium handles with an ergonomic rubber surface provide optimal grip when carrying the speaker.





Specifications General
Product type: PA loudspeaker
Type: Powered
Color: White (RAL 9003)
Low/mid Woofer dimensions: 12 " Woofer dimensions (mm) 304.8 mm
Woofer magnet: Ferrite
Woofer brand: Custom-made
Horn: BEM optimized CD Horn
HF driver dimensions: 1 "
HF driver dimention (mm) 25.4 mm
HF driver magnet: Ferrite
HF driver brand: Custom-made
HF driver voice coil: 1.4 "
HF driver voice coil (mm): 35 mm
Amplifier: Class D
Dispersion: (H x V) 90° x 50°
System Power (RMS): 300 W
Peak power: 1200 W
Frequency response: 48 Hz - 20000 Hz
Crossover frequency kHz: 2 kHz
Max. SPL (Peak): 126 dB
Protection circuits: Multiband limiter, over voltage, over-current, thermal overload
Controls: 2 x gain, On / off switch, Rotary/push encoder
Indicators: LC display
Mic/ line inputs: 6.3 mm jack Combination sockets (symmetrical), XLR
Line inputs: 1
Line input connectors: 3.5 mm TRS
Line outputs: 1
Line output connectors: 3.5 mm TRS
Power supply: SMPS
Power consumption: 150 W
Ambient temperature (in operation): 0 - 40 °C
Operating voltage: 100 V AC - 240 V AC, 50 - 60 Hz
Relative Humidity: < 80 %, not condensing
Fuse: T4AL 250 V
Cabinet material: Polypropylene Cabinet construction
Bass Reflex Mounting: 36mm flange (0°, 5°), 6 x M10 flying points
Monitor angle: 55 °
Width: 375 mm
Height: 635 mm
Depth: 396 mm
Weight: 19,95 kg
Accessories (included): Power cord
