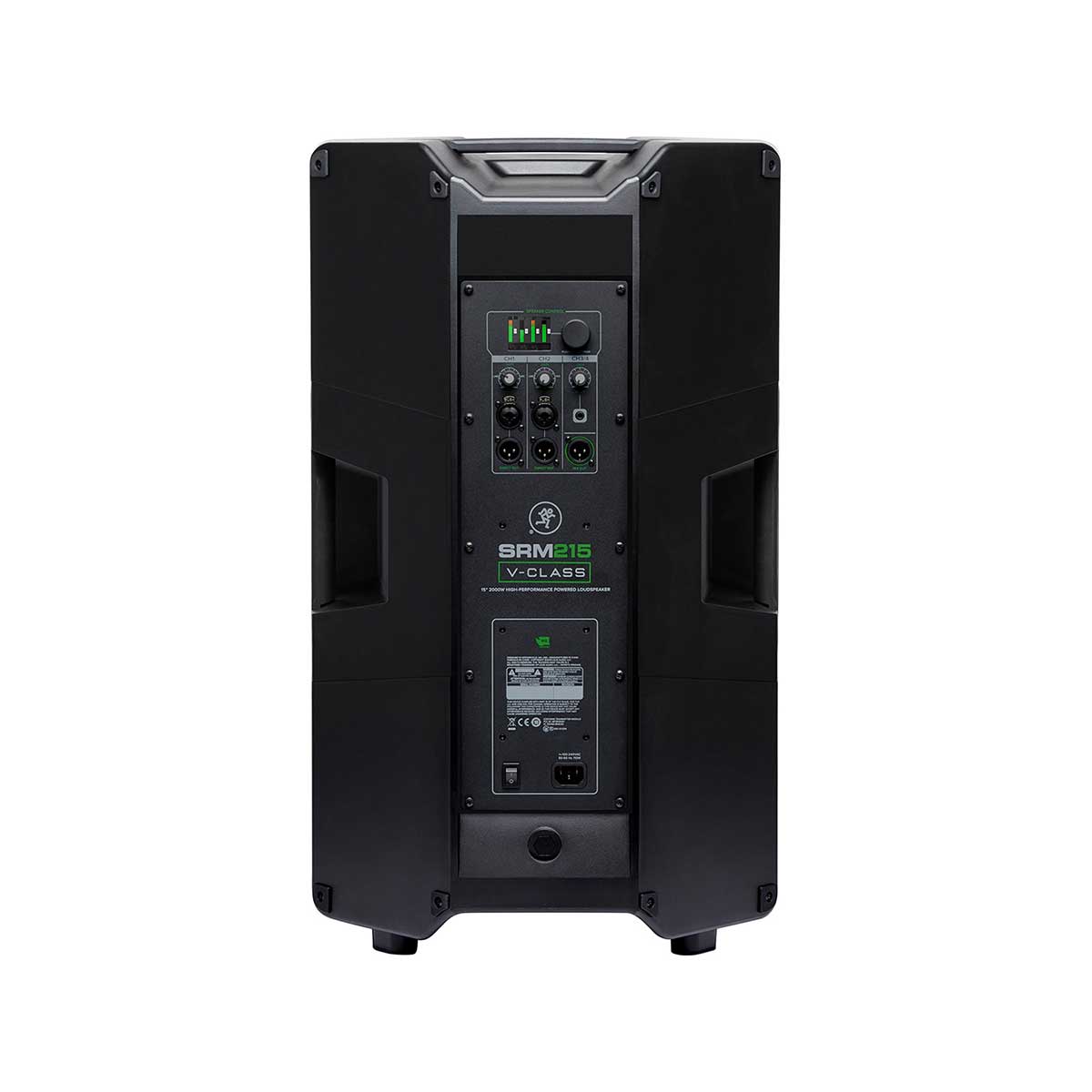

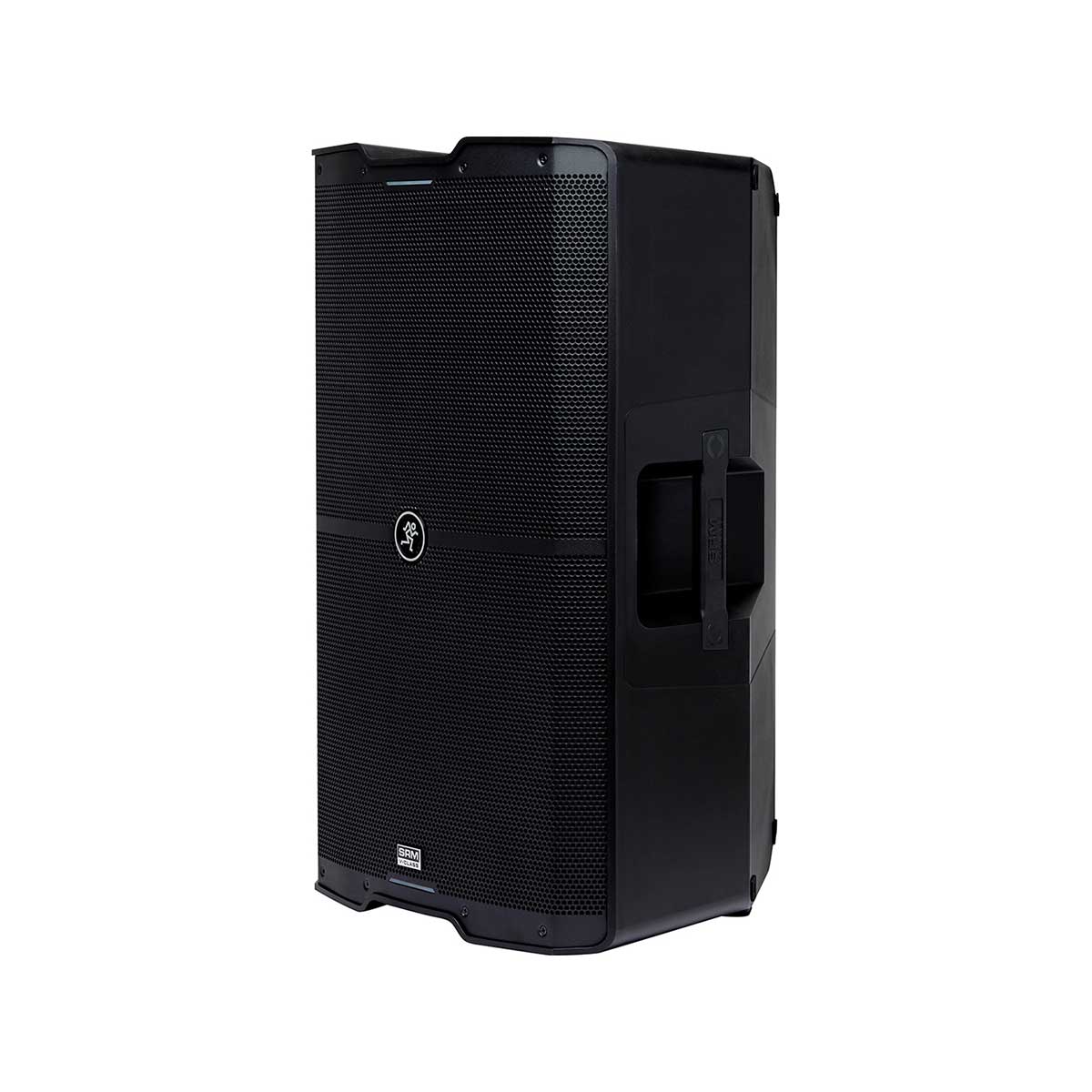

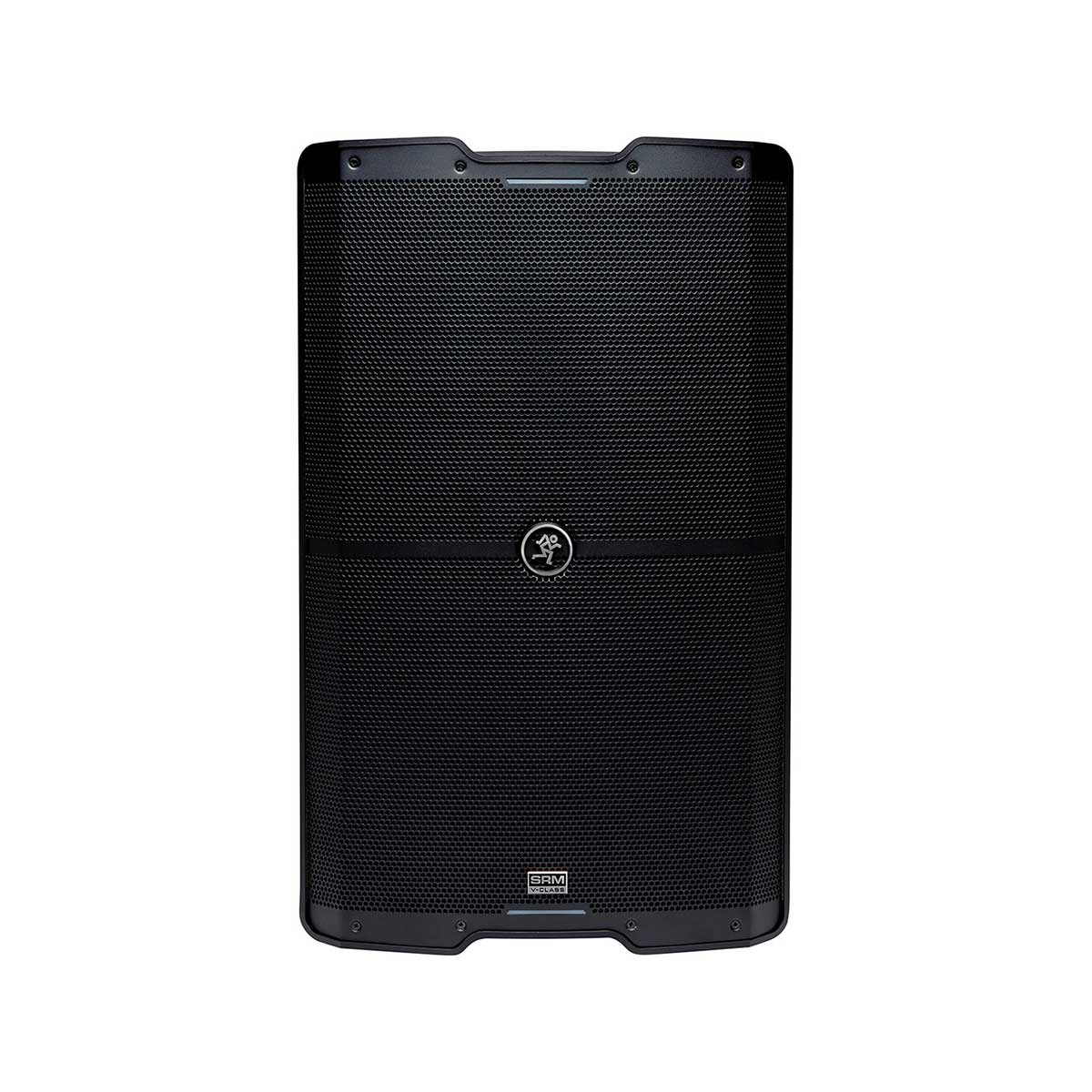

SRM215 V-Class

15" 2000W High-Performance Powered Loudspeaker

Mackie SRM215 | V-Class 15-inch high-performance loudspeaker offers superior amplification and advanced DSP technology that performers and venues demand for professional live sound applications.

Features

Industry-leading 2000W Class-D amplifier

• Our most advanced amplifier platform ever, delivering incredible stability, headroom, and audio fidelity
• Highest SPL in its class
• Unrivaled reliability and rock-solid operation can withstand the most demanding applications
• Universal power supply (100-240VAC) with Power Factor Correction for stable operation even with unstable AC power

Advanced Impulse™ DSP – Proprietary Acoustic Tuning

• Crystal clear sound across the entire dispersion zone means the whole room is the sweet spot
• Precision crossover and transducer time-alignment ensures balanced and accurate sound

Intelligent Bass Management™

• Our proprietary LF management technology maintains tonal balance and output level when operating at very high volumes while keeping the bass tight and punchy

Custom Sym-X™ Horn

• Allows for total efficiency from the HF transducer minimizing distortion and increasing output
• Creates a perfectly symmetrical, flat response at the crossover point for exceptionally smooth midrange
• The horn-loading frequency is set below the drivers’ LF capability allowing for maximum efficiency and optimal performance at the crossover point

High-Performance Custom Transducers

• Large, powerful magnets partner with robust motors, voice coils and spiders to provide the highest possible efficiency and transient accuracy
• Additional cooling vents surrounding the specially designed voice coil plus directional cabinet porting ensures maximum heat dispersion and reliability
• Premium polymer high-frequency driver provides the flattest possible response for incredibly smooth highs that sound natural and balanced

Transparent System Limiting and Protection

• Dedicated processing module monitors and protects the amplifier in real time
• Sound quality and tonal balance is maintained even under heavy limiting
• Utilizing powerful multi-band compression, the amplifier can target specific frequency ranges to prevent the system from being overloaded rather than turn everything down at the expense of overall output
• Input limiting keeps your source signal in check so if your sending audio that’s a bit too hot, the speaker will cool it down

SRM Mix Control™ Built-in 4-Channel Digital Mixer with Bluetooth®

• Dual independent channels that support mic, line, and instrument signals
• Dedicated 1/8” stereo aux channel
• Stream music from any Bluetooth^® enabled device
• Direct Outs on Ch.1/2 plus Mix Out
• High-contrast full color display for easy single-knob access to mixer and processing
• Adjust channel levels and EQ
• Application and venue specific voicing modes
• Variable crossover
• Alignment delay – up to 100 feet
• Save and recall up to 10 user presets
• Screensaver plus dimmer and contrast control
• System lock with 4-digit passcode
• Change front LED function: Green, white, off, signal present, multi (cycle through colors)

Complete Wireless Control via the SRM Connect™ App

• The SRM Connect™ app gives you access to all adjustments and settings including EQ, levels, and presets

Wirelessly link two SRM | V-Class speakers together for music streaming applications plus complete control over both speakers

• The latest Bluetooth technology allows up to 100 meters of range between linked speakers
• Stereo or dual zone linking modes allows discrete control over the inputs and outputs of the entire system across two rooms or zones
• Creates an incredibly clean setup in minutes

Versatile configuration options

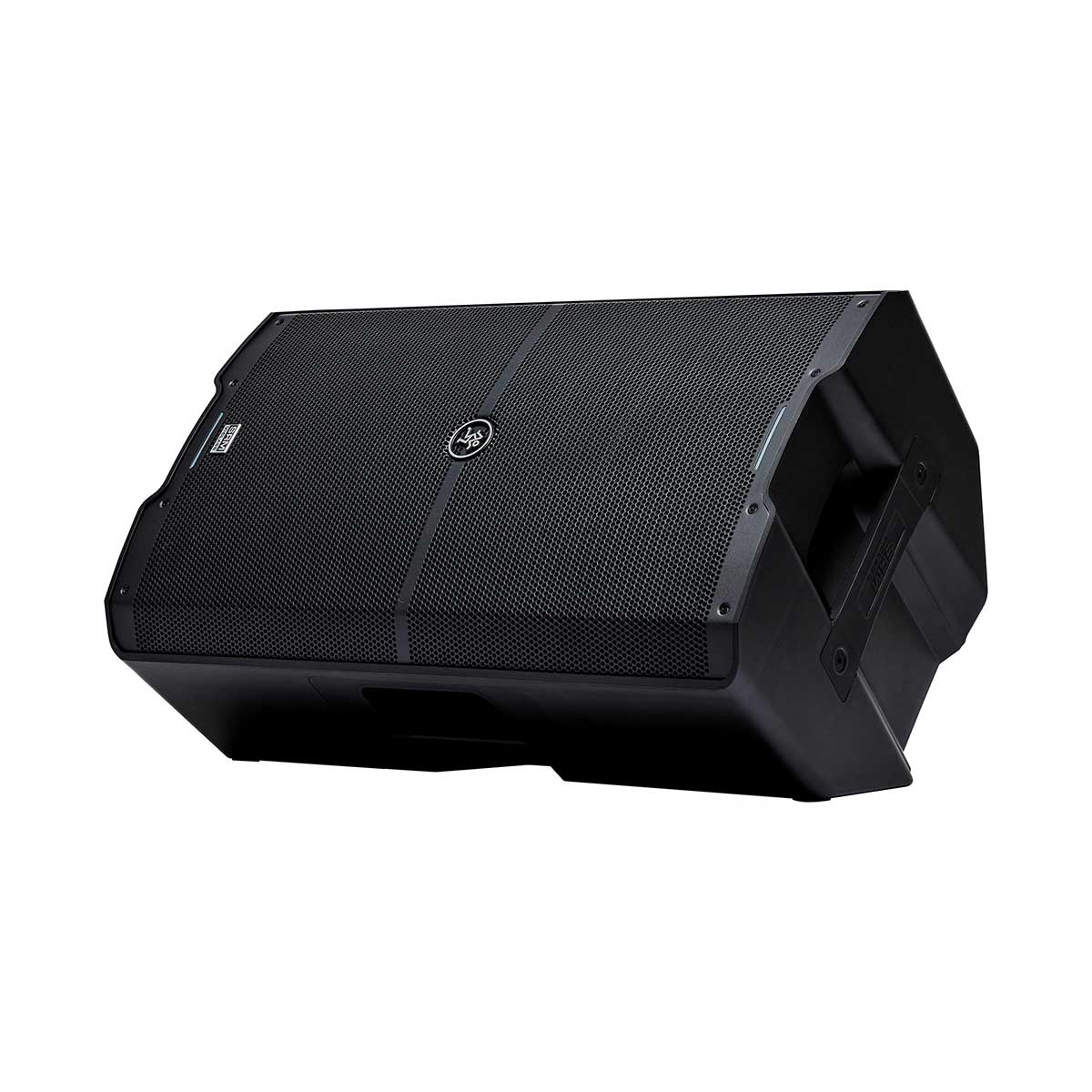

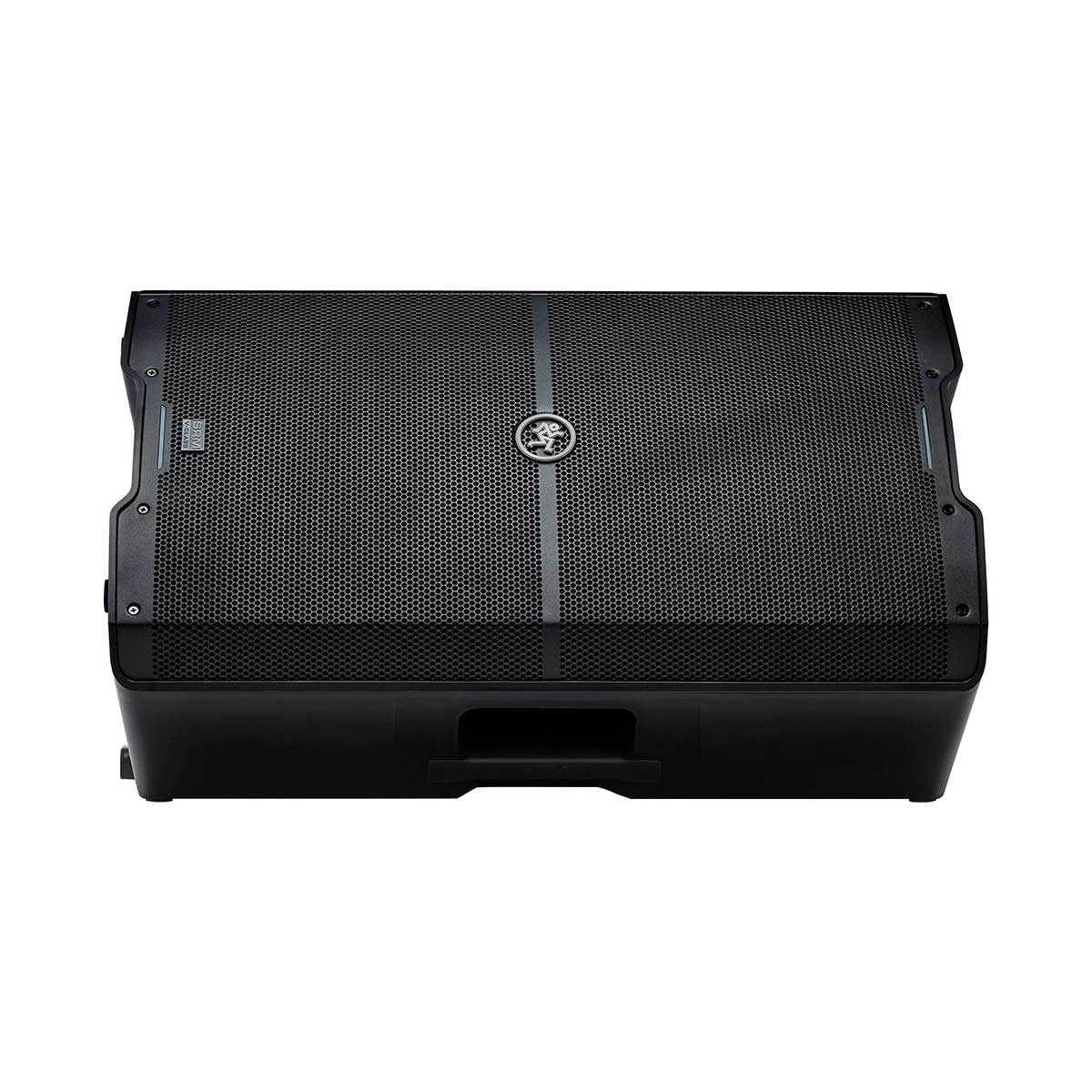

• Dual-angled cabinet design allows for use as a high-performance floor monitor
• Dual angle pole-mount provides optimal coverage and minimal reflections in most venues. The 7-degree downward tilt is perfect for when the speakers are on elevated stages.

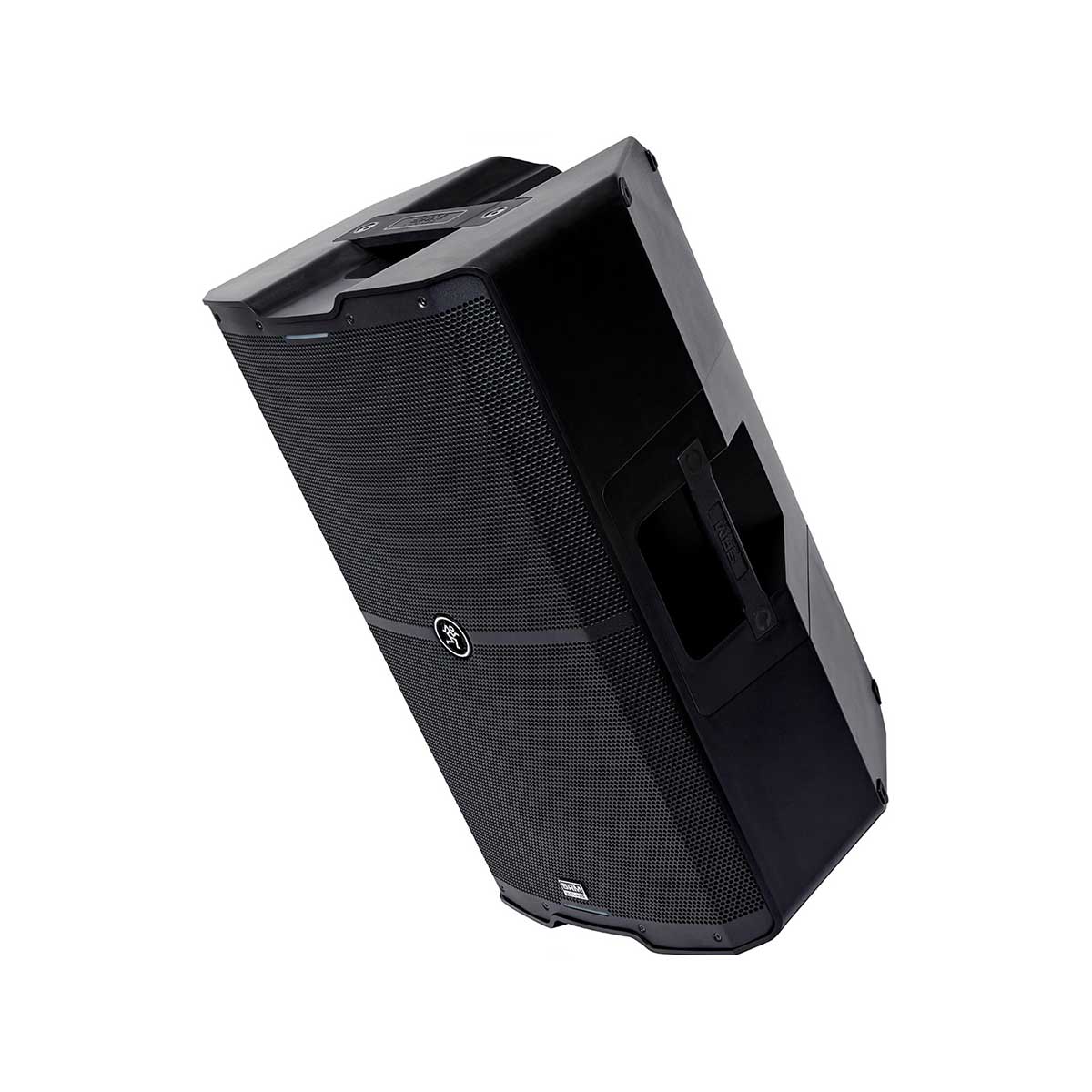

• M10 flypoints for installation (vertical orientation)

Specifications

• Max SPL: 136dB
• Frequency Response: 40Hz – 20kHz
• Coverage: 90°(H) x 60°(V)
• Weight: 48.9 lb / 22.2 kg
• Dimensions: 28.8 x 15.4 x 17.6 in / 732 x 391 x 447 mm
