PRO SERIES DL153
DL153 is a 2U 19" fixed-configuration rack I/O unit with 16 mic/line level inputs and 8 line level outputs and delivers legendary Midas sound quality utilising our time-tested and road-proven technologies. Featuring award-winning Midas microphone preamplifiers with 2.5 dB analogue gain steps and two AES50 network ports providing dual redundancy, the DL153 is the ideal partner to all Midas Pro and M32Series digital consoles, enabling a digital snake connection from Front of House to stage. Midas
Award-Winning MIDAS Microphone Preamplifier
The Midas microphone preamplifier is considered by leading live sound and recording engineers to be the very essence of the famous Midas sound. More than 40 years of design experience paired with the fi nest choice of premium-grade components lead to the acclaimed warmth and depth - bringing out subtle ambience, maintaining spatial positioning and more effectively capturing a precise sound image. The acclaimed sound of the award-winning Midasmicrophone preamplifier has inspired generations of live sound engineers to their best work, creating sonic panoramas that have captivated audiences worldwide.
Since pristine sound always begins with the microphone preamplifier, the first point where the signal enters the console, DL153 features the latest generation of Midasmicrophone preamplifiers, which faithfully reproduce every sonic detail so no part of a performance will ever be missed. Transparent and pristine sound, low noise and high common-mode rejection are all hallmarks of this classic design.
Over the years many mix engineers have found this robust and overload-tolerant design takes on a whole new dimension of sound when driven hard, the crystal-clear audiophile reproduction giving way to just the right combination of harmonics, a warm and organic sound heard by millions of concert goers and recorded for posterity on countless live albums over the years.
Digital Audio Networking
SuperMAC (AES50-Compliant) digital audio networking technology from Klark Tekniksimultaneously provides high channel counts, ultra low and deterministic latencies, sample-synchronous and phase-aligned networked clock distribution, error detection and correction, network redundancy, and ease of deployment and use – to meet the demanding requirements of live concert touring.
DL153 is compatible with all Midas digital consoles and audio system engines, as well as with any other AES50-equipped devices.
High Output Drive Line Outputs with Mute

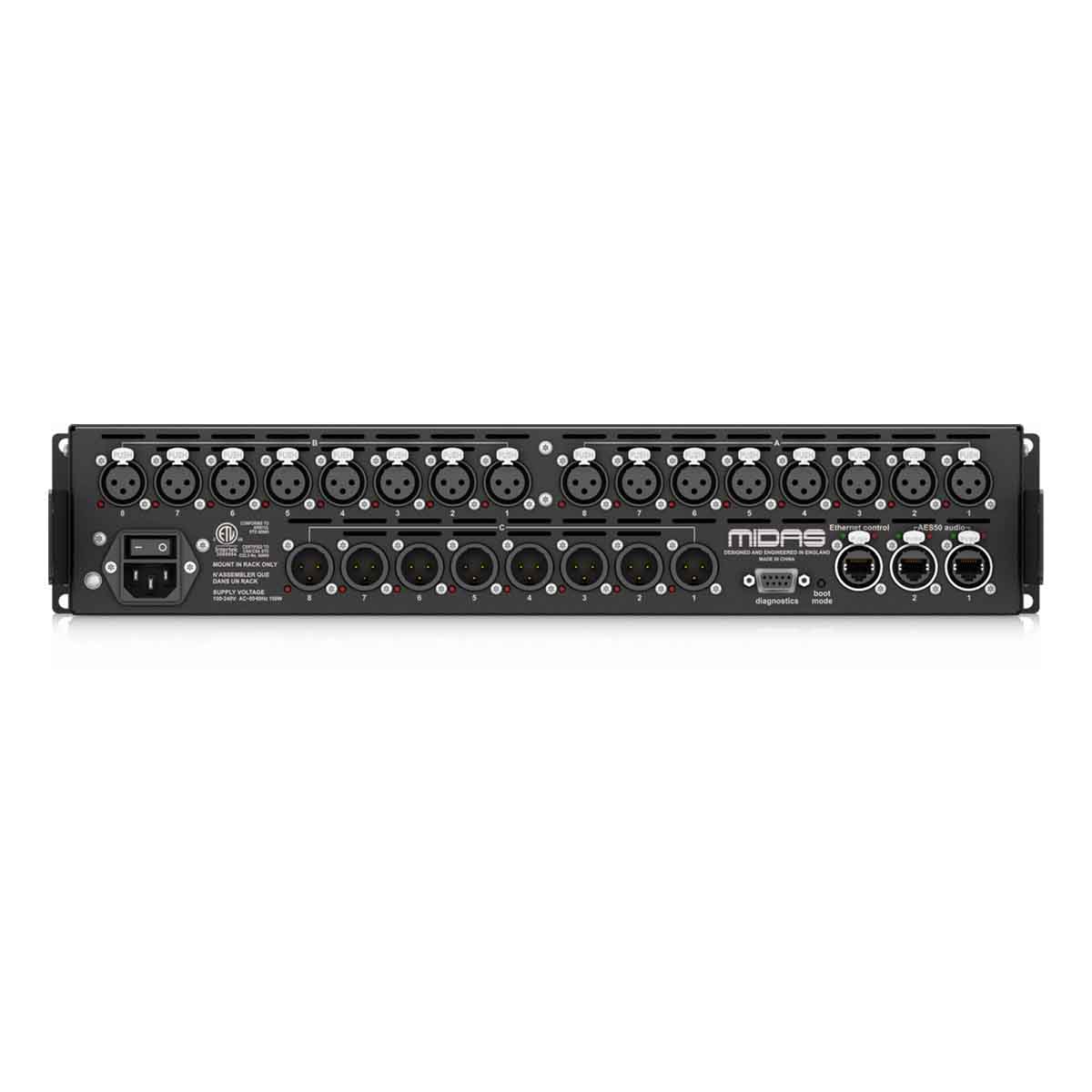

DL153 features 8 active servo-balanced low impedance line level outputs with high output current capability for driving long cable runs.
The outputs feature an automatic mute facility if the audio signal path is muted by the mixing console operator, and individual LED indicators are provided for each output connector.
96 kHz or 48 kHz Operation
DL153 supports multiple sample rates for the AES50 connections - 96 kHz for use with Midas PRO Series, and 48 kHz for use with Midas M32Series.
Remote Console or Front Panel Control

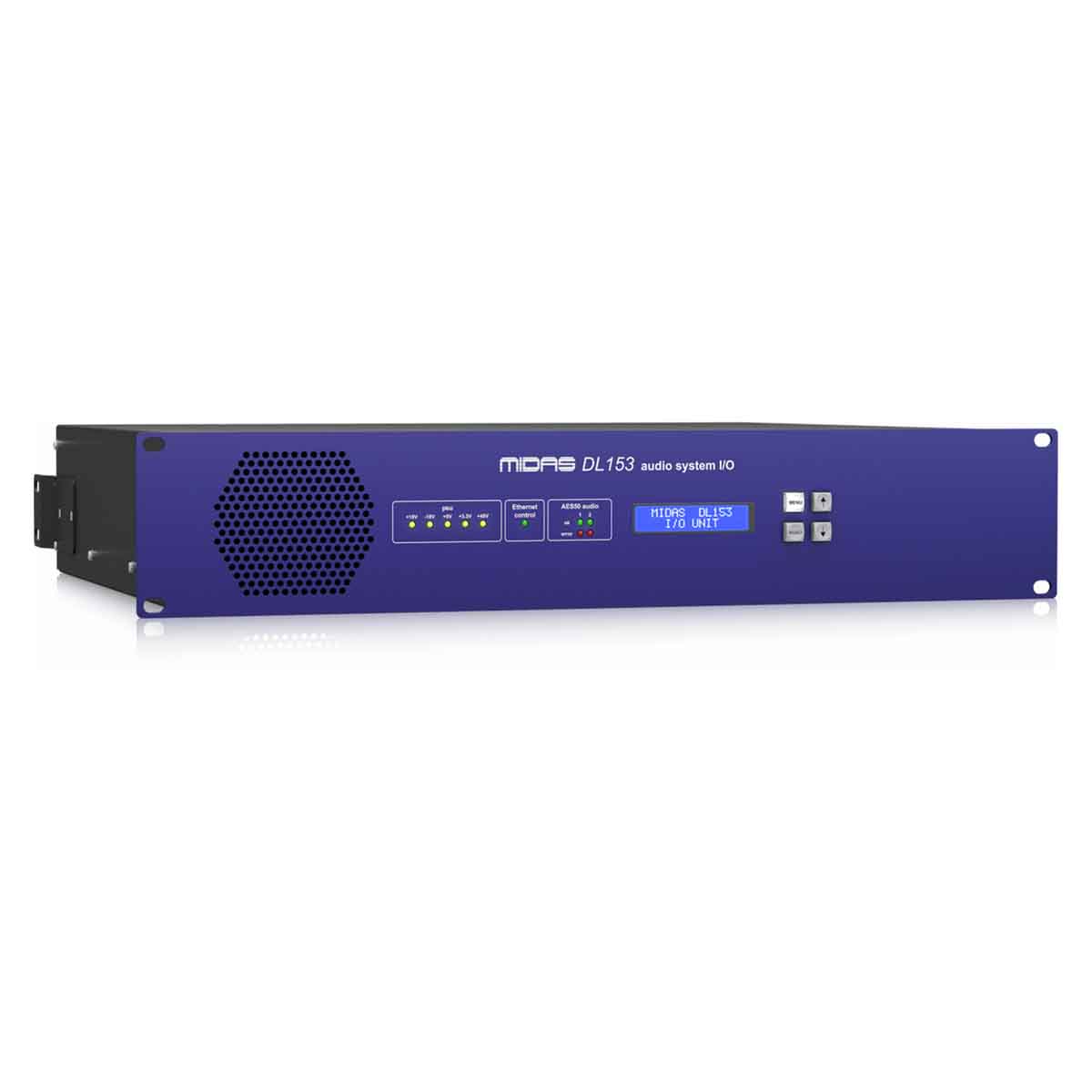

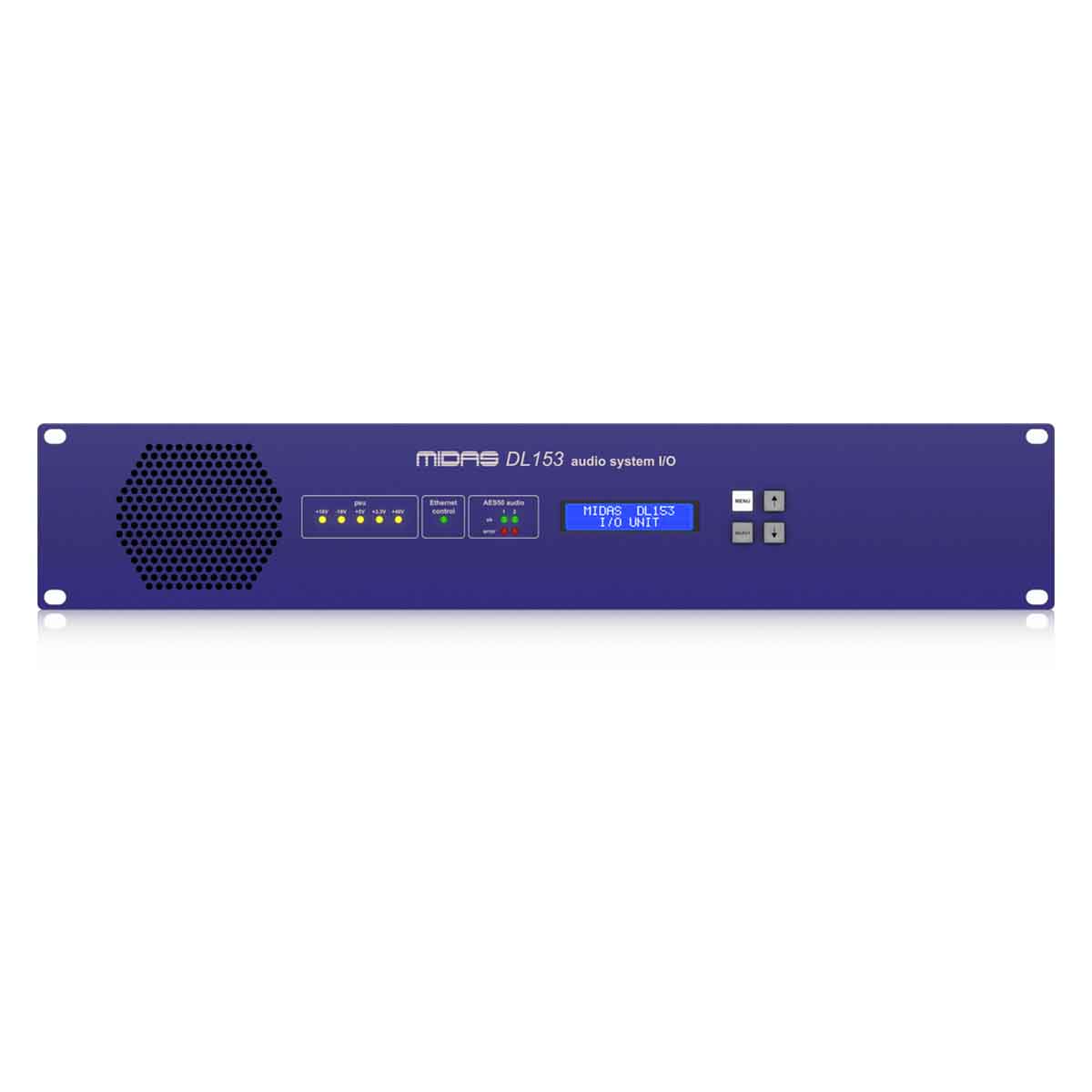

All configuration settings for DL153 can be set either remotely from the mixing console, or directly via the intuitive and easy to understand front panel. DL153 features a front panel LCD display with intuitive menu navigation for all configuration options with LED status indicators, which provide clear feedback of operational status over wide viewing angles and distances. Clear indication is provided showing power supply output rail condition and AES50 and Ethernet network connection status and activity.
Built for the Road
Featuring a rugged steel 2U rack mount enclosure, the DL153 is designed for the rigours of live concert touring. Premium industry-standard connectors are used for reliable audio and network connections, night after night.
- Remote operation up to 100 m via CAT5/5e cable
- Selectable 96 kHz or 48 kHz sample rate operation
- All settings programmable from front panel controls or console.
- Height - 48.3cm
- Width - 37.6cm
- Length - 8.8cm
- Weight - 6.7kg
