$2,099.00$2,999.00
KO-MW2408

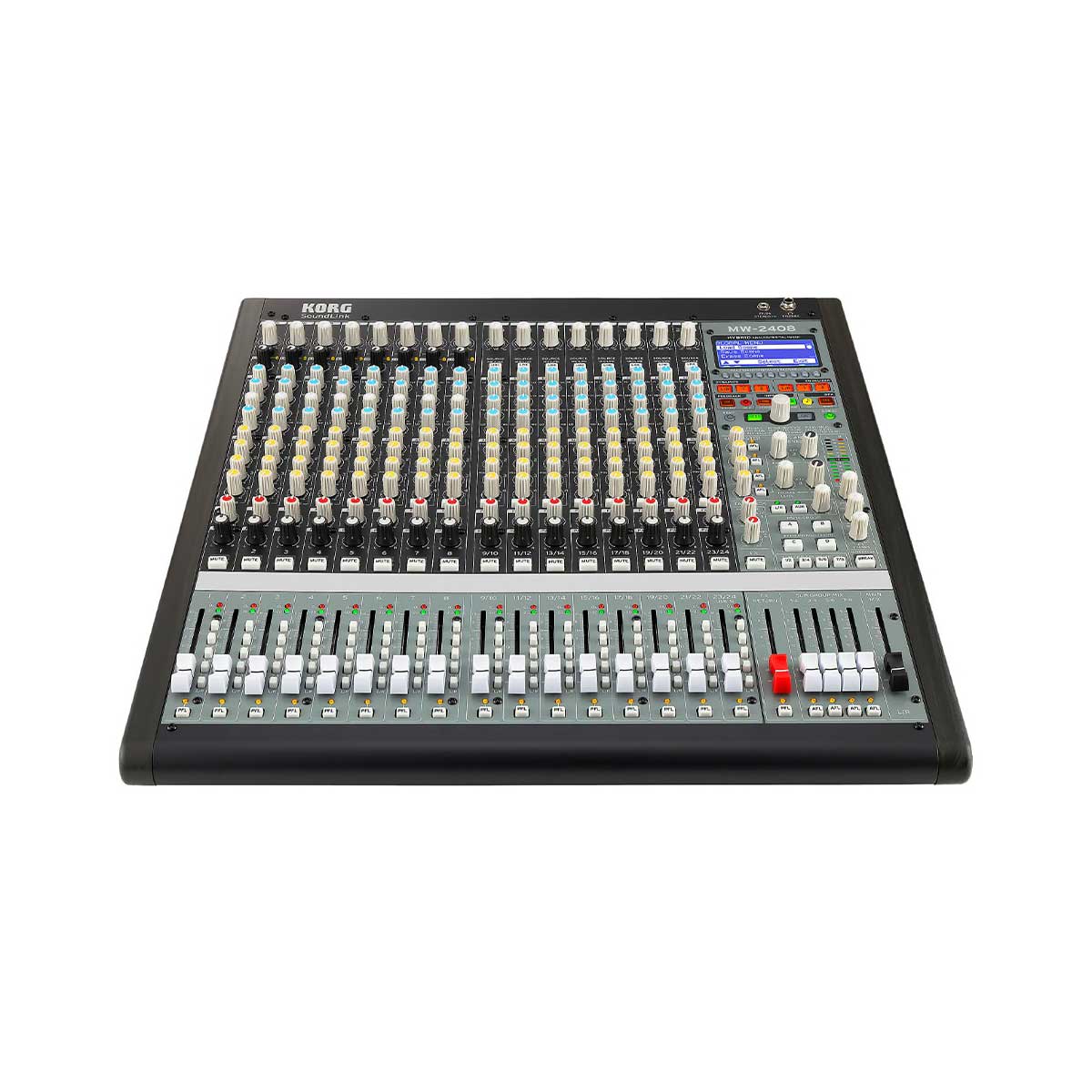

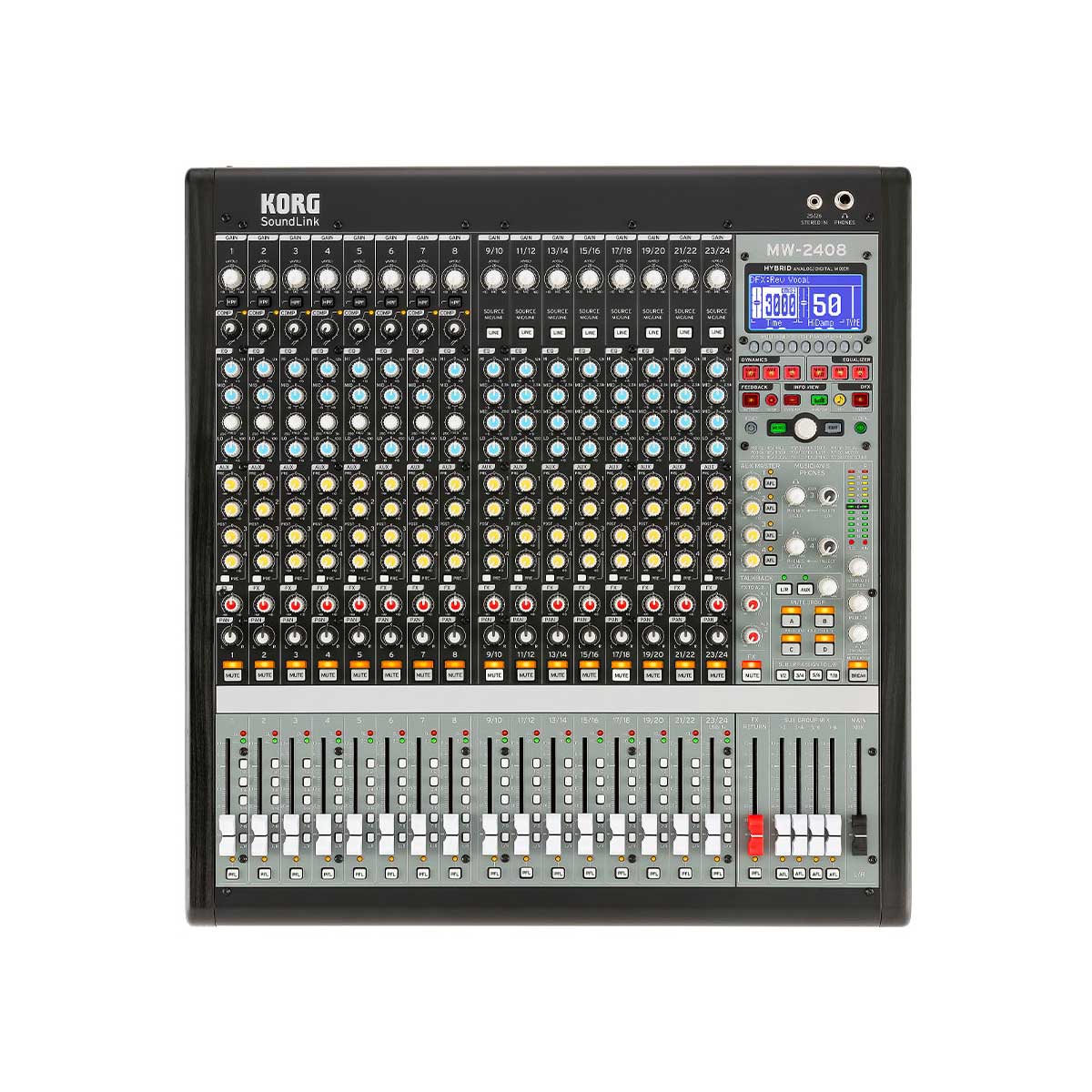

KORG MW-2408 24-ChannelcHybrid Analog/Digital Mixer
Korg has collaborated with the legendary mixer design team of Greg Mackie and Peter Watts to create hybrid/analog mixing consoles that make creative mixing easy. This 24-channel model give you instant analog control for live mixing with stunning sound quality and more musician-friendly features than the competition — paired with the power of high-quality digital where it counts.
Type: Analog Mixers
Features
- True hybrid design developed with mixer design legends Greg Mackie and Peter Watts
- 24 x 8 x 2 model features practical design structure and ingenious features that make mixing unpredictable live performances easy even for novices
- Peter Watts-designed HiVolt mic preamps, with the most headroom of any comparably-priced analog or digital mixer
- Unique Musician’s Phones Monitor Section for fast, one-knob boost of a musician’s mix without having to change Aux or Main mix
- Only mixer in its class with Mute Groups to create various input combinations of musicians or parts of a church service
- True 8-bus configuration makes SoundLink perfect for recording as well as live mixing musicians, different parts of a church service, or cues during a theater production
- Peter Watts’ refined, studio-grade, one-knob Compressor on all mic channels
- Super-useful touches such as best-in-class Feedback control system, all-XLR speaker outputs, 31-band Spectrum Analyzer, and enhanced Break system
- 20 of Korg’s renowned 32-bit digital effects — 10 at once with recallable parameters
- Premium components including Velvet Sound™ A/D & D/A converters and silky-smooth, long-life ALPS® faders and rotary controls
Specifications
- Analog
- • Input Type: Balanced female XLR and ¼” TRS
• HiVolt Microphone Preamp: -128dBu E.I.N, -10 to -60 dBU nominal input level; 3KΩ input impedance
• Frequency Response to Main Output (at unity gain): +0.5 to -1.5 dBu 20Hz to 20kHz
• THD to Main Output (20-20 kHz, unity gain, unwtd): 0.004%
• S / N Ratio to Main Output (Ref = +4 dB, 20 kHz BW, unity gain, A-wtd): -70 dBu
• System Crosstalk (Ref = +4 dBu, 20 Hz-20 kHz, unwtd): Input to Output, -70 dBu; Adjacent Channels, -90 dBu
• Gain Control Range (± 1 dB): +10dB to +60dB (Mic), -10 to +40dB (Line)
• Main Outputs: Balanced male XLR and ¼” TRS
• Maximum Output Level: +26 dBu
• Output Impedance: 75 Ω
• Headphone Output: 100 mW / ch. @ 32Ω load, 20 Hz-20 kHz (+0.5dB, -1.5dB)
- Control
- • Savable Settings: Channel Mutes, Effects & effects Mutes, Mute Groups, Break settings, Dynamics, Graphic EQ, Feedback assign to bus
• Recallable Presets: four Mute Groups, 10 Global Scene Memories, 24 FX Memories, 10 Dynamics, 6 GEQ, 16 or 24 Channel Mutes, 3 Feedback bus assignments
- Signal Processing
- • Mono Channels: HI (12k, shelving), MID (peak, sweepable from 250hz to 5k) and LO (100 Hz, shelving), ±15dB boost/cut;
• Stereo Channels: HI (12k shelving), HI MID (2.5k shelving), LO MID (250 hz shelving) and LO (100Hz shelving) • High Pass Filter: 12dB/octave at 80Hz
• Digital Multi-band EQ: 31-bands with nine frequencies selectable at any one time, Wide 1-octave interval and Narrow ½-octave modes
• Digital Compressor: Hard – 1ms to 40 ms Attack, +11dB to 0dB Threshold; Soft ¬– 1 ms to 40 ms Attack, +11 to -5dB Threshold
• Digital Limiter: 1ms to 40 ms Attack, +19 to +3dB Threshold
• Digital Noise Gate: Hard – 40ms to 1500ms Release, -35 to +7dB Threshold; Soft – 40ms to 1500ms Release, -50 to +4dB Threshold
• Digital Multiband EQ, Compressor, Limiter, and Noise Gate are assignable individually to Main L/R, Aux 1 and Aux 2
• Spectrum Analyzer: 24-channel with Peak Hold function
- Digital
- • Main L/R Bus ADC Dynamic Range: 115dB (A-wtd)
• Aux and FX Buses ADC Dynamic Range: 111dB (A-wtd)
• DAC Dynamic Range for all Out buses: 115dB (A-wtd)
• USB Stereo Input / Recording Port: USB Class 1
• Internal Processing: 32-bit for internal processing;
• A/D/A Bit Depth: Korg Tru-Bit-Perfect 32-bit
• USB Bit Depth: 24-bit • Sampling rates: 48 kHz, 44.1 kHz
- Physical
- • Power Connector: IEC
• Input-Voltage Range: 100 to 240 VAC, 50/60 Hz
• Power Requirements (continuous): 45 W
• Recommended Ambient Operating Temperature: 0˚ to 40˚ to Celsius
• Dimensions: 480 mm x 187 mm x 530 mm (17.3” / 440 mm wide without side panels, 19” with rack rails);
• Weight: 9.3kg
