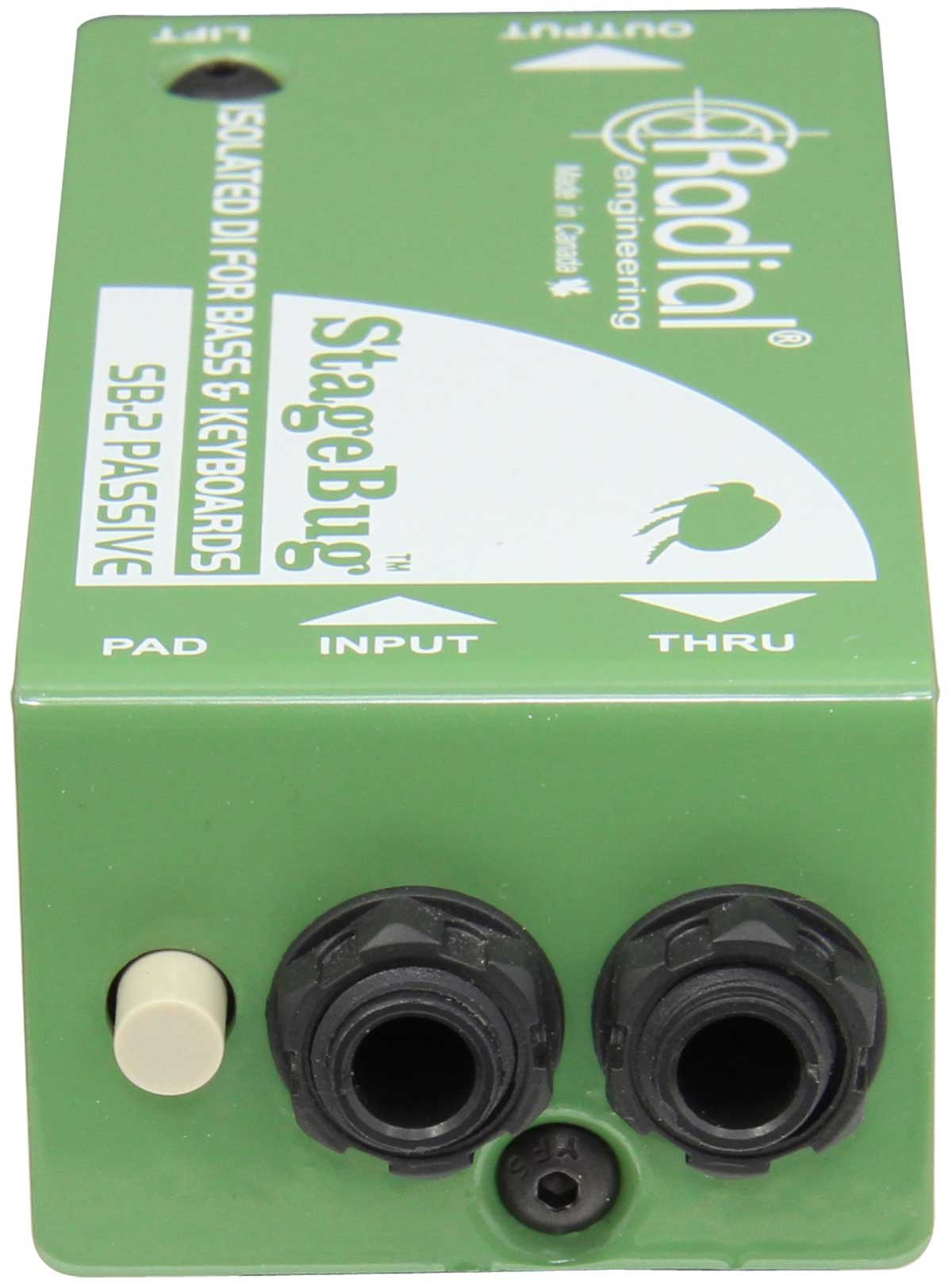

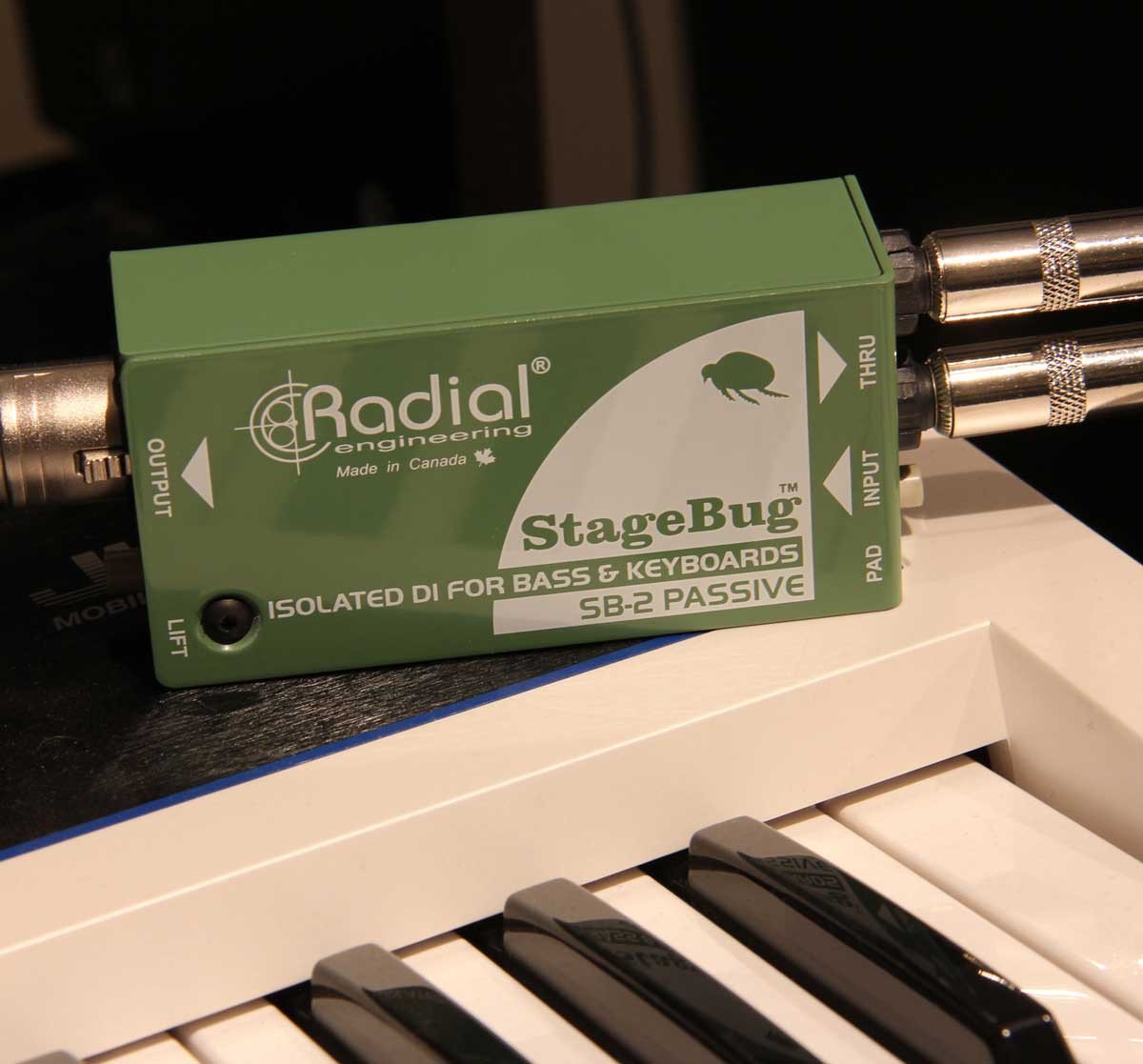

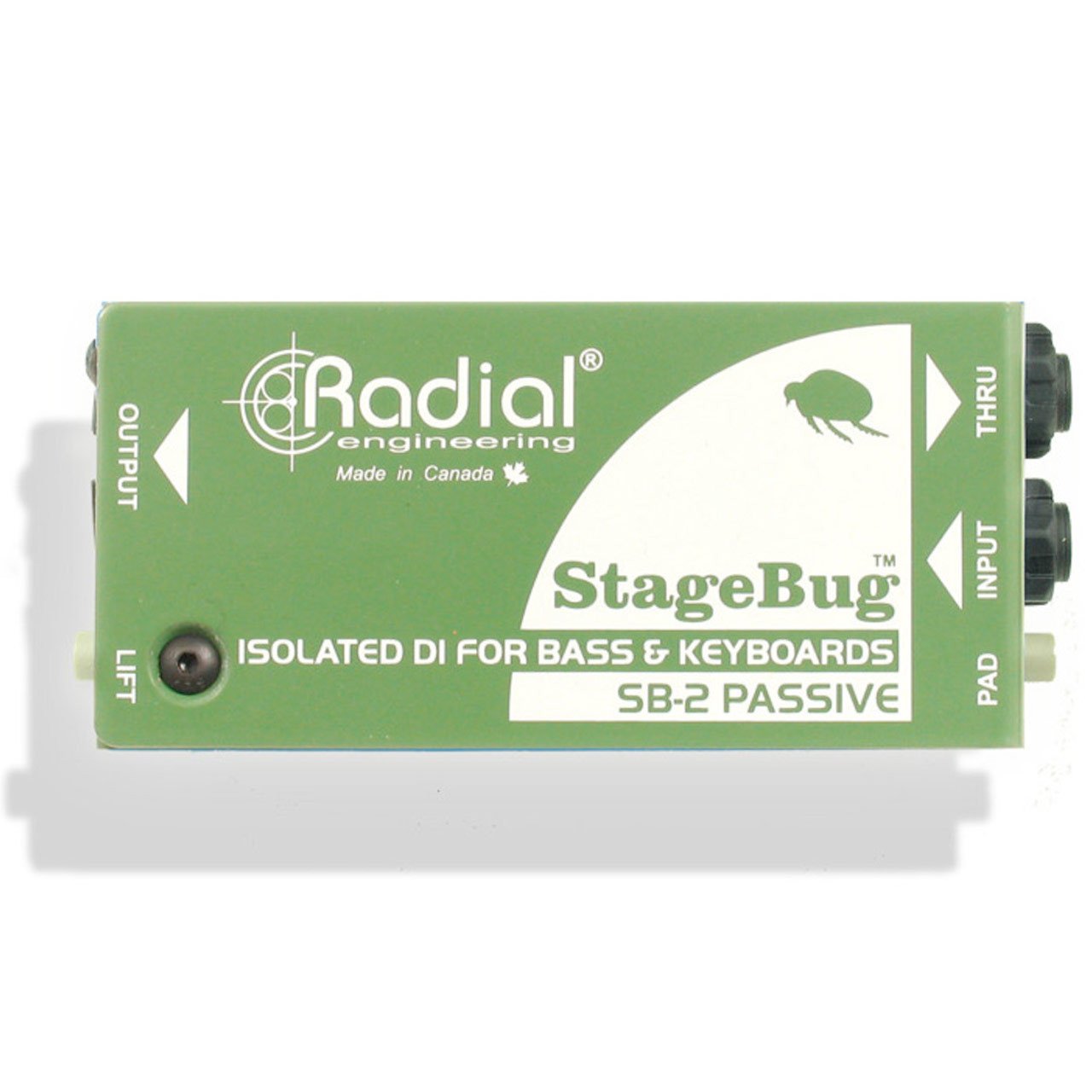

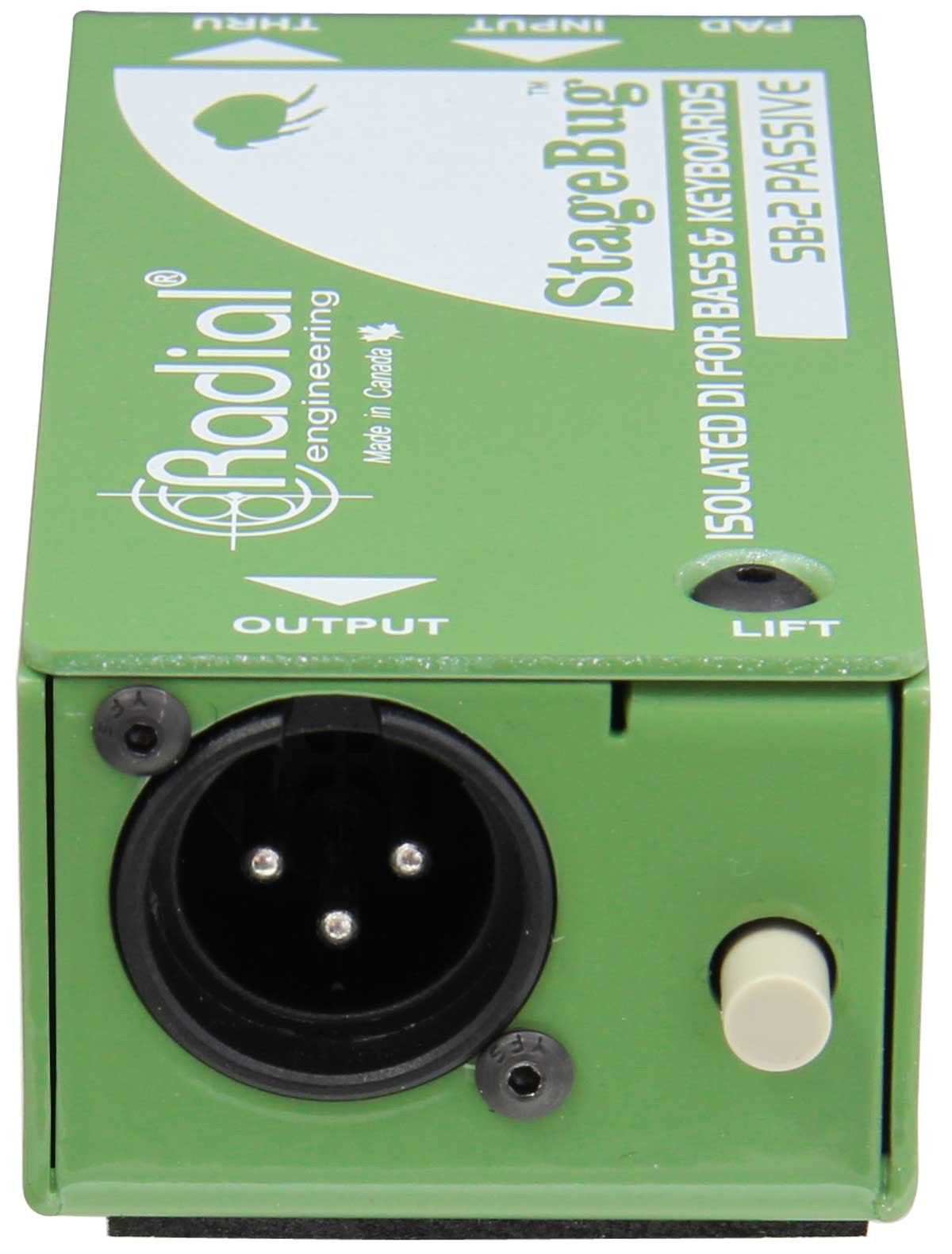

Radial Engineering SB-2 Compact Passive DI for Bass & Keyboard
The Radial StageBug SB-2 Passive is a high-performance direct box made for players who are on the move! Made to fit inside of a guitar case, the SB-2 is ultra compact yet is feature-packed to ensure great performance on any stage.
Type: DI Boxes
-
-
Radial SB-2 PRODUCT FEATURES:
- Passive DI for bass, acoustic and keyboard
- Ultra compact to fit in your guitar case
- Plug & play easy to use feature set
- Transformer isolation eliminates noise
-
Radial SB-2 TECHNICAL SPECIFICATIONS:
Specifications Audio circuit type: Passive, transformer based Number of channels: Single channel (mono) Frequency response: 20Hz ~ 20KHz (± 0.5dB) Dynamic range: 115dB Maximum input: +20dB Total harmonic distortion: 0.005% @ 1kHz Phase deviation: 3° @ 100Hz; 8° @ 50Hz Input impedance: 140k Ohms, unbalanced Output impedance: 1k Ohms, balanced Features Transformer: Eclipse ET-DB3, 12:1 ratio Shield: Copper foil Input pad: -10dB Auto Merge: Sums left & right sources to mono Ground lift: Disconnects pin-1 at XLR output XLR configuration: AES standard (pin-2 hot) Connectors: 1/4" in & thru, XLR-M out General Construction: 14 gauge steel chassis & outer shell Finish: Durable powder coat Size: (L x W x D) 4.5" x 1,85" x 1.35" (114mm x 47mm x 34mm) Weight: 0.55 lbs (250 grams) Shipping Size: (L x W x D): 8" x 5" x 3" (203mm x 127mm x 76mm) Shipping Weight: 0.8 lbs (365 grams) Power: Passive, no power required Conditions: For use in dry locations only between 5°C and 40°C Warranty: Radial 3-year, transferable Specifications are subject to change without notice.
