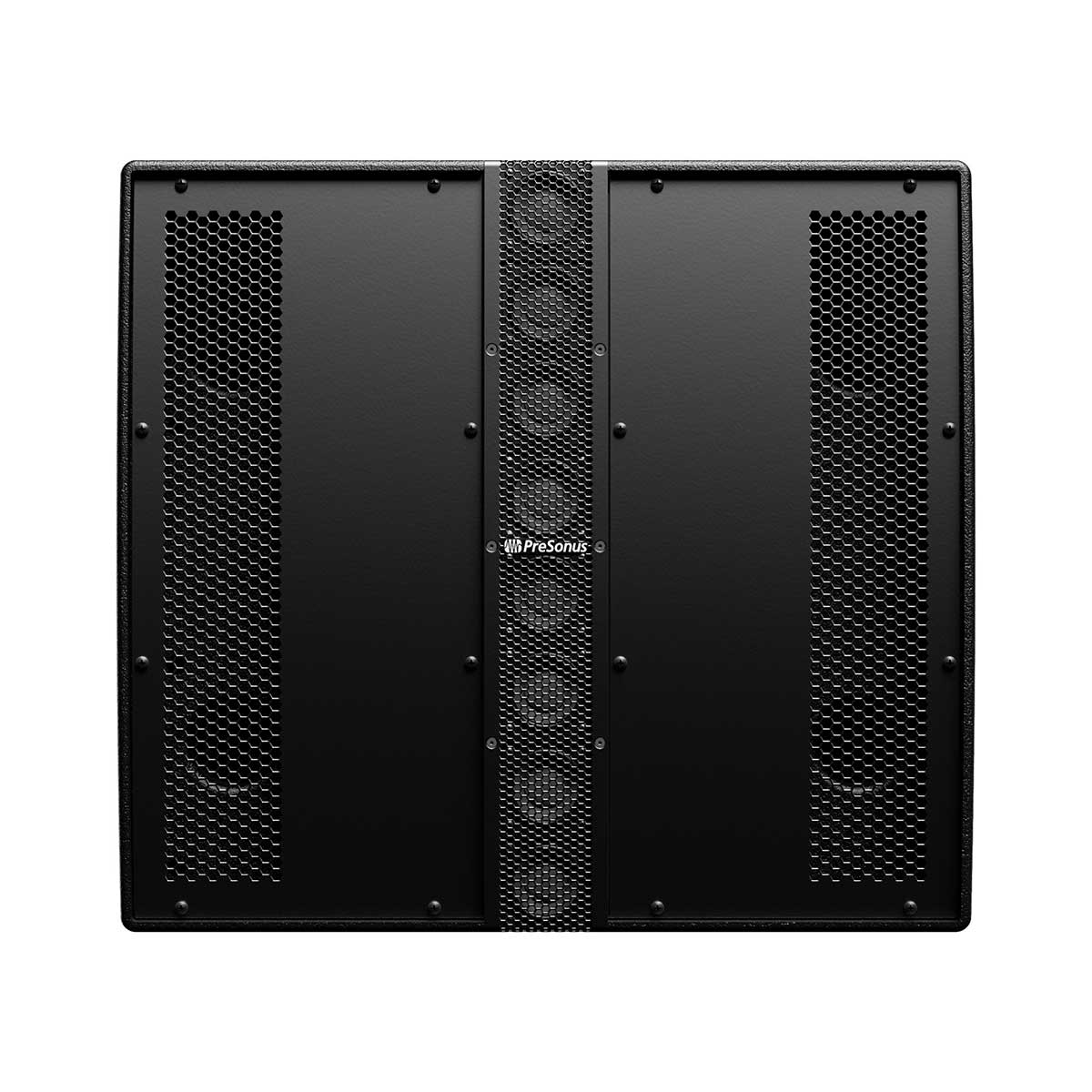

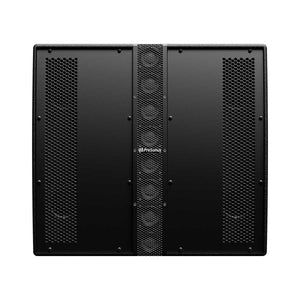

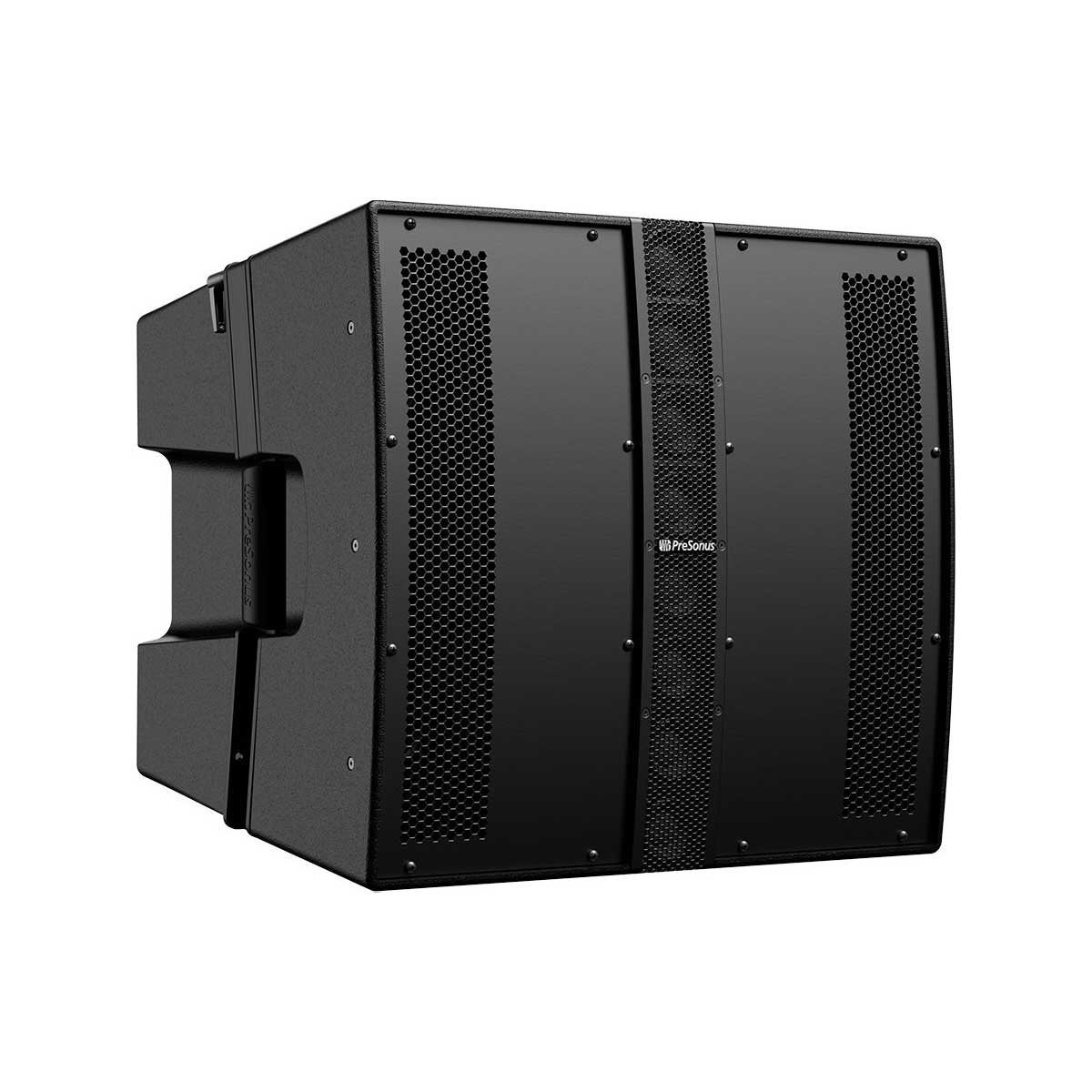

PreSonus CDL12P Full-Range, 15 x 120 Degree, Constant Directivity Sound Reinforcement Loudspeaker

Main Components

• Continuous Directivity constant curve array with eight 2-inch cone drivers disperse sound an amazing 120 degrees horizontally
• 15˚ vertical directivity can be extended from 30˚ up to 90˚ with additional arrayable CDL12Ps
• 12-inch long-throw LF transducer with 2.5-inch voice coil
• Low crossover point minimizes comb filtering and enhances line array intelligibility
• 500 x 500 watts Class D power for high SPLs and lightning-fast transient response
• Locking AC Connector in and out
• Balanced XLR input and output

Controls

• 90 High Pass Filter
• Array Mode (1-6 boxes)
• Sub Mode (Off, CDL18s, ULT18, or AIR18s)

Convenience Features

• 35 mm pole socket with 7.5˚ downward tilt for use with up to two CDL12P on a tripod or atop an 18-inch PreSonus subwoofer (Note: a CDL18s must be used for when two CDL12Ps are arrayed)
• Integrated flyware to create an array of up to six CDL12P’s
• Signal, -3 dB, Limiter Protection, and Clip monitoring​
• Easy-to-handle, compact form factor and 63 lb. weight
• Rugged plastic enclosure
• Tour-grade, 1.2 mm steel grille​

Accessories and companion products:

• CDL18s Subwoofer (Supports up to 2 CDL12Ps mounted atop)
• ULT18 Subwoofer (Supports 1 CDL12P atop)
• AIR18S Subwoofer (Support 1 CDL12P atop)
• CDL12P Rigging System Components

What’s so great about constant directivity?

Like the CDL12, CDL12P is the result of years of research and development, combining the best attributes of point source and line array technology into a unique patent-pending design. Based on the Constant-Directivity Two-Way Loudspeaker System design presented at the 143rd AES Convention in New York by Hugh Sarvis and Don Keele, the CDL12P radiates a highly focused pattern with consistent SPL throughout the frequency response range, both on- and off-axis. The result is clear, articulate speech intelligibility and natural music reproduction.

A unique look with a unique result.

Each CDL12P consists of eight 2-inch drivers aligned in a segmented circular-arc high-frequency array centered in front of a 12-inch woofer. The output of the low-frequency driver travels from the same acoustic axis as the high-frequency array, so the dispersion pattern always radiates directly from the center of the CDL12P. This is true whether the CDL12P is used individually on a tripod speaker stand or as part of an acoustically-coupled vertical array with up to six enclosures. Because both the highs and lows emanate from the same point, they arrive at listeners’ ears at the exact same time—meaning the CDL12P powered loudspeakers don’t create any smearing in their crossover frequencies, ensuring better intelligibility throughout the frequency response range.

Six-year warranty lets you rest easy.

Quality runs deep in our company culture, and we strive to build feature rich, the best sounding, and most reliable products available anywhere. We’re confident you’ll love the PreSonus CDL12P. By choosing PreSonus, you’re assured of robust, trouble-free performance—for six years. In the unlikely event you do experience an issue, you can count on us to make it right. This is our commitment to you.
