RA-PZ-Pre

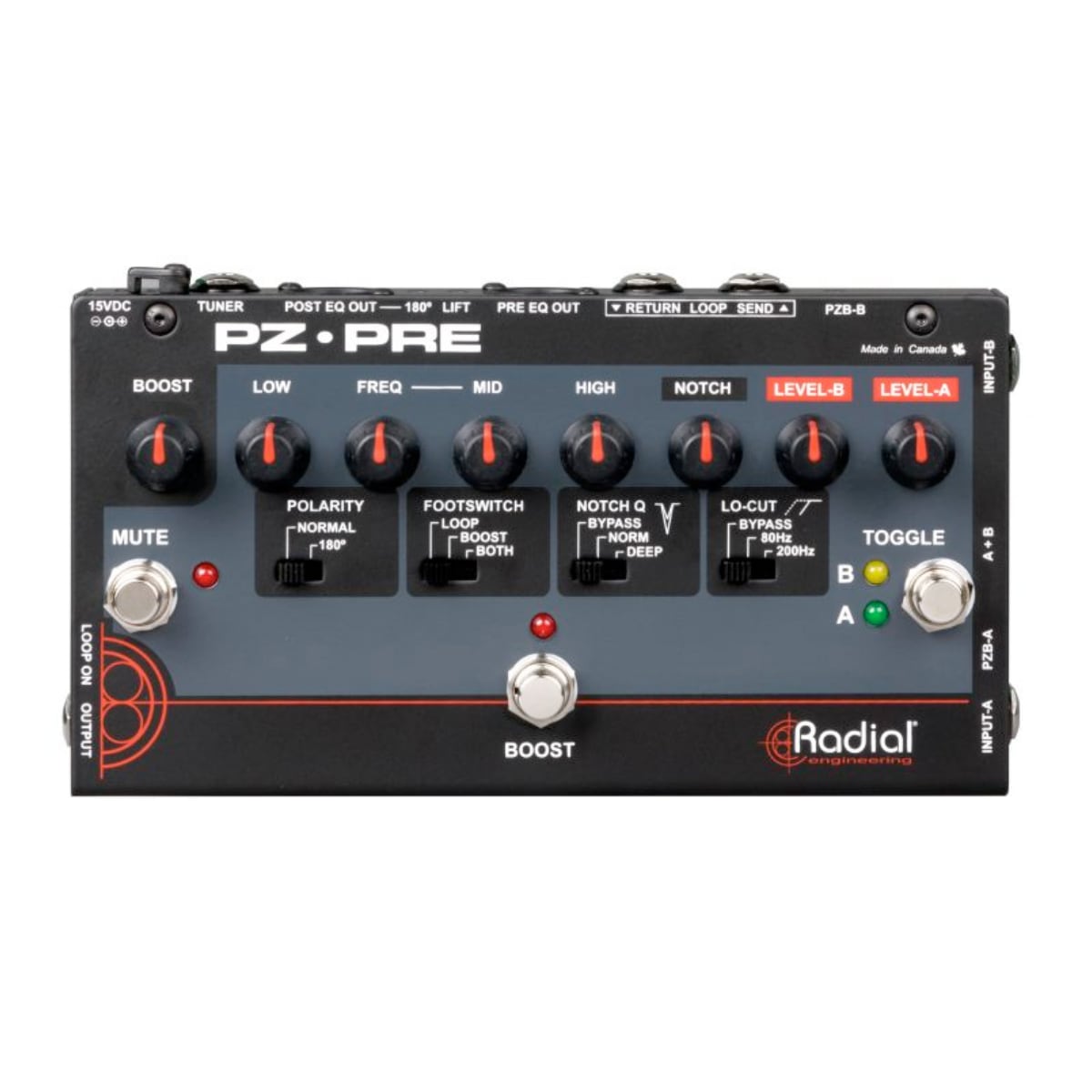

Radial Engineering Tonebone PZ-Pre Acoustic instrument preamp
Type: Pedals & Effects
The Radial Tonebone PZ-Pre™ is the most powerful acoustic preamplifier ever to be put inside a pedal
FEATURES
- Combination PZ booster and preamp
- Two inputs: two instruments or blend/mix
- Parametric EQ and notch filter
- Four outputs: amp, tuner and two DI outs
- Works with any instrument
The Radial PZ-Pre is a high-performance preamp designed specifically for acoustic instruments and pickups of all sorts. A proprietary response curve has been developed that works in conjunction with the passive-interactive tone controls and piezo-optimized front end to produce a warm yet detailed sonic signature. Exceptionally low noise and distortion differentiate the PZ-Pre from others producing a natural tone that will flatter most instruments of all types.
SPECIFICATIONS
| Audio circuit type: | Proprietary active circuit | |
| A number of channels: | Dual Input, Amp Out, Pre and post-EQ XLR balanced Out | |
| Input Impedance: | 6.8k Ohm at input jack (PZB active 10meg Ohm) | |
| Output Impedance: | 1k Ohm | |
| Features | ||
| 180° polarity reverse, Ground lift, Effects Loop, EQ Control, Boost | ||
| Input Connectors: | 1/4" | |
| Output Connectors: | Pre and Post-EQ XLR | |
| Extras: | 1/4" Effects Loop, Tuner | |
| General | ||
| Construction: | 14-gauge steel | |
| Size (L x W x D): | 8"w x 4 ¼"d x 2"h (205 x 110 x 51mm) | |
| Weight: | 2.7lbs (1.2kg) | |
| Power: | 15VDC 400mA, centre pole positive | |
| Conditions: | For use in dry locations only between 5°C and 40°C | |
| Warranty: | Radial 3-year, transferable | |
