RA-SW8-USB

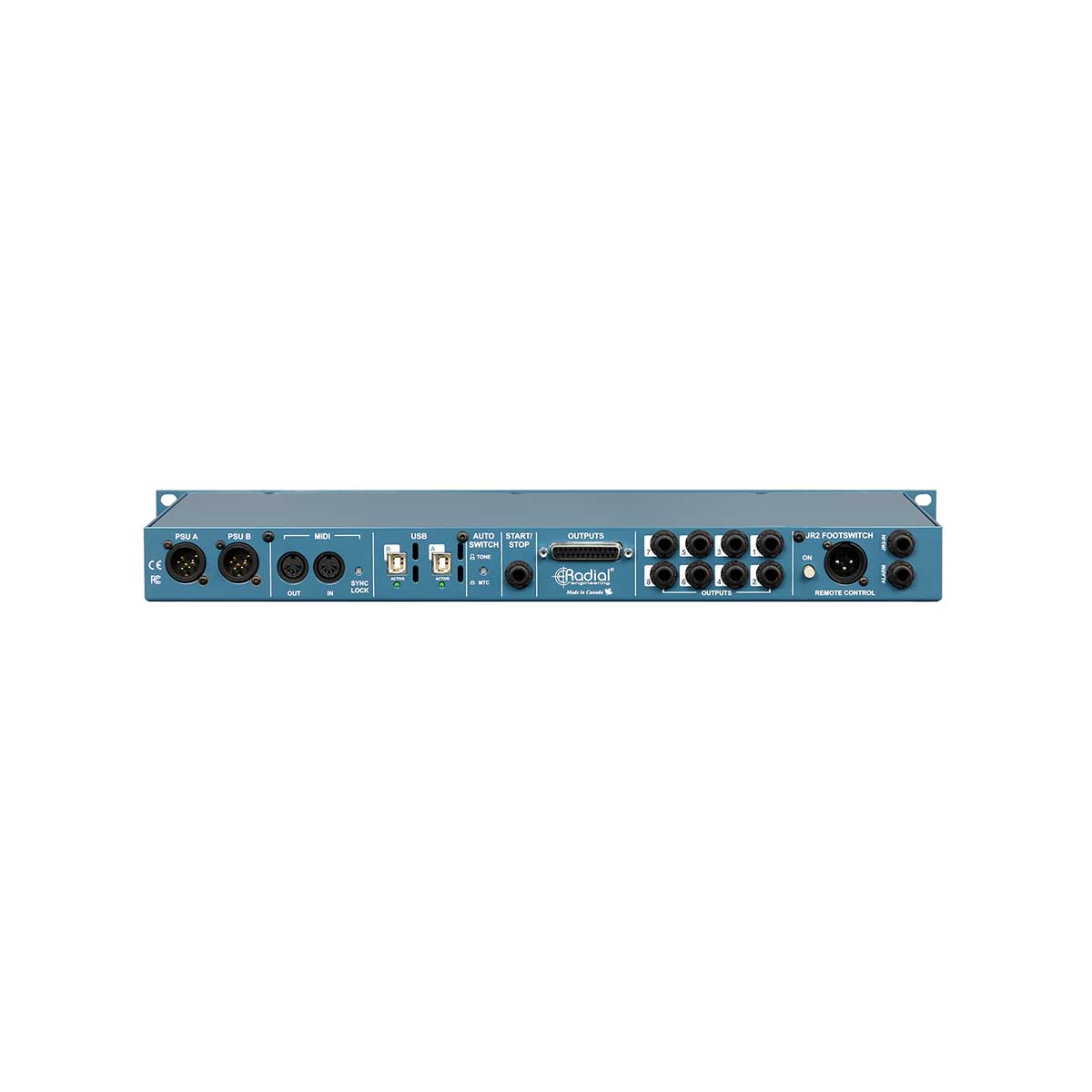

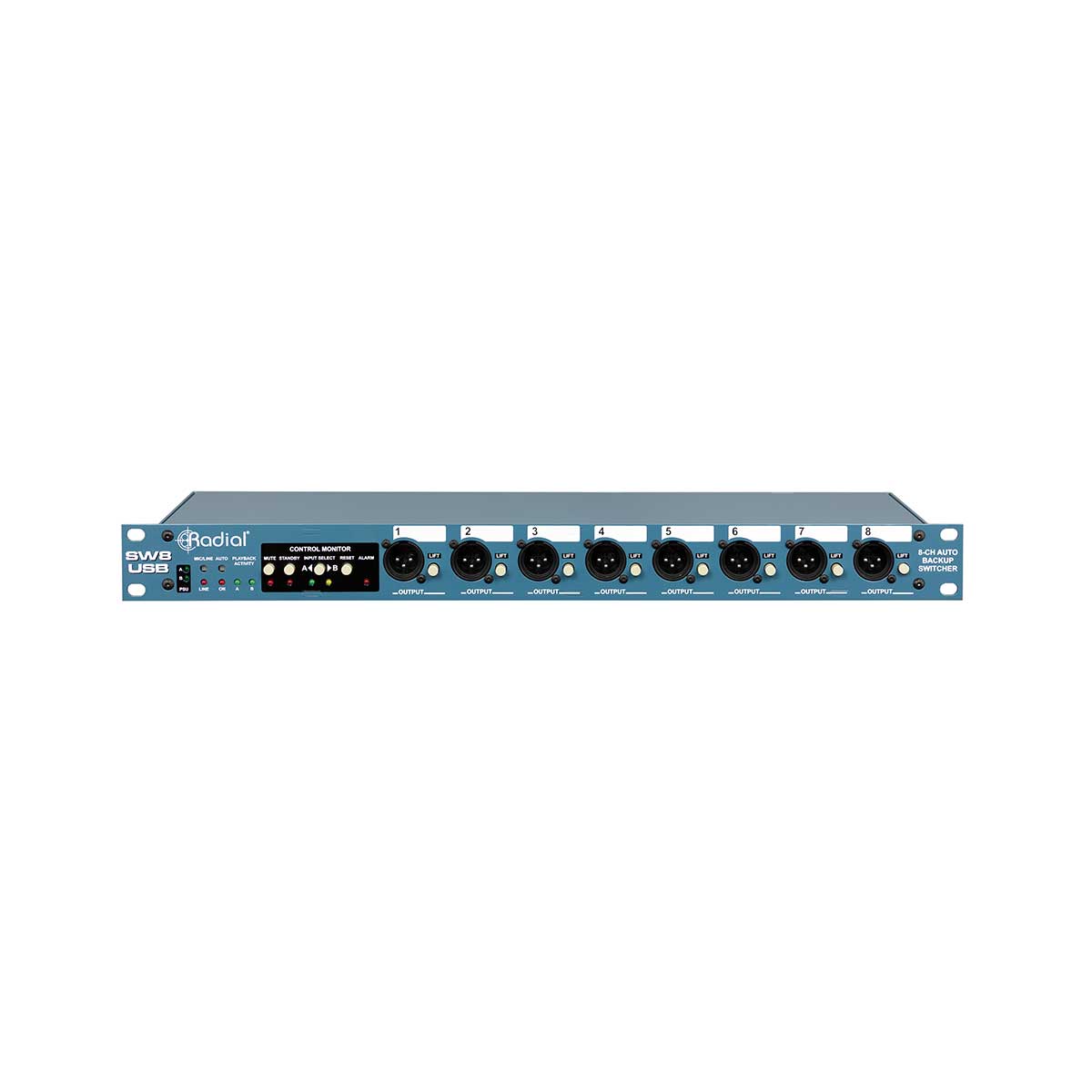

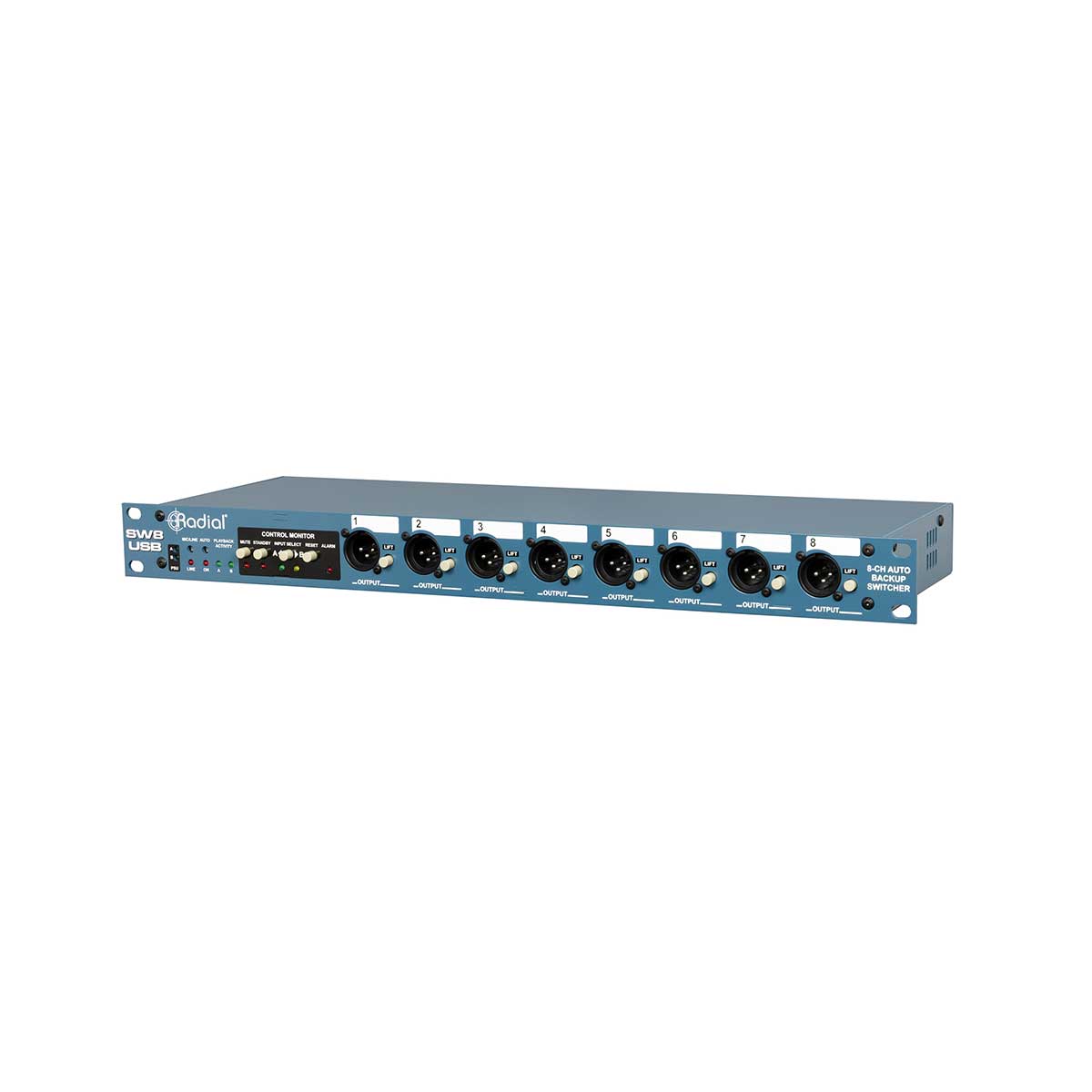

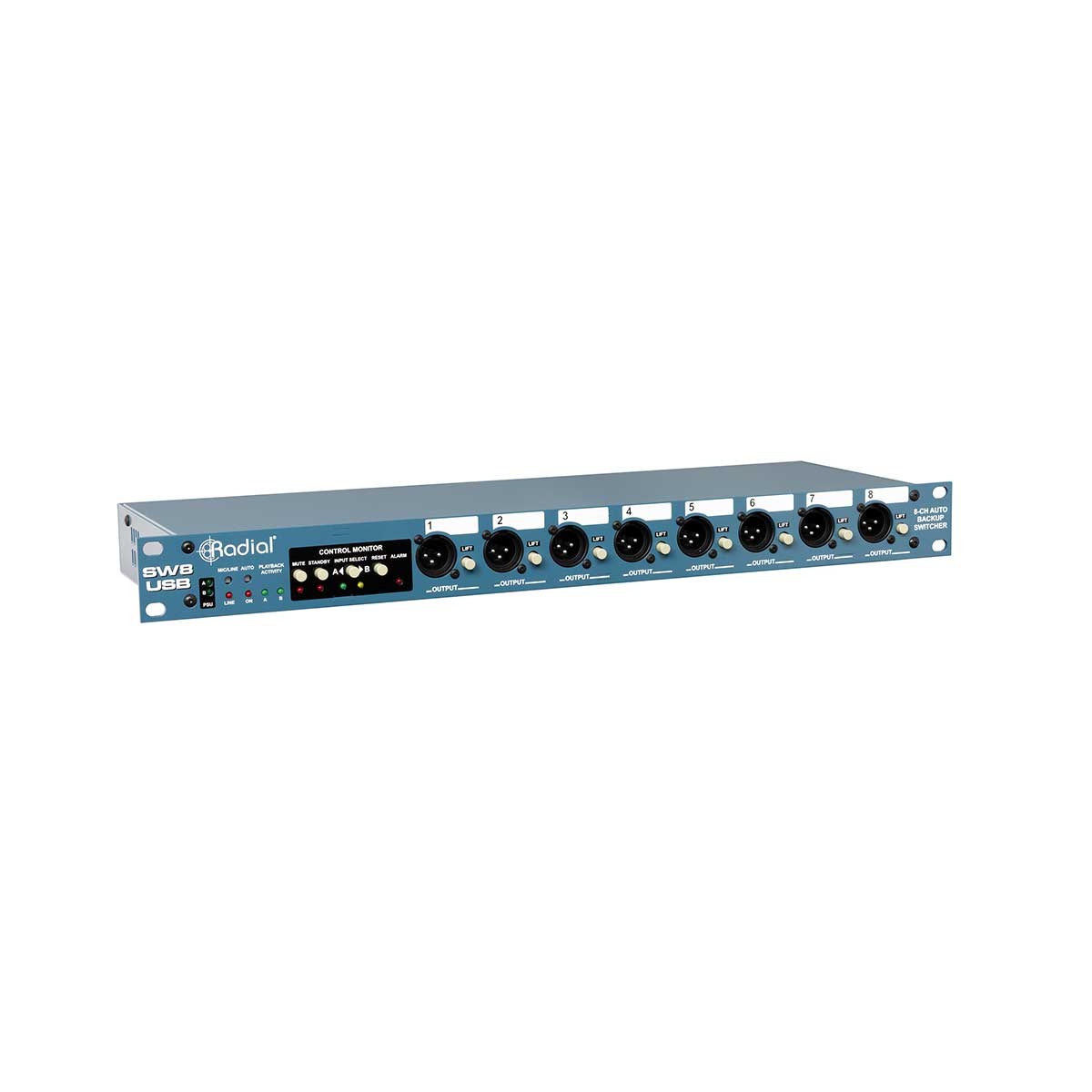

Radial Engineering SW8-USB USB Interface and Auto-Switcher

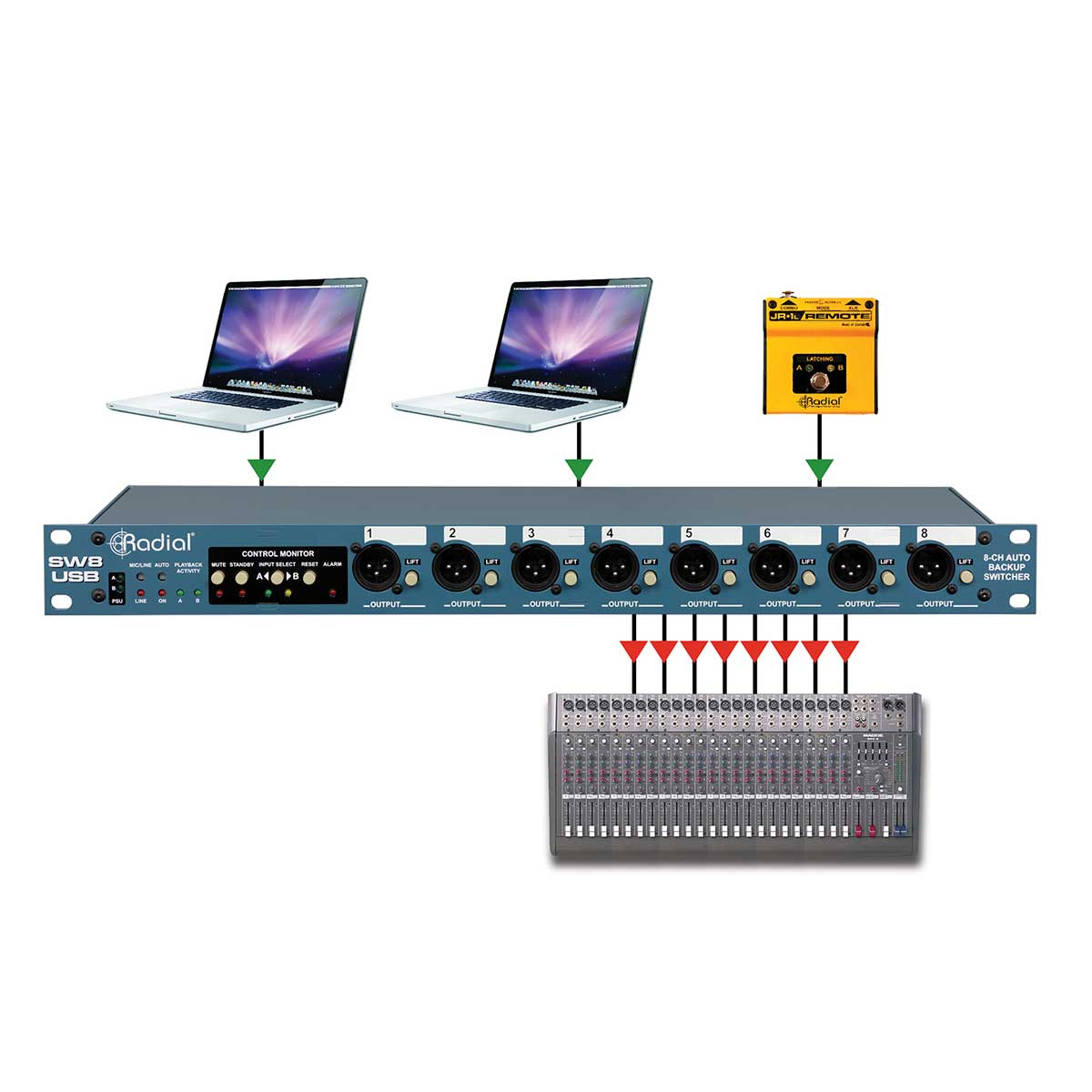

The Radial SW8-USB is a streamlined solution for employing redundant playback systems on stage, with dual USB inputs that allow you to connect directly to your primary and backup computers, providing eight channels of high quality audio and peace of mind during a live performance.
Type: Backing Track Switcher
-
Product Features:
Switch between redundant playback systems
Two USB inputs eliminates the need for additional audio interfaces
Manual or seamless automatic switching
Line level or transformer-isolated mic level outputs
Synchronize both playback systems using Midi Time Code
-
Technical Specifications:
Owners ManualTransformer: Eclipse ET-DB2 Frequency response: 20hz-20Khz (+0.0dB/-0.5dB) Dynamic range: (XLR Outputs) 120dB (Monitor Outputs) 120dB Total harmonic distortion: (XLR Line Level Outputs) 0.006% @ 1Khz +18dBu (XLR Mic Level Outputs) 0.009% @ 1Khz +18dBu (Monitor Outputs) 0.006% @ +18dBu Intermodulation Distortion: (XLR Outputs) 0.0002% @ +18dBu (Monitor Outputs) 0.0002% @ +18dBu Output Impedance: (XLR Outputs) 150 Ohms (Monitor Outputs) 150 Ohms Common Mode Rejection Ratio: (XLR Line Level Outputs) -98dB (XLR Mic Level Outputs) -90dB (Monitor Outputs) -98dB Noise: (XLR Outputs) -120dB (Monitor Outputs) -120dB Noise: (Monitor Outputs) -120dB Noise: 44.1, 48, 88.2, 96, 176.4, 192 Maximum Output: (XLR Outputs) +18dBu @ 0DBFS (Monitor Outputs) +18dBu @ 0DBFS Features Ground lift, Remote Footswitch Input Connectors: 2 x Type-B USB 2.0 Output Connectors: XLR-F, TRS, DB25 Extras: MIDI I/O, Dual Power Supply, Remote Footswitch (optional) General Size (L x W x D): 17.5"x 6"x 1.75" (44.5 cm x 15.25 cm x 4.5 cm) Weight: 9.2lb (4.2kg) Shipping size (L x W x D): 22"x10.375"x4.5" (55.9cm x 26.4cm x 11.4cm) Shipping weight: 9.7lb(4.4kg) Power: 100V to 240V, locking 4-pin XLR Conditions: For use in dry locations only between 5°C and 40°C Warranty: Radial 3-year, transferable
