    Home / Radial Di / Radial Engineering EXTC-500 Effects Loop 500 Series Module
    500 Series - Radial EXTC-500 Effects Loop 500 Series Module
    500 Series - Radial EXTC-500 Effects Loop 500 Series Module
    500 Series - Radial EXTC-500 Effects Loop 500 Series Module
    500 Series - Radial EXTC-500 Effects Loop 500 Series Module
    $505.00$639.00

    Radial Engineering

    RA-EXTC-500

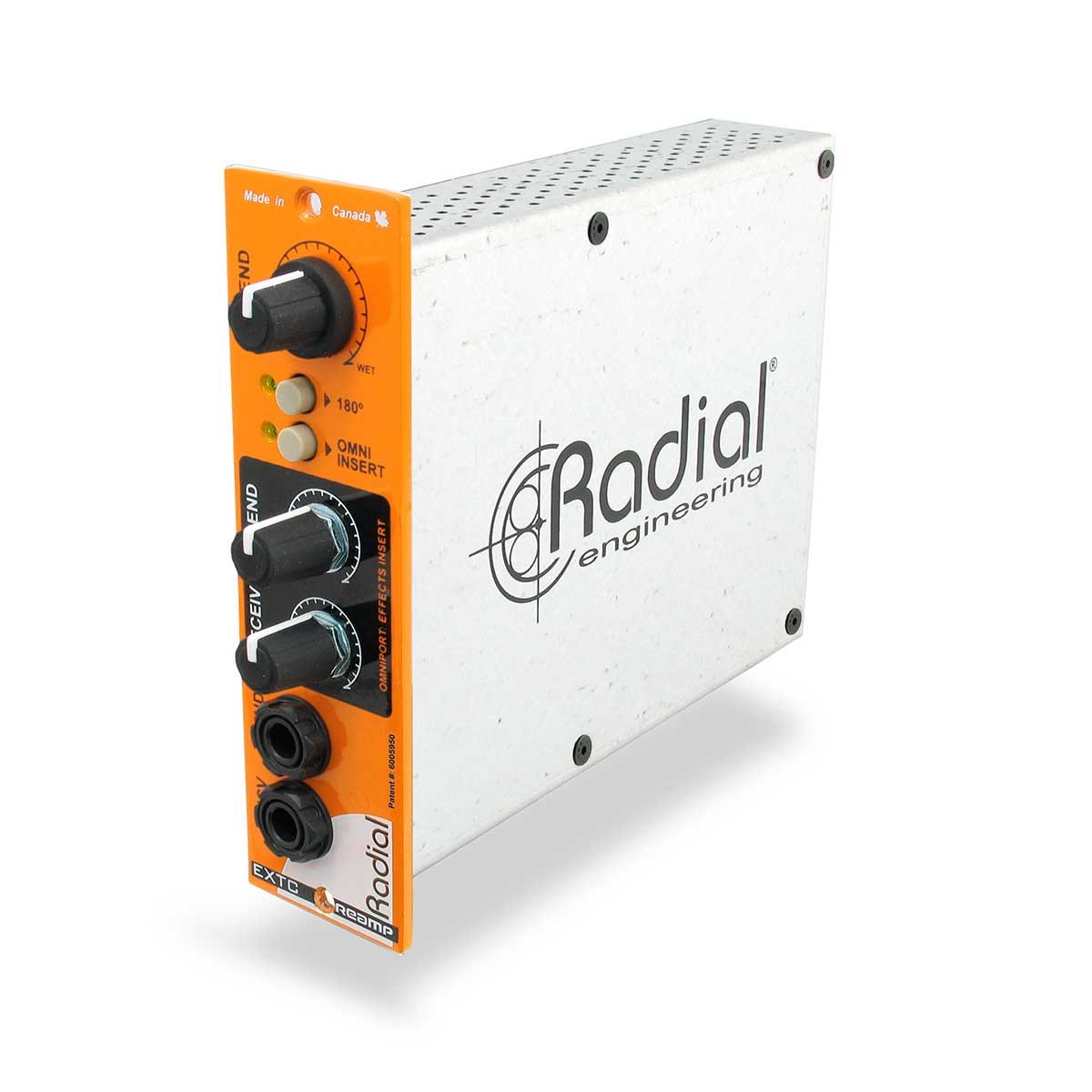

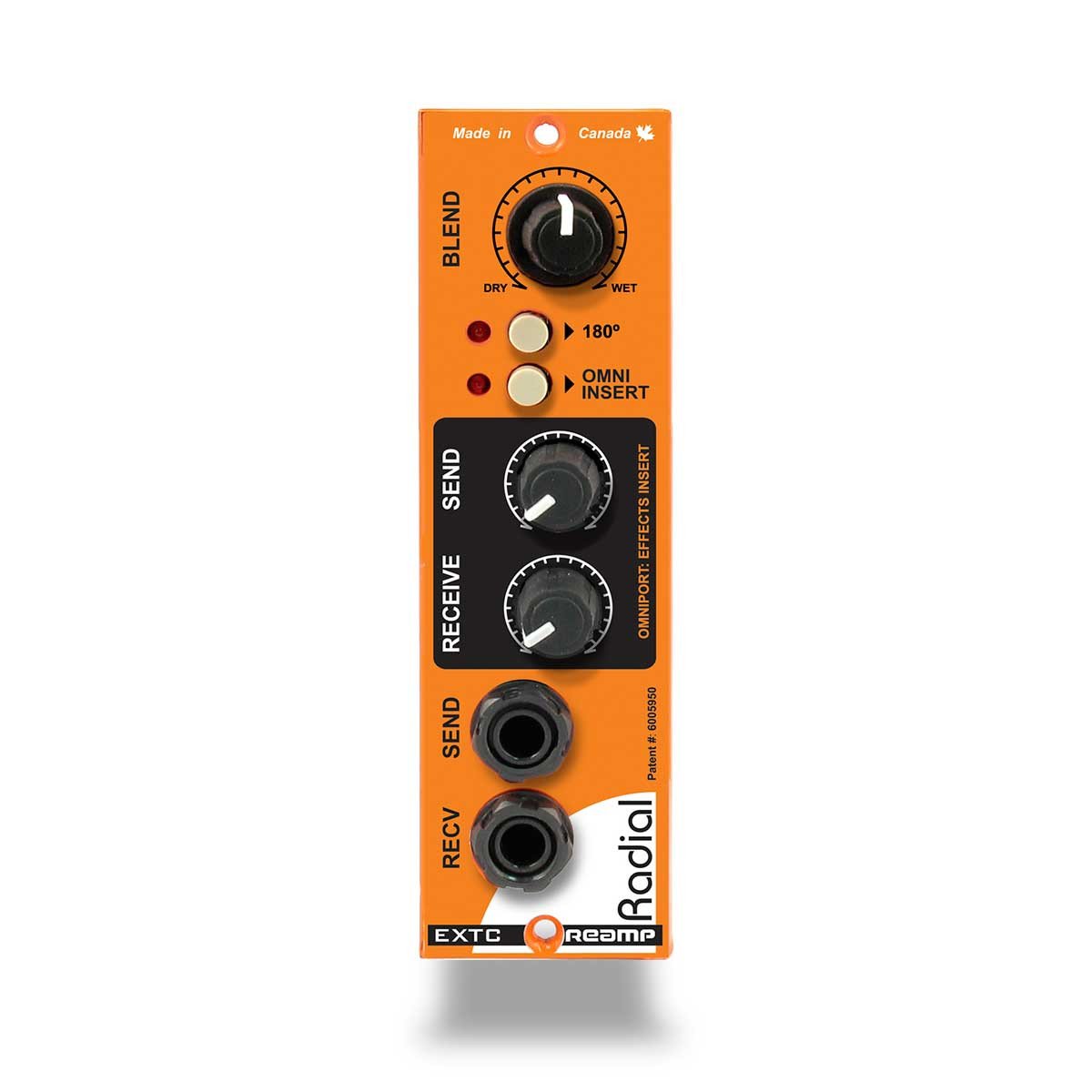

    Radial Engineering EXTC-500 Effects Loop 500 Series Module

    5 In Stock

    The Radial EXTC™ is a 500 series module that lets you incorporate guitar effects into the realm of pro-audio recording. Just imagine… add a touch of grit to a vocal track, some wah on a kick drum, maybe flange a violin…The EXTC is a creative tool made for your esoteric-inventive side, ready to unleash fresh new sounds that will make your recordings stand out from the crowd.


    Type: 500 Series

      • Radial Engineering EXTC-500 PRODUCT FEATURES:

        • Balanced interface for guitar effects pedals
        • Separate send & receive controls optimize signal path
        • Transformer isolated send eliminates ground loops
        • Creative tool helps your mix stand out from the rest

      • Radial Engineering EXTC-500 TECHNICAL SPECIFICATIONS:

        The EXTC is a guitar effects interface designed for use inside the Radial Workhorse and other API compatible rack 500 series systems. It features a balanced line level input with variable guitar level send & receive controls for hi-impedance guitar effects. Transformer isolation combined with class-A discreet electronics assures optimal signal transfer. This makes the EXTC the perfect interface for all kinds of effects that otherwise are difficult to use, cause noise or create unbearable hum.
        Specifications
        Specifications are subject to change without notice.
        *Refers to use with Radial Workhorse or other 500 series racks.
        Circuit type: Solid state with transformer coupled effects loop
        Power requirement: 60mA, ±16VDC
        Output Gain: 12dB - send & receive at maximum
        6dB - send minimum/receive maximum
        0dB - send & receive set at 12 o’clock
          Dry Wet
        Frequency Response: 20Hz ~ 20kHz ±1.5dB 20Hz ~ 10kHz ±3.5dB
        (-8dB @ 20kHz)
        THD+N: >0.005% 0dB output >0.002% 0dB output
        Noise: -93dB -84dB
        Intermodulation Distortion: >0.003% 0dBu input <0.02% 0dBu input
        Maximum input: +26dBu +20dBu
        Effects Loop i/o Send 1/4" output Receive 1/4" input
        Connector: Unbalanced ¼"  Unbalanced ¼"
        Impedance: 1.5k Ohms 10K Ohms
        Gain (Variable) From -14dB ~ +3dB
        0dB at center point        		 From -99dB ~ +9dB
        0dB at center point
        Maximum Gain: ±3dB +9dB
        Line level i/o Input Output
        Connector*: Balanced XLR Female
        Rear Panel        		 Balanced XLR Male
        Rear Panel
        Impedance: 15k Ohms 200 Ohms
        Headroom:    +25dBu
        Conditions:  For indoor use at temperatures between +5° c and +40° c
        Warranty: Radial 3-year, transferable
    Need more info on the EXTC-500? Click HERE for Radial Engineering website >>>
