RA-OX8-j

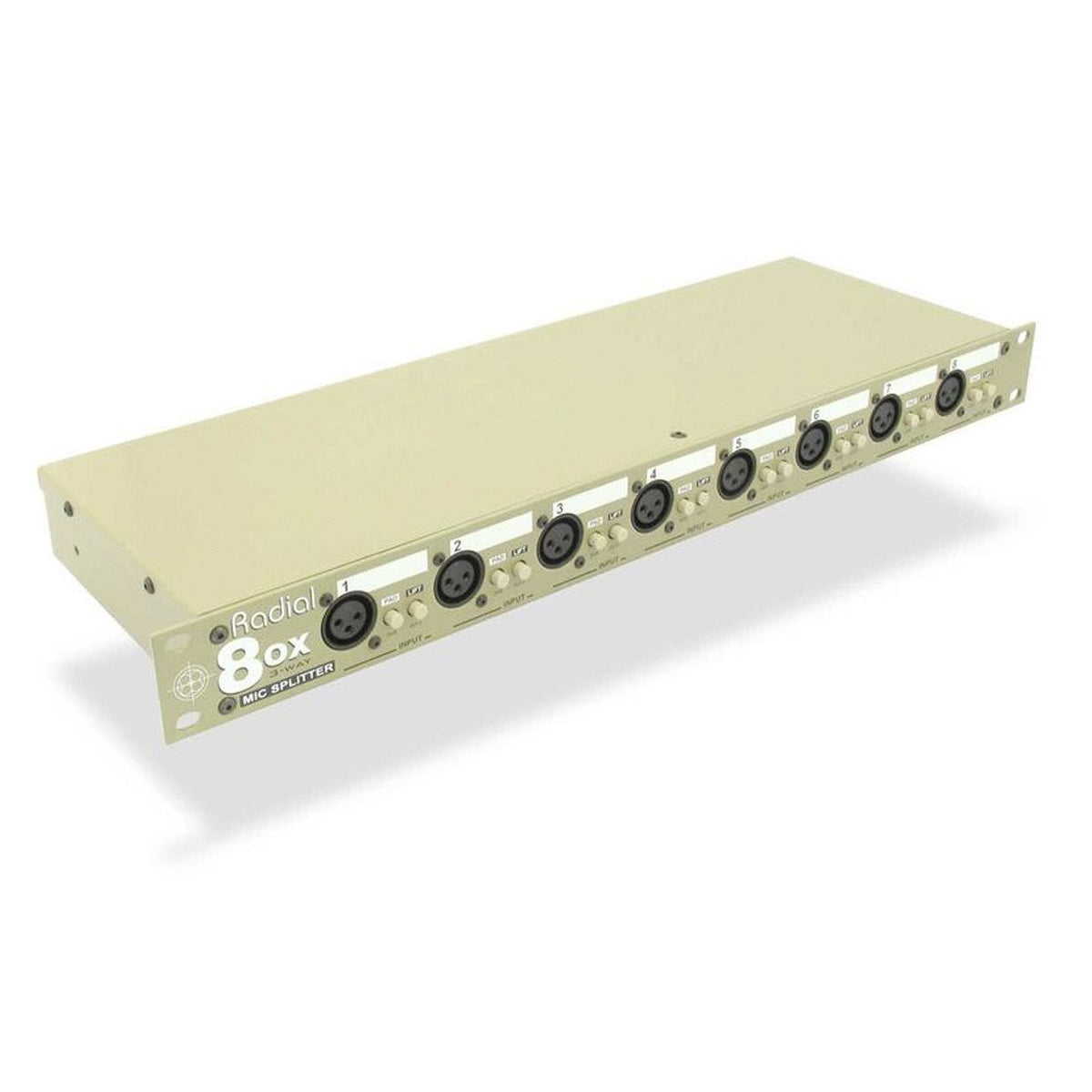

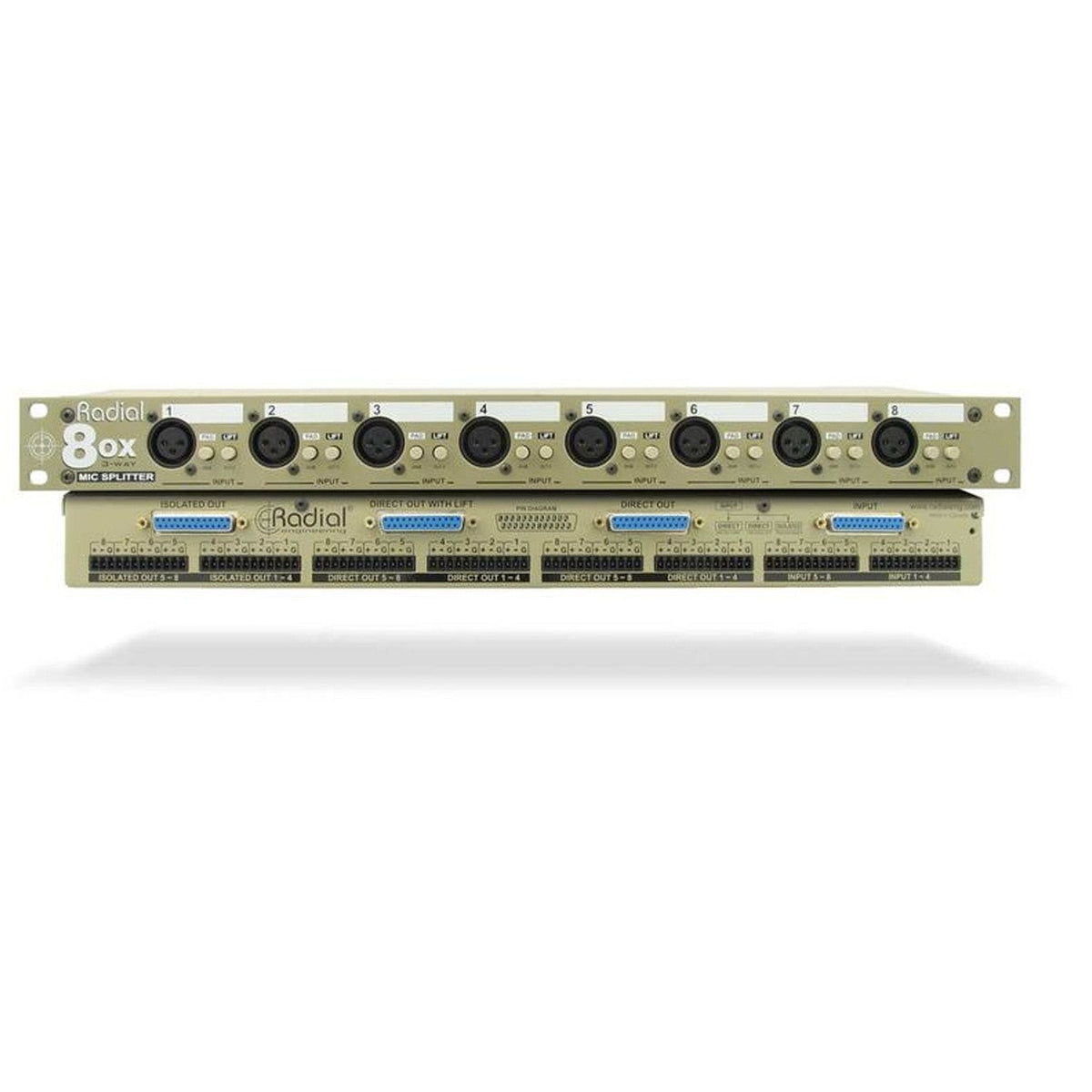

Radial Engineering OX-8 Eight Channel 3-way Mic Splitter

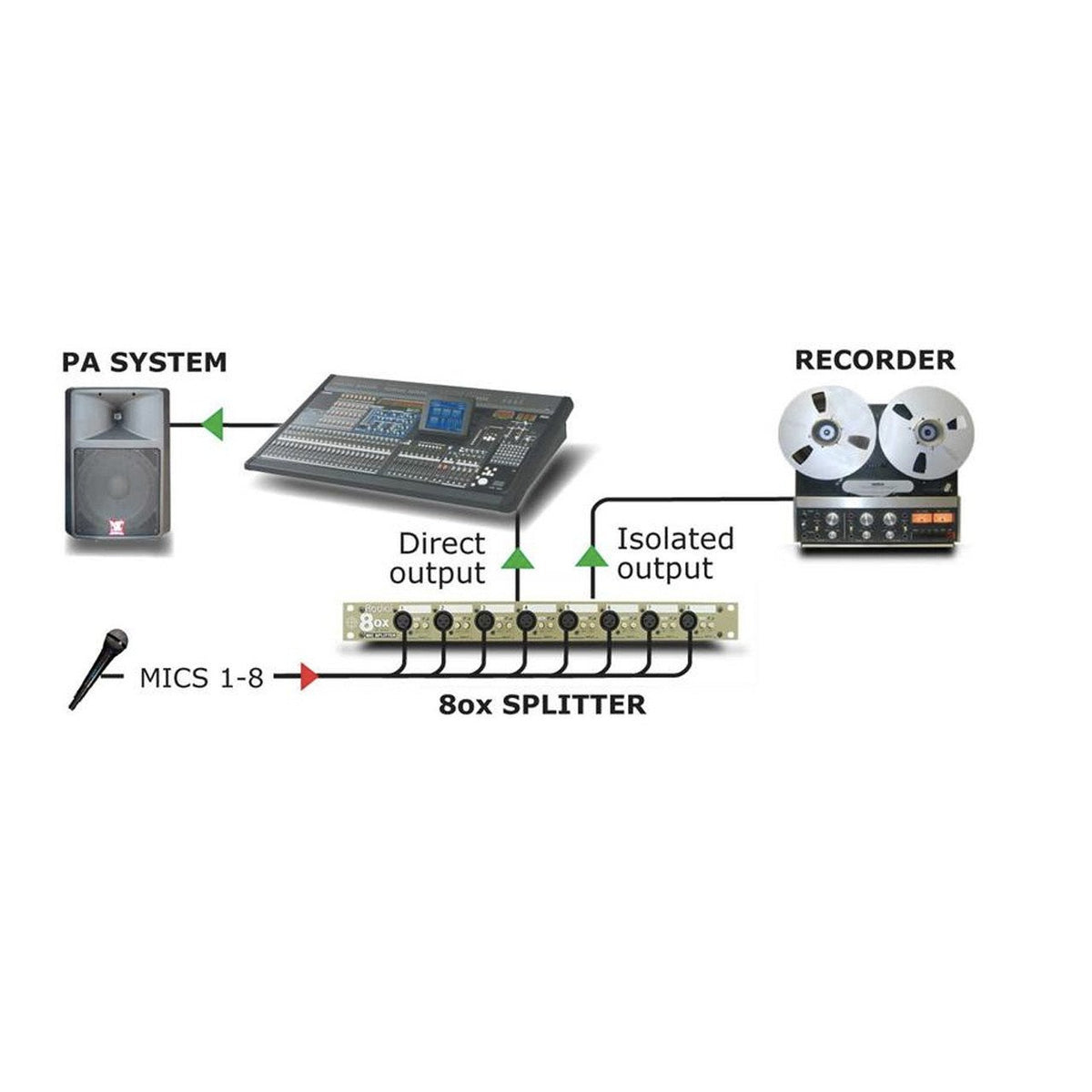

The Radial OX8-j is a high-performance 8-channel microphone splitter with Jensen Transformers that lets you send a microphone signal to as many as three different destinations at the same time. Each channel is configured with a balanced input, a direct out which also serves as a return path for 48V phantom power, a thru-put with ground lift switch and a jensen transformer isolated output.
Type: Signal Routing
-
-
Radial OX-8 PRODUCT FEATURES:
- Balanced 8-channel 3-way mic splitter in single space 19" frame
- Delivers exceptional audio quality without artefacts
- Eliminates hum and buzz caused by ground loops
- Ideally suited for live recording projects, PA and broadcast
-
Radial OX-8 TECHNICAL SPECIFICATIONS:
Specifications OX8-j (jensen) OX8-r (radial) Audio circuit type: Passive transformer based mic level splitter Number of channels: 8 channel 3-way splitter (1-in/3-out) Frequency response: 20Hz ~ 20KHz (+0dB/-0.2dB) 20Hz ~ 18KHz (+0dB/-3dB) Dynamic range: 140dB 140dB Maximum input: +2dBu @ 20Hz +2dBu @ 20Hz THD +noise: 0.003% @ 1kHz 0.005% @ 1kHz Phase deviation: 0.7° @ 100Hz; 2.8° @ 20Hz 1° @ 100Hz; 5° @ 20Hz CMRR: -115dB @ 60Hz 114dB @ 60Hz Input impedance: 150 Ohms, balanced Output impedance: 150 Ohms, balanced Features Transformer: JT-MB-CPC, 1:1 ratio Radial RT-DBS, 1:1 ratio Shield: Dual Faraday, mu-metal can Input pad: -36dB (allows line-level sources) Ground lift: Disconnects XLR pin-1 at direct-2 and isolated output XLR configuration: AES standard (pin-2 hot) DB-25 configuration: Tascam analog audio standard General Construction: 14 gauge steel Finish: Durable powder coat Size: (W x H x D) 19" x 6" x 1.75" (48.25 x 15.25 x 4.45cm) Weight: 7.5 lb (3.4 kg) Shipping Size: W x H x D: 22" x 10" x 4.5" (55.9 x 25.4 x 11.4cm) Shipping Weight: 8lbs (3.63kg) Power: Passive, no power required Conditions: For use in dry locations only between 5°C and 40°C Warranty: Radial 3-year, transferable Specifications are subject to change without notice.
