$409.00$539.00
RA-USB-PRO

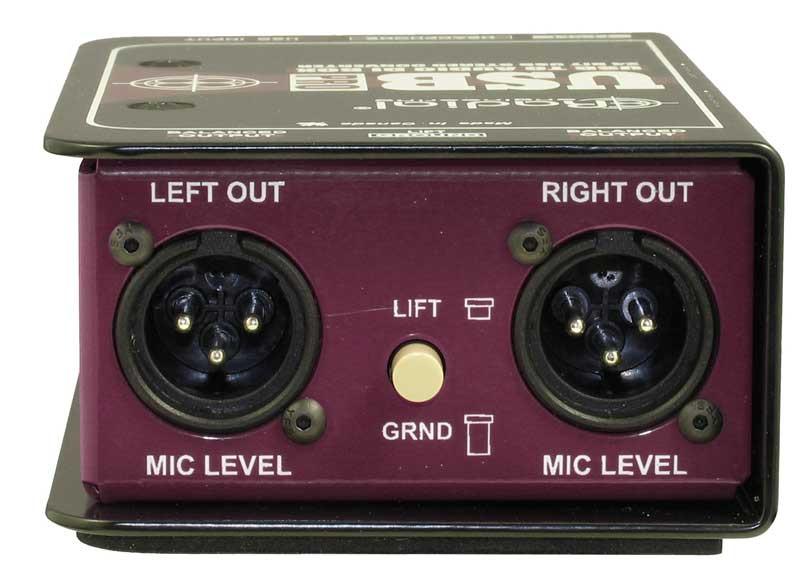

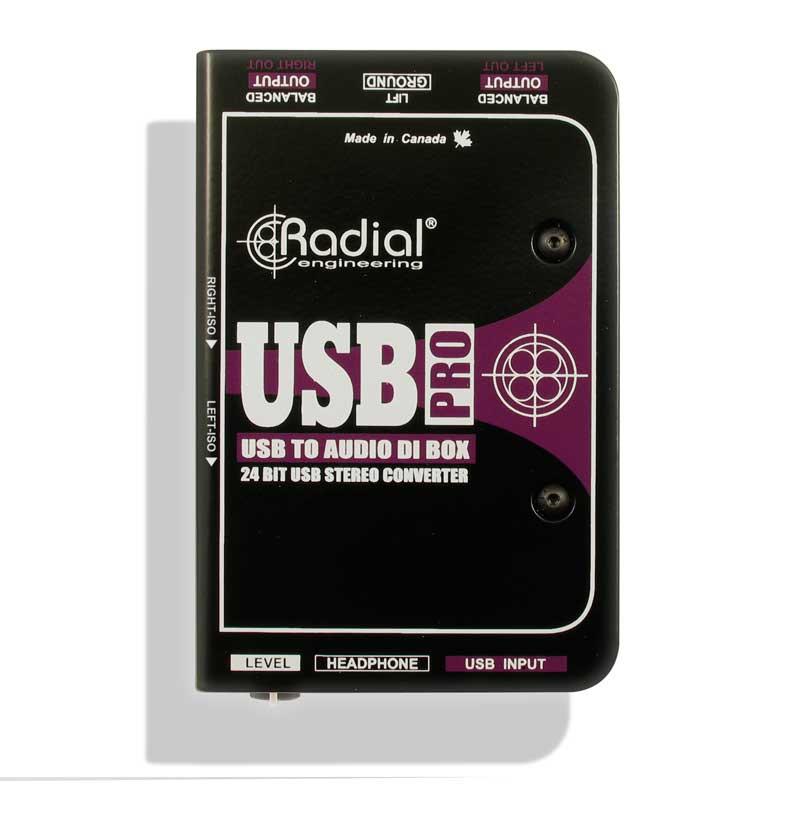

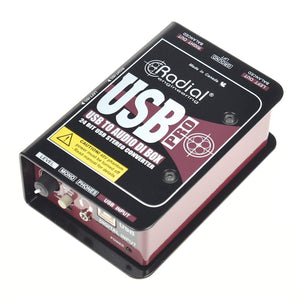

Radial Engineering USB-Pro Stereo USB Laptop DI
The Radial USB-Pro is a stereo direct box designed to convert a USB digital audio stream to analog. It features true 24- bit processing to deliver pristine audio and it automatically self-configures without a driver for Windows XP, Windows 7/8, and Mac OSX. Features include a ground lift and switchable transformer isolation to eliminate hum and buzz caused by ground loops, stereo balanced XLR outputs and a headphone out for testing. Plug and play easy to use, the USB-Pro has already become a favorite around the globe to get perfectly clean sound out of your laptop computer.
Type: DI Boxes
-
Radial USB-Pro PRODUCT FEATURES:
- High performance 24bit digital audio converter
- Ready to use without the need of a driver
- 3.5mm analog headphone output to check signal
- Balanced Lo-Z outputs with switchable isolation
-
Radial USB-Pro TECHNICAL SPECIFICATIONS:
Specifications Specifications are subject to change without notice. Audio circuit type: Custom decoder with analog line drive USB compliance: USB 2.0 full speed Bit depth: 24bit (16bit capable) Sampling rate: 44.1kHz / 48kHz auto sensing Sound file compatibility: WDM, MME, CoreAudio and DirectSound Software compatibility: Windows XP/Vista/Win7/Win8 and Mac OS Frequency response: 5Hz ~ 40kHz (30Hz ~ 18kHz with isolation) Dynamic range: >90dB Noise floor: -90dB Maximum gain: +8dBu Total harmonic distortion: 0.01% Stereo separation: 75dBu Output impedance: 300Ω nominal Features Digital input: USB connector B-type Analog output: Stereo balanced mic level (2 x XLR-M) Headphone output: 3.5mm TRS Level control: Variable, works on headphone and XLR outputs Isolation: Switchable for each channel Mono switch: Sums left & right inputs to mono Ground lift: Lifts pin-1 on both XLR outputs General Power: USB bus powered 500mA maximum Finish: Durable powder coat Size: 3.3" x 5.0" x 2" (84 x 127 x 48mm) Weight: 1.5 lb (680 g) FCC approval: Complies with section 15 of the FCC Rules Conditions: For use in dry locations only between 5°C and 40°C Warranty: Radial 3-year, transferable -
Radial USB-Pro SYSTEM REQUIREMENTS:
Windows XP/Vista/Win7/Win8 and Mac OS X
