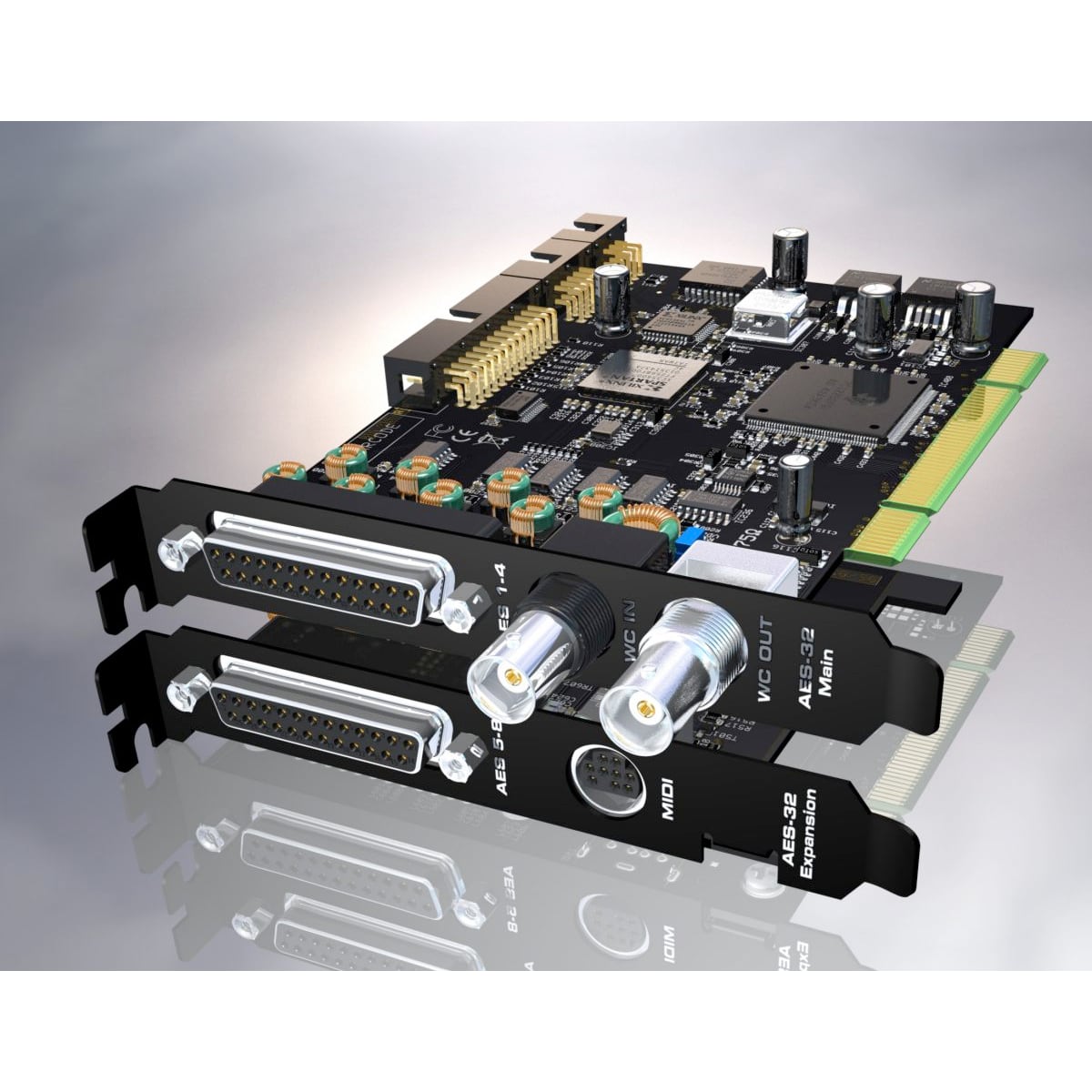

RME HDSP AES-32 32-Channel 192 Khz Aes/Ebu Pci Card

A short-length PCI card with AES/EBU interfaces. It provides eight AES inputs (16 channels) and eight AES outputs (16 channels) at a 192 kHz sample rate. The card is also equipped with two MIDI I/O ports, and word clock I/O, and can be used with the optional TCO module for synchronization to LTC and video.

Features

• Support for 192 kHz at full channel count
• Native support for Double and Quad Wire transfer
• Direct conversion between these formats
• SteadyClock for highest jitter suppression and clock regeneration
• Intuitive and clearly laid-out user interface
• TotalMix: 512 channel mixer with 42-bit internal resolution
• 48 level meter Peak/RMS, hardware-computed

Specifications

ASIO zero CPU load technology: 0 (zero!)% CPU load when using ALL 128 channels!

All settings changeable in realtime

Clock modes slave and master

Automatic and intelligent master/slave clock control

Enhanced Zero Latency Monitoring for latency-free submixes and perfect ASIO Direct Monitoring

Sync sources: 8 x AES, word clock, internal

Varipitch: by input signal or word clock

Sample rates: 32 kHz up to 192 kHz, variable (Sync/word clock)

Sample rate range: AES: 28 kHz - 204 kHz, word clock: 28 kHz - 204 kHz

Jitter: < 1 ns, internal and all inputs

Jitter sensitivity: PLL operates even at 100 ns Jitter without problems

Comes with DIGICheck: the ultimate measurement, analysis and test tool

Input 8 x AES, 2 x MIDI, word clock (BNC)

Output 8 x AES, 2 x MIDI, word clock (BNC)

Input word clock: BNC, Signal Adaptation Circuit (functional from 1.2 Vpp input signal), termination via jumper

Output word clock: BNC, low-impedance driver stage, 4 Vpp into 75 Ohms, short-circuit-proof

MIDI input and output: via four 5-pin DIN jacks
