  • KO-MINILOGUE

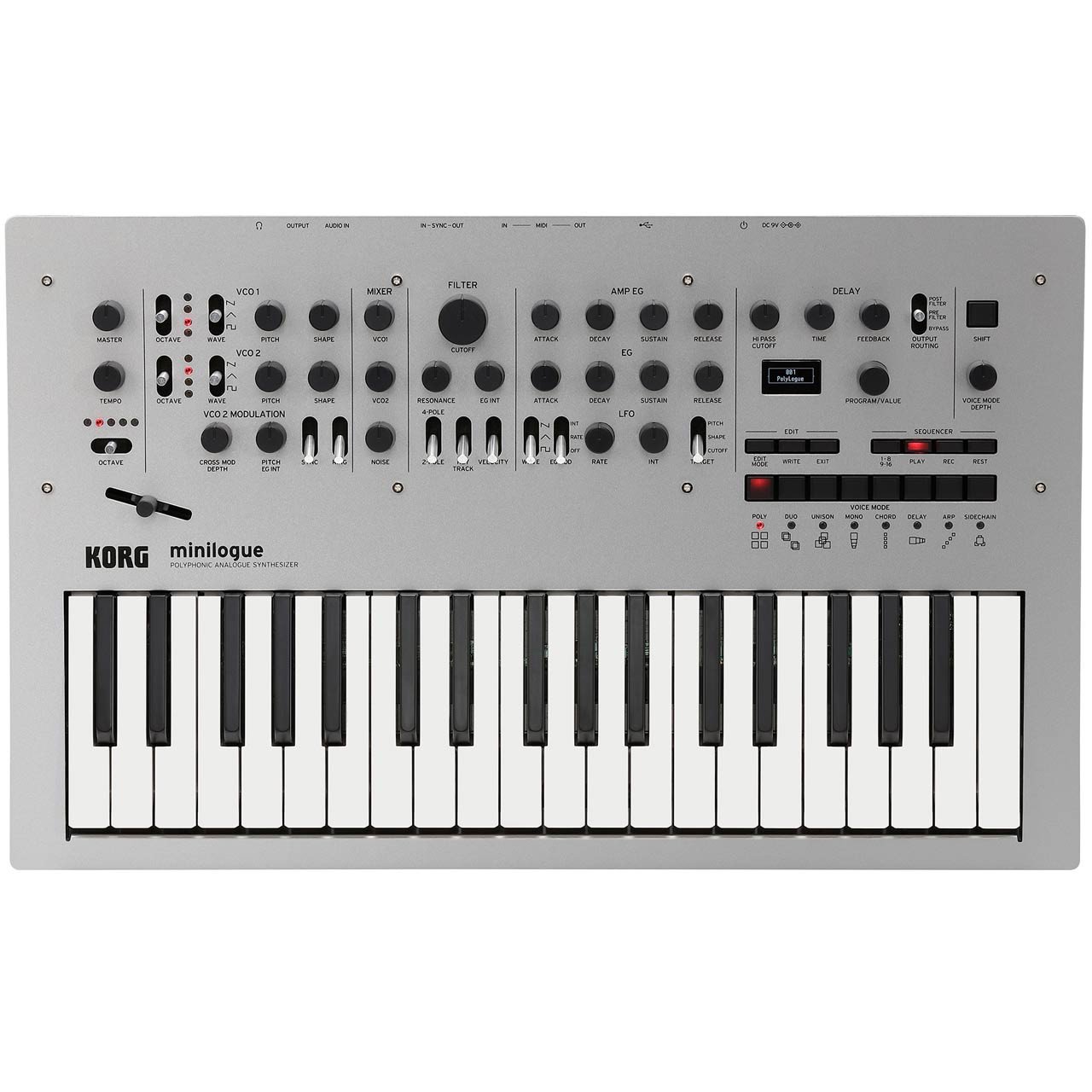

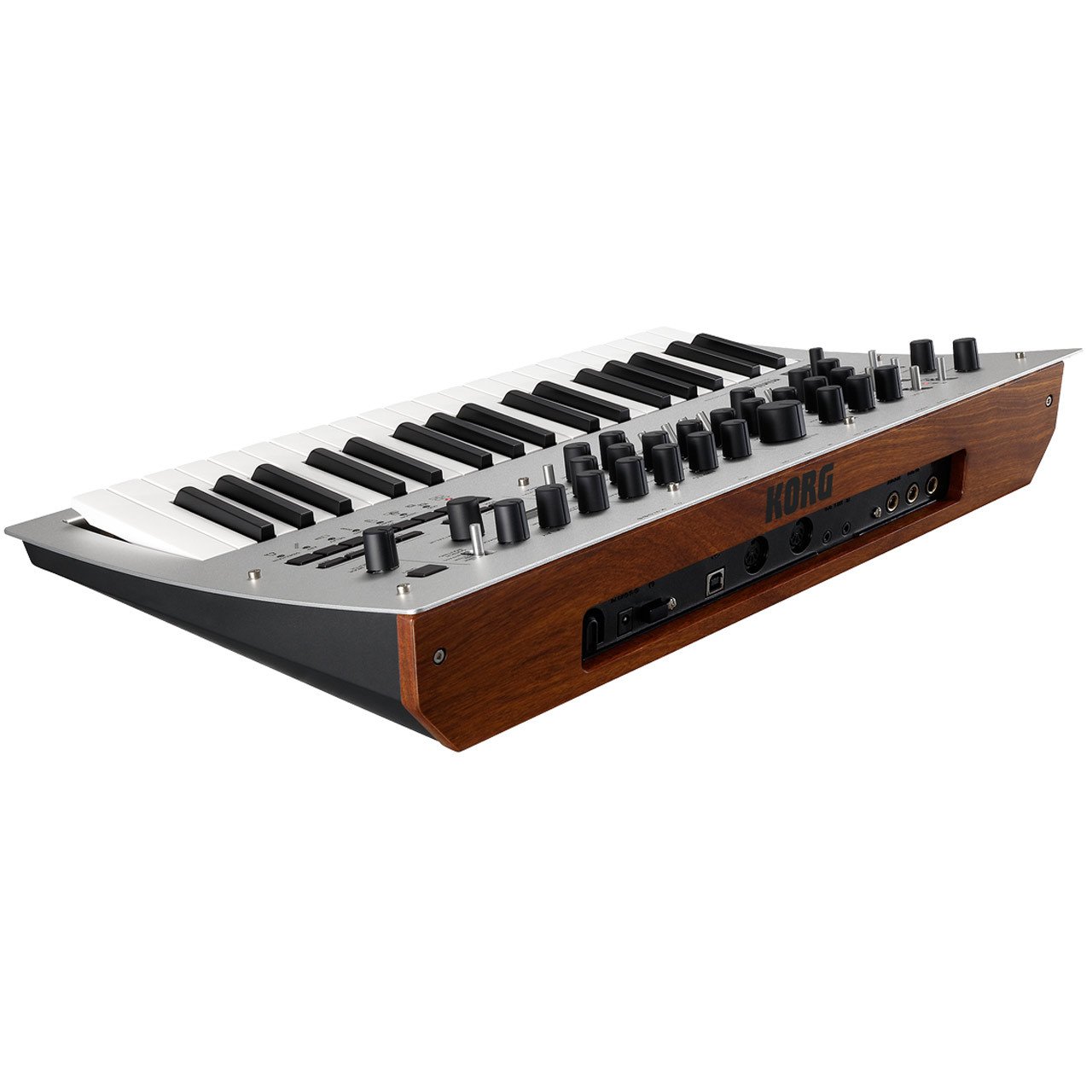

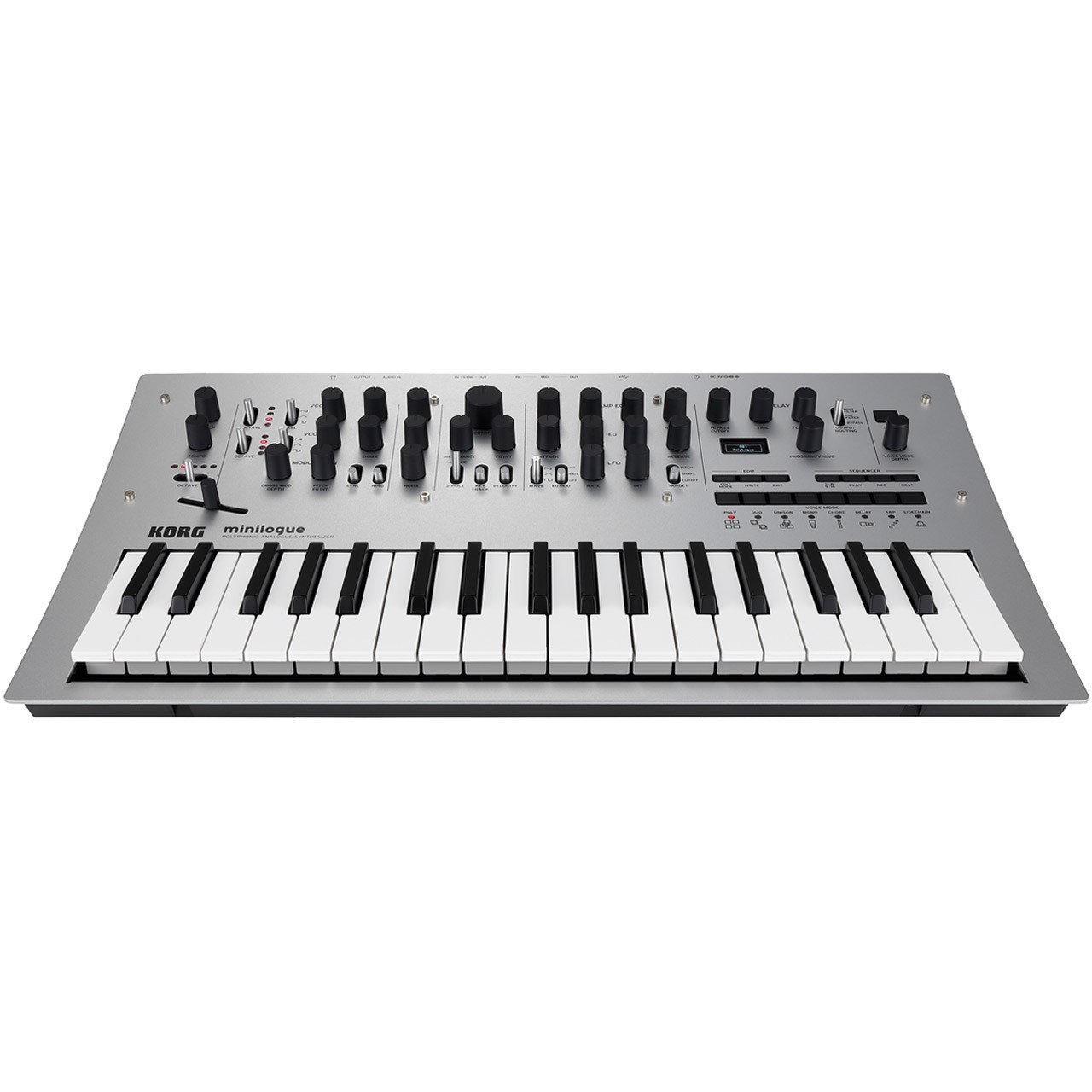

    Korg Minilogue Polyphonic Analogue Synthesizer

    8 In Stock

    The Korg Minilogue is a polyphonic analog synthesiser released and displayed during NAMM 2016! Stylish and elegant design, this 37 keyboard synthesizer is sure to excite producers, sound designers and musicians alike. In short, it's the latest from Korg in the synth domain - a newly designed circuit allowing polyphony and programability! The Korg Minilogue Polyphonic Analogue Synthesizer also boasts a range of other features including a step sequencer, FX and multiple filters to seamlessly create your own sounds and textures.




      • KORG MINILOGUE PRODUCT FEATURES:

        With the minilogue, you can get your hands on the powerful sound that's only possible with real analog, and find inspiration with features including a polyphonic step and motion sequencer, on board tape-style delay, multiple sound shaping and filter options, and an oscilloscope display. All of these seamlessly integrated features make minilogue as fun and easy to use as it is powerful. It's the next-generation analog synthesizer for musicians of all types.

        Flexible, powerful four-voice analog synthesizer

        Fully programmable, with 200 program memories (100 sounds included)

        Voice Mode lets you flexibly configure the four voices

        Automatable 16-step polyphonic note and motion sequencer

        Oscilloscope function shows the waveform visually

        Rugged and stylish with aluminum top panel, chassis-mounted pots, rubber-coated knobs, and real wood back panel

        MIDI, USB MIDI, and Audio Sync for all types of in-studio and live connectivity, including direct sync with SQ1, volca, electribe, and more

      • KORG MINILOGUE TECHNICAL SPECIFICATIONS:

        Keyboard
        37-keys (Slim-key, velocity sensitive)

        Sound Generation
        Analog synthesis

        Maximum Polyphony
        4 voices

        Program
        200 programs (100 Presets / 100 Users)
        Each program includes voice mode and sequence data settings
        Up to eight favorite programs can be registered

        Voice Modes
        8 modes (Poly, Duo, Unison, Mono, Chord, Delay, Arp, Side Chain)
        VOICE MODE DEPTH can vary different parameters in each mode

        Main Synthesis Parameter

        VCO1
        Octave, Wave (Saw, Triangle, Square), Pitch, Shape
        VCO2
        Octave, Wave (Saw, Triangle, Square), Pitch, Shape
        VCO2 MODULATION
        Cross Mod Depth, Pitch EG Int, Sync, Ring
        MIXER
        VCO1, VCO2, Noise
        FILTER
        Cutoff, Resonance, EG Int, Filter Type (2-Pole, 4-Pole), Keytrack, Velocity
        AMP EG
        Attack, Decay, Sustain, Release
        EG
        Attack, Decay, Sustain, Release
        LFO
        Wave (Saw, Triangle, Square), EG Mod (Int, Rate, Off), Rate, Int, Target (Pitch, Shape, Cutoff)
        DELAY
        Hi Pass Cutoff, Time, Feedback, Output Routing (Post Filter, Pre Filter, Bypass)

        Sequencer
        16-step polyphonic sequencer
        Motion sequence can be used on up to four parameters

        Controls
        41 dedicated panel controls deliver immediate parameter access
        A slider can control different parameters for each program

        Display
        Real-time OLED oscilloscope provides visual feedback of parameter changes

        Connectors
        Headphones (6.3mm stereo phone jack)
        Output (6.3mm monaural phone jack)
        Audio In (6.3mm monaural phone jack)
        Sync In (3.5mm monaural mini jack)
        Sync Out (3.5mm monaural mini jack)
        MIDI In
        MIDI Out
        USB Type B

        Power Supply
        AC adapter (DC9V) KA350

        Power Consumption
        8 W

        Dimensions (W x D x H)
        500 x 300 x 85 mm / 19.69" x 11.81" x 3.35"

        Weight
        2.8 kg / 6.17 lbs.

        Included Items
        AC adapter

        * All product, company, and standard names are trademarks or registered trademarks of their respective holders.
        * Appearance and specifications of products are subject to change without notice.

    Need more info on the MINILOGUE? Click HERE for the official KORG product listing >>>
