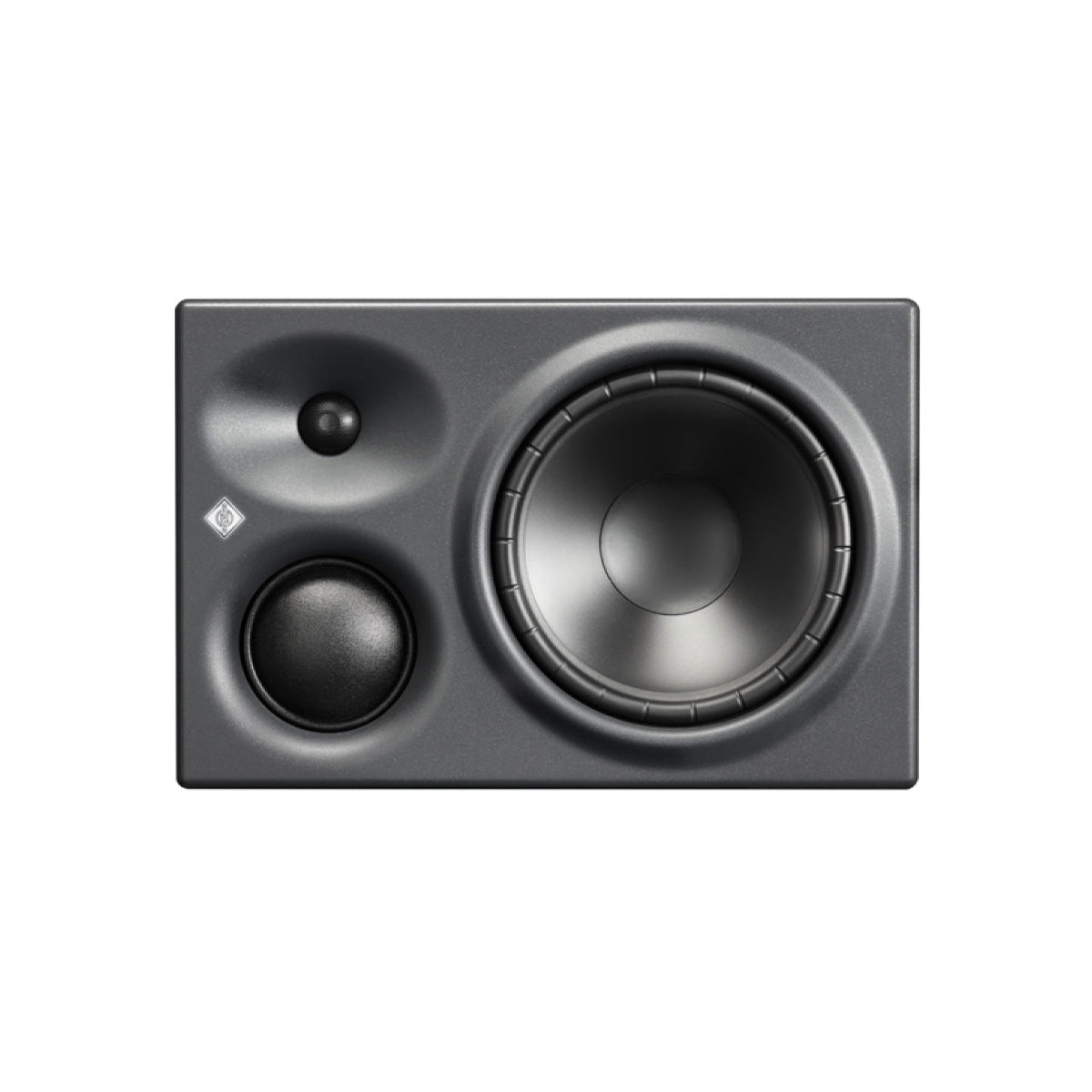

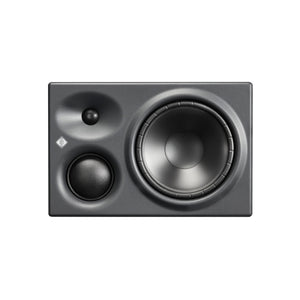

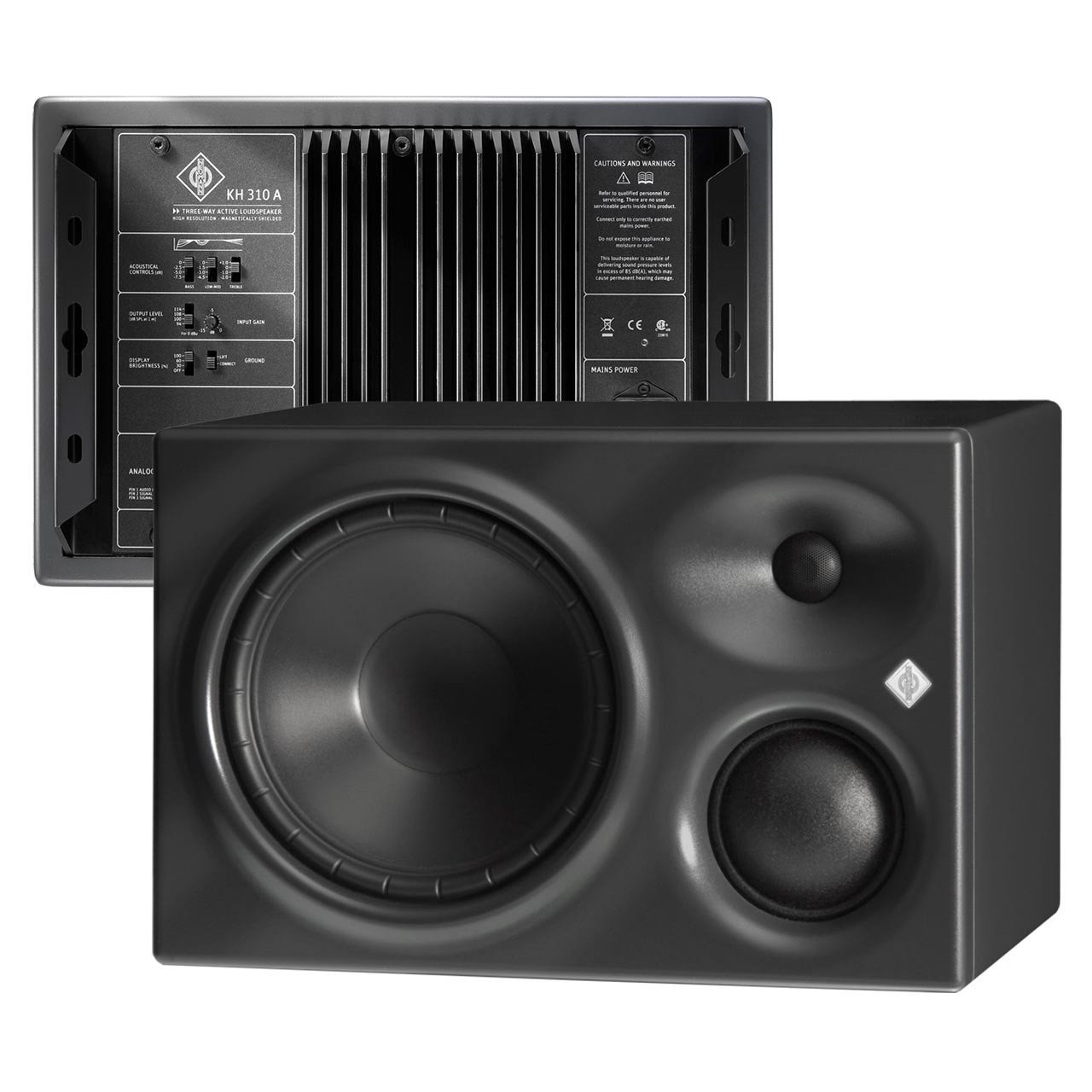

Neumann KH 310 A - Active Studio Monitor (Right)

Neumann KH 310 PRODUCT FEATURES:

The KH 310 is designed for use as a near-field monitor, as a front loudspeaker in mid-sized multi-channel systems, or as a rear loudspeaker in a larger multi-channel system. It can be used in project, music, broadcast centers, OB vans, and post production studios for tracking, mixing, and mastering.

Neumann KH 310 TECHNICAL SPECIFICATIONS:

(1) In-house simulated tweeter with alloy fabric dome and robust metal grille

• Latest modeling techniques used to minimize non-linear (harmonic and intermodulation) distortion
• Low-distortion high frequency reproduction
• Grille protects against mechanical damage

(2) Elliptical Mathematically Modelled Dispersion™ (MMD™) waveguide

• Smoother off -axis response
• More forgiving of diverse acoustical environments

Wide horizontal dispersion

• Freedom of movement across the mixing console

Narrow vertical dispersion

• Reduces reflections off the mixing console

(3) Two-color + dimmable Neumann logo

• Displays operation status and activation of the extensive protection system
• Dimmable for low lighting level conditions or behind the screen applications

(4) In-house simulated, neodymium magnet, fabric dome, midrange driver with optimized low stray magnetic field

• Dedicated driver reproduces important midrange frequencies for speech and vocals
• Latest modeling techniques used to minimize non-linear distortion
• Light-weight dome has better transient response and less breakup modes than cone designs
• High power magnet reduces harmonic and intermodulation distortion

(5) In-house modelled long-throw composite sandwich cone bass driver with Extremely Linear Force Factor™ (ELFF™), magnetic shielding and flow optimized die cast basket

• Damping of break up modes brings low distortion at high sound levels
• Linear pistonic motor gives a very low harmonic distortion even at high excursions
• Reduced air noise and improved rocking modes

(6) Compact cabinet

• Robust package for a long life
• No standing wave resonances

One-piece front panel with no discontinuities

• Reduced diffraction and smoother frequency response

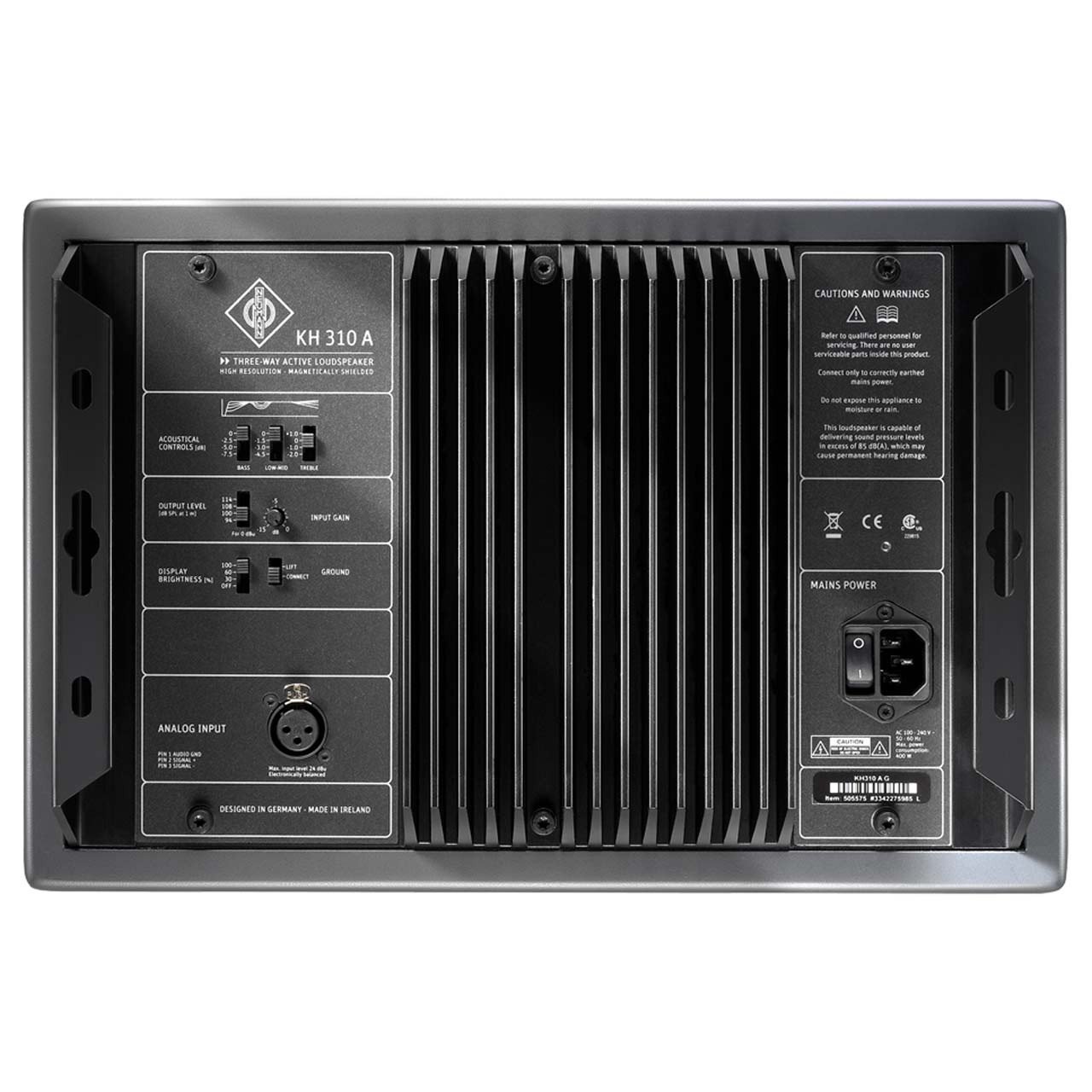

(7) 4-position bass, low-mid and treble acoustical controls

• More control in diverse acoustical environments
• Fast acoustical set up in mobile applications
• Repeatable acoustical settings after moving loudspeakers

(8) Wide range input gain and output level controls

• Easier interfacing with signal sources

(9) Display dimmer and ground lift

• For low lighting level conditions or behind the screen applications
• Reduced noise in electrically noisy environments and over-comes ground loops

(10) XLR electronically balanced analogue input

• Standard interfacing to professional equipment

(11) Universal switched-mode power supply (100 … 240 V)

• One version works in any country and robust to poor quality mains supply

(12) Fully documented extensive mounting hardware range

• More flexibility in mounting cabinets in more diverse locations and backwards compatible to previous products
• Easy advanced planning for installations

(13) Powerful amplifiers with large headroom and overheat limiting

• Improved transient response
• Assured reliability and safety

Separate fast acting thermo limiters for woofer, midrange and tweeter to protect the voice coils and power amplifiers

• Woofer soft clip and excursion limiters
• Increases system reliability
• Allows extraction of the maximum performance

More Features

Production consistency due to individual hand alignment in final testing

• Any KH 310 is “pair matched” to any other KH 310

Optional robust metal grille

• Can be used to protect the drivers

Speaker Mounting Options

Check out the Precision by Triad-Orbit KH 310 speaker Mounting Guide
