60/SC3070L
Type: Active Studio Monitors

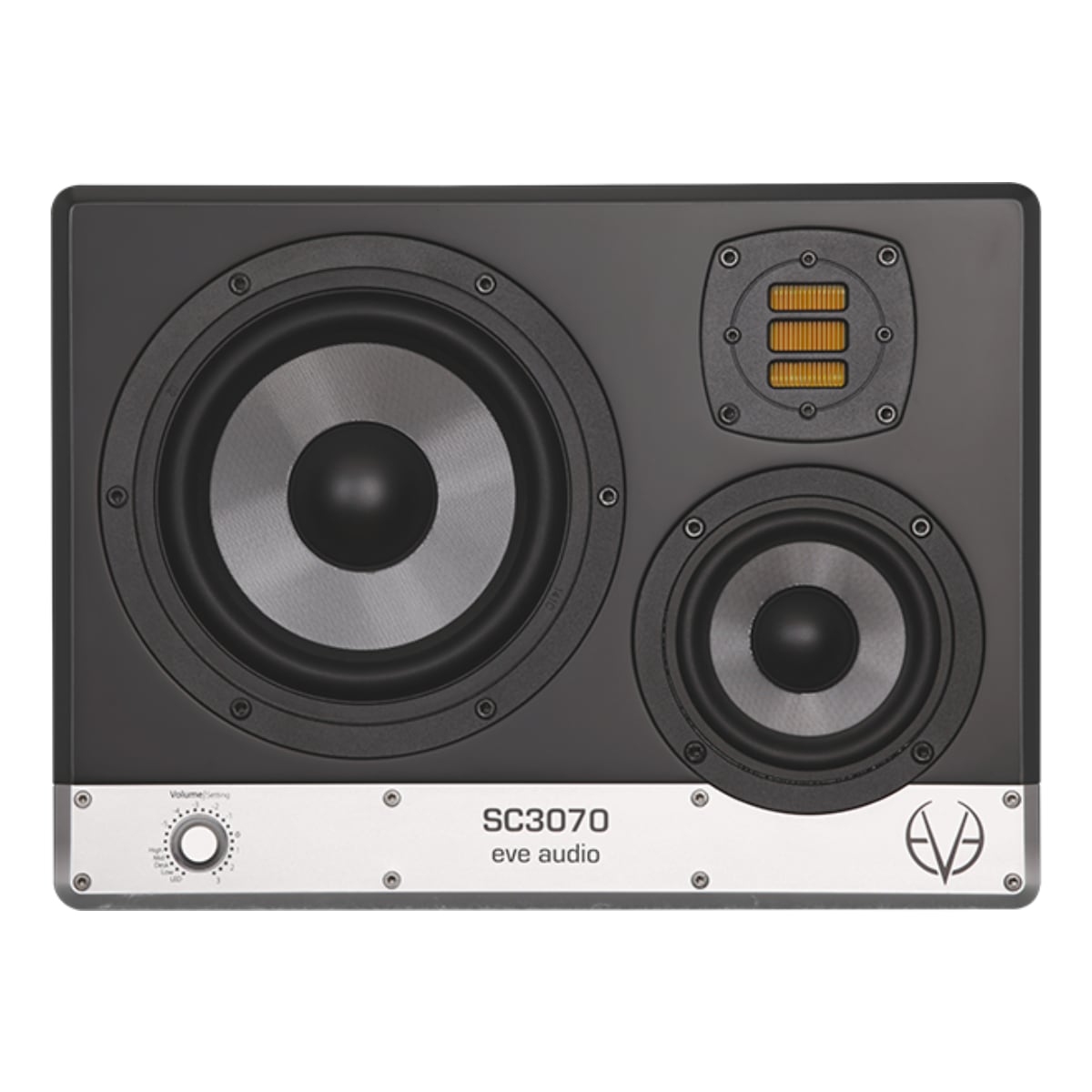

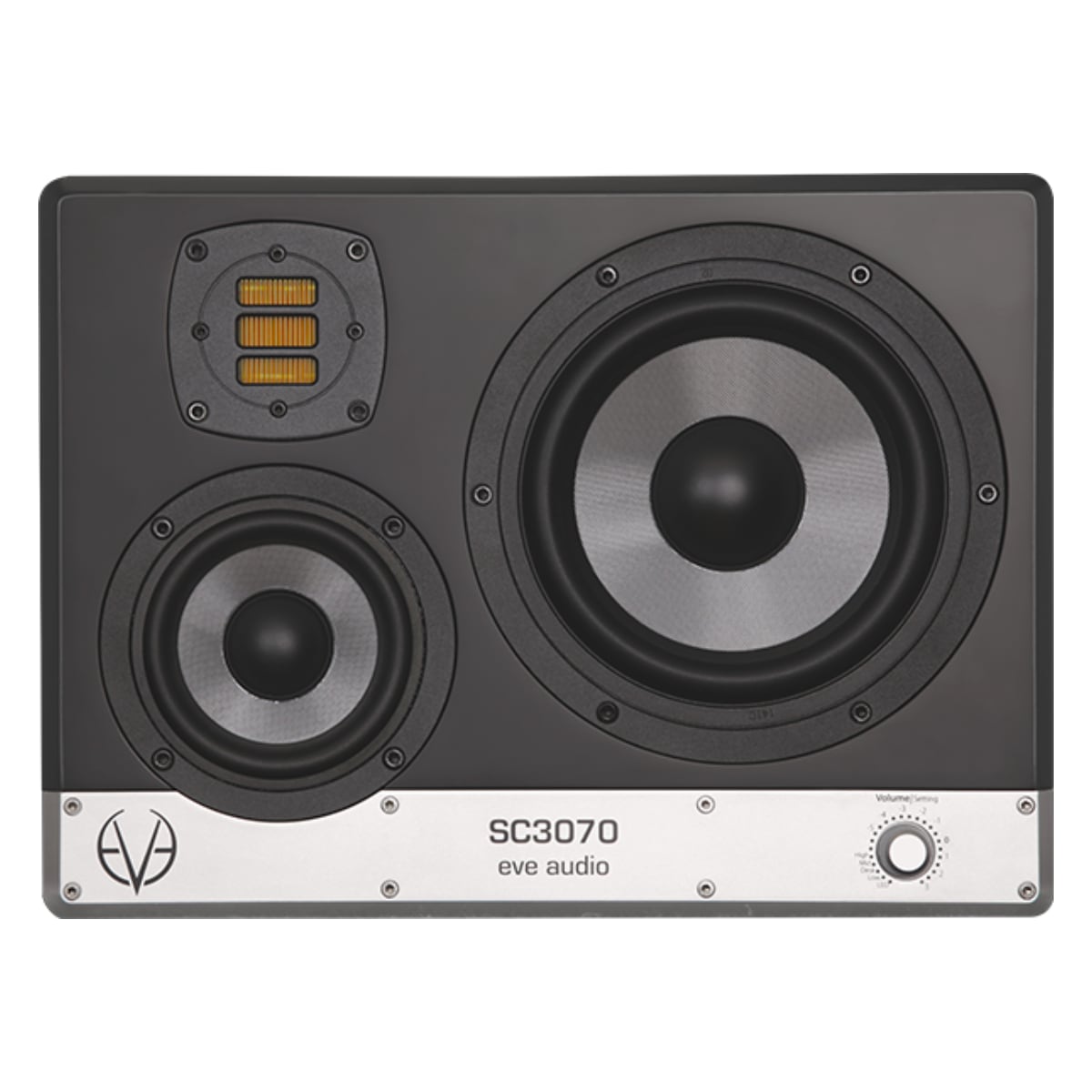

SC3070 is a high-resolution, tri-amplified near / midfield monitor optimized for precise midrange and powerful bass response, making it especially well-suited for applications where the complete skill set of a fully-fledged 3-way system is required, but where space is at a premium.
The SC3070 active reference studio monitor expands the existing range of main monitors with a smaller studio monitor. This 3-way model achieves the outstanding mid-range reproduction of the mid-high section our TEC Award-winning SC4070 is known for exceptional balance and low distortion over the entire frequency range but in a much more compact cabinet. The SC3070 is the ideal solution for recording, mastering and home studios.
Fully-fledged 3-way near / mid-field monitor
Our proprietary RS3 Air Motion Transformer for pristine high-frequency reproduction
4-inch glass-fibre honeycomb membrane woofer for clear midrange production with the utmost detail
7-inch low-frequency driver with glass-fibre coated honeycomb diaphragm for powerful bass response
the sophisticated cabinet that houses a bevelled ultra-stiff front plate to reduce unwanted resonances and diffraction
1 x 185 W Class D amplifier for SilverCone woofer
1 x 100 W Class D amplifier for SilverCone mid-range driver
1 x 50 W Class D amplifier for AMT
On the front volume and room eq control with a rotary knob for perfect integration into every listening environment
Dimmable LED ring
High-resolution 24bit/192kHz Burr-Brown A/D converter
Detachable grilles to protect A.M.T.
| Description | 3-way system |
|---|---|
| Dimensions (WxHxD) [mm] | 340 x 250 x 310 |
| Dimensions (WxHxD) ["] | 13.39 x 9.84 x 12.22 |
| Free-field frequency range (-3dB) | 35Hz - 21kHz |
| Tweeter | AMT RS3 |
| Midrange | 100mm/4" |
| Woofer | 165mm/6.5" |
| Cross-over frequency | 320Hz/2800Hz |
| Maximum SPL @ 1m | 110dB |
| Number of amplifiers | 3 |
| Output power (woofer) | 185W |
| Output power (mid-driver) | 100W |
| Output power (tweeter) | 50W |
| Protection limiter | yes |
| Settings | |
| Volume | -inf. - +6dB |
| High-shelf filter (-5dB - +3dB) | > 3kHz |
| Mid-EQ (-3dB - +3dB) | 1kHz |
| Desk filter boost (0dB - +3dB) | 80Hz |
| Desk filter cut (-5dB - 0dB) | 160Hz |
| Low-shelf filter (-5dB - +3dB) | < 300Hz |
| LED brightness setting | yes |
| Level-lock dip switch | yes |
| Filter-lock dip switch | yes |
| Input level dip switch | +7dBu/+22dBu |

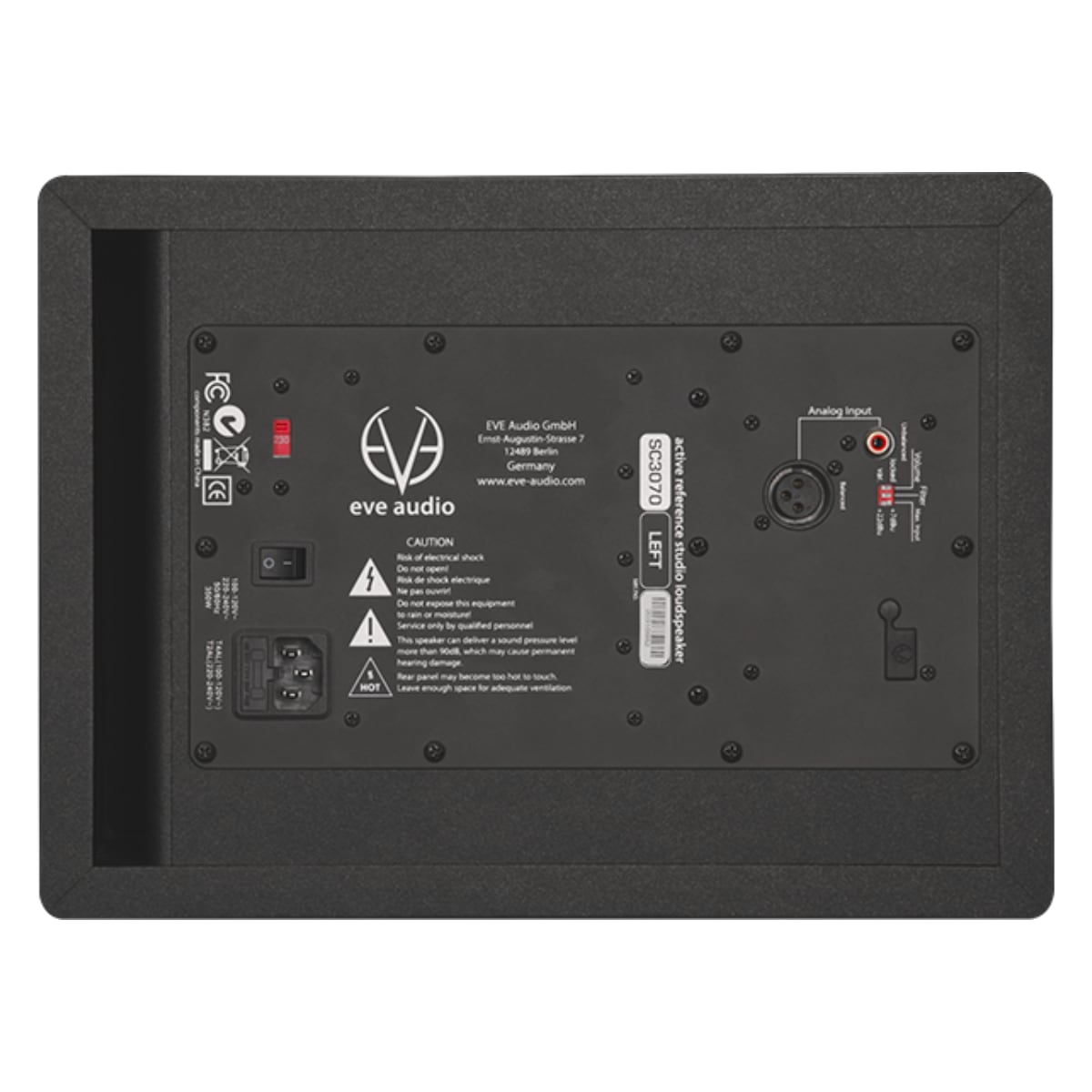

| Connectors | |
| XLR in (impedance) | yes (10k) |
| RCA in (impedance) | yes (10k) |
| Power consumption | |
| Standby | < 1W |
| Full output | 220VA |
| Misc. | |
| Weight kg/lb. | 9.8 / 21.6 |
