• 2 x EVO Mic Pres
• Class Leading Converters
• Smartgain
• Smart Touchpoints
• JFET Instrument Input
• Speaker Outputs
• Headphone Output
• Compatible with Mac, Windows and iOS

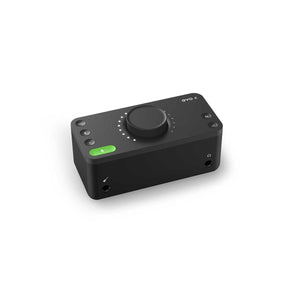

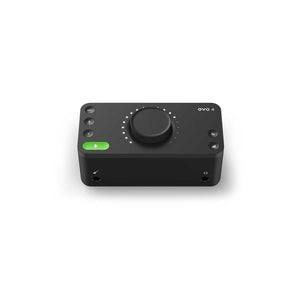

Capture your microphones and instruments and start recording audio directly to your computer. Packing two award winning EVO Mic preamps alongside our advanced converter technology, EVO 4 takes your audio seriously. Add to that intelligent mic preamps that set their own levels with Smartgain, easy to navigate controls, and a powerful range of professional must-have features – EVO 4 isn’t just another audio interface, it’s an entirely new way of doing things.
• Monitor Mix
• Monitor Pan
• Audio Loop-back
• USB2.0 Bus Powered
• Phantom Power
• DAW Controlled Mic Pre
• 24bit / 96kHz
• Free Software + Plugins
Microphone Preamplifier
| Mic Gain Range: | 58dB |
| Line Gain Range: | 58dB (-10dB pad) |
| Phantom Power: | 48v +/-4v @ 10mA/Channel |
| Mic EIN: | <-128dBu |
| CMRR: | >85dB @ 1kHz |
| Maximum Input Level: | +16dBu |
| Input Impedance (Mic): | >3kΩ Balanced |
| Input Impedance (Line): | >10kΩ Balanced |
| Frequency Response: | +/-0.5dB 10Hz to 40kHz |
| Crosstalk: | <-105dBu @ 1kHz & 10kHz |
| THD+N @ 0dBu (1kHz): | <0.0015% |
| SNR: | 100dB |
| XLR: | Pin 2 (Hot), Pin 3 (Cold) & Pin 1 (Shield) |
| 1/4” Jack: | TIP (Hot), RING (Cold) & SLEEVE (Shield) |
D.I
| D.I Gain Range: | 58 dB |
| Maximum Input Level: | +10dBu |
| Input Impedance: | 1MegΩ Unbalanced |
| Frequency Response | +/-0.5dB 10Hz to 20kHz |
| THD+N @ 0dBu (1kHz): | <0.3% |
| SNR: | 100dB |
| 1/4” Jack: | TIP (Hot) & SLEEVE (Shield) |
ADC Inputs
| Digital Reference Level: | 0dBFS = +8dBu |
| Frequency Response: | +/-0.5dB 10Hz to Fs/2 |
| Crosstalk: | -105dBu @ 1kHz & 10kHz |
| THD+N @ -1dBFS (1kHz): | <0.001% |
| Dynamic Range: | 113dB A-weighted |
DAC Outputs
| Maximum Output Level: | +11dBu |
| Digital Reference Level: | 0dBFS = +11dBu |
| Output Impedance: | <100Ω Balanced |
| Frequency Response: | +/-0.5dB 10Hz to Fs/2 |
| Crosstalk: | <-110dBu @ 1kHz |
| THD+N @ -1dBFS (1kHz): | <0.0015% |
| Dynamic Range: | 113dB A-weighted |
| 1/4” Jack: | TIP (Hot), RING (Cold) & SLEEVE (Shield) |
Headphone Output
| Output Impedance: | <50Ω |
| Frequency Response: | +/-0.5dB 10Hz to Fs/2 |
| Crosstalk: | -110dBu @ 1kHz |
| THD+N @ -1dBFS (1kHz): | <0.0015% |
| Dynamic Range: | 113dB A-weighted |
| Max Level Into 30ohms: | +0.5dBu, 0.0025% THD+N, 1.16Vpk Power: 45mW |
| Max Level Into 60ohms: | +4.22dBu, 0.0015% THD+N, 1.78Vpk Power: 52mW |
| Max Level Into 600ohms: | +10.1dBu, 0.0018% THD+N, 3.52Vpk Power: 20mW |
| 1/4” Jack: | TIP (Left), RING (Right) & SLEEVE (Shield) |
DSP Mixer Roundtrip Latency:
(in to out)
| 44.1 kHz | 0.594ms |
| 48.0 kHz | 0.552ms |
| 88.2 kHz | 0.302ms |
| 96.0 kHz | 0.281ms |
DAW Playback Latency
@ 32 Sample Buffer for Software Instrument Playback
| 44.1 kHz | ~2.5ms |
| 96.0 kHz | ~2ms |
DAW Roundtrip Software Monitoring Latency
@ 32 Sample Buffer (in to out)
| 44.1 kHz | 5ms |
| 96.0 kHz | 4.1ms |
Latency – performance may vary as stability at these low buffer sizes is dependant on many factors including CPU load, operating system and performance of other drivers.
USB 2.0 High Speed
| No. Of Input Channels | 2 Analogue |
| No. Of Output Channels | 2 Analogue |
| Connector: | USB Type-C |
| Included Cables: | 1m USB 2.0 Type-C to USB Type-A |
Weight & Dimensions
| Weights: | Unit: | 360g |
| Packaged: | 600g | |
| Dimensions: | Unit: | 140mm (w) x 67mm (h) x 67mm (d) |
| Packaged: | 172mm (w) x 88mm (h) x 97.5mm (d) |
