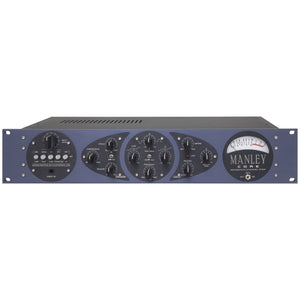

Manley CORE Reference Channel Strip

Notify me when this product is available:

The Manley CORE is a tube mono channel strip that incorporates some of Manley’s legacy technology with a fresh new approach. Manley CORE has been designed to be musician-user-friendly - allowing a single performer to record and play at the same time with ease. Manley CORE features a mic/line or instrument input with an insert point, and direct or main output. Phase invert, phantom power and high pass filter. The Manley CORE also features Manley’s ELOP™ compressor - found on the iconic VOXBOX. The Manley CORE is hand built in California.


    • Manley CORE PRODUCT FEATURES:

      Manley’s experience and insight working with the industry’s top recording engineers and musicians culminates in the CORE. At this price, there is no other channel-strip with higher headroom or more seductive sound than the CORE. Handcrafted in the USA, built like a tank, built to endure, the epicenter of your recorded art will be the Manley CORE.

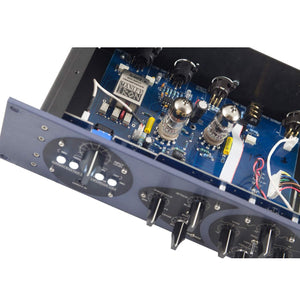

      The signal enters through our renowned hand-wound MANLEY IRON® input transformer with nickel laminations in a mu-metal can. The tube amplifying stage is the latest implementation of our famous Class A circuit topology found in the VOXBOX® and Manley Dual Mono & Mono Microphone Preamplifiers. This all-triode vacuum tube circuit runs on a regulated 300 Volt B+ supply yielding huge headroom and relentless output drive capability
    • Manley CORE TECHNICAL SPECIFICATIONS:

      ALL-TUBE preamplifier audio path using 1 x 12AX7 for gain and 1 x 6922 White Follower
      Balanced Transformer Coupled XLR Microphone Input Impedance: 1200 Ohms
      Balanced XLR Line Input Impedance: 10 kOhms
      Unbalanced 1/4" Direct Input Impedance: 10 Meg Ohm
      Hi-current drive Direct XLR output Impedance: 50 Ohms

      Two Independent Sections: MIC PRE
      Frequency Response: ±1dB 20Hz - 60K
      Noise Floor (A-wgt): -86 dB
      Signal to Noise Ratio: 113 dB
      Tube complement: 12AX7 & 6922
      Gain: 40 to 60 dB

      Two Separate Dynamic Processors: COMPRESSOR
      Ratio: 3:1
      Maximum Reduction: 16 dB
      Attack Times: 4mS to 70mS
      Release Times: 0.3 to

      Physical:
      Dimensions: 19" x 3 1/2" x 7" (occupies 2u)
      Unit Weight: 8.3 lbs.
      Shipping weight: 11.5 lbs.
