Apogee raise the bar with Symphony I/O Mk II 2×6 Configuration

January 24, 2018 3 min read

Apogee raise the bar with Symphony I/O Mk II 2×6 Configuration

Buy Now - Symphony I/O Mk II 2×6 Pro Tools
Buy Now - Symphony I/O Mk II 2×6 Thunderbolt

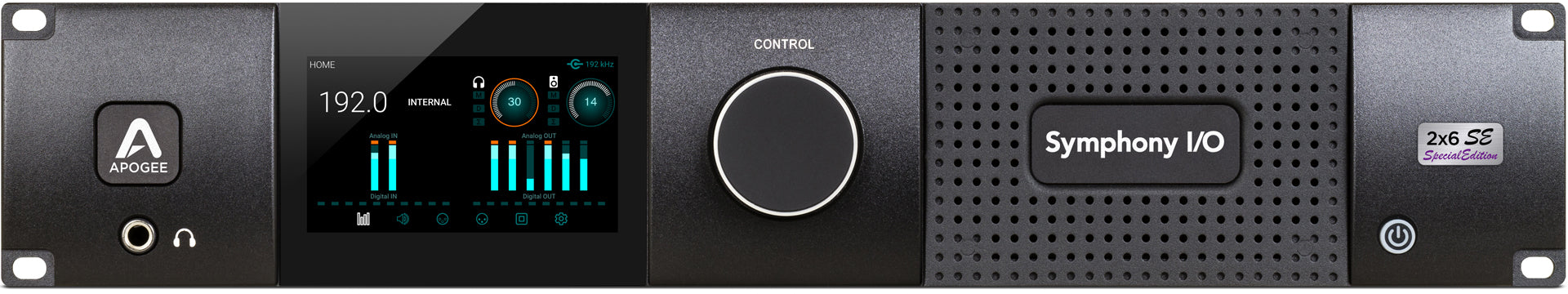

Apogee  have done it again and raised the bar very high indeed with the Symphony I/O Mk II 2×6 Special Edition that offers the highest quality AD/DA conversion of the Symphony series.
Designed specifically for mastering engineers whose critical work demands ultimate sonic performance, 2×6 SE takes advantage of the latest advancements in digital and analog audio technology to offer inputs with 124 dB (A) of dynamic range, THD+N of -116dB and outputs with 131dB (A) dynamic range and an astonishingly low THD+N of -118dB. We dare you to compare these specifications to our competitors – 2×6 SE’s combined specs outperform just about any AD/DA converter available today.
What sets the Symphony I/O Mk II 2×6 apart is it's it's 3 configurations.

The Symphony I/O Mk II 2×6 SE is available preconfigured for Thunderbolt or Pro Tools HD or it can be purchased as an expansion module for any existing Mk II configuration.
There's also an the  option for Waves Sound Grid Network.
This is a beast and follows in Apogee"s tradition of high quality audio interfaces.

Specs for Thunderbolt configuration.

INPUTS

  • Analog IN: 2 balanced inputs on 2 female XLR connectors
  • AES IN: Stereo input on 1 female XLR connector
  • Optical IN: Supports ADAT, SMUX & S/PDIF
    • ADAT: 8 channels 44.1-48 kHz on 1 Toslink connector
    • SMUX: 4 channels 88.2-96 kHz on 1 Toslink connector
    • S/PDIF: 2 channels, up to 96 kHz on 1 Toslink connector
  • S/PDIF Coax IN: 2 channels, up to 192 kHz on 1 RCA connector

OUTPUTS

    • Analog OUT: 6 balanced outputs on 1 DSUB 25-pin connector
    • AES OUT: Stereo output on 1 male XLR connector
    • Optical OUT: Supports ADAT, SMUX & S/PDIF
      • ADAT: 8 channels 44.1-48 kHz on 1 Toslink connector
      • SMUX: 4 channels 88.2-96 kHz on 1 Toslink connector
      • S/PDIF: 2 channels, up to 96 kHz on 1 Toslink connector
    • S/PDIF Coax OUT: 2 channels, up to 192 kHz on 1 RCA connector

  • Connection:

    • Thunderbolt cable (Sold separately)

    Performance:

    • 44.1kHz – 192kHz
    • Latency: 1.35 ms with Logic Pro X (96 kHz / 32 buffer)

    Computer:

    • Thunderbolt-enabled Mac computer, including Mac Pro, MacBook Pro, Mac mini, iMac & MacBook Air
    • Operating System: Mac OS 10.9.5 or greater

    Control:

    • Maestro app (included in software installer) and front panel touchscreen

    Compatible Software:

    • Logic Pro X
    • Any Core Audio application on Mac

 Specs for ProTools configuration

INPUTS

  • Analog IN: 2 balanced inputs on 2 female XLR connectors
  • AES IN: Stereo input on 1 female XLR connector
  • Optical IN: Supports ADAT, SMUX & S/PDIF
    • ADAT: 8 channels 44.1-48 kHz on 1 Toslink connector
    • SMUX: 4 channels 88.2-96 kHz on 1 Toslink connector
    • S/PDIF: 2 channels, up to 96 kHz on 1 Toslink connector
  • S/PDIF Coax IN: 2 channels, up to 192 kHz on 1 RCA connector

OUTPUTS

  • Analog OUT: 6 balanced outputs on 1 DSUB 25-pin connector
  • AES OUT: Stereo output on 1 male XLR connector
  • Optical OUT: Supports ADAT, SMUX & S/PDIF
    • ADAT: 8 channels 44.1-48 kHz on 1 Toslink connector
    • SMUX: 4 channels 88.2-96 kHz on 1 Toslink connector
    • S/PDIF: 2 channels, up to 96 kHz on 1 Toslink connector
  • S/PDIF Coax OUT: 2 channels, up to 192 kHz on 1 RCA connector

Connection:

  • Pro Tools HD Core card
  • Pro Tools Accel PCI card
  • Pro Tools HD Native PCI card
  • Pro Tools HD Native Thunderbolt
  • Pro Tools HDX PCI card
