The Dangerous D-BOX+ is a ground-up dramatic redesign of the award-winning controller and summing mixer that provided countless studios the superior sound and versatile control of an analog mixer, all in just one rack space. The newly designed 8-channel summing mixer and D-A stereo converter provide Dangerous Music’s bold and clear sound, while newly added features like Bluetooth A pretty bold move for a piece of equipment like this, and the ability to quickly listen to any number of input sources quickly, really is quite groundbreaking.


Dbox+ bluetooth

Like a large console’s center section, the D-BOX+ provides elaborate routing and switching of your studio’s inputs and outputs, both analog and digital. At the push of a button, you can select from five input sources: analog stereo, the onboard analog summing mixer, USB, AES/SPDIF and—brand new for the D-BOX+—a wireless Bluetooth stream from any Bluetooth-enabled device. Outputs include three stereo speaker ports, and these can be programmed to be mono and/or to include a subwoofer. Further, you can use output 3 as a source for an independent sub with individual level and mute control.

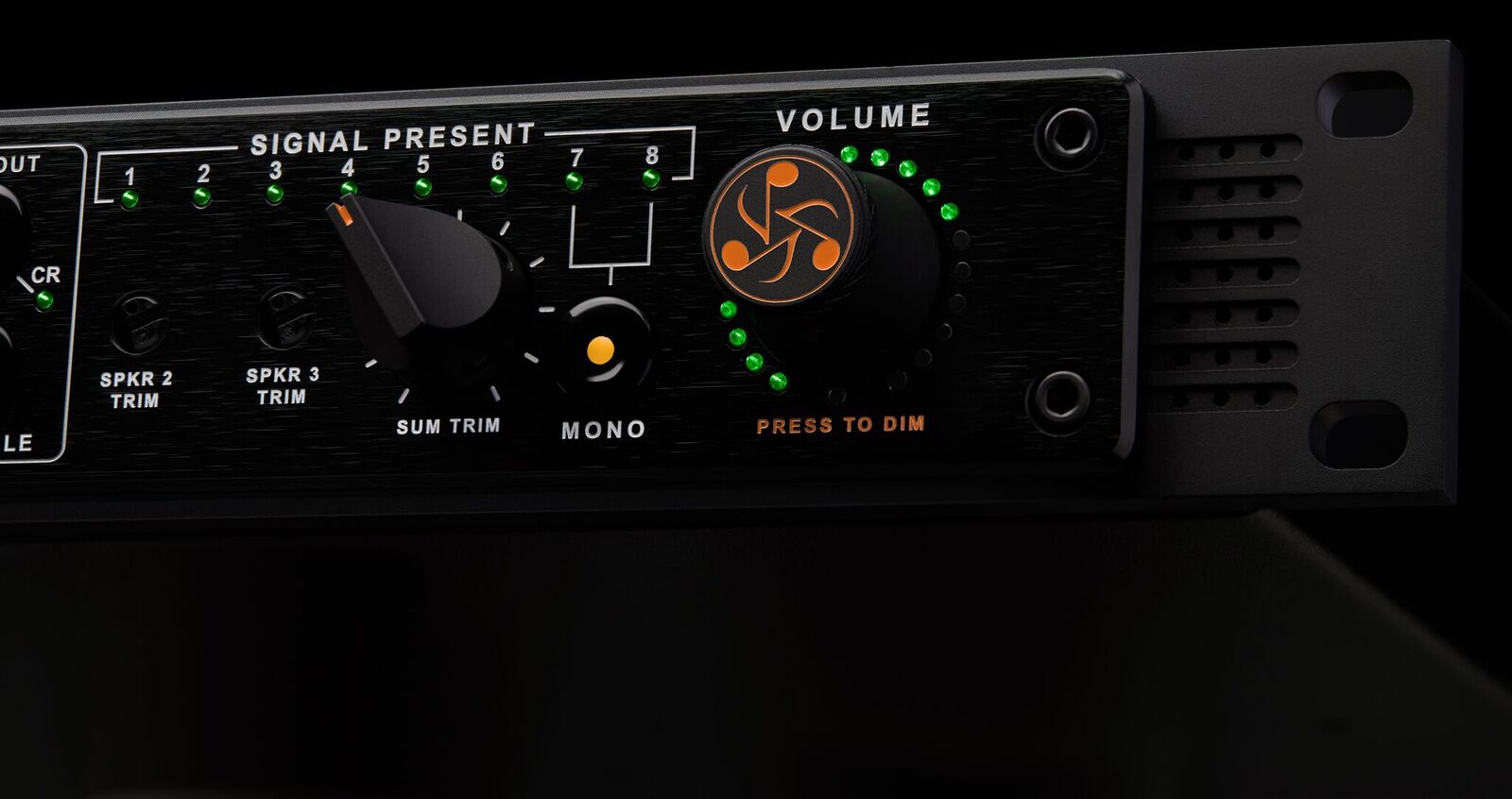

Dbox+ front

Any studio situation, but especially tracking sessions, call for independent monitor routing for artist and engineer. With the D-BOX+ you have two totally independent monitoring sections: Control Room and Headphones. With the simple push of a button, you can assign any of the five input sources to either of these monitoring paths, making what would otherwise be elaborate patches into instant choices. Want to check on your monitors what your artist is hearing in their headphones? Seamless source switching is simple.



Dbox+ back



FEATURES
Newly upgraded 8-channel analog summing mixer delivers enormous soundstage and superior sonic impact
Five analog and digital inputs at your fingertips (analog stereo, analog sum, USB, AES/SPDIF, Bluetooth)
Bluetooth wireless audio streaming
Free D-BOX+ app offers remote control of all major functions (volume, dim, talkback, I/O select, and more)
The dedicated app runs on current macOS, Windows, IOS and Android devices and computers
Driverless USB connectivity for macOS; simple USB driver installation for Windows
Onboard talkback mic with push-button activation (on the front panel or remotely from the app)
Dual best-in-class headphone amplifiers with independent source selection and level control (front panel or app)
Three independent speaker outputs (selected from the front panel or from the app)
Programmable speaker selector allows for dedicated mono and/or sub inclusion on all outputs.

Specs

SUMMING SECTION
Frequency Response Flat within 0.1dB from 10Hz to 50kHz
THD+N @ +4dBu 0.0019%
IMD 0.0020%
Crosstalk Rejection >114dB @ 1kHz
Noise floor @ unity gain 22Hz to 22kHz <-90dBu Maximum Input Level +27dBu

SELECTED LINE OUTPUT
Frequency Response Flat within 0.5dB from 10Hz to 50kHz
THD+N @ +4dBu 0.0027%
IMD 0.0027%
Crosstalk Rejection >110dB @ 1kHz
Noise Floor 22Hz to 22kHz <-89dBu Maximum Input Level +26dBu

MONITOR SECTION
Frequency Response Flat within 0.5dB from 10Hz to 50kHz
THD+N @ +4dBu 0.0049%
IMD 0.0090%
Crosstalk Rejection >106dB @ 1kHz
Volume off signal rejection >120dB
Noise floor at unity gain 22Hz to 22kHz <-90dBu

USB & AES DACS, MEASURED AT 96KHZ SAMPLE RATE:
Frequency Response Flat within 0.5dB from 10Hz to 30kHz
THD+N @ -14dBfs 0.0027%
Crosstalk Rejection >115dB @ 1kHz
Dynamic Range >106dB

HEADPHONE AMPS:
4-ohm minimum load per amplifier (6-8 pairs of typical studio dynamic headphones)
Power Output 3 Watts / Channel
THD+N 0.0066%
Crosstalk Rejection >100dB
