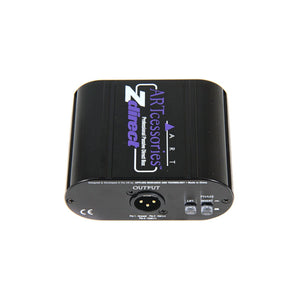

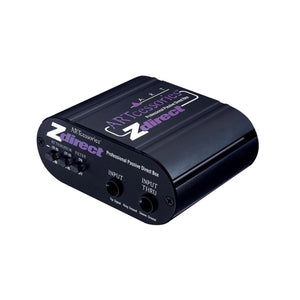

ART ZDirect Professional Passive Direct Box

ART ZDirect PRODUCT FEATURES:

Fully passive, high-performance transformer design. No battery required.

Converts 50k ohm inputs into 600-ohm balanced outputs

• Switchable input attenuation (0, -20, -40 dB) Switchable low pass filter

• Switchable phase invert

• Switchable ground lift (fully isolates inputs from chassis and outputs)

• XLR connectors for balanced outputs

• Rugged extruded aluminum case

ART ZDirect TECHNICAL SPECIFICATIONS:

• Frequency Response: 10Hz -50kHz, +/-.5dB @ +4dBu

• Total Harmonic Distortion: .01% Typical @ 1kHz, +18dBu, <.05% @ 100Hz, +18dBu

• Input Connections: ¼ - inch TRS unbalanced, 50k Ω

• Output Connections: XLR male balanced, 600 Ω

• Output Phase: Switchable, Normal/Invert

• Ground Lift: Switchable, fully isolates inputs from chassis and output

• Input Attenuation: Switchable, (0dB, -20dB, -40dB)

• Filter Type / Response: Switchable, Low Pass, -3dB @30kHz

• Dimensions: 1.75"H x 4.2"D x 3.5"W (44.5mm x 107mm x 89mm)

• Weight: 0.75 lbs (0.35 kg)
