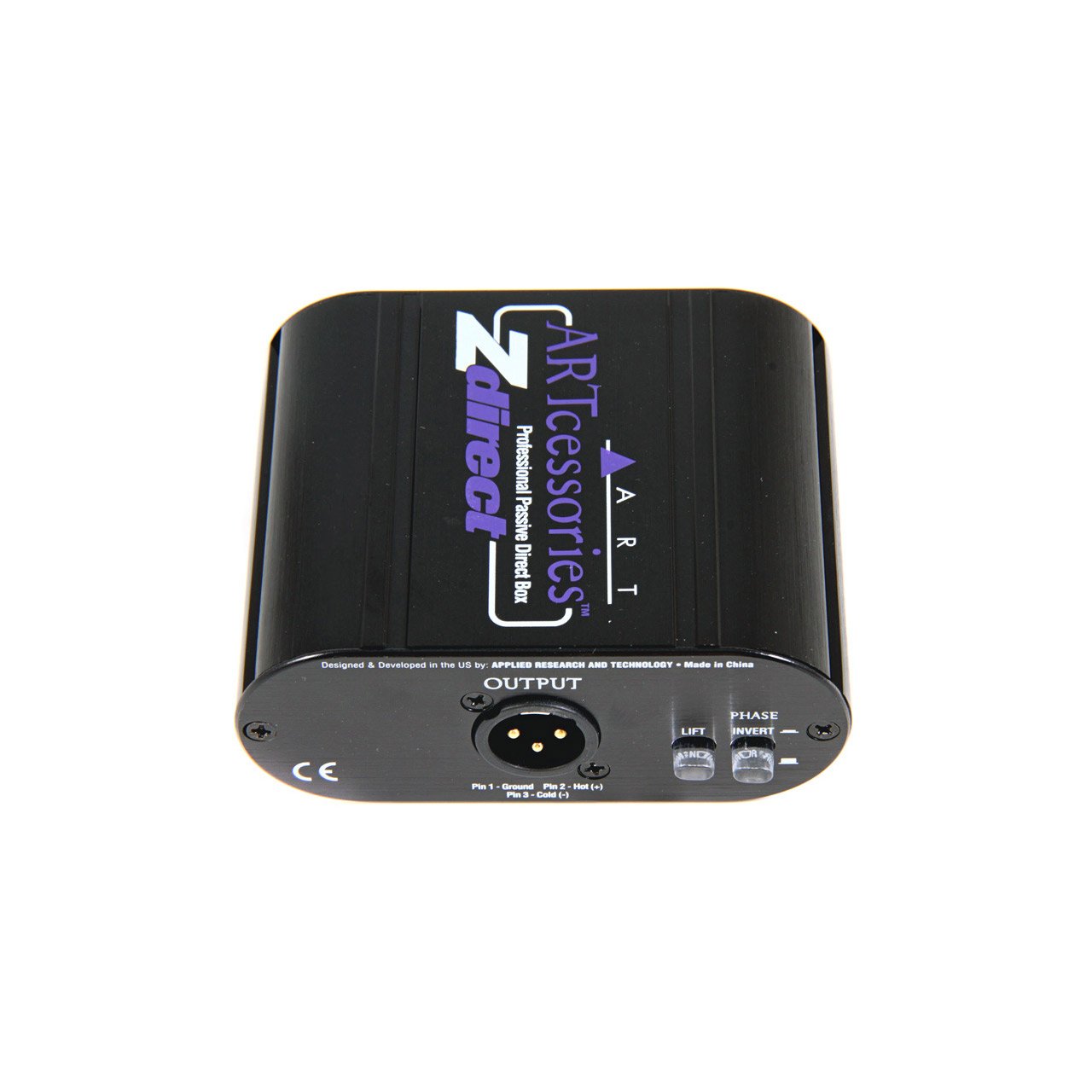

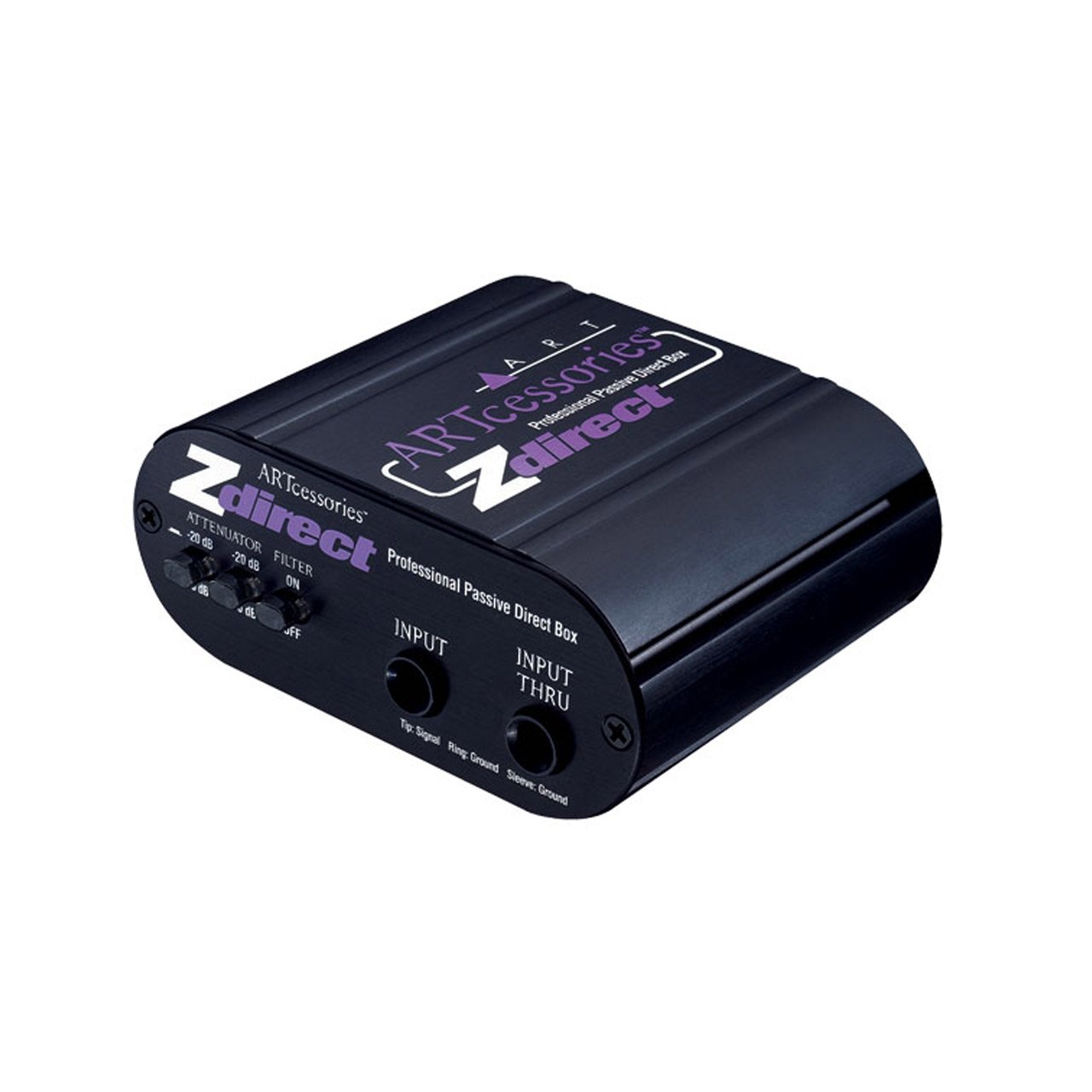

    ART ZDirect Professional Passive Direct Box

    7 In Stock

    The ART Zdirect is a passive DI box that converts 50k ohm input to a 600-ohm balanced XLR output. The Zdirect requires no additional power to operate and has a switchable attenuation pad that can be set at 0, -20, or -40 dB. There is also a ground lift switch and phase invert setting too.


    Fully passive, high-performance transformer design. No battery required.

    Converts 50k ohm inputs into 600-ohm balanced outputs

    • Switchable input attenuation (0, -20, -40 dB) Switchable low pass filter

    • Switchable phase invert

    • Switchable ground lift (fully isolates inputs from chassis and outputs)

    • XLR connectors for balanced outputs

    • Rugged extruded aluminum case


    • Frequency Response: 10Hz -50kHz, +/-.5dB @ +4dBu

    • Total Harmonic Distortion: .01% Typical @ 1kHz, +18dBu, <.05% @ 100Hz, +18dBu

    • Input Connections: ¼ - inch TRS unbalanced, 50k Ω

    • Output Connections: XLR male balanced, 600 Ω

    • Output Phase: Switchable, Normal/Invert

    • Ground Lift: Switchable, fully isolates inputs from chassis and output

    • Input Attenuation: Switchable, (0dB, -20dB, -40dB)

    • Filter Type / Response: Switchable, Low Pass, -3dB @30kHz

    • Dimensions: 1.75"H x 4.2"D x 3.5"W (44.5mm x 107mm x 89mm)

    • Weight: 0.75 lbs (0.35 kg)

    Need more info on the ART ZDirect? Click HERE for the manufacturer's website >>>
