PAL-PAN16

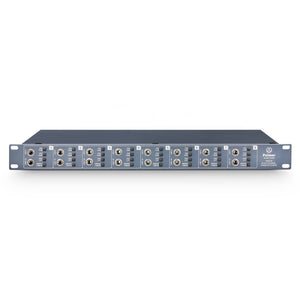

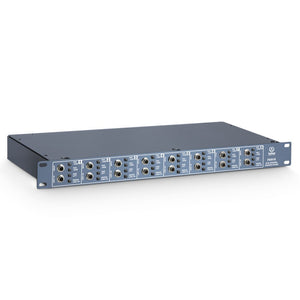

Palmer PAN 16 19" DI Box 8 Channels passive
The Palmer PAN16 is an 8 channel passive DI box in a 19" 1U rack format. Through the special MERGE LINK/IN function, the front LINK output can be used as a second input.The signal is then mono merged with the one from the INPUT jack through to the output. Thus, the PAN16 offers a maximum of 16 inputs. Two PAD buttons enable an attenuation of 10, 20 or 30 dB. The XLR outputs are electrically isolated and balanced via transformer. 8 additional LINK-sockets are also available on the rear panel of the device
Features
- Single space 8-channel rackmount microphone splitter

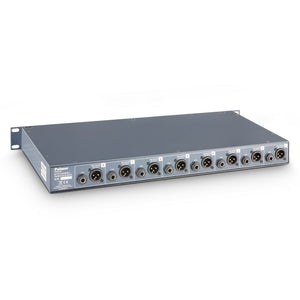

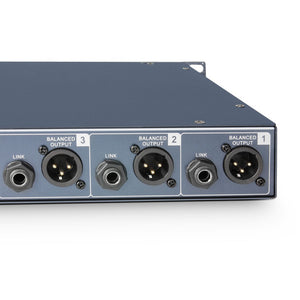

- Transformer isolated and direct outputs
- Channel pair link switches for doubling outputs or merging inputs
- Individual ground lift on each channel
- Suitable for phantom powered condenser microphones and DI boxes
Specifications
| Product type | DI Boxes |
| Type | passive |
| Channels | 8 |
| Inputs | 8 / 16 |
| Input connectors | 6.3 mm jack |
| Max. input level | + 54 dBu |
| Input impedance | (@ 60 Hz) 1 M Ohm(s) |
| Input pad | 0 / -30 dB |
| Outputs | 4 (+ 4 Parallel Thru out) |
| THRU outputs/channel | 2 |
| Output connectors | 6.3 mm jack, XLR |
| Max. output level | +4 dBu |
| Output impedance | 600 Ohm(s) |
| Frequency response | |
| Transformer balanced | Yes |
| Ratio | 10 : 1 |

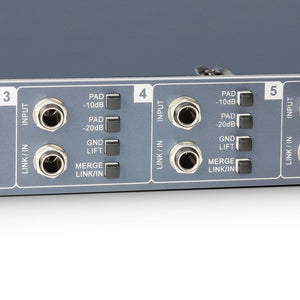

| Controls | ground lift, merge, PAD -10dB, PAD -20dB |
| Cabinet material | sheet steel |
| Cabinet surface | Powder coated |
| Width | 480 mm |
| Width | 19 " |
| Depth | 200 mm |
| Height | 45 mm |
| Height | 1 U |
| Weight | 2,39 kg |
Type: DI Boxes
